Parts for Force 25 HP (1997) Tiller Handle & Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 800-819240A 3 | Powerhead Assy (- required per assembly) |
  |
800-819240A 3 - Powerhead [ More info ] Unavailable |
|
  |
|
800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable |
| #1 | 851928 | SHAFT-Throttle Control (1 required per assembly) |
  |
|
851928 - Throttle Shaft [ More info ]
|
| #2 | 23-26841 | BUSHING (2 required per assembly) |
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #3 | FA343178 | RETAINER KIT-Steering Shaft (2 required per assembly) |
  |
|
FA343178 - Retainerwith Set Screw, NLA [ More info ] Unavailable |
| #4 | 10-832794 | SCREW-Set (.250-28 x .250) (2 required per assembly) |
  |
|
10-832794 - Screw -set [ More info ]
|
| #5 | 17-29908 | PIN-Roll (2 required per assembly) |
  |
|
17-29908 - Pin -roll - Priced Individually [ More info ]
|
| #6 | 43-818009 1 | GEAR-Steering Shaft (2 required per assembly) |
  |
|
43-818009 1 - Steering Gear [ More info ]
|
| #7 | 17-F1807 | PIN-Groove (1 required per assembly) |
  |
|
17-F1807 - Pin, Groove, NLA [ More info ] Unavailable |
| #8 | 10-823595 | SCREW-Pivot (1 required per assembly) |
  |
|
10-823595 - Screw, NLA [ More info ]
|
| #9 | 24-F286868 | SPRING-Steering Handle Stop (1 required per assembly) |
  |
|
24-F286868 - Spring-steering Handle Stop,NLA [ More info ]
|
| #10 | 23-26856 | BUSHING (2 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|
| #11 | F286490T | STOP-Steering Handle (1 required per assembly) |
  |
|
F286490T - Stop, NLA [ More info ]
|

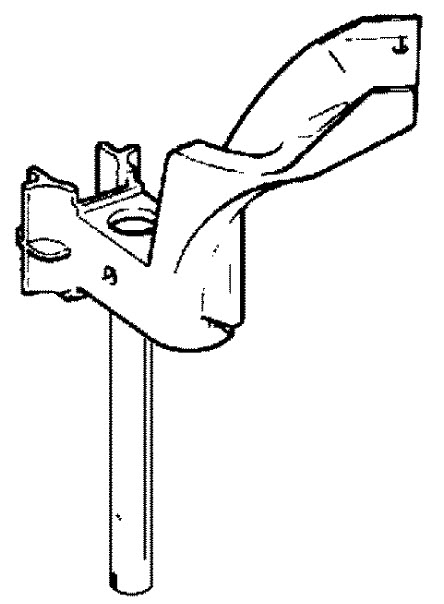

| #12 | 835373A 2 | BRACKET ASSEMBLY-Steering Arm (Painted) (1 required per assembly) |
  |
835373A 2 - BRKT ASSY-FORCE [ More info ] Unavailable |
|
  |
|
835373A11 - Bracket Assembly, Steering, NLA [ More info ] Unavailable |
| #13 | 10-828815 | SCREW (.250-20 x 1.750) (1 required per assembly) |
  |
|
10-828815 - Screw, NLA [ More info ]
|
| #14 | 19-F286539 | BUMPER (1 required per assembly) |
  |
|
19-F286539 - Plug [ More info ] Unavailable |
| #15 | 11-814101 | NUT (.250-20) (1 required per assembly) |
  |
11-814101 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
118M0207776 - NUT [ More info ]
|
| #16 | 13-72521 | LOCKWASHER (.312 Internal) (2 required per assembly) |
  |
|
13-72521 - LockWasher [ More info ]
|
| #17 | 10-38837 | SCREW (.312-18 x 1.125) (2 required per assembly) |
  |
|
10-38837 - Screw - Priced Individually [ More info ]
|
| #18 | F286224 1 | INSERT-Steering Handle Pivot (1 required per assembly) |
  |
|
F286224-1 - Insert, NLA [ More info ]
|
| #19 | 23-812707 | BUSHING (1 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #20 | 12-F286220 | WASHER-Steering Handle (2 required per assembly) |
  |
|
12-F286220 - Washer, Steering Handle [ More info ]
|

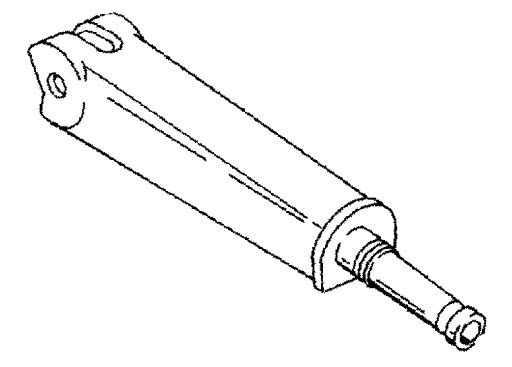

| #22 | 819279T | HANDLE-Steering (Painted) (1 required per assembly) |
  |
819279T - Handle -graph Gray C [ More info ] Unavailable |
|
  |
|
819279T 3 - Steering Handle -st/, NLA [ More info ]
|
| #23 | 25-21836 | O RING (LARGE) (1 required per assembly) |
  |
25-21836 - O-ring, (.796 X .139) [ More info ] Unavailable |
|
  |
|
25-8M0204645 - O RING [ More info ]
|
  |
|
18-7153-9 - (PK5) O-Ring 25-25439 [ More info ]
|
| #24 | 25-38101 | O RING (SMALL) (1 required per assembly) |
  |
|
25-38101 - O-ring, (.674 X .103) [ More info ]
|
| #25 | 37-F712894 | DECAL-Speed/Shift Indicator (1 required per assembly) |
  |
|
37-F712894 - Decal -Indicator, NLA [ More info ] Unavailable |

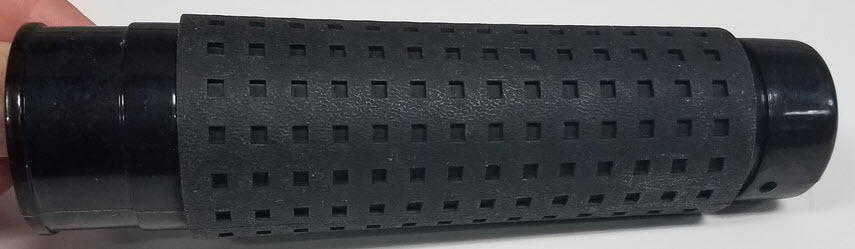

| #26 | 828406A 1 | HANDLE/GRIP ASSEMBLY-Throttle (1 required per assembly) |
  |
|
828406A 1 - Handle/Grip Assembly, NLA [ More info ]
|
| #27 | 828406 | GRIP-Throttle/Steering Handle (1 required per assembly) |
  |
|
828406 - Steering Handle Grip, NLA [ More info ]
|
| #28 | 17-72255 | PIN-Roll (1 required per assembly) |
  |
|
17-72255 - Roll Pin, Release Lever,NLA [ More info ]
|
| #29 | 819227 | WEDGE-Steering Handle (1 required per assembly) |
  |
|
819227 - Wedge, NLA [ More info ]
|
| #30 | 23-97896 | BUSHING (1 required per assembly) |
  |
|
23-97896 - Bushing [ More info ]
|
| #31 | 13-F8058 | LOCKWASHER (#10 Internal) (2 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #32 | 10-F1829 | SCREW (#10-24 x .875) (2 required per assembly) |
  |
|
10-F1829 - Screw -ss, NLA [ More info ]
|
| #33 | F487816 1 | BEARING-Steering Handle (1 required per assembly) |
  |
|
F487816-1 - Bearing, NLA [ More info ] Unavailable |
| #34 | 819160 | SHAFT-Steering Handle (1 required per assembly) |
  |
|
819160 - Steering Shaft,NLA [ More info ]
|
| #35 | 832759 | STOP-Throttle (1 required per assembly) |
  |
|
832759 - Throttle Stop, NLA [ More info ]
|
| #37 | 817751A 6 | BRACKET ASSEMBLY-Steering (Painted) (1 required per assembly) |
  |
817751A 6 - BRKT ASY-GRAP/GRA [ More info ] Unavailable |
|
  |
|
817751A12 - Bracket Assembly - Steel/GR [ More info ]
|
| #38 | 22-F523274 | FITTING-Grease (1 required per assembly) |
  |
|
22-F523274 - Grease Fitting, NLA [ More info ]
|
| #39 | 10-823594 | SCREW-Pivot (1 required per assembly) |
  |
|
10-823594 - Screw, NLA [ More info ]
|
| #40 | 11-35814 | NUT (.312-24) (1 required per assembly) |
  |
11-35814 - Nut (5/16-24) [ More info ] Unavailable |
|
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
| #41 | 12-F286282 | WASHER (Special) (1 required per assembly) |
  |
|
12-F286282 - WASHER,NLA [ More info ] Unavailable |
| #42 | 819148 | LEVER-Magneto Control (1 required per assembly) |
  |
|
|
| #43 | 23-F183813 | BEARING-Control Lever (1 required per assembly) |
  |
|
23-F183813 - Bearing, NLA [ More info ]
|
| #44 | 16-F286440 | STUD (.312-24 x 1.250) (1 required per assembly) |
  |
|
16-F286440 - Stud, NLA [ More info ]
|

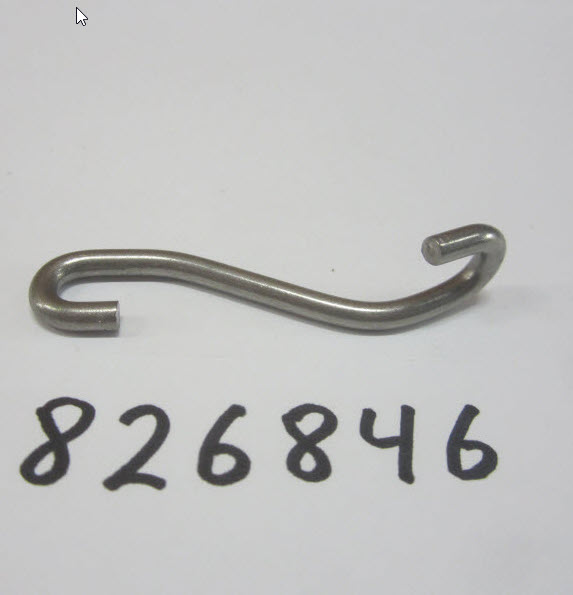

| #45 | 826846 | LINK-Throttle Shaft (1 required per assembly) |
  |
|
826846 - Link, NLA [ More info ]
|
| #46 | 824142T | LINK-Throttle Cam (1 required per assembly) |
  |
|
824142T - Throttle Link, NLA [ More info ]
|
