Parts for Force 25 HP (1997) Starter Rewind Components

Revise Search: All Models > 25 HP (1997) > 225.582500 > Starter Rewind Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

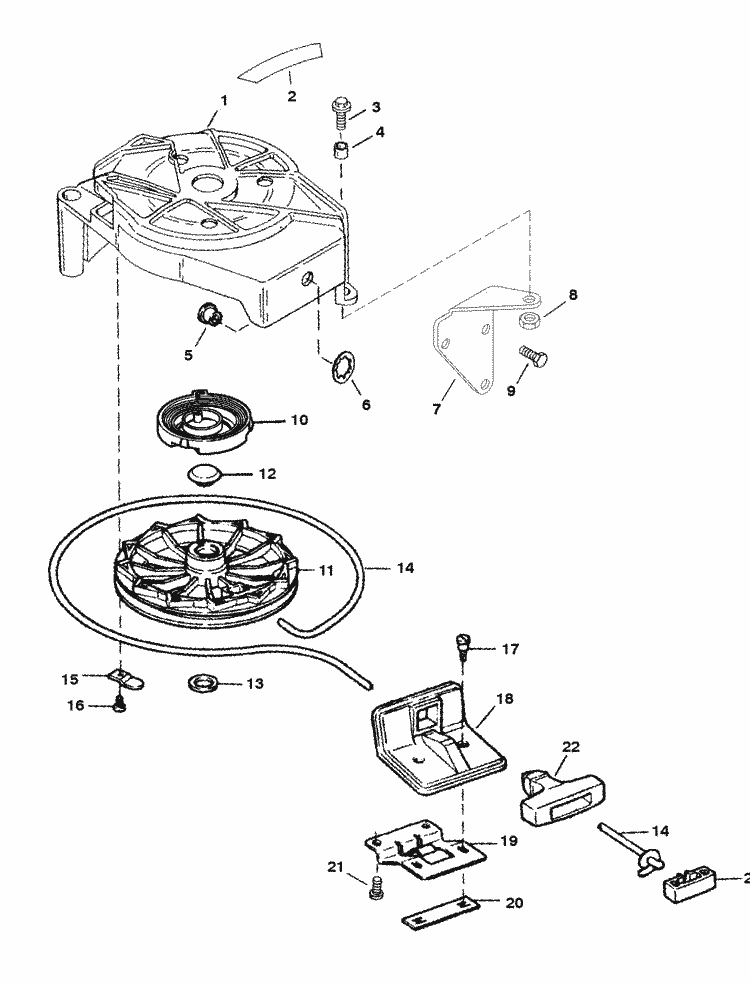

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	800-819240A 3	Powerhead Assy (- required per assembly)
		800-819240A 3 - Powerhead [ More info ] Unavailable
		800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable
#1	F681408 1	HOUSING-Starter (1 required per assembly)
		F681408-1 - HOUSING-STARTER NLA [ More info ] Unavailable
#2	37-825149A 1	DECAL KIT-Shift to Neutral (1 required per assembly)
		37-825149A 1 - Decal Kit [ More info ] Unavailable
#3	10-90192	SCREW (.250-20 x .750) (3 required per assembly)
		10-90192 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#4	23-F681405	INSERT-Starter Housing (3 required per assembly)
		23-F681405 - 23F681405T [ More info ] Unavailable
		23-F681405T - Insert, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#5	F681428	INSERT-Rope-Starter Housing (1 required per assembly)
		F681428 - Insert, NLA [ More info ] $2.93 10+ In Stock.
#6	53-818853	RING-Retaining (1 required per assembly)
		53-818853 - Ring - Retaining [ More info ] $1.80 1 In Stock.
#7	819245T	BRACKET-Starter Housing-Front (Painted) (1 required per assembly)
		819245T - Bracket [ More info ] Unavailable
		819245T 1 - Bracket, NLA [ More info ] $8.00 9 In Stock.
#8	11-814101	NUT (.250-20) (1 required per assembly)
		11-814101 - Nut (1/4-20) [ More info ] Unavailable
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#9	10-98254	SCREW (.250-20 x .625) (3 required per assembly)
		10-98254 - Screw [ More info ] $0.60 Available to Order: Shipping delay up to 10 days.
#10	24-F681970	SPRING-Starter Rewind (1 required per assembly)
		24-F681970 - Rewind Spring, NLA [ More info ] $48.26 10+ In Stock.
#11	42034A 2	PULLEY ASSEMBLY-Starter Rewind (1 required per assembly)
		42034A 2 - Starter Sheave [ More info ] Unavailable
#12	19-817362	PLUG-Pulley (1 required per assembly)
		19-817362 - Plug [ More info ] Unavailable
#13	26-12494 1	SEAL-Pulley Bearing (1 required per assembly)
		26-12494 1 - Seal, NLA [ More info ] $6.00 $5.08 1 In Stock.
#14	F681232	ROPE (64/67 In.) (1 required per assembly)
		F681232 - Starter Rope [ More info ] Unavailable
		50-12066A12 - ROPE-Starter [ More info ] Unavailable
		50-12066 3 - ROPE-Starter [ More info ] Unavailable
		5012066T03 - Starter Rope [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#15	F681592	RETAINER-Starter Pulley (3 required per assembly)
		F681592 - Retainer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#16	10-48408	SCREW (#10-16 x .500) (3 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#17	10-819625	SCREW-Shoulder (2 required per assembly)
		10-819625 - Screw, NLA [ More info ] $9.89 10+ In Stock.
#18	FA681630T	SUPPORT ASSEMBLY-Handle (1 required per assembly)
		FA681630T - Support Assembly [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#19	830282 1	PLATE-Handle Support (1 required per assembly)
		830282 1 - Plate - Support, NLA [ More info ] Unavailable
#20	F681874 1	FASTENER-Handle Support Plate (1 required per assembly)
		F681874-1 - Fastener, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#21	10-F2210	SCREW (.250-14 x .500) (2 required per assembly)
		10-F2210 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#22	F681132	HANDLE-Rope (1 required per assembly)
		F681132 - Handle, NLA [ More info ] $20.48 10+ In Stock.
#23	F681817	RETAINER-Rope Handle (1 required per assembly)
		F681817 - Retainer, NLA [ More info ] Unavailable
