Parts for Force 25 HP (1997) Cylinder Block Assembly
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 800-819240A 3 | POWERHEAD ASSEMBLY (Painted) (1 required per assembly) |
800-819240A 3 - Powerhead [ More info ] Unavailable |
||
800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable |
||

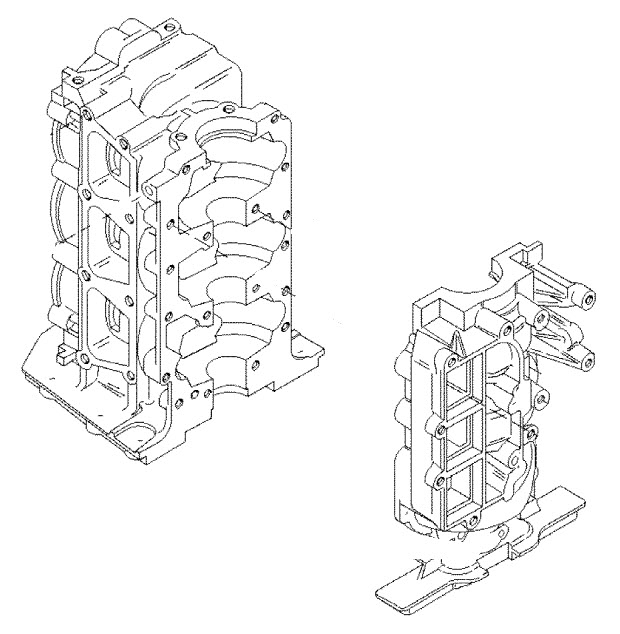

#1 | 800-819240A 2 | CYLINDER ASSEMBLY (Painted) (1 required per assembly) |
800-819240A 2 - Cylinder Assembly [ More info ] Unavailable |
||
800-819240A 5 - Cylinder Assembly, NLA [ More info ] Unavailable |
||
#2 | 10-92160 | SCREW (.250-20 x .750) (11 required per assembly) |
#3 | 12-29245 | WASHER (11 required per assembly) |
12-8M0204649 - WASHER Note: Priced Individually [ More info ] |
||
#4 | 10-54523 | SCREW (.312-18 x 1.00) (6 required per assembly) |
#5 | 12-20084 | WASHER (6 required per assembly) |
#6 | 17-F8559 | PIN-Dowel (2 required per assembly) |
#7 | 32-819243 | TUBE-Water Jacket (1 required per assembly) |
#8 | 21-42658 | CHECK VALVE (1 required per assembly) |
21-42658 - Check Valve [ More info ] Unavailable |
||
21-42658 2 - Check Valve [ More info ] Unavailable |
||
#9 | 32-99130122 | TUBING (20.0 Ft. Bulk) (Cut 2 Pcs-15.00 In.) (Cut 1 Pc-12.058 In.) (1 required per assembly) |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
||
#10 | 16-F286440 | STUD (.312-24 x 1.250) (1 required per assembly) |
#11 | 16-826590 | STUD (.250-20 x 1.690) With Dri Loc (1 required per assembly) |
#12 | 834753 | BRACKET-Throttle Stop (1 required per assembly) |
#13 | 27-809516A 1 | GASKET SET (1 required per assembly) |
27-809516A 1 - Gasket Set [ More info ] Unavailable |
||
#14 | 22-88780 | ELBOW-Tell Tale Tubing (1 required per assembly) |
22-88780 - Elbow [ More info ] Unavailable |
||
#15 | 32-54950 7 | TUBING (7.00 In.)-Tell Tale (1 required per assembly) |

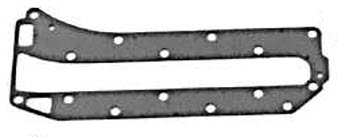

#16 | 27-819140 | GASKET-Exhaust Cover (2 required per assembly) |
#17 | 819152 | PLATE-Exhaust (1 required per assembly) |

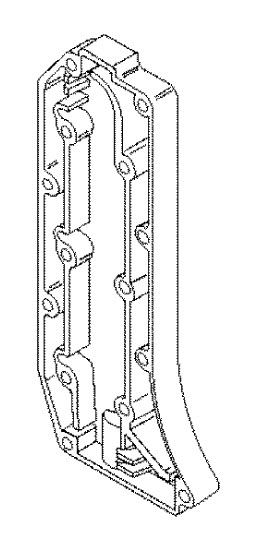

#18 | 1000-819136T | COVER-Exhaust (Painted) (1 required per assembly) |
1000-819136T - Exhaust Cover [ More info ] Unavailable |
||
#19 | 10-F1581 | SCREW (.250-20 x 1.250) (14 required per assembly) |
#20 | 10-F2040 | SCREW (.250-20 x .625)-Ground Wire (1 required per assembly) |
#21 | 27-819498 | GASKET-Cylinder Mount (1 required per assembly) |

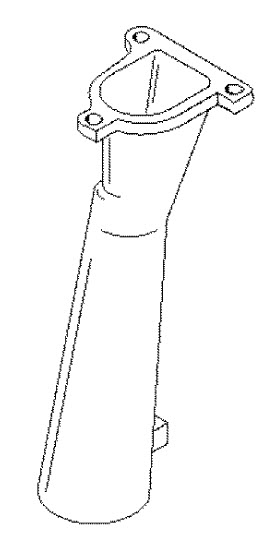

#22 | 819157T 1 | TUBE-Exhaust (1 required per assembly) |
#24 | 13-26992 | LOCKWASHER (.250) (3 required per assembly) |
#25 | 10-90192 | SCREW (.250-20 x .750) (3 required per assembly) |

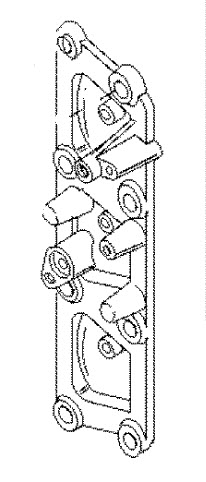

#26 | 1000-819137T | COVER ASSEMBLY-Transfer Port (Painted) (1 required per assembly) |
1000-819137T - Cover Assembly [ More info ] Unavailable |
||
#27 | 22-15133 | ELBOW (3 required per assembly) |
#28 | 16-F681134 | STUD-Interlock Lever (1 required per assembly) |
#30 | 12-28927 | WASHER (1 required per assembly) |
#31 | 10-F1535 | SCREW (.250-20 x .750)-Hex Head (7 required per assembly) |
#32 | 27-819143 | GASKET-Transfer Port Cover (1 required per assembly) |
#33 | 12-814806 | WASHER (8 required per assembly) |
12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] |
||
12-8M0204690 - WASHER [ More info ] Unavailable |
||
#34 | 10-F1882 | SCREW (.312-18 x 2.125) (10 required per assembly) |
#35 | 27-819138 2 | GASKET-Cylinder Head (1 required per assembly) |
#36 | 900-819145T 1 | HEAD-Cylinder (Painted) (1 required per assembly) |
900-819145T 1 - Cylinder Head [ More info ] Unavailable |
||
900-819145T 2 - Cylinder Head, NLA [ More info ] Unavailable |
||
#37 | 27-819139 1 | GASKET-Cylinder Head Cover (1 required per assembly) |
27-819139 1 - GASKET,NLA [ More info ] Unavailable |
||

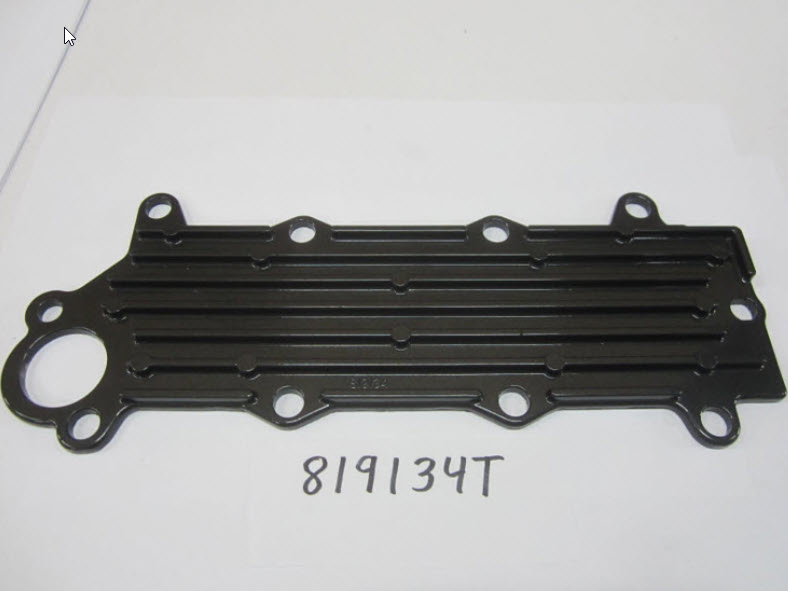

#38 | 819134T | COVER-Cylinder Head (Painted) (1 required per assembly) |
#39 | 12-F658504 | WASHER-Thermostat (1 required per assembly) |
#40 | F97068 2 | THERMOSTAT (130 Deg) (1 required per assembly) |
F97068-2 - Thermostat, 130 Degree [ More info ] Unavailable |
||
#41 | 24-819161 | SPRING-Thermostat (1 required per assembly) |
#42 | 819439T | COVER-Thermostat (1 required per assembly) |
