Parts for Force 25 HP (1996) Shift Linkage

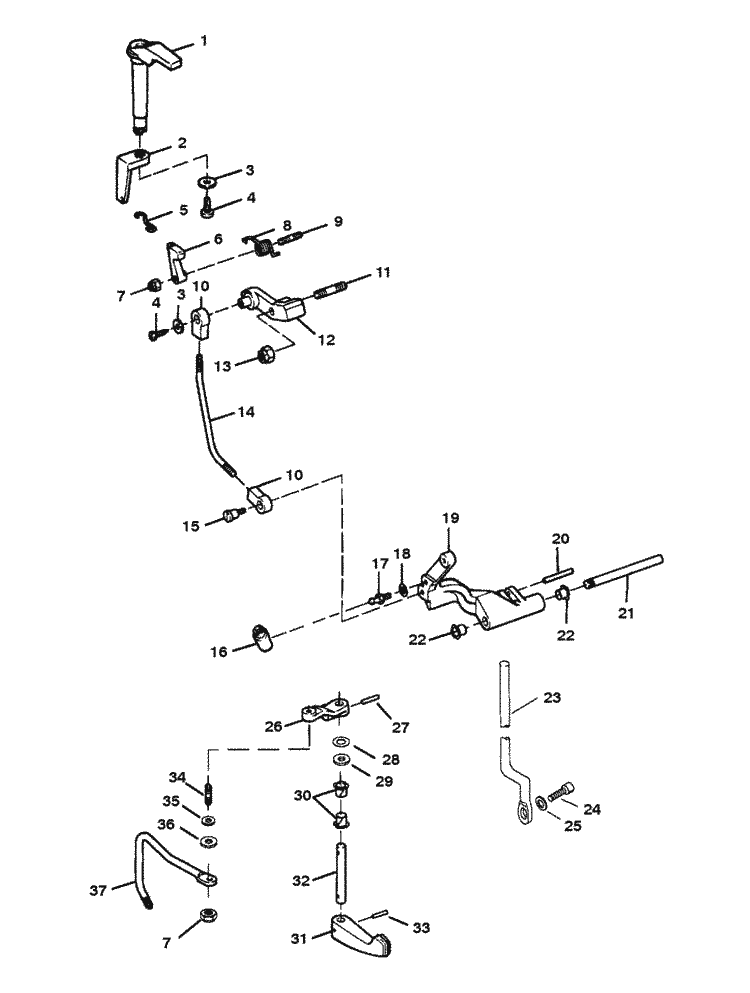

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 800-819240A 3 | POWERHEAD ASSY (- required per assembly) |
  |
800-819240A 3 - Powerhead [ More info ] Unavailable |
|
  |
|
800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable |
| #1 | F681490 | STOP-STARTER PULLEY INTERLOCK (1 required per assembly) |
  |
|
F681490 - Stop,NLA [ More info ] Unavailable |
| #2 | F681003 1 | ARM-STARTER INTERLOCK (1 required per assembly) |
  |
|
F681003-1 - Arm - Interlock, NLA [ More info ]
|
| #3 | 12-F8143 | WASHER (2 required per assembly) |
  |
|
12-F8143 - WASHER,NLA [ More info ] Unavailable |
| #4 | 10-48408 | SCREW (#10-16 X .500) (2 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #5 | F681263 1 | LINK-INTERLOCK (1 required per assembly) |
  |
|
F681263-1 - Link, NLA [ More info ]
|
| #6 | F681742 | LEVER-INTERMEDIATE INTERLOCK (1 required per assembly) |
  |
|
|
| #7 | 11-20110 | NUT (#10-32) (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #8 | 24-F681424 | SPRING-INTERLOCK LEVER (1 required per assembly) |
  |
|
24-F681424 - Spring, Interlock Lever,NLA [ More info ] Unavailable |
| #9 | 16-F681134 | STUD-INTERLOCK LEVER (1 required per assembly) |
  |
|
16-F681134 - Stud, NLA [ More info ] Unavailable |
| #10 | 816514 | BEARING-SPARK CONTROL (2 required per assembly) |
  |
|
816514 - Bearing - Black [ More info ] Unavailable |
| #11 | 16-826590 | STUD (.250-20 X 1.690) (1 required per assembly) |
  |
|
16-826590 - Stud, NLA [ More info ]
|
| #12 | 824357 | LEVER-NEUTRAL SPEED INTERLOCK (1 required per assembly) |
  |
|
824357 - Neutral Interlock Lever [ More info ]
|
| #13 | 11-814101 | NUT (.250-20) (1 required per assembly) |
  |
11-814101 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
118M0207776 - NUT [ More info ]
|
| #14 | 819159 | ROD-INTERLOCK (1 required per assembly) |
  |
|
819159 - Interlock Rod, NLA [ More info ] Unavailable |
| #15 | 10-819625 | SCREW-SHOULDER (1 required per assembly) |
  |
|
10-819625 - Screw, NLA [ More info ]
|
| #16 | F286685 | CONNECTOR-GEAR SHIFT ROD (1 required per assembly) |
  |
|
F286685 - Connector, NLA [ More info ]
|
| #17 | 16-F98273 | STUD-END CONNECTOR (1 required per assembly) |
  |
|
16-F98273 - Stud, NLA [ More info ]
|
| #18 | 13-F8058 | LOCKWASHER (#10 INTERNAL) (1 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #19 | 819508T | LEVER-GEAR SHIFT (PAINTED) (1 required per assembly) |
  |
|
819508T - Gear Shift Lever [ More info ]
|
  |
819508T 1 - LEVER-GEAR SHAFT [ More info ] Unavailable |
|
  |
|
855621T - Gear Shift Lever [ More info ]
|
| #20 | 17-25319 | PIN-ROLL (1 required per assembly) |
  |
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|
| #21 | F286871T | PIN-GEAR SHIFT LEVER (1 required per assembly) |
  |
|
F286871T - Gear Shift Lever Pin [ More info ]
|
| #22 | 23-26841 | BUSHING (2 required per assembly) |
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #23 | 819378 1 | ROD-UPPER GEAR SHIFT (1 required per assembly) |
  |
|
819378 1 - Gear Shift Rod, NLA [ More info ] Unavailable |
| #24 | 10-F1976 | SCREW (#10-24 X .500) (1 required per assembly) |
  |
|
10-F1976 - Screw -ss, NLA [ More info ]
|
| #25 | 12-89302 | WASHER (1 required per assembly) |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #26 | 820367 1 | LEVER-SHIFT HANDLE SHAFT (1 required per assembly) |
  |
820367 1 - LEVER [ More info ] Unavailable |
|
  |
|
820367F 1 - Lever [ More info ]
|
| #27 | 17-25905 | PIN-ROLL (1 required per assembly) |
  |
|
17-25905 - Pin, Roll, NLA [ More info ]
|
| #28 | 13-34632 | WASHER-WAVE (1 required per assembly) |
  |
|
13-34632 - Wave Washer - Priced Individually [ More info ]
|
| #29 | 12-36001 | WASHER-PLAIN (1 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
| #30 | 23-830054 | BUSHING-FLANGED (2 required per assembly) |
  |
|
23-830054 - Bushing, NLA [ More info ] Unavailable |
| #31 | 819626A 2 | HANDLE ASSEMBLY-GEAR SHIFT (PAINTED) (1 required per assembly) |
  |
|
819626A 2 - Handle Assembly, Silver [ More info ]
|
| #32 | 828931 | SHAFT-SHIFT HANDLE (1 required per assembly) |
  |
|
828931 - Shaft, NLA [ More info ] Unavailable |
| #34 | 16-F286134 | STUD-GEAR SHIFT LEVER (1 required per assembly) |
  |
|
16-F286134 - Stud, NLA [ More info ]
|
| #36 | 23-830097 | BUSHING-SHIFT LEVER LINK (1 required per assembly) |
  |
|
23-830097 - Bushing, NLA [ More info ] Unavailable |
| #37 | 830096 | LINK-SHIFT LEVER (1 required per assembly) |
  |
|
830096 - Shift Lever Link, NLA [ More info ] Unavailable |
