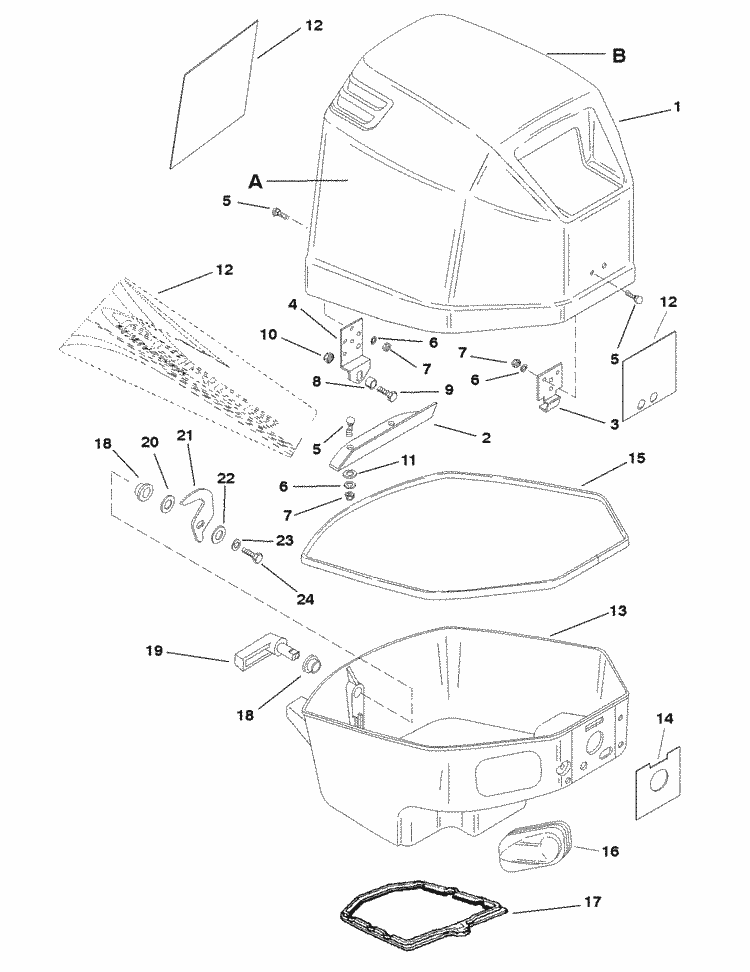

Parts for Force 25 HP (1996) Cowl Assembly - Top & Bottom
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 100-819135A 2 | COWL ASSEMBLY-TOP (1 required per assembly) (WITHOUT DECALS) (PAINTED) |
  |
100-819135A 2 - COWL ASY-25-FORCE [ More info ] Unavailable |
|
  |
|
100-819135A 7 - COWL ASY-25-ST/GR,NLA [ More info ] Unavailable |
| #2 | 819447 | BAFFLE (1 required per assembly) |
  |
|
819447 - Baffle, NLA [ More info ] Unavailable |
| #3 | 819130 | BRACKET-FRONT (1 required per assembly) |
  |
|
819130 - Bracket, NLA [ More info ] Unavailable |
| #4 | 819371 | RETAINER-REAR COWL (1 required per assembly) |
  |
|
819371 - Retainer, NLA [ More info ] Unavailable |
| #5 | 10-823187 1 | SCREW (7 required per assembly) (M4 X 14.5) (DESIGN I) |
  |
|
10-823187 1 - Screw [ More info ]
|
| #5 | 10-835499 | SCREW (7 required per assembly) (#8-32 X .440) (DESIGN II) |
  |
|
10-835499 - SCREW,NLA [ More info ] Unavailable |
| #6 | 13-26995 | LOCKWASHER (#8) (7 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #7 | 11-823751 5 | NUT (7 required per assembly) (M4) (DESIGN I) |
  |
|
11-823751 5 - Nut [ More info ]
|
| #7 | 11-850042 | NUT (7 required per assembly) (#8-32) (DESIGN II) |
  |
|
11-850042 - Nut (#8-32),NLA [ More info ] Unavailable |
| #8 | 23-F681759 | ROLLER-LATCH (1 required per assembly) |
  |
|
23-F681759 - Roller, NLA [ More info ]
|
| #9 | 10-F681026 | SCREW (SPECIAL)-LATCH ROLLER (1 required per assembly) |
  |
|
10-F681026 - Screw, NLA [ More info ]
|
| #10 | 11-814101 | NUT (.250-20) (1 required per assembly) |
  |
11-814101 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
118M0207776 - NUT [ More info ]
|
| #11 | 12-F8155 | WASHER (2 required per assembly) |
  |
|
12-F8155 - WASHER,NLA [ More info ] Unavailable |
| #12 | 37-820733A95 | DECAL SET (1 required per assembly) |
  |
|
37-820733A95 - Decal Set -15 HP, NLA [ More info ] Unavailable |
| #13 | 100-819280A10 | COWL ASSEMBLY-BOTTOM (PAINTED) (1 required per assembly) |
  |
|
100-819280A10 - Cowl Assembly -bottom, NLA [ More info ]
|
| #14 | 38-819281 | PLATE-FRONT (1 required per assembly) |
  |
|
38-819281 - Plate [ More info ]
|
| #15 | F392756 | PACKING (4.075 FT. BULK) (CUT 3.783 FT.) (1 required per assembly) |
  |
|
F392756 -Support Plate Packing, NLA [ More info ]
|
| #16 | 25-93527 1 | GROMMET-REMOTE CONTROL LINKAGE (1 required per assembly) |
  |
25-93527 1 - Grommet [ More info ] Unavailable |
|
  |
|
25-93527002 - Grommet, NLA [ More info ] Unavailable |
| #17 | 827895 | SEAL-BOTTOM COWL (1 required per assembly) |
  |
|
827895 - SEAL,NLA [ More info ] Unavailable |
| #18 | 23-812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #19 | FA681469T | HANDLE ASSEMBLY-COWL LATCH (PAINTED) (1 required per assembly) |
  |
FA681469T - Handle Assembly-FORCE [ More info ] Unavailable |
|
  |
|
854239A 1 - Handle Assembly -ste/G, NLA [ More info ] Unavailable |
| #20 | 13-F2047 | WASHER-WAVE (1 required per assembly) |
  |
|
13-F2047 - Wave Washer [ More info ]
|
| #21 | F481777 | CAM-LATCH SHAFT (1 required per assembly) |
  |
F481777 - Latch Shaft Cam [ More info ] Unavailable |
|
  |
889566 - Latch-Cam [ More info ] Unavailable |
|
  |
|
|
| #22 | 12-71055 | WASHER (1 required per assembly) |
  |
|
12-71055 - Washer [ More info ]
|
| #23 | 13-26992 | LOCKWASHER (.250) (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #24 | 10-28635 | SCREW (.250-20 X .625) (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
