Parts for Force 25 HP (1996) Carburetor

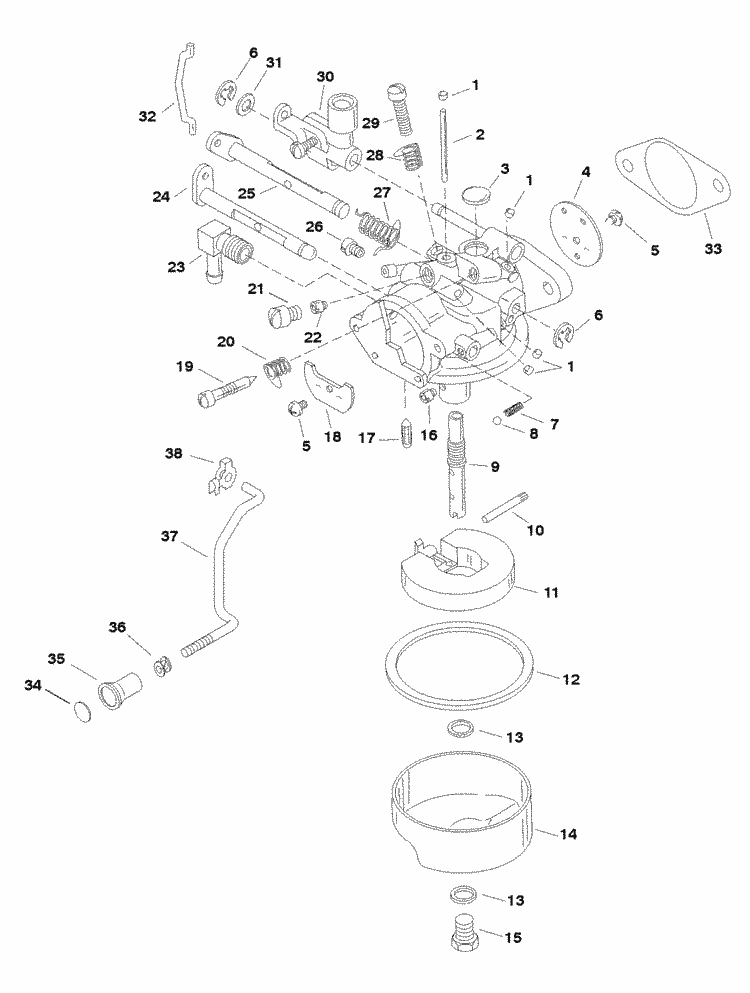

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-809516A 1 | POWERHEAD GASKET SET (- required per assembly) |
  |
|
27-809516A 1 - Gasket Set [ More info ] Unavailable |
| # | 1300-828531T 1 | CARBURETOR (FO-3B) (1 required per assembly) |
  |
1300-828531T 1 - Carburetor [ More info ] Unavailable |
|
  |
1300-852551T - Carburetor [ More info ] Unavailable |
|
  |
|
1300-852551T 1 - Carburetor [ More info ] Unavailable |
| #1 | 19-FO10588 | PLUG-CUP (4 required per assembly) |
  |
|
19-FO10588 - Plug -cup - Priced Individually [ More info ]
|
| #2 | 809447 | TUBE-BY PASS (1 required per assembly) |
  |
|
809447 - Bypass Tube, NLA [ More info ] Unavailable |
| #3 | 19-FO16128 | PLUG-WELCH (1 required per assembly) |
  |
|
19-FO16128 - Plug -cup [ More info ]
|
| #4 | 809442 | SHUTTER-THROTTLE (1 required per assembly) |
  |
|
809442 - Shutter, NLA [ More info ] Unavailable |
| #5 | 809441 | SCREW-SHUTTERS (2 required per assembly) |
  |
|
10-809441 - Screw [ More info ]
|
| #6 | 809446 | E RING-THROTTLE LINKAGE (2 required per assembly) |
  |
|
809446 - E-Ring, NLA [ More info ]
|
| #7 | FO8805 | SPRING-CHOKE FRICTION (1 required per assembly) |
  |
|
FO8805 - Choke Friction Spring, NLA [ More info ]
|
| #8 | FO4784 | BALL (1 required per assembly) |
  |
|
FO4784 - BALL,NLA [ More info ] Unavailable |
| #9 | 809624 | NOZZLE-MAIN (1 required per assembly) |
  |
|
809624 - Main Nozzle, NLA [ More info ]
|
| #10 | 17-FO13944 | PIN-FLOAT (1 required per assembly) |
  |
|
17-FO13944 - Carburetor Float Pin [ More info ]
|
| #11 | F10346 | FLOAT-FUEL BOWL (1 required per assembly) |
  |
F10346 - Fuel Bowl Float [ More info ] Unavailable |
|
  |
FO13554 - Carburetor Float [ More info ] Unavailable |
|
  |
|
891730A01 - Float [ More info ]
|
| #12 | 27-FO15623 | GASKET-FUEL BOWL (1 required per assembly) |
  |
|
27-FO15623 - Fuel Bowl Gasket [ More info ]
|
| #13 | 27-FO2510 | GASKET-FUEL BOWL (2 required per assembly) |
  |
|
27-FO2510 - Fuel Bowl Gasket [ More info ]
|
| #14 | FO15366 | BOWL-FUEL (1 required per assembly) |
  |
|
FO15366 - Fuel Bowl [ More info ]
|
| #15 | 1399-5128 | SCREW-FUEL BOWL (1 required per assembly) |
  |
|
1399-5128 - Screw, NLA [ More info ] Unavailable |
| #16 | 809448 | JET-MAIN (.058) (0 - 2500 FT.) (1 required per assembly) |
  |
|
809448 - Main Jet, NLA [ More info ] Unavailable |
| #16 | 1399-5213 | JET-MAIN (.056) (2500 - 5000 FT.) (OPT required per assembly) |
  |
|
1399-5213 - Jet -.056 [ More info ]
|
| #16 | 1399-5225 | JET-MAIN (.054) (5000 - 7500 FT.) (OPT required per assembly) |
  |
|
1399-5225 - Jet -.054 [ More info ]
|
| #16 | 1395-6359 | JET-MAIN (.052) (7500 - 10000 FT.) (OPT required per assembly) |
  |
|
1395-6359 - Jet -.052 [ More info ]
|
| #17 | F10265 | NEEDLE-INLET (1 required per assembly) (NOTE: DO NOT REMOVE INLET SEAT) |
  |
|
F10265 - Inlet Needle [ More info ]
|
| #18 | F10344 | SHUTTER-CHOKE (1 required per assembly) |
  |
|
F10344 - Choke Shutter, NLA [ More info ]
|
| #19 | F10268 | SCREW-IDLE MIXTURE (1 required per assembly) |
  |
|
F10268 - Screw - Idle Mixture Screw [ More info ]
|
| #20 | 24-27160 | SPRING-IDLE MIXTURE SCREW (1 required per assembly) |
  |
|
24-27160 - Spring, Idle Adjusting Screw [ More info ]
|
| #21 | F10275 | SCREW-SEALING (1 required per assembly) |
  |
|
|
| #22 | 809625 | JET (.046)-THROTTLE (1 required per assembly) |
  |
|
809625 - Throttle Jet .046, NLA [ More info ]
|
| #23 | F10347 | ELBOW-FUEL (1 required per assembly) |
  |
|
F10347 - Elbow,NLA [ More info ] Unavailable |
| #24 | 809440 | SHAFT AND LEVER-CHOKE (1 required per assembly) |
  |
|
809440 - Shaft And Lever [ More info ] Unavailable |
| #25 | 809439 | SHAFT AND LEVER-THROTTLE (1 required per assembly) |
  |
|
809439 - Shaft And Lever [ More info ] Unavailable |
| #27 | 24-F10350 | SPRING-THROTTLE SHAFT (1 required per assembly) |
  |
|
24-F10350 - Spring, Throttle Shaft [ More info ]
|
| #28 | 809445 | SPRING-IDLE SPEED (1 required per assembly) |
  |
|
809445 - Spring,Idle Speed, NLA [ More info ] Unavailable |
| #29 | 809444 | SCREW-IDLE SPEED (1 required per assembly) |
  |
|
809444 - SCREW,NLA [ More info ]
|
| #30 | F10290 | LINKAGE-THROTTLE (1 required per assembly) |
  |
|
F10290 - Bracket [ More info ] Unavailable |
| #31 | F10242 | WASHER (1 required per assembly) |
  |
|
F10242 - Washer, NLA [ More info ]
|
| #32 | 809443 | WIRE-THROTTLE SHAFT (1 required per assembly) |
  |
|
809443 - Wire, NLA [ More info ]
|
| #33 | 27-F715906 | GASKET-CARBURETOR MOUNT (1 required per assembly) |
  |
|
27-F715906 - Carburetor Mount Gasket [ More info ]
|
| #34 | F681677 | INSERT-CHOKE ROD (1 required per assembly) |
  |
|
F681677 - Choke Knob Insert [ More info ]
|
| #35 | F286547 | KNOB-CHOKE (1 required per assembly) |
  |
|
F286547 - Choke Knob, NLA [ More info ]
|
| #36 | 23-F197319 | BUSHING (1 required per assembly) |
  |
|
23-F197319 - Bushing, NLA [ More info ]
|
| #37 | 819154 | ROD-CHOKE (1 required per assembly) |
  |
|
819154 - Choke Rod, NLA [ More info ] Unavailable |
| #38 | 830569 | RETAINER-CHOKE ROD (1 required per assembly) |
  |
|
830569 - Retainer, NLA [ More info ]
|
| #NS | FK10352 | GASKET SET-CARBURETOR (1 required per assembly) |
  |
|
FK10352 - Carburetor Gasket Set [ More info ]
|
| #NS | 809449A 1 | REPAIR KIT-CARBURETOR (1 required per assembly) |
  |
|
809449A 1 - Carburetor Repair Kit [ More info ]
|
