Parts for Force 150 HP (1992-1994) Fuel Pump Assembly (89A - 92C - 0e000001 - 0e065371)

Revise Search: All Models > 150 HP (1992-1994) > 0E000001 - 0E093699 ( ) > Fuel Pump Assembly (89A - 92C - 0e000001 - 0e065371)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

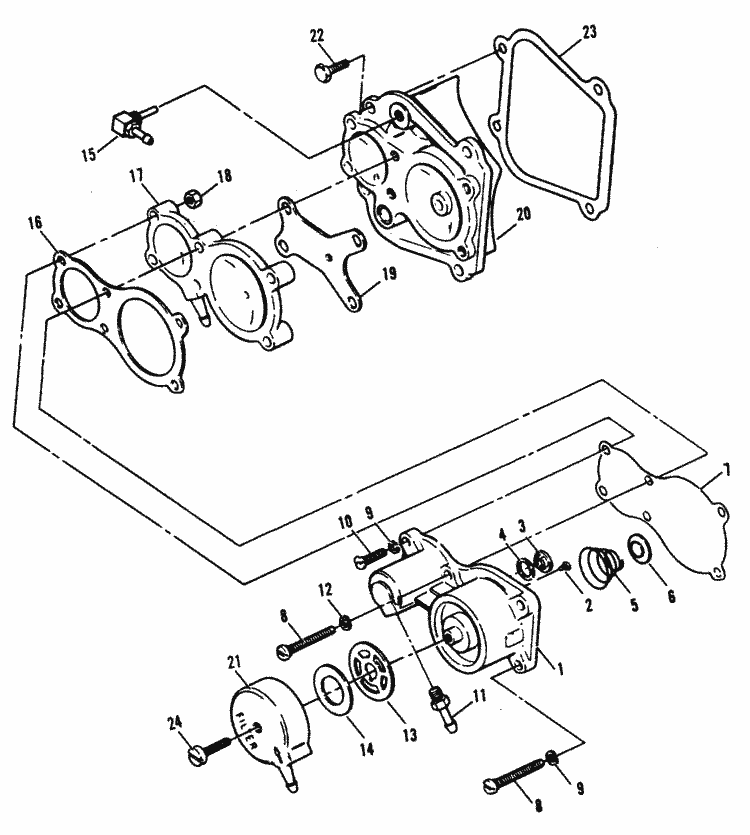

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#_	-817919A 1	PUMP KIT-Fuel (2 required per assembly) (Serial # 89A Thru 92C And 0E000001 Thru 0E009499)
		817919A 1 - Fuel Pump Kit, NLA [ More info ] Unavailable
#_	-820581A 1	PUMP KIT-Fuel (2 required per assembly) (Serial # 0E009500 Thru 0E065371)
		820581A 1 - Fuel Pump Kit,NLA [ More info ] Unavailable
#1	-819843A 1	BODY ASSEMBLY-Fuel Pump (2 required per assembly)
		819843A 1 - Fuel Pump Body [ More info ] Unavailable
		819843T 1 - Fuel Pump Body Assembly [ More info ] Unavailable
#2	10-28430	SCREW (#6-32 x .250) (4 required per assembly)
		10-28430 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#3	21-F177330	VALVE-Fuel Pump (6 required per assembly)
		21-F177330 - Check Valve [ More info ] Unavailable
		218M0082362 - Check Valve [ More info ] $9.89 10+ In Stock.
#4	27-F84792	GASKET-Center Valve (2 required per assembly)
		27-F84792 - Fuel Pump Valve Gasket [ More info ] $3.39 10+ In Stock.
#5	24-F686300	SPRING-Fuel Pump Boost (2 required per assembly)
		24-F686300 - Spring [ More info ] Unavailable
#6	-F686096	RETAINER-Booster Spring (2 required per assembly)
		F686096 - Booster Spring Retainer [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#7	-F438747	DIAPHRAGM-Fuel Pump (2 required per assembly)
		F438747 - Fuel Pump Diaphragm Only - No Gasket, Priced Individually [ More info ] $9.89 10+ In Stock.
#8	10-F1504	SCREW (.250-20 x 1.250) (8 required per assembly)
		10-F1504 - Screw -ss [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#9	13-26996	LOCKWASHER (#10) (4 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#10	10-41069	SCREW (#10-24 x .750) (4 required per assembly) (Design I)
		10-41069 - Screw [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#10	10-55515	SCREW (#10-32 x .750) (4 required per assembly) (Design II)
		10-55515 - Screw, NLA [ More info ] $3.90 10+ In Stock.
#11	22-64705	FITTING (2 required per assembly)
		22-64705 - Fitting [ More info ] $11.59 1 In Stock.
#12	13-26992	LOCKWASHER (.250) (8 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#13	27-823606	GASKET-Fuel Pump Bowl (2 required per assembly)
		27-823606 - Fuel Bowl Gasket [ More info ] $14.89 4 In Stock.
#14	35-F438653	SCREEN-Fuel Pump (2 required per assembly)
		35-F438653 - Screen [ More info ] $10.69 7 In Stock.
#15	22-F404314	ELBOW (.250 Diameter) (1 required per assembly) (89A Thru 91D)
		22-F404314 - Elbow, NLA [ More info ] Unavailable
#15	22-F743314	ELBOW (.125 Diameter) (1 required per assembly) (Serial # 91F/92C And 0E000001 Thru 0E065371)
		22-F743314 - Elbow [ More info ] Unavailable
#16	27-820490	GASKET-Fuel Pump Spacer (2 required per assembly)
		27-820490 - Fuel Pump Gasket [ More info ] $4.59 10+ In Stock.
#17	-F658836	SPACER-Fuel Pump (2 required per assembly)
		F658836 - Fuel Pump Spacer [ More info ] $33.83 10+ In Stock.
#18	11-79989	NUT (#10-24) (4 required per assembly) (Design I)
		11-79989 - Nut (10 - 24) [ More info ] $2.79 10+ In Stock.
#18	11-68219	NUT (#10-32) (4 required per assembly) (Design II)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#19	27-F658803	GASKET-Fuel Pump Spacer (2 required per assembly)
		27-F658803 - Fuel Pump Spacer Gasket [ More info ] $3.79 4 In Stock.
#20	-817870A 1	COVER KIT (With Plug) (2 required per assembly)
		817870A 1 - Fuel Pump Cover Kit, NLA [ More info ] Unavailable
#21	-817066	BOWL-Fuel (2 required per assembly) (Serial # 89A Thru 92C And 0E000001 Thru 0E009499)
		817066 - Fuel Pump Bowl [ More info ] Unavailable
#21	-F695500	BOWL-Fuel (2 required per assembly) (Serial # 0E009500 Thru 0E065371)
		F695500 - Fuel Pump Bowl, NLA [ More info ] $47.92 10+ In Stock.
#22	10-98254	SCREW (.250-20 x .620) (8 required per assembly)
		10-98254 - Screw [ More info ] $0.60 Available to Order: Shipping delay up to 10 days.
#23	27-820500	GASKET-Fuel Pump Cover (2 required per assembly)
		27-820500 - Transfer Port Gasket [ More info ] Unavailable
		27-820500A 3 - Gasket Kit [ More info ] $17.29 5 In Stock.
		18-0869-9 - Gasket 27-F40223 2-Pack [ More info ] $19.99 $19.30 Available to Order: Shipping delay up to 10 days.
#24	10-56682	SCREW (#10-24 x .750) (2 required per assembly)
		10-56682 - Screw [ More info ] Unavailable
		10-852368 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
