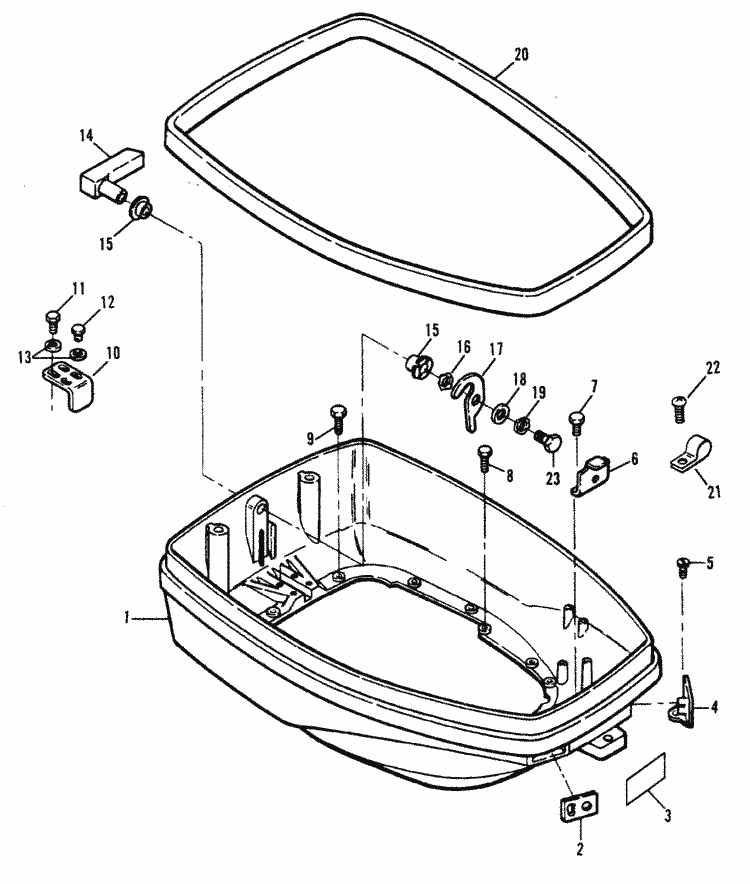

Parts for Force 150 HP (1989-1992) Bottom Cowl Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 100-817607F | COWL-Bottom (1 required per assembly) |
  |
100-817607F - PLATE-SUPPORT [ More info ] Unavailable |
|
  |
|
100-817607T - PLATE-SUPPORT,NLA [ More info ] Unavailable |
| #2 | 23-819006 2 | BUSHING-Cable Entry (1 required per assembly) |
  |
|
23-819006 2 - Entry Bushing, NLA [ More info ]
|
| #3 | 37-818029 | DECAL (Fuel Mix) (1 required per assembly) |
  |
37-818029 - DECAL-FUEL MIX [ More info ] Unavailable |
|
  |
|
37-818029 1 - Decal - Fuel Mix, NLA [ More info ] Unavailable |
| #4 | 23-828763 | BUSHING-Cable Entry (1 required per assembly) |
  |
|
23-828763 - Bushing, NLA [ More info ]
|
| #5 | 10-F1733 | SCREW (#10-24 x .562) (3 required per assembly) |
  |
|
10-F1733 - Screw, SS [ More info ]
|
  |
|
10-852453 - Screw [ More info ]
|
| #6 | -F663480-1 | RETAINER-Front Cowl Guide (1 required per assembly) |
  |
|
F663480-1 - Retainer, NLA [ More info ]
|
| #7 | 10-28635 | SCREW (.250-20 x .625) (2 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #8 | 10-49668 | SCREW (.250-20 x .750) (7 required per assembly) |
  |
|
10-49668 - Screw - Priced Individually [ More info ]
|
| #9 | 10-76630 | SCREW (.250-20 x 1.00) (4 required per assembly) |
  |
|
10-76630 - Screw - Priced Individually [ More info ]
|
  |
|
108M0214943 - SCREW, Priced Individually [ More info ]
|
| #10 | -F335654-2 | STOP-Deflection (1 required per assembly) |
  |
|
F335654-2 - Stop, NLA [ More info ]
|
| #11 | 10-90285 | SCREW (.312-18 x .625) (2 required per assembly) |
  |
|
10-90285 - Screw [ More info ]
|
| #12 | 10-F1858 | SCREW (.312-18 x 1.00) (2 required per assembly) |
  |
|
10-F1858 - Screw -ss, NLA [ More info ]
|
| #13 | 13-53166 | LOCKWASHER (.312) (4 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #14 | -820000A 4 | HANDLE ASSEMBLY-Cowl Release (1 required per assembly) |
  |
820000A 4 - HANDLE ASY-GRA/GR [ More info ] Unavailable |
|
  |
820000A 7 - Handle Assembly-ST/GR [ More info ] Unavailable |
|
  |
|
820000A08 - Handle Assembly - Black, NLA [ More info ]
|
| #15 | 23-812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #16 | 13-F2047 | WASHER (Wave) (1 required per assembly) |
  |
|
13-F2047 - Wave Washer [ More info ]
|
| #17 | -F481777 | CAM-Latch Shaft (1 required per assembly) |
  |
F481777 - Latch Shaft Cam [ More info ] Unavailable |
|
  |
889566 - Latch-Cam [ More info ] Unavailable |
|
  |
|
|
| #18 | 12-40023 16 | WASHER (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #19 | 13-26992 | LOCKWASHER (.250) (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #20 | -F663756-1 | PACKING-Bottom Cowl (1 required per assembly) |
  |
F663756-1 - PACKING-81 INCH [ More info ] Unavailable |
|
  |
|
819717 2 - PACKING-81 INCH [ More info ] Unavailable |
| #21 | 54-F407446 | CLAMP-Battery Cable (1 required per assembly) |
  |
|
54-F407446 - Clamp [ More info ]
|
| #22 | 10-34939 | SCREW (.250-20 x .500) (1 required per assembly) |
  |
|
10-34939 - Screw w/ Lw, NLA [ More info ]
|
| #23 | 10-19923062 | SCREW (.250-20 x .625) (1 required per assembly) |
  |
|
10-19923062 - Screw [ More info ]
|
