Parts for Force 15 HP (1984-1995) Starter (Ser. # E090400 - E127699)

Revise Search: All Models > 15 HP (1984-1995) > 1984-A - 1992-B ( ) > Starter (Ser. # E090400 - E127699)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

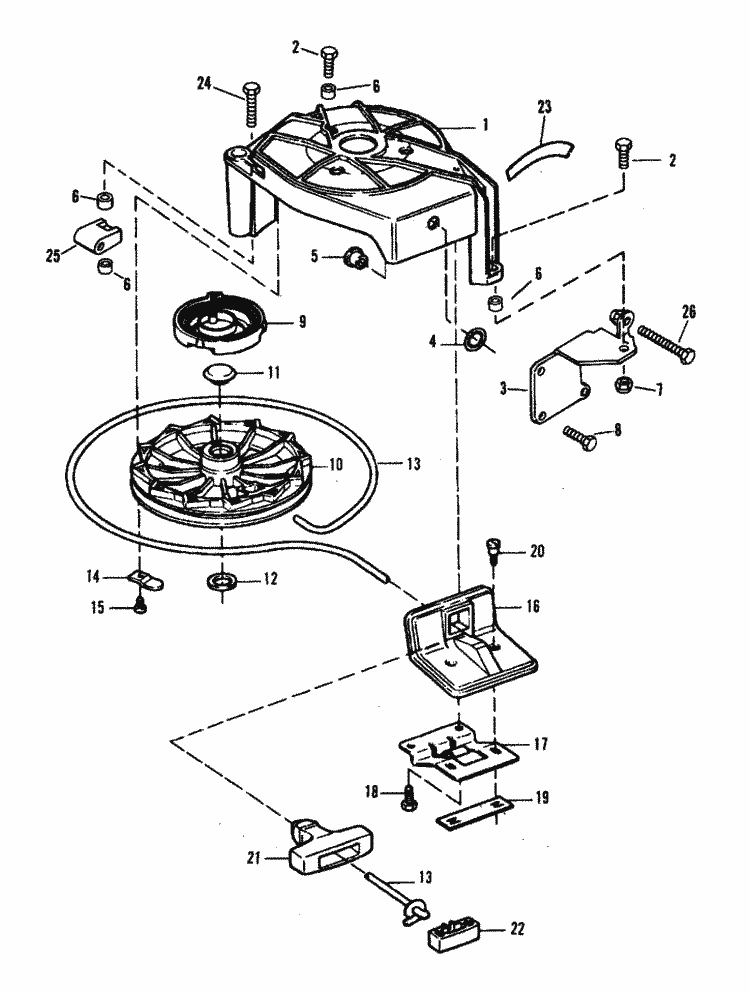

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	826693	HOUSING-STARTER (1 required per assembly)
		826693 - Starter Housing, NLA [ More info ] $38.88 $32.93 3 In Stock.
#2	10-90192	SCREW (1/4-20 X 3/4") (2 required per assembly)
		10-90192 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#3	826559A 1	BRACKET ASSEMBLY-STARTER HOUSING FRONT (1 required per assembly)
		826559A 1 - Bracket [ More info ] Unavailable
		826559A 2 - Bracket [ More info ] Unavailable
		826559A 3 - Bracket Assembly, NLA [ More info ] $10.00 $8.47 6 In Stock.
#4	53-42689	RING-RETAINING (1 required per assembly)
		53-42689 - RING-RETAINING [ More info ] Unavailable
		53-818853 - Ring - Retaining [ More info ] $1.80 1 In Stock.
#5	F681428	INSERT-STARTING HOUSING ROPE (1 required per assembly)
		F681428 - Insert, NLA [ More info ] $2.93 10+ In Stock.
#6	23-F681405	INSERT-STARTER HOUSING (4 required per assembly)
		23-F681405 - 23F681405T [ More info ] Unavailable
		23-F681405T - Insert, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#7	11-814101	NUT (1/4-20) (1 required per assembly)
		11-814101 - Nut (1/4-20) [ More info ] Unavailable
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#8	10-F1922	SCREW (1/4-20 X 5/8") (4 required per assembly)
		10-F1922 - Screw, NLA [ More info ] Unavailable
#9	24-F681970	SPRING-STARTER REWIND (1 required per assembly)
		24-F681970 - Rewind Spring, NLA [ More info ] $48.26 10+ In Stock.
#10	42034A 1	PULLEY ASSEMBLY-STARTER REWIND (1 required per assembly)
		42034A 1 - PULLEY ASSY [ More info ] Unavailable
		42034A 2 - Starter Sheave [ More info ] Unavailable
#11	19-817362	PLUG (1 required per assembly)
		19-817362 - Plug [ More info ] Unavailable
#12	26-F681579	SEAL-PULLEY BEARING (1 required per assembly)
		26-F681579 - SEAL [ More info ] Unavailable
		26-12494 1 - Seal, NLA [ More info ] $6.00 $5.08 1 In Stock.
#13	F681232	ROPE (64/67") (1 required per assembly)
		F681232 - Starter Rope [ More info ] Unavailable
		50-12066A12 - ROPE-Starter [ More info ] Unavailable
		50-12066 3 - ROPE-Starter [ More info ] Unavailable
		5012066T03 - Starter Rope [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#14	F681592	RETAINER-STARTER PULLEY (3 required per assembly)
		F681592 - Retainer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#15	10-48408	SCREW (10-16 X 1/2") (3 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#16	FA681630T	SUPPORT ASSEMBLY-HANDLE (1 required per assembly)
		FA681630T - Support Assembly [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.

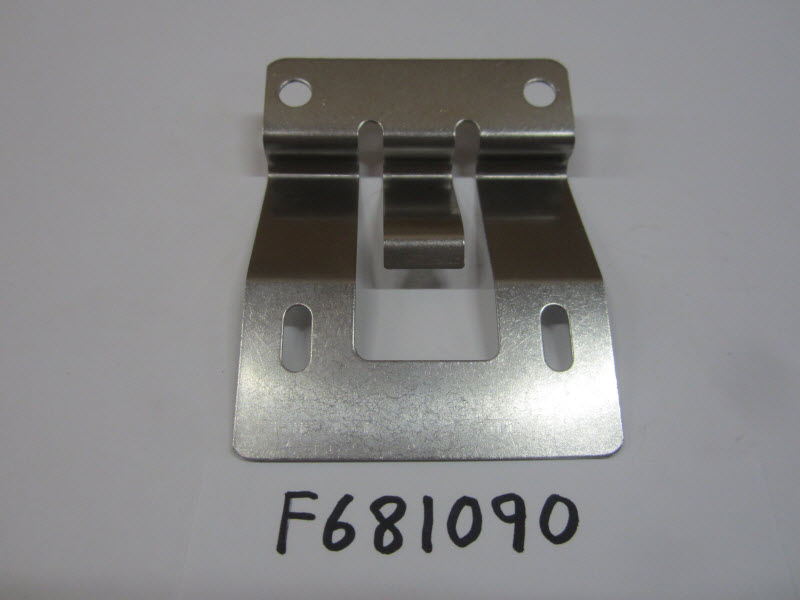

#17	F681090	PLATE-HANDLE SUPPORT (1 required per assembly)
		F681090 - Plate - Support, NLA [ More info ] $4.00 $3.39 10+ In Stock.
#18	10-F2210	SCREW (1/4-14 X 1/2") (2 required per assembly)
		10-F2210 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#19	F681874 1	FASTENER-HANDLE SUPPORT PLATE (1 required per assembly)
		F681874-1 - Fastener, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#20	10-819625	SCREW-SHOULDER (2 required per assembly)
		10-819625 - Screw, NLA [ More info ] $9.89 10+ In Stock.
#21	F681132	HANDLE-STARTER ROPE (1 required per assembly)
		F681132 - Handle, NLA [ More info ] $20.48 10+ In Stock.
#22	F681817	RETAINER-STARTER ROPE (1 required per assembly)
		F681817 - Retainer, NLA [ More info ] Unavailable
#23	FA609853	DECAL KIT-SHIFT TO NEUTRAL (1 required per assembly)
		FA609853 - Decal Kit [ More info ] Unavailable
		37-825149A 1 - Decal Kit [ More info ] Unavailable
#24	10-F2030	SCREW (1/4-20 X 1-1/4") (1 required per assembly)
		10-F2030 - Screw -ss [ More info ] $3.39 10+ In Stock.
#25	F702668	RETAINER-SPEED CONTROL CABLE (1 required per assembly)
		F702668 - Retainer,NLA [ More info ] Unavailable
#26	10-826676	SCREW (1/4-28 X 2")-IDLE ADJUST (1 required per assembly)
		10-826676 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
