Parts for Force 15 HP (1984-1995) Shift Linkage (All Models)

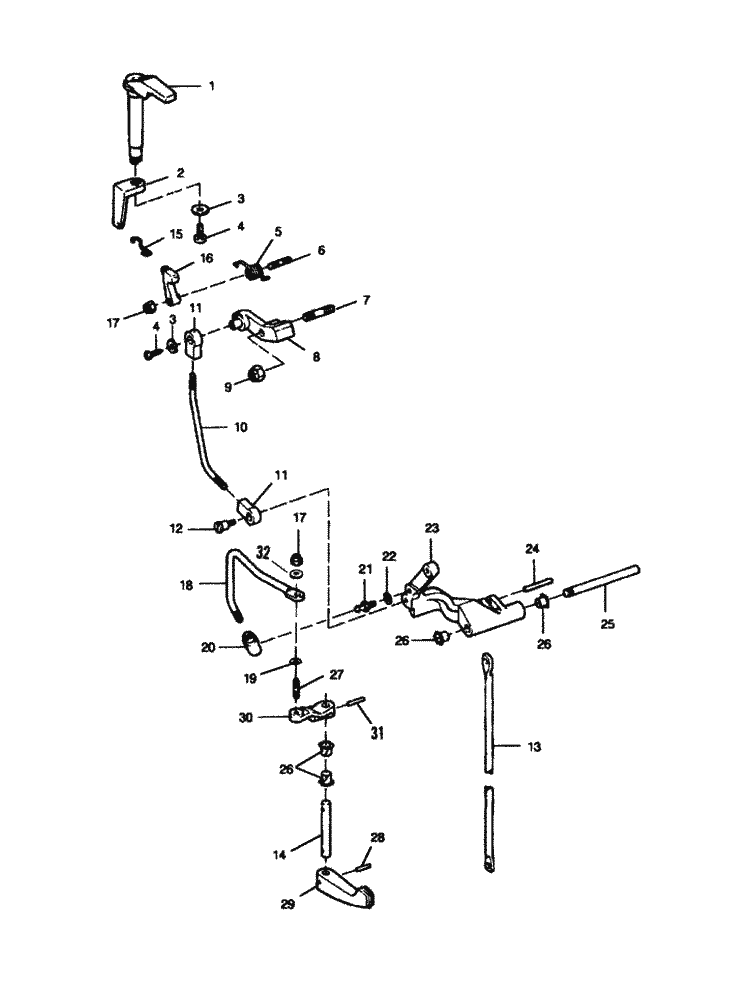

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 800-819553A14 | SHORT BLOCK ASSEMBLY |
  |
800-819553A14 - SHORT BLOCK KIT [ More info ] Unavailable |
|
  |
|
800-819553A15 - Short Block , 9.9 - 15HP, NO Head [ More info ] Unavailable |
| #1 | F681490 | STOP-STARTER PULLEY INTERLOCK (1 required per assembly) |
  |
|
F681490 - Stop,NLA [ More info ] Unavailable |
| #2 | F681003 1 | ARM-STARTER INTERLOCK (1 required per assembly) |
  |
|
F681003-1 - Arm - Interlock, NLA [ More info ]
|
| #3 | 12-F8143 | WASHER (2 required per assembly) |
  |
|
12-F8143 - WASHER,NLA [ More info ] Unavailable |
| #4 | 10-48408 | SCREW (10-16 X 1/2") (2 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #5 | 24-F681424 | SPRING-INTERLOCK LEVER (1 required per assembly) |
  |
|
24-F681424 - Spring, Interlock Lever,NLA [ More info ] Unavailable |
| #6 | 16-F681134 | STUD-INTERLOCK LEVER (1 required per assembly) |
  |
|
16-F681134 - Stud, NLA [ More info ] Unavailable |
| #7 | 16-826590 | STUD (1 required per assembly) (1/4-20 X 1.69") W/DRI LOC-NEUTRAL INTERLOCK PIVOT |
  |
|
16-826590 - Stud, NLA [ More info ]
|
| #8 | 824357 | LEVER-NEUTRAL SPEED INTERLOCK (1 required per assembly) |
  |
|
824357 - Neutral Interlock Lever [ More info ]
|
| #9 | 11-814101 | NUT (1/4-20) (1 required per assembly) |
  |
11-814101 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
118M0207776 - NUT [ More info ]
|
| #10 | F681531 1 | ROD-INTERLOCK (1 required per assembly) |
  |
F681531-1 - Interlock Rod [ More info ] Unavailable |
|
  |
|
852369 - Interlock Rod, NLA [ More info ]
|
| #11 | 816514 | BEARING-SPARK CONTROL (2 required per assembly) |
  |
|
816514 - Bearing - Black [ More info ] Unavailable |
| #12 | 10-819625 | SCREW-SHOULDER (1 required per assembly) |
  |
|
10-819625 - Screw, NLA [ More info ]
|
| #13 | F286615 | ROD-UPPER GEAR SHIFT (1 required per assembly) |
  |
|
F286615 - Gear Shift Rod Upper [ More info ]
|
| #14 | F492417 | SHAFT-SHIFT HANDLE (88A/90C) (1 required per assembly) |
  |
|
F492417 - Shaft, NLA [ More info ]
|
| #14 | F715417 | SHAFT-SHIFT HANDLE (1 required per assembly) (91A/92B & SER.#E000001 - E034999) |
  |
F715417 - SHAFT [ More info ] Unavailable |
|
  |
|
820643A 1 - Lever/Shaft Kit, NLA [ More info ] Unavailable |
| #14 | 824826 | SHAFT-SHIFT HANDLE (SER. # E035000 THRU E127699) (1 required per assembly) |
  |
824826 - Shaft, NLA [ More info ] Unavailable |
|
  |
|
828931 - Shaft, NLA [ More info ] Unavailable |
| #15 | F681263 1 | LINK-INTERLOCK (1 required per assembly) |
  |
|
F681263-1 - Link, NLA [ More info ]
|
| #16 | F681742 | LEVER-INTERMEDIATE INTERLOCK (1 required per assembly) |
  |
|
|
| #17 | 11-20110 | NUT (10-32) (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #18 | 825402 | ROD-GEAR SHIFT (1 required per assembly) |
  |
|
825402 - Shift Link Lever [ More info ]
|
| #19 | 13-26996 | LOCKWASHER (#10) (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #20 | F286685 | CONNECTOR-GEAR SHIFT ROD (1 required per assembly) |
  |
|
F286685 - Connector, NLA [ More info ]
|
| #21 | 16-F98273 | STUD-END CONNECTOR (1 required per assembly) |
  |
|
16-F98273 - Stud, NLA [ More info ]
|
| #22 | 13-F8058 | LOCKWASHER (#10 INTERNAL) (1 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #23 | 819508T | LEVER-GEAR SHIFT (PAINTED) (1 required per assembly) |
  |
|
819508T - Gear Shift Lever [ More info ]
|
  |
819508T 1 - LEVER-GEAR SHAFT [ More info ] Unavailable |
|
  |
|
855621T - Gear Shift Lever [ More info ]
|
| #24 | 17-31656 | PIN-ROLL (1 required per assembly) |
  |
|
17-31656 - Pin, Roll [ More info ]
|
| #25 | F286871T | PIN-GEAR SHIFT LEVER (1 required per assembly) |
  |
|
F286871T - Gear Shift Lever Pin [ More info ]
|
| #26 | 23-26841 | BUSHING (4 required per assembly) |
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #27 | 16-F286134 | STUD-GEAR SHIFT LEVER (1 required per assembly) |
  |
|
16-F286134 - Stud, NLA [ More info ]
|
| #29 | F286614 | HANDLE-GEAR SHIFT 88A/90C (1 required per assembly) |
  |
|
F286614 - HANDLE,NLA [ More info ] Unavailable |
| #30 | FK681619 | HANDLE/LEVER KIT (1 required per assembly) |
  |
FK681619 - HANDLE/LEVER KIT [ More info ] Unavailable |
|
  |
|
820644A 1 - Handle/Lever Kit [ More info ]
|
| #31 | 17-38489 | PIN-ROLL (1 required per assembly) |
  |
|
17-38489 - Pin -roll [ More info ]
|
| #30 | F715619 | LEVER-SHIFT HANDLE SHAFT (1 required per assembly) 91A/92B & SER. # E000001 THRU E034999 |
  |
F715619 - LEVER [ More info ] Unavailable |
|
| #29 | 819626T | HANDLE-GEAR SHIFT (PAINTED) (1 required per assembly) SER. # E035000 THRU E127699 |
  |
|
819626T - Gear Shift Handle [ More info ]
|
| #30 | 820367 1 | LEVER-SHIFT HANDLE SHAFT (1 required per assembly) SER. # E035000 THRU E127699 |
  |
820367 1 - LEVER [ More info ] Unavailable |
|
  |
|
820367F 1 - Lever [ More info ]
|
| #31 | 17-25905 | PIN-ROLL (1 required per assembly) SER. # E035000 THRU E127699 |
  |
|
17-25905 - Pin, Roll, NLA [ More info ]
|
| #32 | 13-F8048 | WASHER-BOWED (1 required per assembly) |
  |
|
13-F8048 - Washer -bowed, NLA [ More info ] Unavailable |
