Parts for Force 125 HP (1989 L-Drive) Trim Cylinder

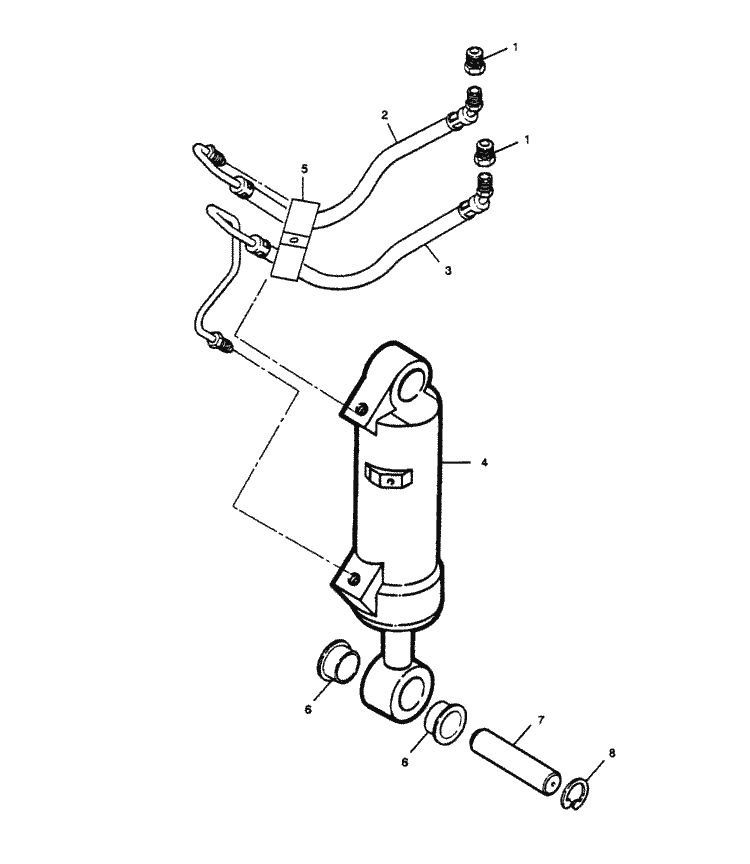

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F698142 | FITTING, HYDRAULIC (2 required per assembly) |
  |
22-F698142 - Fitting [ More info ] Unavailable |
|
  |
|
22-89029 - Fitting [ More info ]
|
| #2 | F695360 | HOSE, HYDRAULIC (UP) (1 required per assembly) |
  |
|
32-F695360 - Hydraulic Hose, NLA [ More info ] Unavailable |
| #3 | F695088 | HOSE, HYDRAULIC (DOWN) (1 required per assembly) |
  |
|
32-F695088 - Hose, NLA [ More info ] Unavailable |
| #4 | FA695381 | CYLINDER, HYDRAULIC W/BEARINGS (4 required per assembly) |
  |
FA695381 - FK695381, NLA [ More info ] Unavailable |
|
  |
|
FK695381 - Cylinder Kit - Hydraulic, NLA [ More info ]
|
| #5 | F695384 | CLIP (1 required per assembly) |
  |
|
54-F695384 - CLIP,NLA [ More info ] Unavailable |
| #6 | F695818 | BEARING (4 required per assembly) |
  |
|
23-F695818 - Bearing, NLA [ More info ]
|
| #7 | F695037 | PIN, TRIM CYLINDER (2 required per assembly) |
  |
|
17-F695037 - Pin, Trim Cylinder, NLA [ More info ]
|
| #8 | F695930 | RING, RETAINING (2 required per assembly) |
  |
53-F695930 - RING-RETAINING [ More info ] Unavailable |
|
  |
|
53-818826 - Ring - Retaining, NLA [ More info ]
|
