Parts for Force 125 HP (1988) Adapter & Reed Plate

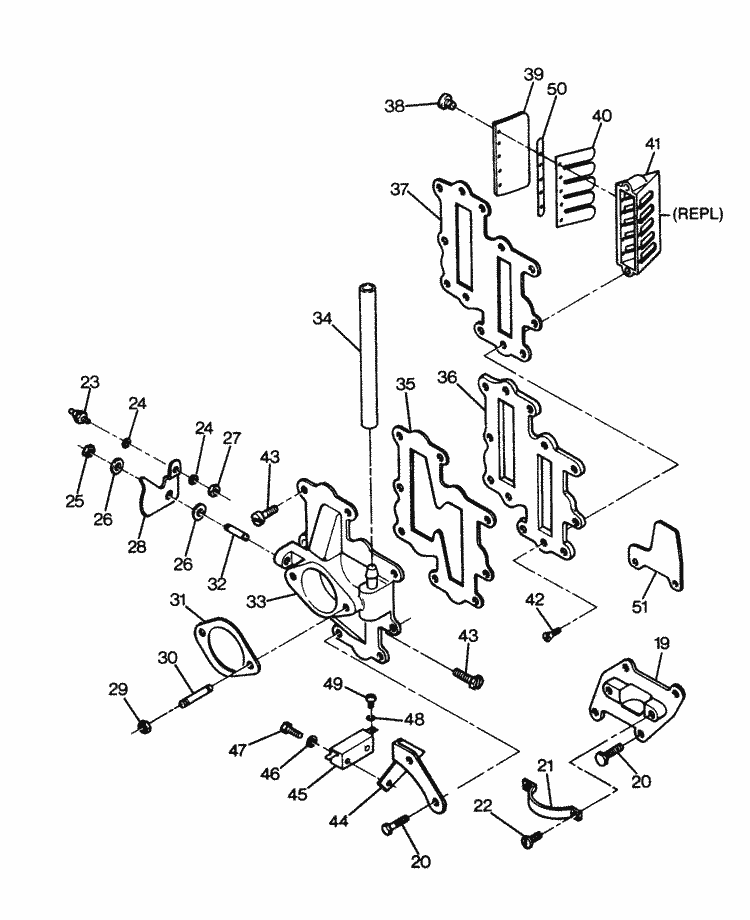

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FA440157 | CARBURETOR ADAPTER, UPPER (1 required per assembly) W/FITTING AND ILLUS. 30 (NOT SHOWN) |
  |
FA440157 - Adapter-UPPER [ More info ] Unavailable |
|
  |
|
817799A 1 - Adapter Assembly - Upper, NLA [ More info ]
|
| #19 | F372958 | CHOKE BRACKET (1 required per assembly) |
  |
|
F372958 - Bracket,NLA [ More info ]
|
| #20 | F1532 | HEX HD. SCREW, 1/4 - 20 X 1 (6 required per assembly) |
  |
10-F1532 - Screw [ More info ] Unavailable |
|
  |
|
10-819110100 - Screw [ More info ]
|
| #21 | F85317-3 | SOLENOID CLAMP (1 required per assembly) |
  |
|
54-F85317-3 - Clamp [ More info ]
|
| #22 | F1236 | SCREW, 1/4 - 20 X 1/2 (2 required per assembly) |
  |
F1236 - Screw [ More info ] Unavailable |
|
  |
|
10-98253 - Screw [ More info ]
|
| #23 | 817747 1 | BALL JOINT W/STUD (1 required per assembly) |
  |
817747 1 - Ball Joint Assembly [ More info ] Unavailable |
|
  |
|
828514A 1 - Ball and Socket [ More info ]
|
| #24 | F8058 | INTERNAL TOOTH LOCKWASHER (2 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #25 | F7008 | STOP NUT, 1/4 - 20 (1 required per assembly) |
  |
11-F7008 - Nut, (.250-20) [ More info ] Unavailable |
|
  |
11-72008 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
11-826708 8 - Nut [ More info ]
|
| #26 | F269319 | THROTTLE CAM BEARING (2 required per assembly) |
  |
|
23-F269319 - Bushing, NLA [ More info ]
|
| #27 | F1513 | HEX NUT, 10 - 32 (1 required per assembly) |
  |
|
F1513 - Hex Nut 10 - 32 [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #28 | F440192-1 | THROTTLE CAM (1 required per assembly) |
  |
F440192-1 - F4401922 [ More info ] Unavailable |
|
  |
F440192-2 - Throttle Cam-OBM [ More info ] Unavailable |
|
  |
|
828950 1 - Throttle Cam - OBM, NLA [ More info ] Unavailable |
| #29 | F1346 | HEX NUT (4 required per assembly) |
  |
|
11-F1346 - Hex Nut, 3/8 - 16 [ More info ]
|
  |
|
11-86226 - Nut (3/8-16) [ More info ]
|
  |
|
11-8M0204671 - NUT [ More info ] Unavailable |
| #30 | F440209 | CARBURETOR STUD (4 required per assembly) |
  |
16-F440209 - STUD [ More info ] Unavailable |
|
  |
16-819194 - STUD [ More info ] Unavailable |
|
  |
16-826387 - STUD [ More info ] Unavailable |
|
  |
|
16-826387 1 - STUD [ More info ]
|
  |
|
16-826387 2 - Stud [ More info ]
|
| #31 | F440906 | CARBURETOR GASKET (2 required per assembly) |
  |
|
27-F440906 - Carburetor Gasket [ More info ]
|
| #32 | F433209-1 | THROTTLE CAM STUD (1 required per assembly) |
  |
|
16-F433209-1 - Stud [ More info ]
|
| #33 | FA440167 | CARBURETOR ADAPTER, LOWER (1 required per assembly) W/FITTING AND ILLUS. 30 |
  |
FA440167 - Adapter-LOWER [ More info ] Unavailable |
|
  |
|
817800A 1 - Adapter Assembly - Lower, NLA [ More info ]
|
| #34 | F440254 | BALANCE TUBE (1 required per assembly) |
  |
F440254 - Hose - Balance Tube [ More info ] Unavailable |
|
  |
32-817736A 1 - Hose Kit [ More info ] Unavailable |
|
  |
32-817736 - Hose -6 Inch [ More info ] Unavailable |
|
  |
|
32-830758 21 - Hose -6 Inch [ More info ]
|
| #35 | F178168-1 | GASKET, CARBURETOR ADAPTER (1 required per assembly) |
  |
27-F178168-1 - Carburetor Adaptor Gasket [ More info ] Unavailable |
|
  |
|
27-828316 - Carburetor Intake Adapter Gasket [ More info ]
|
  |
|
18-0314 - Gasket, 27-828316 [ More info ]
|
| #36 | F178404-1 | DEFLECTOR PLATE (2 required per assembly) |
  |
F178404-1 - PLATE-DEFLECTOR [ More info ] Unavailable |
|
  |
F720404 - Deflector Plate [ More info ] Unavailable |
|
  |
|
820501 - Deflector Plate, NLA [ More info ]
|
| #37 | F406406 | GASKET DEFLECTOR PLATE (2 required per assembly) |
  |
|
27-F406406 - Deflector Plate Gasket [ More info ]
|
| #38 | F1755 | ROUND HD. SCREW W/LOCKWASHER 6 - 32 X 1/4 (40 required per assembly) |
  |
|
|
  |
|
10-819074 - Screw -w/Lw [ More info ]
|
| #39 | F85161-1 | REED STOP (8 required per assembly) |
  |
34-F85161-1 - Reed Stop, NLA [ More info ] Unavailable |
|
| #40 | F530160 | REED (5 PETAL) (8 required per assembly) |
  |
|
34-F530160 - Reed [ More info ] Unavailable |
| #41 | F3A523158 | REED PLATE (4 required per assembly) W/ILLUS. 38, 39, 40, 44 AND 51 |
  |
F3A523158 - Reed Plate [ More info ] Unavailable |
|
  |
|
818108A 1 - Reed Plate Assembly, NLA [ More info ] Unavailable |
| #42 | F1831 | FLAT HD. SCREW, 1/4 - 20 X 5/8 (8 required per assembly) |
  |
|
10-F1831 - Screw, NLA [ More info ]
|
| #43 | F2008 | HEX HD. SCREW, 1/4 - 20 X 7/8 (10 required per assembly) |
  |
|
10-F2008 - Screw -ss, NLA [ More info ]
|
| #44 | F489551 | BRACKET NEUTRAL INTERLOCK SWITCH (1 required per assembly) |
  |
F489551 - Bracket, NLA [ More info ] Unavailable |
|
  |
|
819776 - Bracket, NLA [ More info ]
|
| #45 | F84449 | INTERLOCK SWITCH (1 required per assembly) |
  |
|
87-F84449 - Switch [ More info ] Unavailable |
| #46 | F8088 | PLAIN WASHER (2 required per assembly) |
  |
12-F8088 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-27882 - Washer - Priced Individually [ More info ]
|
| #47 | F2016 | SLOTTED HD. FILL SCREW, 6 - 32 X 7/8 (2 required per assembly) |
  |
|
10-F2016 - Screw -ss, NLA [ More info ]
|
| #48 | F1704 | LOCKWASHER (2 required per assembly) |
  |
|
13-F1704 - LockWasher [ More info ]
|
| #49 | F1645 | HD. SCREW, 6 - 32 X 1/4 (2 required per assembly) |
  |
F1645 - Screw [ More info ] Unavailable |
|
  |
|
10-69080 - Screw [ More info ] Unavailable |
| #50 | F523451 | SPACER, REED STOP (8 required per assembly) |
  |
|
F523451 - Spacer - Reed Stop [ More info ]
|
| #51 | F500894 | POINTER, TIMING (1 required per assembly) |
  |
|
F500894 - Pointed- Timing, NLA [ More info ]
|
