Parts for Force 125 HP (1984) Starter (Prestolite)

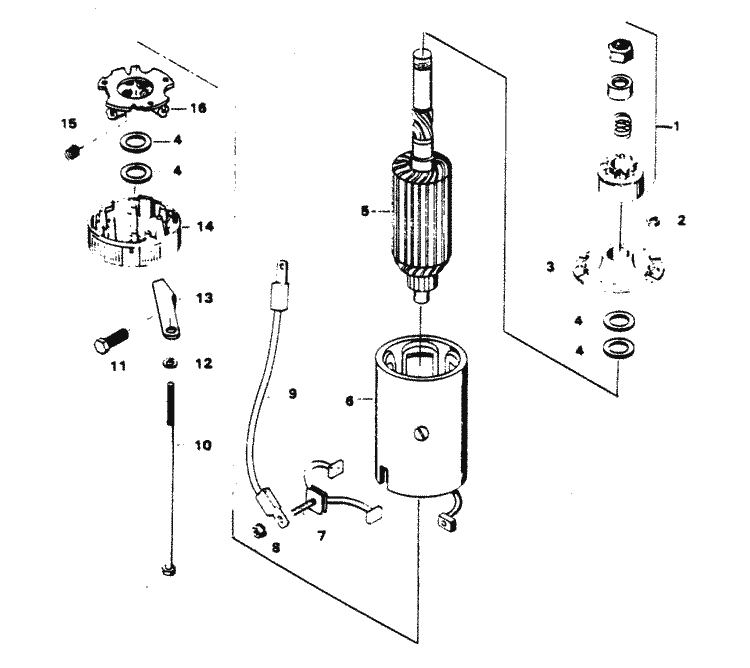

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | F490955 | STARTER, COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*). |
  |
F490955 - FK616955, NLA [ More info ] Unavailable |
|
  |
|
FK616955 - Starter Kit [ More info ] Unavailable |
  |
|
18-5613 - Starter, 50-819085 [ More info ]
|
  |
|
5393 - Outboard Starter [ More info ]
|
| # | FC500390 | DECAL, STARTER - CANADA (NOT SHOWN) (1 required per assembly) |
  |
|
FC500390 - DECAL NLA [ More info ] Unavailable |
| #1 | F15118 | BENDIX DRIVE ASSEMBLY (1 required per assembly) |
  |
|
F15118 - Starter Drive, NLA [ More info ] Unavailable |
| #2 | F1641 | LOCK NUT, 1/4 - 28 (2 required per assembly) |
  |
F1641 - Nut, 1/4 - 28 [ More info ] Unavailable |
|
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #3 | F15167 | HEAD ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
F15167 - Head Assembly, NLA [ More info ] Unavailable |
| #4 | F15126 | THRUST WASHER PACKAGE (1 required per assembly) |
  |
|
F15126 - WASHER PKG,NLA [ More info ] Unavailable |
| #5 | F15099 | ARMATURE (1 required per assembly) |
  |
|
F15099 - Armature, NLA [ More info ] Unavailable |
| #6 | F15166 | FRAME AND FIELD ASSEMBLY (1 required per assembly) |
  |
|
F15166 - Starter PART,NLA [ More info ] Unavailable |
| #7 | F15054 | BRUSH AND TERMINAL SET (1 required per assembly) |
  |
|
F15054 - Brush Set [ More info ]
|
  |
|
392-2521 - Brush, NLA [ More info ]
|
| #8 | F15162 | HEX LOCK NUT, 1/4 - 20 (1 required per assembly) |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|
| #9 | F85908 | STARTER LEAD WIRE (1 required per assembly) |
  |
F85908 - 84F859081 [ More info ] Unavailable |
|
  |
|
84-F85908-1 - Wire Assembly, NLA [ More info ]
|
| #10 | F15168 | THRU BOLT PACKAGE (1 required per assembly) |
  |
|
F15168 - Thru Bolt P, NLA [ More info ]
|
| #11 | F1922 | HEX CAP SCREW, 1/4 - 20 X 5/8 (1 required per assembly) |
  |
|
10-F1922 - Screw, NLA [ More info ] Unavailable |
| #12 | F8028 | PLAIN WASHER (2 required per assembly) |
  |
F8028 - 12F8008 [ More info ] Unavailable |
|
  |
12-F8008 - Washer [ More info ] Unavailable |
|
  |
|
12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ]
|
| #13 | F511675 | STARTER BRACKET, LOWER (1 required per assembly) |
  |
|
F511675 - Bracket, NLA [ More info ]
|
| #14 | F15125 | HEAD ASSEMBLY, COMMUTATOR END (1 required per assembly) |
  |
|
F15125 - Starter Part, NLA [ More info ] Unavailable |
| #15 | F15034 | SPRING SET (1 required per assembly) |
  |
F15034 - Spring Set [ More info ] Unavailable |
|
  |
|
392-2514 - Spring Set (2 Springs Per Set)NLA [ More info ]
|
| #16 | F15057 | BRUSH PLATE AND HOLDER ASSEMBLY (1 required per assembly) |
  |
|
F15057 - Holder w/o Brushes, NLA [ More info ]
|
