Parts for Force 120 HP (1995) Power Trim Components

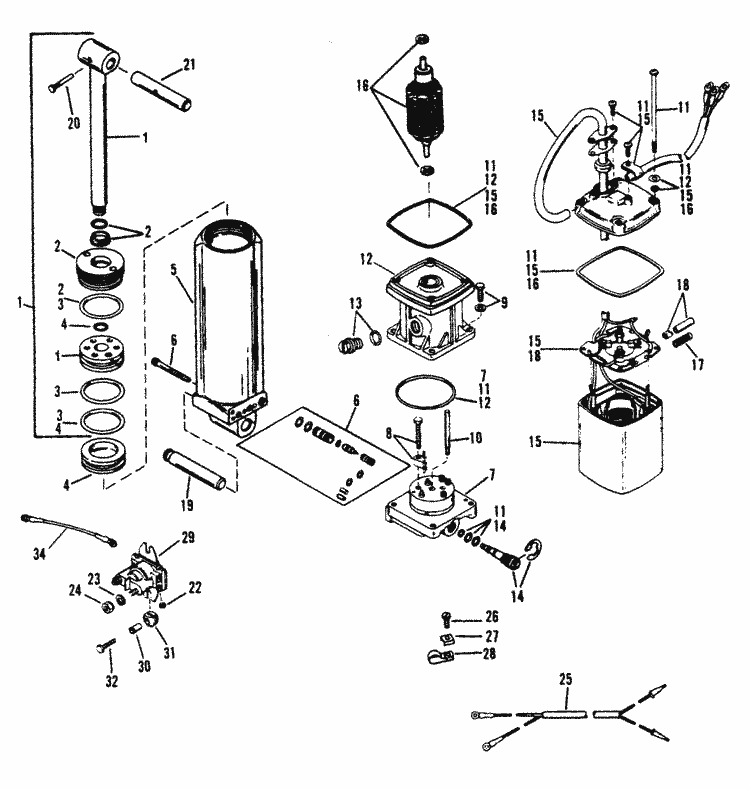

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 824051 | TRIM/PUMP ASSEMBLY (1 required per assembly) |
  |
824051 - TRIM/PUMP ASSY [ More info ] Unavailable |
|
  |
830250A 2 - Power Trim Kit [ More info ] Unavailable |
|
  |
830250A 6 - 8M0055012 [ More info ] Unavailable |
|
  |
8M0055012 - Power Trim Kit [ More info ] Unavailable |
|
  |
8M0090334 - Power Trim Kit [ More info ] Unavailable |
|
  |
|
8M0171817 - Power Trim Kit [ More info ]
|
  |
|
18-6775 - Tilt & Trim Motor [ More info ]
|
  |
|
TT2002 - Complete Trim Tilt System Mercury Single Ram 3-Wire Trim Motor [ More info ]
|
  |
|
6274 - Tilt Trim Motor [ More info ]
|
| #1 | 811666 1 | SHOCK ROD ASSEMBLY (1 required per assembly) |
  |
811666 1 - SHOCK ROD ASSY [ More info ] Unavailable |
|
  |
811666A 1 - SHOCK ROD KIT [ More info ] Unavailable |
|
  |
893915A01 - SHOCK ROD KIT [ More info ] Unavailable |
|
  |
8M0005542 - Shock Rod Kit [ More info ] Unavailable |
|
  |
8M0089942 - Shock Rod Kit [ More info ] Unavailable |
|
  |
|
8M0171821 - SHOCK ROD KIT [ More info ]
|
| #2 | 813428 | END CAP ASSEMBLY (1 required per assembly) |
  |
|
813428 - REF PARTSBUL 97-1,NLA [ More info ] Unavailable |
| #3 | 813432A 3 | SEAL KIT-CYLINDER (1 required per assembly) |
  |
|
813432A 3 - REF PARTSBUL 97-1,NLA [ More info ] Unavailable |
| #4 | 810776 | MEMORY PISTON (1 required per assembly) |
  |
|
810776 - Memory Piston Kit [ More info ] Unavailable |
| #5 | 811669 1 | CYLINDER (1 required per assembly) |
  |
811669 1 - CYLINDER [ More info ] Unavailable |
|
  |
811669A 1 - Cylinder Assembly [ More info ] Unavailable |
|
  |
|
893916A01 - Cylinder Assembly, 8M0055015 [ More info ] Unavailable |
  |
|
8M0055015 - Trim Cylinder Shell Only [ More info ]
|
| #6 | 811678A 4 | SCREW & SEAL KIT (1 required per assembly) |
  |
811678A 4 - Screw/Seal Kit [ More info ] Unavailable |
|
  |
|
811678A 6 - Valve Kit - Trim [ More info ]
|
| #7 | 811670 7 | PUMP/MANIFOLD KIT (1 required per assembly) |
  |
|
811670 7 - Pump / Manifold Kit [ More info ] Unavailable |
  |
|
809901A 2 - Pump/Motor Kit [ More info ]
|
| #8 | 823180A 1 | ROCKER ARM KIT (1 required per assembly) |
  |
|
823180A 1 - Rocker Arm [ More info ] Unavailable |
| #9 | 10-813436 | SCREW & WASHERS (4 PCS) (1 required per assembly) |
  |
|
10-813436 - Screw Kit [ More info ]
|
| #10 | 811671 1 | DRIVE SHAFT (1 required per assembly) |
  |
|
811671 1 - Drive Shaft, NLA [ More info ] Unavailable |
| #11 | 811626A 3 | SEAL KIT (WITH CASE BOLTS) (1 required per assembly) |
  |
|
811626A 3 - ORD 809901A 2 [ More info ] Unavailable |
| #12 | 811673 1 | RESERVOIR KIT (1 required per assembly) |
  |
|
811673 1 - Reservoir Kit,NLA [ More info ] Unavailable |
| #13 | 22-813435 | PLUG KIT (1 required per assembly) |
  |
22-813435 - PLUG KIT [ More info ] Unavailable |
|
  |
|
22-813435 1 - Reservoir Plug [ More info ]
|
| #14 | 813442A 2 | RELIEF VALVE KIT (1 required per assembly) |
  |
813442A 2 - Relief Valve [ More info ] Unavailable |
|
  |
|
893929A01 - Relief Valve [ More info ]
|
  |
|
18-6751 - Relief Valve, 893929A01 [ More info ]
|
| #15 | 811624 1 | FRAME AND FIELD KIT (1 required per assembly) |
  |
|
811624 1 - USE 809901A2,NLA [ More info ] Unavailable |
| #16 | 811627 1 | ARMATURE KIT (1 required per assembly) |
  |
|
811627 1 - Armature for Electric Motor [ More info ] Unavailable |
| #17 | 12665 | SPRING KIT-BRUSH (1 required per assembly) |
  |
|
12665 - Brush Spring Kit [ More info ] Unavailable |
| #18 | 811625 | BRUSH CARD KIT (1 required per assembly) |
  |
|
811625 - Ref Partsbul 97-, NLA [ More info ]
|
| #19 | 17-818898 | PIN-ANCHOR (1 required per assembly) |
  |
|
17-818898 - Anchor Pin [ More info ]
|
| #20 | 17-821539 | PIN-TRILOBE (1 required per assembly) |
  |
|
17-821539 - Pin, Trilobe, Groove [ More info ]
|
| #21 | 99625 1 | SHAFT (1 required per assembly) |
  |
99625 1 - Shaft [ More info ] Unavailable |
|
  |
|
99625002 - Upper Shaft [ More info ]
|
| #22 | 11-26419 | NUT (#8-32) (4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #23 | 13-26992 | LOCKWASHER (.250) (4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #24 | 11-64015 | NUT (.250-20) (4 required per assembly) |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #25 | 84-17201A 2 | CABLE ASSEMBLY-TRIM (1 required per assembly) |
  |
|
84-17201A 2 - Cable Assembly, NLA [ More info ]
|
| #26 | 10-817626 | SCREW (#10-16 X .380) (1 required per assembly) |
  |
10-817626 - SCREW [ More info ] Unavailable |
|
  |
|
10-878607 - Screw [ More info ]
|
| #27 | 69205 | C WASHER (1 required per assembly) |
  |
69205 - C Washer [ More info ] Unavailable |
|
  |
|
8M0084613 - Washer [ More info ]
|
| #28 | 54-22875 | CLAMP (2 required per assembly) |
  |
|
54-22875 - Clip - Priced Individually [ More info ]
|
| #29 | 89-818997A 1 | SOLENOID ASSEMBLY (2 required per assembly) |
  |
|
89-818997A 1 - Solenoid [ More info ]
|
  |
|
89-818997T 1 - Solenoid Assembly [ More info ] Unavailable |
  |
|
18-5819 - Switch, 89-818997A1 [ More info ]
|
  |
|
SW097 - Solenoid [ More info ]
|
| #30 | 23-818968 | BUSHING (3 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #31 | 25-818967 | GROMMET (3 required per assembly) |
  |
|
25-818967 - Grommet [ More info ]
|
  |
|
258M0207785 - Grommet [ More info ]
|
| #32 | 10-19932100 | SCREW (.250-20 X 1.00) (3 required per assembly) WITH DRI LOC |
  |
|
10-19932100 - Screw, NLA [ More info ] Unavailable |
| #34 | 84-87379A14 | CABLE ASSEMBLY (RED-2.750 IN.) (1 required per assembly) |
  |
|
84-87379A14 - Cable Assembly, NLA [ More info ]
|
| #34 | 84-87379A46 | CABLE ASSEMBLY (RED-5.750 IN.) (1 required per assembly) |
  |
|
84-87379A46 - Cable Assembly, NLA [ More info ]
|
| #34 | 84-88807A16 | CABLE ASSEMBLY (BLACK) (2 required per assembly) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
