Parts for Force 120 HP (1991 L-Drive) U-joint & Housing

Revise Search: All Models > 120 HP (1991 L-Drive) > 120LD91D ( ) > U-joint & Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

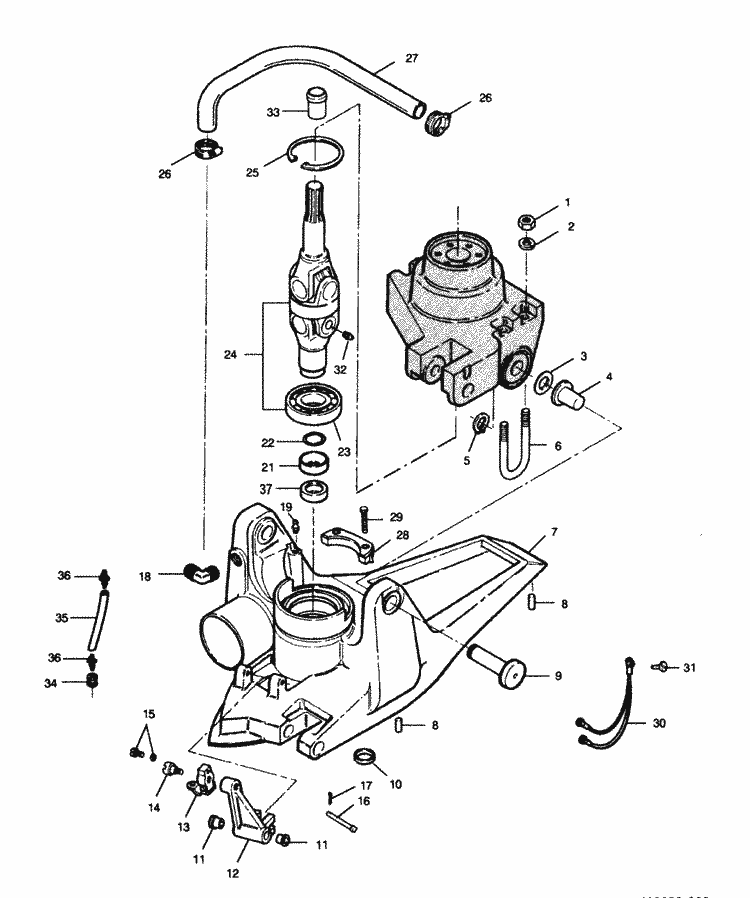

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	817922A 1	U-JOINT HOUSING W/U-JOINT (1 required per assembly)
		817922A 1 - Housing,NLA [ More info ] Unavailable
#1	F7025	NUT, 3/8 - 16 (2 required per assembly)
		F7025 - Lock Nut 3/8 - 16 (Stainless Steel) [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#2	F2014	WASHER (2 required per assembly)
		F2014 - Washer [ More info ] $0.49 3 In Stock.
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#3	F695175	WASHER (4 required per assembly)
		12-F695175 - Washer, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#4	F695610	BEARING (2 required per assembly)
		23-F695610 - Bearing, NLA [ More info ] $5.00 $4.24 5 In Stock.
#5	F695807	RING, RETAINING (4 required per assembly)
		53-F695807 - Ring - Retaining, NLA [ More info ] $7.55 10+ In Stock.
#6	F695632	"U" - BOLT (1 required per assembly)
		10-F695632 - U Bolt, NLA [ More info ] $7.61 $6.45 10+ In Stock.
#7	817980A 1	HOUSING, U-JOINT (1 required per assembly)
		817980A 1 - HSG KIT-U JOINT [ More info ] Unavailable
		817980A 2 - HSG KIT-U JOINT,NLA [ More info ] Unavailable
#8	F8580	PIN, LOCATING (2 required per assembly)
		17-F8580 - Pin, Locating [ More info ] $1.99 1 In Stock.
		17-85500 - Pin, Dowel (.187 X .530) [ More info ] $1.50 10+ In Stock.
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#9	F722440	PIN, PIVOT (2 required per assembly)
		F722440 - PIN-PIVOT,NLA [ More info ] Unavailable
#10	F694736	SEAL, WATER PUMP OUTLET (1 required per assembly)
		25-F694736 - O-Ring [ More info ] $15.58 10+ In Stock.
#11	F695189	BUSHING (2 required per assembly)
		23-F695189 - Bushing, NLA [ More info ] $4.69 $3.97 5 In Stock.
#12	F695621	LEVER, SHIFT (1 required per assembly)
		F695621 - LEVER-SHIFT,NLA [ More info ] Unavailable
#13	FK405020	CLAMP W/PIVOT SCREW (1 required per assembly)
		FK405020 - Swivel Kit, NLA [ More info ] $26.95 10+ In Stock.
#14	F405457	PIVOT SCREW (1 required per assembly)
		10-F405457 - Screw, NLA [ More info ] $8.39 10+ In Stock.
#15	F2217	SCREW, W/LOCKWASHER, 10 - 24 X 3/8 (1 required per assembly)
		10-F2217 - Screw [ More info ] $0.72 3 In Stock.
		10-F2217-1 - 10-F2217-1 - SCREW (10-24 x .3 [ More info ] Unavailable Replaced by 10-F2217-1
#16	F695620	PIN, SHIFT ARM (1 required per assembly)
		17-F695620 - Pin - Shift Arm, NLA [ More info ] $7.53 10+ In Stock.
#17	F8581	COTTER PIN (1 required per assembly)
		F8581 - Cotter Pin [ More info ] Unavailable
		18-46950 - Cotter Pin [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#18	22-819070	ELBOW, WATER LINE (1 required per assembly)
		22-819070 - Elbow, NLA [ More info ] Unavailable
#19	16-819007	STUD, SHIFT CABLE (1 required per assembly)
		16-819007 - Stud, NLA [ More info ] Unavailable
#21	F695055	SEAL (1 required per assembly)
		19-F695055 - Cap, NLA [ More info ] Unavailable
#22	F695618-1	SEAL (1 required per assembly)
		25-F695618-1 - O-Ring [ More info ] $10.76 $9.12 10 In Stock.
#23	F695527	BEARING (1 required per assembly)
		30-F695527 - Ball Bearing [ More info ] $186.75 Available to Order: Shipping delay up to 10 days.
#24	F2A695141	UNIVERSAL JOINT HOUSING (1 required per assembly)
		F2A695141 - Universal Joint with Bearing [ More info ] Unavailable
#25	F695764	RING, RETAINING (1 required per assembly)
		53-F695764 - RET-RING,NLA [ More info ] Unavailable
#26	F695771	CLAMP (2 required per assembly)
		54-F695771 - CLAMP-SS [ More info ] Unavailable
		54-815504412 - Clamp [ More info ] Unavailable
		54-8M0204717 - CLAMP [ More info ] Unavailable
#27	F695259-2	HOSE (1 required per assembly)
		32-F695259-2 - Hose -13.75 IN, NLA [ More info ] Unavailable
#28	819011C	ANODE (1 required per assembly)
		819011C - Anode, NLA [ More info ] Unavailable
#29	F1657	SCREW, 5/16 - 18 X 1-3/4 (2 required per assembly)
		F1657 - SCREW-SS [ More info ] Unavailable
		10-30559 - Screw, NLA [ More info ] $3.09 $0.62 10+ In Stock.
#30	84-819031A 1	CABLE, GROUND (1 required per assembly)
		84-819031A 1 - Cable Assembly, NLA [ More info ] $8.80 $7.45 2 In Stock.
#32	F17881	FITTING, GREASE (2 required per assembly)
		F17881 - Grease Fitting, NLA [ More info ] $11.00 $9.32 1 In Stock.
#33	F438129	SEAL, DRIVESHAFT SPLINE (1 required per assembly)
		23-F438129 - Seal [ More info ] Unavailable
		25-819427 - Seal [ More info ] $3.69 6 In Stock.
#34	F747504	GROMMET (1 required per assembly)
		25-F747504 - Grommet, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#35	F747088	HOSE, SPEEDOMETER (1 required per assembly)
		F747088 - 32F695865 [ More info ] Unavailable
		32-F695865 - TUBING [ More info ] Unavailable
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 2 In Stock.
#36	F748801	FITTING (2 required per assembly)
		22-F748801 - Fitting, NLA [ More info ] $1.38 $1.17 4 In Stock.
#37	26-F695735	SEAL, LOWER U-JOINT (1 required per assembly)
		26-F695735 - Seal [ More info ] Unavailable
