Parts for Force 120 HP (1991 L-Drive) Trim Cylinder
Tap to zoom. Scroll down to order.

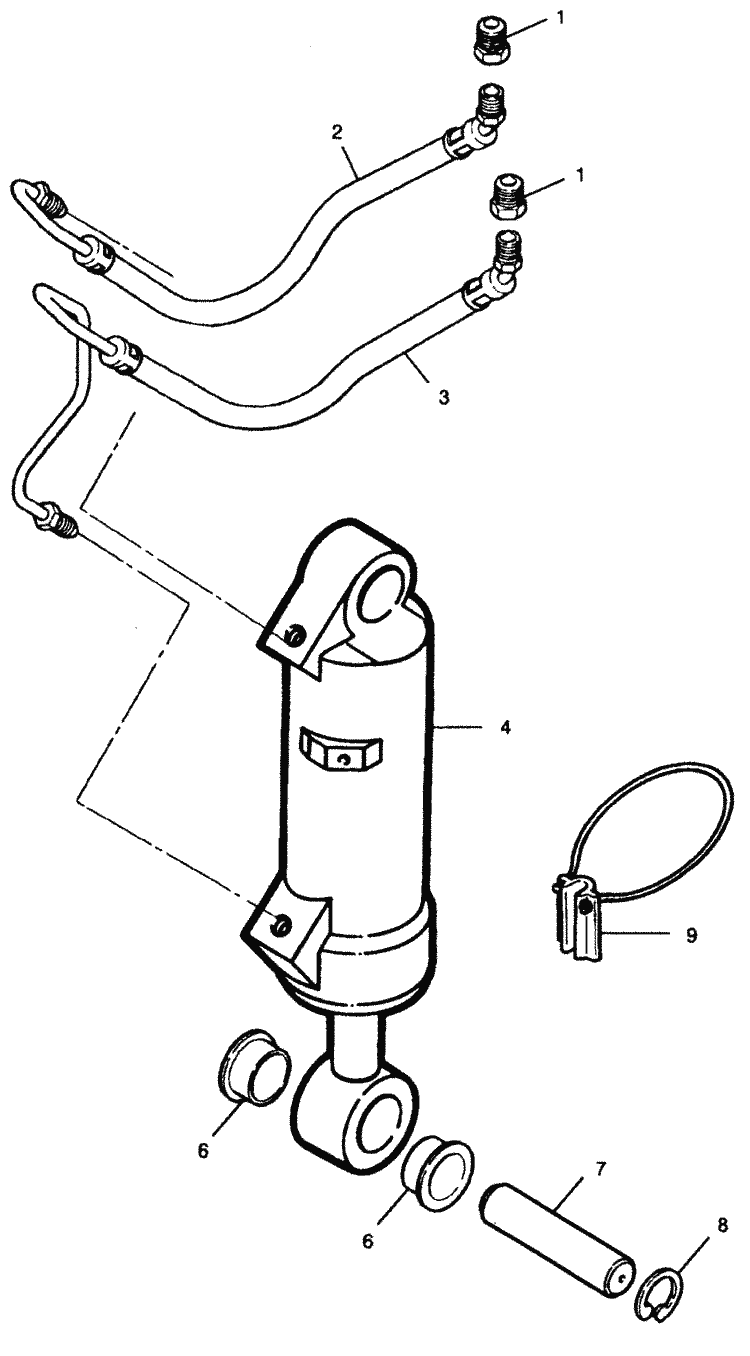

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 22-819052 | FITTING, HYDRAULIC (4 required per assembly) |
22-819052 - Connector [ More info ] Unavailable |
||
#2 | F698259 | HOSE, HYDRAULIC (UP) (1 required per assembly) |
#3 | F698088 | HOSE, HYDRAULIC (DOWN) (1 required per assembly) |
#4 | FA722381 | CYLINDER, HYDRAULIC W/BEARINGS (1 required per assembly) |
#6 | F695818 | BEARING (4 required per assembly) |
#7 | F695037 | PIN, TRIM CYLINDER (2 required per assembly) |
#8 | F695930 | RING, RETAINING (2 required per assembly) |
53-F695930 - RING-RETAINING [ More info ] Unavailable |
||
#9 | F695451-1 | SPACER, TILT LOCK (1 required per assembly) |
F695451-1 - SPACER,NLA [ More info ] Unavailable |
