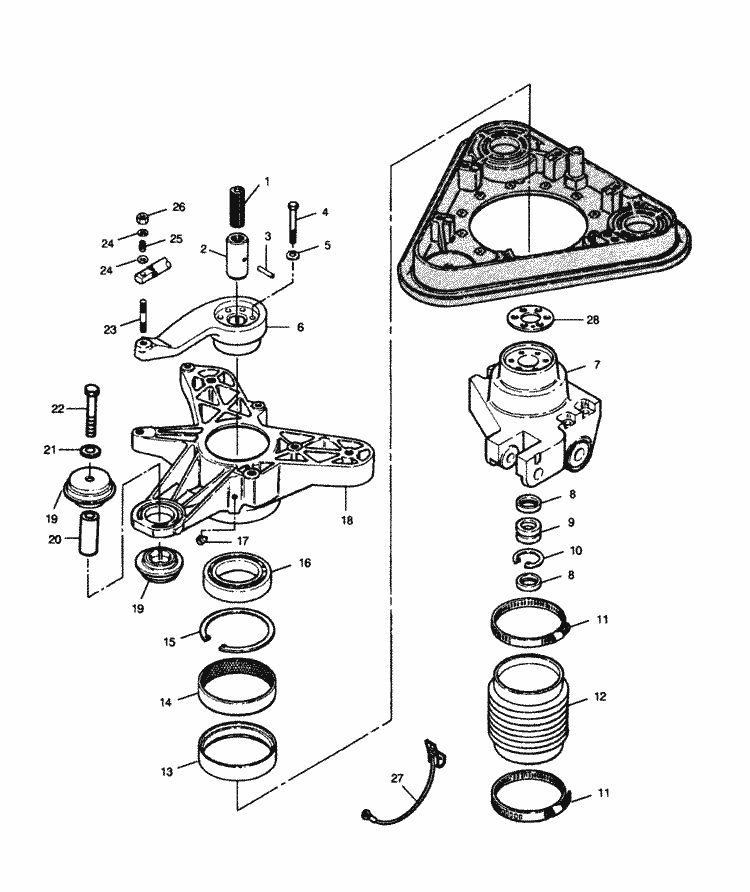

Parts for Force 120 HP (1991 L-Drive) Mount & Steering Yoke
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F695628-1 | DRIVESHAFT, UPPER (1 required per assembly) |
  |
|
F695628-1 - Drive Shaft [ More info ]
|
| #2 | F695125-1 | COUPLER (1 required per assembly) |
  |
F695125-1 - Coupler [ More info ] Unavailable |
|
  |
|
FK695125 - Coupler KIT,NLA [ More info ] Unavailable |
| #3 | F8585 | DOWEL PIN (1 required per assembly) |
  |
|
17-F8585 - Pin -Dowel, NLA [ More info ]
|
| #4 | F1883 | SCREW, 5/16 - 18 X 2-3/8 (5 required per assembly) |
  |
|
10-F1883 - Screw [ More info ]
|
| #5 | F1907 | WASHER (5 required per assembly) |
  |
F1907 - Washer, Stainless Steel [ More info ] Unavailable |
|
  |
|
12-12038 - Washer [ More info ]
|
  |
|
12-8M0207778 - WASHER Note: Priced Individually [ More info ]
|
| #6 | F722582 | ARM, STEERING (1 required per assembly) |
  |
|
F722582 - Steering Arm, NLA [ More info ] Unavailable |
| #7 | FS722607 | YOKE, STEERING W/BEARING AND SEALS (1 required per assembly) |
  |
|
FS722607 - YOKE ASSY,NLA [ More info ] Unavailable |
| #8 | F695783 | SEAL (2 required per assembly) |
  |
|
26-F695783 - Seal [ More info ]
|
| #9 | F695014 | BEARING (1 required per assembly) |
  |
F695014 - Bearing [ More info ] Unavailable |
|
  |
|
31-815479 - Bearing [ More info ]
|
| #10 | F695208 | RING, RETAINING (1 required per assembly) |
  |
F695208 - RING [ More info ] Unavailable |
|
  |
|
53-816166 - Ring - Retaining, NLA [ More info ]
|
| #11 | F506772-1 | CLAMP (2 required per assembly) |
  |
54-F506772-1 - Clamp, NLA [ More info ] Unavailable |
|
| #12 | F695129 | BELLOWS, U-JOINT (1 required per assembly) |
  |
|
F695129 - U-joint Bellows [ More info ] Unavailable |
| #13 | F695278 | SEAL (1 required per assembly) |
  |
|
26-F695278 - Seal [ More info ] Unavailable |
| #14 | F722816 | BEARING, STEERING (1 required per assembly) |
  |
|
F722816 - Bearing, NLA [ More info ] Unavailable |
| #15 | F695420 | RING, RETAINING (1 required per assembly) |
  |
|
53-F695420 - RING-RETAINING,NLA [ More info ] Unavailable |
| #16 | F695910 | BEARING (1 required per assembly) |
  |
F695910 - 30F6959101 [ More info ] Unavailable |
|
  |
|
30-F695910-1 - Ball Bearing, NLA [ More info ]
|
| #17 | F695274 | FITTING, GREASE (1 required per assembly) |
  |
|
22-F695274 - Fitting, NLA [ More info ]
|
| #18 | F695346-2 | MOUNT (1 required per assembly) |
  |
F695346-2 - MOUNT-STEERING [ More info ] Unavailable |
|
  |
|
819945A 2 - MOUNT ASSY-BASE,NLA [ More info ] Unavailable |
| #19 | F695965 | MOUNT, ISOLATOR (2 required per assembly) |
  |
|
F695965 - Isolater Mount, NLA [ More info ]
|
| #20 | F698902 | SPACER (1 required per assembly) |
  |
|
23-F698902 - SPACER,NLA [ More info ] Unavailable |
| #21 | F8145 | WASHER (1 required per assembly) |
  |
|
12-F8145 - Washer, NLA [ More info ]
|
| #22 | F2224 | SCREW, 1/2 - 13 X 3-1/4 (1 required per assembly) |
  |
|
10-F2224 - Screw, NLA [ More info ] Unavailable |
| #23 | F695273 | STUD, STEERING CABLE (1 required per assembly) |
  |
F695273 - 16F6952731 [ More info ] Unavailable |
|
  |
|
16-F695273-1 - Stud, NLA [ More info ]
|
| #24 | F8038 | WASHER (2 required per assembly) |
  |
12-F8038 - Washer [ More info ] Unavailable |
|
  |
|
12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ]
|
| #25 | F523300-1 | SPRING (1 required per assembly) |
  |
|
24-F523300-1 - Spring-Steering Link,NLA [ More info ]
|
| #26 | F7004 | NUT, 3/8 - 16 (1 required per assembly) |
  |
|
11-F7004 - Nut, (.375-16) [ More info ]
|
  |
11-28010 - Nut - Priced Individually [ More info ] Unavailable |
|
  |
|
11-68411 - Nut (3/8-16) [ More info ]
|
  |
|
11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ]
|
| #27 | F695042 | CABLE, GROUND (1 required per assembly) |
  |
F695042 - Cable [ More info ] Unavailable |
|
  |
|
84-819697A 1 - Cable, NLA [ More info ] Unavailable |
| #28 | F722175 | WASHER (1 required per assembly) |
  |
|
12-F722175 - WASHER,NLA [ More info ] Unavailable |
