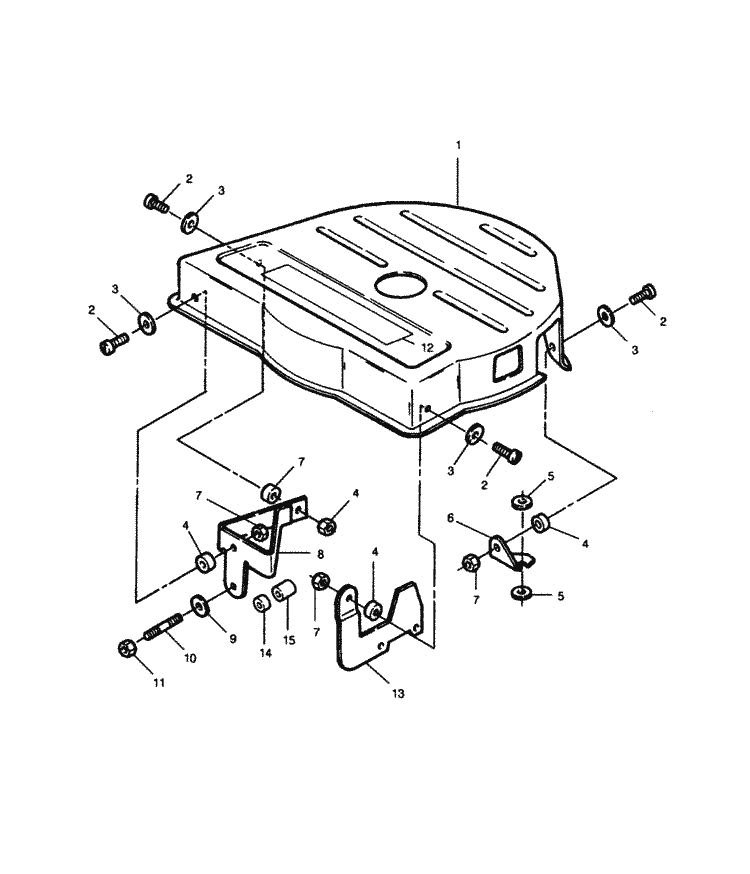

Parts for Force 120 HP (1991 L-Drive) Flywheel Cover
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F695262 | GUARD (1 required per assembly) |
  |
F695262 - GUARD [ More info ] Unavailable |
|
  |
819976A 1 - GUARD KIT-F WHEEL [ More info ] Unavailable |
|
  |
|
819976A 2 - Guard Kit, NLA [ More info ] Unavailable |
| #2 | F2421 | SCREW, 5/16 X 3/8 (4 required per assembly) |
  |
|
10-F2421 - Screw, NLA [ More info ] Unavailable |
| #3 | F1739 | WASHER (4 required per assembly) |
  |
|
12-F1739 - Washer [ More info ]
|
  |
|
12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ]
|
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #4 | F695802 | BUSHING (4 required per assembly) |
  |
|
23-F695802 - Bushing, NLA [ More info ] Unavailable |
| #5 | F8028 | WASHER (2 required per assembly) |
  |
F8028 - 12F8008 [ More info ] Unavailable |
|
  |
12-F8008 - Washer [ More info ] Unavailable |
|
  |
|
12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ]
|
| #6 | F695952 | BRACKET (1 required per assembly) |
  |
F695952 - Bracket [ More info ] Unavailable |
|
  |
|
820638 - Bracket [ More info ]
|
| #7 | F7008 | NUT, 1/4 - 20 (4 required per assembly) |
  |
11-F7008 - Nut, (.250-20) [ More info ] Unavailable |
|
  |
11-72008 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
11-826708 8 - Nut [ More info ]
|
| #8 | F695953 | BRACKET (1 required per assembly) |
  |
F695953 - Bracket [ More info ] Unavailable |
|
  |
825982 - Bracket [ More info ] Unavailable |
|
  |
|
825982T - Bracket, NLA [ More info ] Unavailable |
| #9 | F8137 | WASHER (1 required per assembly) |
  |
12-F8137 - Washer [ More info ] Unavailable |
|
  |
|
12-38622 - Washer, (.391 X 1.00 X .125) [ More info ]
|
| #10 | F695210 | STUD (1 required per assembly) |
  |
16-F695210 - STUD [ More info ] Unavailable |
|
  |
|
16-826390 - Stud, NLA [ More info ] Unavailable |
| #11 | F7006 | NUT, 5/16 - 18 (1 required per assembly) |
  |
11-F7006 - Nut (5/16-18) [ More info ] Unavailable |
|
  |
|
11-26484 - Nut (5/16-18) [ More info ]
|
  |
|
11-8M0204646 - NUT @5 [ More info ] Unavailable |
| #12 | F722386 | DECAL, FLYWHEEL COVER (1 required per assembly) |
  |
|
37-F722386 - DECAL,NLA [ More info ] Unavailable |
| #13 | F698951 | BRACKET (1 required per assembly) |
  |
|
F698951 - Bracket, NLA [ More info ]
|
| #14 | F722786 | SPACER (1 required per assembly) |
  |
|
F722786 - F722786 - SPACER [ More info ] Unavailable Replaced by 23-F723786 |
  |
|
23-F723786 - SPACER,NLA [ More info ] Unavailable |
| #15 | F722932 | SPACER (1 required per assembly) |
  |
|
23-F722932 - Spacer, NLA [ More info ]
|
