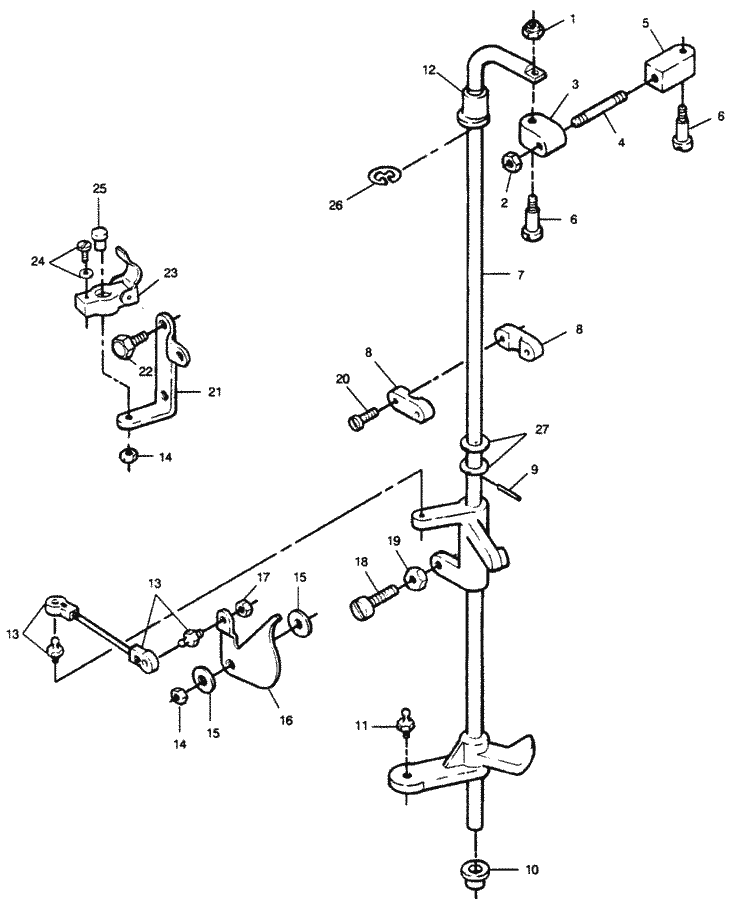

Parts for Force 120 HP (1990 L-Drive) Towershaft & Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F7009 | LOCKNUT, #10 -24 (1 required per assembly) |
  |
|
11-F7009 - Nut, (#10-24) [ More info ] Unavailable |
| #2 | F2015 | JAM NUT, 1/4 - 28 (1 required per assembly) |
  |
|
11-F2015 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #3 | F499035 | END, CONTROL ROD (TO TOWERSHAFT) (1 required per assembly) |
  |
|
F499035 - Control Rod End Timing Ring [ More info ]
|
| #4 | F85445 | ROD, SPARK CONTROL (1 required per assembly) |
  |
F85445 - F854451 [ More info ] Unavailable |
|
  |
|
F85445-1 - Spark Control Rod [ More info ]
|
| #5 | F499036 | END, CONTROL ROD (TO TRIGGER) (1 required per assembly) |
  |
F499036 - F4990361 [ More info ] Unavailable |
|
  |
|
F499036-1 - End, Control Rod, .250-28 LH [ More info ]
|
| #6 | F499026 | SWIVEL (2 required per assembly) |
  |
|
F499026 - Towershaft Swivel, NLA [ More info ] Unavailable |
| #7 | 817960A 2 | TOWERSHAFT (1 required per assembly) |
  |
|
817960A 2 - TowerShaft Kit, NLA [ More info ] Unavailable |
| #8 | FA607689 | BEARING, TOWERSHAFT (2 required per assembly) |
  |
|
FA607689 - Bearing Kit, NLA [ More info ]
|
| #9 | F8540 | PIN (2 required per assembly) |
  |
17-F8540 - Roll Pin [ More info ] Unavailable |
|
  |
|
17-38489 - Pin -roll [ More info ]
|
| #10 | F40689-1 | BEARING (1 required per assembly) |
  |
|
23-F40689-1 - Bearing - Towershaft Lower [ More info ]
|
| #11 | F640273-1 | STUD, THROTTLE CONNECTOR (1 required per assembly) |
  |
|
16-F640273-1 - Stud, NLA [ More info ]
|
| #12 | F491689-1 | BEARING, UPPER TOWERSHAFT (1 required per assembly) |
  |
F491689-1 - Bearing - Towershaft Upper [ More info ] Unavailable |
|
  |
|
23-819513 - Bushing, NLA [ More info ]
|
| #13 | 817747 1 | JOINT, BALL W/STUD (2 required per assembly) |
  |
817747 1 - Ball Joint Assembly [ More info ] Unavailable |
|
  |
|
828514A 1 - Ball and Socket [ More info ]
|
| #14 | F7008 | NUT, 1/4 - 20 (2 required per assembly) |
  |
11-F7008 - Nut, (.250-20) [ More info ] Unavailable |
|
  |
11-72008 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
11-826708 8 - Nut [ More info ]
|
| #15 | F269319 | BEARING (2 required per assembly) |
  |
|
23-F269319 - Bushing, NLA [ More info ]
|
| #16 | F698192 | CAM, THROTTLE (1 required per assembly) |
  |
F698192 - Throttle Cam, NLA [ More info ] Unavailable |
|
  |
|
830065 - Throttle Cam, NLA [ More info ]
|
| #17 | F1513 | NUT, #10 - 32 (1 required per assembly) |
  |
|
F1513 - Hex Nut 10 - 32 [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #18 | F1504 | SCREW, THROTTLE STOP, 1/4 - 20 X 1-1/4 (1 required per assembly) |
  |
|
10-F1504 - Screw -ss [ More info ]
|
| #19 | F1341 | NUT, 1/4 - 20 (1 required per assembly) |
  |
F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable |
|
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #20 | F1829 | SCREW, 10 - 24 X 7/8 (2 required per assembly) |
  |
|
10-F1829 - Screw -ss, NLA [ More info ]
|
| #21 | F695872 | BRACKET, THROTTLE CABLE (1 required per assembly) |
  |
|
F695872 - Bracket, NLA [ More info ]
|
| #22 | F1238 | SCREW, 1/4 - 20 X 3/4 (2 required per assembly) |
  |
F1238 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-49668 - Screw - Priced Individually [ More info ]
|
| #23 | FK405020 | SWIVEL W/CLAMP (1 required per assembly) |
  |
|
FK405020 - Swivel Kit, NLA [ More info ]
|
| #24 | F2217 | SCREW, 10 - 24 X 3/8 (1 required per assembly) |
  |
|
10-F2217 - Screw [ More info ]
|
  |
|
10-F2217-1 - 10-F2217-1 - SCREW (10-24 x .3 [ More info ] Unavailable Replaced by 10-F2217-1 |
| #25 | F405457 | PIVOT (1 required per assembly) |
  |
|
10-F405457 - Screw, NLA [ More info ]
|
| #26 | F185764 | RING, RETAINING (1 required per assembly) |
  |
|
F185764 - Ring - Retaining - Priced Individually [ More info ]
|
  |
|
53-13194 - Ring - Retaining - Priced Individually [ More info ]
|
| #27 | F1856 | WASHER (2 required per assembly) |
  |
|
12-F1856 - Washer, NLA [ More info ]
|
