Parts for Chrysler 9.9 HP (1982) Electric Starter 98h2C, 98B2C
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FC520390 | DECAL, STARTER CANADA (NOT SHOWN) (1 required per assembly) |
  |
|
FC520390 - DECAL NLA [ More info ] Unavailable |
| # | F510955 | STARTER MOTOR - COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*). |
  |
|
50-F510955 - Starter,NLA [ More info ] Unavailable |
| #1 | F15142 | STOP NUT (1 required per assembly) |
  |
|
F15142 - F15142 - NUT [ More info ] Unavailable Replaced by 11-F1892 |
  |
11-F1892 - Nut (.312-18)(Stainless Steel) [ More info ] Unavailable |
|
  |
|
11-826709110 - Nut, (.312-18) Stainless Steel [ More info ]
|
| #2 | F15141 | PINION STOP (1 required per assembly) |
  |
|
F15141 - Pinion Stop, NLA [ More info ] Unavailable |
| #3 | F15140 | SPRING (1 required per assembly) |
  |
|
F15140 - SPRING,NLA [ More info ] Unavailable |
| #4 | F15139 | PINION ASSEMBLY (1 required per assembly) |
  |
|
F15139 - Pinion,NLA [ More info ] Unavailable |
| #5 | F15135 | CAP ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
F15135 - Cap Assembly, NLA [ More info ] Unavailable |
| #6 | F15137 | WASHER (1 required per assembly) |
  |
|
F15137 - WASHER,NLA [ More info ] Unavailable |
| #7 | F15145 | GASKET (2 required per assembly) |
  |
|
F15145 - Gasket, NLA [ More info ] Unavailable |

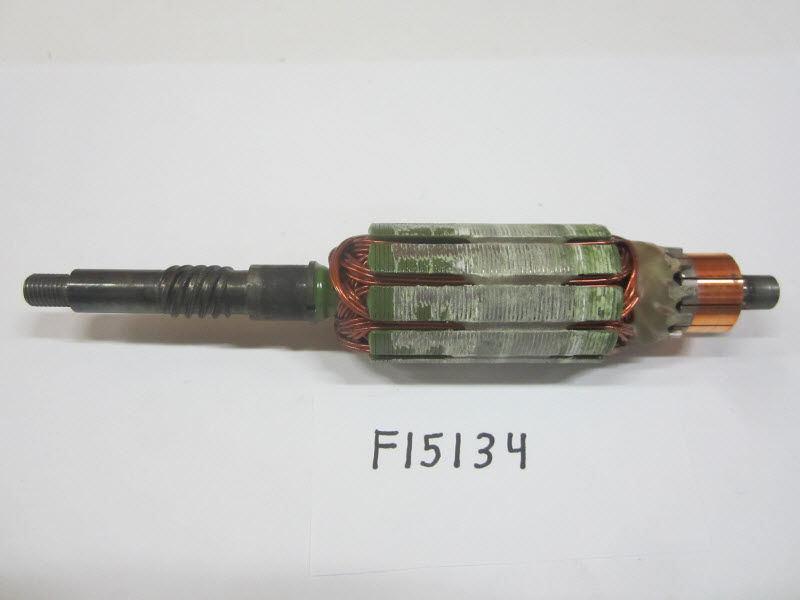

| #8 | F15134 | ARMATURE (1 required per assembly) |
  |
|
F15134 - Armature, NLA [ More info ] Unavailable |
| #9 | F15136 | HOUSING ASSEMBLY (1 required per assembly) |
  |
F15136 - 50F510955 / ORD [ More info ] Unavailable |
|

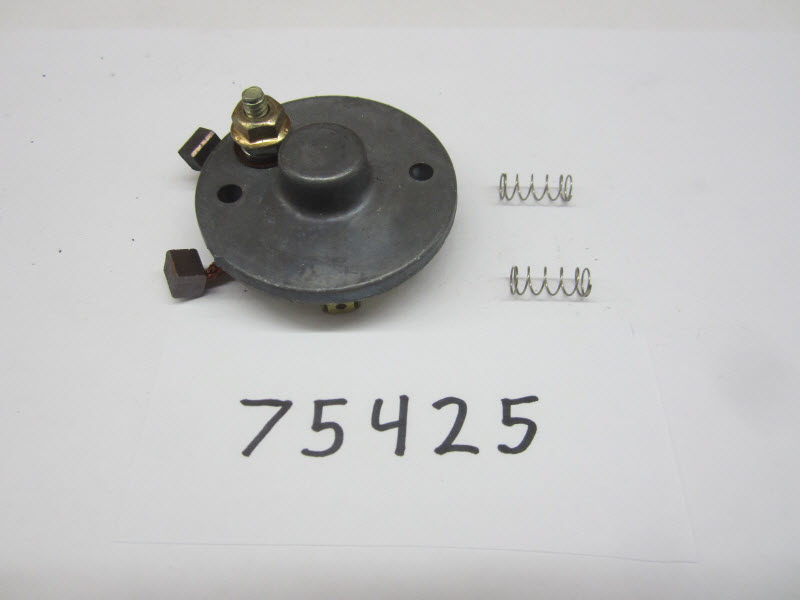

| #10 | F15127 | CAP ASSEMBLY, COMMUTATOR END. (1 required per assembly) INCLUDES ITEMS 15, 16, 17 AND 18 |
  |
F15127 - End Cap, NLA [ More info ] Unavailable |
|
  |
|
75425 - End Cap, NLA [ More info ] Unavailable |
| #11 | F15143 | DISC (1 required per assembly) |
  |
F15143 - DISC,NLA [ More info ] Unavailable |
|
  |
|
75429 - DISC,NLA [ More info ] Unavailable |
| #12 | F15138 | SPRING, BRUSH (2 required per assembly) |
  |
|
F15138 - SPRING,NLA [ More info ] Unavailable |
| #13 | F15146 | WASHER (4 required per assembly) |
  |
|
F15146 - Starter PART,NLA [ More info ] Unavailable |
| #14 | F15144 | SCREW, THRU BOLT (2 required per assembly) |
  |
|
F15144 - SCREW,NLA [ More info ] Unavailable |
| #15 | F15129 | NUT W/LOCKWASHER (1 required per assembly) |
  |
|
F15129 - NUT AND LOCKWASHE,NLA [ More info ] Unavailable |
| #16 | F15130 | NUT (1 required per assembly) |
  |
|
F15130 - NUT,NLA [ More info ] Unavailable |
| #17 | F1533 | WASHER (1 required per assembly) |
  |
|
F1533 - F1533 - SCREW [ More info ] Unavailable Replaced by 10-F2008 |
  |
|
10-F2008 - Screw -ss, NLA [ More info ]
|
| #18 | F15132 | WASHER, FIBER (1 required per assembly) |
  |
|
F15132 - WASHER,NLA [ More info ] Unavailable |
