Parts for Chrysler 85 HP (1978) Gear Housing

Revise Search: All Models > 85 HP (1978) > 857B8F ( ) > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	FC498054	*GEAR HOUSING COMPLETE (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ().**
		FC498054 - Gear Housing Complete [ More info ] Unavailable
		1600-819196A 1 - Gear Housing Kit-20IN [ More info ] Unavailable
		1600-819196A 2 - Gear Housing Kit-20IN [ More info ] Unavailable
		1600-819196A 3 - GEAR HSG KIT-20I,NLA [ More info ] Unavailable
#1	F1705	HEX CAP SCREW, 1/4 - 20 X 3/4 (2 required per assembly)
		F1705 - Screw - Priced Individually [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#2	F85117	BRACKET, WATER LINE (1 required per assembly)
		F85117 -Waterline Bracket [ More info ] Unavailable
		F692117 - Bracket, NLA [ More info ] Unavailable
#3	F84342	SEAL, INLET WATER LINE UPPER (1 required per assembly)
		25-F84342 - Water Line Seal [ More info ] Unavailable
#4	F523899	GROMMET, WATER LINE (1 required per assembly)
		F523899 - Grommet, Inlet Water Line [ More info ] Unavailable
		25-817491 - Grommet, (.56 Inside Diameter) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#5	F523244	INLET WATER LINE (1 required per assembly)
		32-F523244 - Water Line -20 In, NLA [ More info ] $47.43 10+ In Stock.
#6	F1885	HEX CAP SCREW, 5/16 - 18 X 4 1/4 (4 required per assembly)
		10-F1885 - Screw -ss, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#7	F1907	PLAIN WASHER (4 required per assembly)
		F1907 - Washer, Stainless Steel [ More info ] Unavailable
		12-12038 - Washer [ More info ] $2.30 3 In Stock.
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#8	F50342-1	SEAL, BEARING CAGE BOLTS (4 required per assembly)
		25-F50342-1 - Seal - Priced Individually [ More info ] Unavailable
		25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#9	F506118	SEAL, PROPELLER SHAFT (1 required per assembly)
		26-F506118 - 26F5061181 [ More info ] Unavailable
		26-F506118-1 - 26-F506118-1 - SEAL [ More info ] Unavailable Replaced by 26-F506118-1
#10	F24278	SEAL, "O" RING PROPELLER SHAFT SPOOL (1 required per assembly)
		25-F24278 - O-Ring Seal-Propshaft Spool (type A) [ More info ] Unavailable
		18-7169-9 - O-Ring (PK5) 25-70937, 911686 [ More info ] $20.63 Available to Order: Shipping delay up to 10 days.
#11	F2A523239	SPOOL, PROPELLER SHAFT BEARING W/SEALS (1 required per assembly)
		F2A523239 - Spool Assembly [ More info ] Unavailable
		803940T - Spool Assembly, NLA [ More info ] Unavailable
#12	F84305	SEAL, PROPELLER SHAFT BEARING SPOOL (1 required per assembly)
		25-F84305 - Seal [ More info ] $4.43 10+ In Stock.
		25-32507 - O-ring, (3.359 X .139) [ More info ] $5.19 1 In Stock.
		18-7127 - O-Ring 313446 [ More info ] $3.99 $3.93 Available to Order: Shipping delay up to 10 days.
#13	F523094-2	PROPELLER NUT (1 required per assembly)
		F523094-2 - Prop Nut, NLA [ More info ] $64.99 $55.04 8 In Stock.
#14	F90891	PIN, PROPELLER NUT RETAINING (1 required per assembly)
		F90891 - Pin, Gear Shift Arm [ More info ] Unavailable
		F498891 - Shift Pivot Pin [ More info ] Unavailable
		817468 - Shift Pivot Pin [ More info ] Unavailable
		826374 - Pin - Retainer [ More info ] Unavailable
#15	F1788	STOP NUT (1 required per assembly)
		F1788 - 11F7048 [ More info ] Unavailable
		11-F7048 - Prop Nut - Priced Individually [ More info ] $13.97 1 In Stock.
#16	F1866	PLAIN WASHER (1 required per assembly)
		12-F1866 - Washer [ More info ] $2.96 Available to Order: Shipping delay up to 10 days.

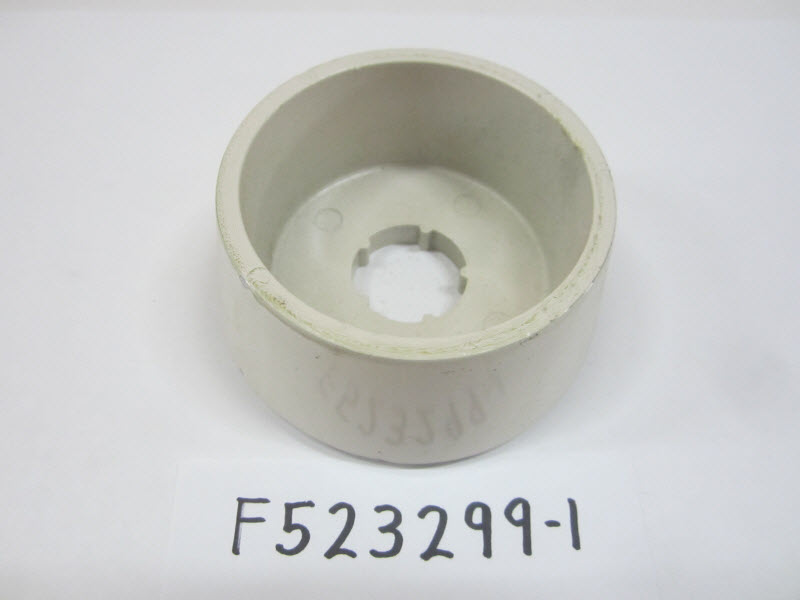

#17	F523299-1	WASHER, PROPELLER SPLINE (1 required per assembly)
		F523299-1 - SPACER [ More info ] $16.00 10 In Stock.
		F532299 - Spacer [ More info ] Unavailable
#18	FP524	PROPELLER, (ACCESSORY ITEM) (1 required per assembly)
		FP524 - 48FP6861 [ More info ] Unavailable
		48-FP686-1 - 48FP6862 [ More info ] Unavailable
		48-FP686-2 - 48FP6863 [ More info ] Unavailable
		48-FP686-3 - 48FP6864 [ More info ] Unavailable
		48-FP686-4 - Black Diamond Prop - 13R19 [ More info ] Unavailable
#19	F523099	SPACER, PROPELLER (1 required per assembly)
		F523099 - 23F5230991 [ More info ] Unavailable
		23-F523099-1 - Propeller Spacer [ More info ] Unavailable
#20	F1577	FILL HD SCREW, 1/4 - 20 X 3/4 (2 required per assembly)
		10-F1577 - Screw -ss, NLA [ More info ] $1.83 $1.56 10+ In Stock.
#21	FA523485	ANTI-CORROSION ANODE (1 required per assembly)
		FA523485 - Anti-Corrosion Anode, NLA [ More info ] Unavailable
#22	F2A498662	BEVEL GEAR REAR W/BEARING CAGE, SPACER AND BEARING (1 required per assembly)
		F2A498662 -Bevel Gear Rear with Bearing Cage Spacer and Bearing, NLA [ More info ] $124.99 $105.86 3 In Stock.
#23	F523411	RETAINING RING (2 required per assembly)
		53-F523411 - Ring - Retaining, NLA [ More info ] $14.43 $12.23 4 In Stock.
#24	FA523098	PROPELLER SHAFT (1 required per assembly)
		FA523098 - Prop Shaft [ More info ] Unavailable
		44-817962A 1 - Prop Shaft Kit [ More info ] $108.00 1 In Stock.
		44-817962A 2 - Prop Shaft Kit, NLA [ More info ] Unavailable
#25	FA84871-1	PIN, GEAR SHIFT W/YOKE (1 required per assembly)
		FA84871-1 - Pin & Yoke, NLA [ More info ] $31.11 $26.35 6 In Stock.
#26	F1713	SPRING PIN (1 required per assembly)
		F1713 - 17F2419 [ More info ] Unavailable
		17-F2419 - Spring Pin [ More info ] $1.43 2 In Stock.
		17-8M0029889 - Pin -roll [ More info ] $2.11 10+ In Stock.
#27	F84521-1	CLUTCH (1 required per assembly)
		F84521-1 - Clutch [ More info ] Unavailable
		52-816433 - Clutch [ More info ] $149.99 1 In Stock.
		52-816433T - Clutch [ More info ] $363.49 Available to Order: Shipping delay up to 10 days.
#29	F2A498023	BEVEL GEAR FRONT W/BEARING (1 required per assembly)
		F2A498023 - Bevel Gear Front [ More info ] $100.00 2 In Stock.
		43-818062A 3 - Bevel Gear Front [ More info ] $224.99 $190.56 1 In Stock.
#30	F523812	BEARING CUP (1 required per assembly)
		F523812 - 31F523813 / ORD [ More info ] Unavailable
		31-F523813 - 31-820456A 1 ORD [ More info ] Unavailable
#31	F19109	PLUG, GEAR HOUSING (1 required per assembly)
		F19109 - Plug - (1/8-27 NPT) [ More info ] Unavailable
		22-47945 - Pipe Plug [ More info ] Unavailable
#33	F8001	WASHER (1 required per assembly)
		12-F8001 - Washer, NLA [ More info ] $2.06 10+ In Stock.
#34	F523188	NUT, BEVEL PINION RETAINING (1 required per assembly)
		F523188 - 11F5231881 [ More info ] Unavailable
		11-F523188-1 - Nut - Special, NLA [ More info ] Unavailable
#35	FA498266	BEVEL PINION GEAR W/CRUSH RING AND SHIMS (1 required per assembly)
		FA498266 - Bevel Pinion Gear W/crush Ring And Shims [ More info ] $93.75 1 In Stock.
		43-817830A 2 - Bevel Pinion Gear, NLA [ More info ] Unavailable
#36	F438930	RETAINER, SNOUT (1 required per assembly)
		10-F438930 - Screw [ More info ] $5.99 1 In Stock.
		10-826377 - Screw [ More info ] $10.76 10+ In Stock.
#37	F1994	HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1 (1 required per assembly)
		10-F1994 - Screw - SS [ More info ] $1.49 10+ In Stock.
		10-90073 - Screw [ More info ] $1.85 $1.46 10+ In Stock.
#38	F523116	EXHAUST SNOUT (1 required per assembly)
		F523116 - F5231164 [ More info ] Unavailable
		F523116-4 - SNOUT NLA [ More info ] Unavailable
#39	F1858	HEX CAP SCREW, 5/16 - 18 X 1 (1 required per assembly)
		10-F1858 - Screw -ss, NLA [ More info ] $3.56 2 In Stock.
#40	F8096	SPRING LOCKWASHER (7 required per assembly)
		F8096 - LockWasher - Priced Individually [ More info ] Unavailable
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#41	F1491	HEX CAP SCREW, 5/16 - 18 X 3 1/4 (6 required per assembly)
		10-F1491 - Screw -ss [ More info ] $9.40 $7.52 7 In Stock.
#42	FA523054	GEAR HOUSING W/BEARG CUP DRIVESHAFT BEARG LOWR, PLUGS & WSHR (1 required per assembly)
		1600-FA523054 - Gear Housing,NLA [ More info ] Unavailable
#43	F8077	WASHER, GEAR HOUSING PLUG (2 required per assembly)
		F8077 - SEAL [ More info ] Unavailable
		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#44	F50109	PLUG, GEAR HOUSING (2 required per assembly)
		10-F50109 - Screw -Special [ More info ] $7.77 4 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 6 In Stock.
#45	FA84621-1	COUPLING, GEAR SHIFT ARM W/BUSHING (1 required per assembly)
		FA84621-1 - Coupling [ More info ] Unavailable
#46	F523705	GEAR SHIFT ROD LOWER (1 required per assembly)
		F523705 - F5237051 [ More info ] Unavailable
		F523705-1 - Shift Rod [ More info ] Unavailable
#47	F1015	COTTER PIN (1 required per assembly)
		18-F1015 - Cotter Pin - Priced Individually [ More info ] $1.46 10+ In Stock.
#48	F85372	PIN, GEAR SHIFT ROD LOWER (1 required per assembly)
		17-F85372 - Gear Shift Rod Lower Pin [ More info ] $6.39 3 In Stock.
#49	F523555	SEAL, "O" RING - GEAR HOUSING COVER (1 required per assembly)
		25-F523555 - Gear Housing Cover Seal [ More info ] Unavailable
		25-54030 - O-ring, (2.987 X .103) [ More info ] $5.89 4 In Stock.
#50	F523961	CRUSH RING (1 required per assembly)
		F523961 - Crush Ring [ More info ] $59.56 10+ In Stock.
#51	F74305	SEAL, DRIVESHAFT BEARING CAGE (1 required per assembly)
		25-F74305 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-90011 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-896523 - O-ring, (2.175 X .103) [ More info ] Unavailable
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#52	F84307-1	SEAL, DRIVESHAFT (1 required per assembly)
		26-F84307-1 - Seal [ More info ] $29.58 $25.06 3 In Stock.
#53	FA523706	GEAR HOUSING COVER W/SEALS (1 required per assembly)
		FA523706 - COVER KIT,NLA [ More info ] Unavailable
#54	F8083	SPRING LOCKWASHER (7 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#55	F1999	HEX CAP SCREW, 1/4 - 20 X 7/8 (3 required per assembly)
		10-F1999 - Screw -ss [ More info ] $1.10 10 In Stock.
		10-28668 - Screw - Priced Individually [ More info ] $1.70 1 In Stock.
#56	F338618-1	SEAL, GEAR SHIFT ROD (1 required per assembly)
		F338618-1 - SEAL [ More info ] Unavailable
		26-817472 - Seal [ More info ] $8.99 3 In Stock.
		18-0500 - Seal, 26-817472 [ More info ] $8.99 $8.32 Available to Order: Shipping delay up to 10 days.
#57	F523031	GASKET, WATER PUMP (1 required per assembly)
		27-F523031 - Water Pump Gasket [ More info ] $4.19 5 In Stock.
		18-0415-9 - Gasket 27-F523031 2-Pack [ More info ] $8.45 Available to Order: Shipping delay up to 10 days.
#58	F523562	WATER PUMP BACK PLATE (1 required per assembly)
		F523562 - Water Pump Plate [ More info ] $18.79 2 In Stock.
#59	F523065	WATER PUMP IMPELLER (1 required per assembly)
		F523065 - 47F5230651 [ More info ] Unavailable
		47-F523065-1 - Impeller [ More info ] Unavailable
		47-803630T - Impeller [ More info ] Unavailable
		47-09220 - Water Pump Impeller Chrysler Force 47-803630T [ More info ] $21.99 $18.35 In Stock
		18-3030 - Impeller, 47-803630T [ More info ] $23.93 6 In Stock.
#60	FA523060	WATER PUMP BODY W/DRIVESHAFT SEAL, DISC AND WATER LINE SEAL (1 required per assembly)
		FA523060 - Water Pump Body [ More info ] Unavailable
		46-817853A 1 - Water Pump Body [ More info ] Unavailable
		46-817853T 1 - Water Pump Body [ More info ] $135.49 Available to Order: Shipping delay up to 10 days.
#61	F1990	HEX CAP SCREW, 1/4 - 20 X 1 5/8 (2 required per assembly)
		10-F1990 - Screw -ss [ More info ] Unavailable
		10-8M0149604 - SCREW [ More info ] Unavailable
#62	F480388	DISC, WATER PUMP LOCATING (1 required per assembly)
		12-F480388 - Wsher, Water Pump Locating [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#63	F1425	HEX CAP SCREW, 1/4 - 20 X 2 5/8 (2 required per assembly)
		10-F1425 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#64	F351307	SEAL, WATER PUMP (1 required per assembly)
		26-F351307 - Seal [ More info ] Unavailable
#65	FA523735	SEAL, INLET WATER LINE LOWER (1 required per assembly)
		FA523735 - Lower Inlet Water Line Seal [ More info ] $9.69 3 In Stock.
#66	F523057	BEARING, DRIVESHAFT LOWER (1 required per assembly)
		31-F523057 - Bearing - Driveshaft Lower [ More info ] $24.38 $20.65 5 In Stock.
#68	F523498	DRIVE KEY, WATER PUMP (1 required per assembly)
		28-F523498 - Key [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#69	45-818017A 3	DRIVESHAFT W/BEARING, SHIMS AND CRUSH RING (1 required per assembly)
		45-818017A 3 - Drive Shaft KIT-2,NLA [ More info ] Unavailable
#70	F438271	RETAINER, CRANKSHAFT SPLINE SEAL (1 required per assembly)
		23-F438271 - Retainer, NLA [ More info ] Unavailable
#71	F438129	SEAL, DRIVESHAFT SPLINE (1 required per assembly)
		23-F438129 - Seal [ More info ] Unavailable
		25-819427 - Seal [ More info ] $3.69 6 In Stock.
#72	F1856	PLAIN WASHER (2 required per assembly)
		12-F1856 - Washer, NLA [ More info ] $1.62 10+ In Stock.
