Parts for Chrysler 55 HP (1978) Motor Leg

Revise Search: All Models > 55 HP (1978) > 558B8K ( ) > Motor Leg

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

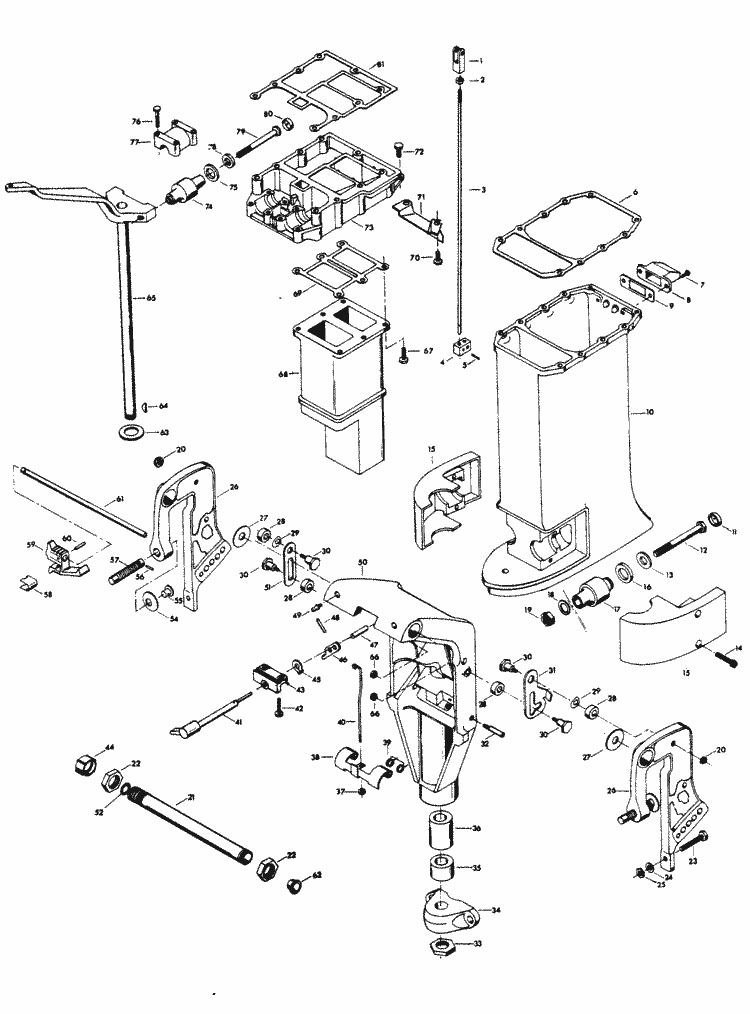

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F522532	STERN BRACKET - PORT (1 required per assembly)
		F522532 - F522532 - BRACKET-STERN [ More info ] Unavailable Replaced by -FK522032
		FK522032 - Bracket Kit -Stern, NLA [ More info ] Unavailable
#	F474390-1	DECAL, REVERSE LOCK (NOT SHOWN) (1 required per assembly)
		F474390-1 - F474390-1 - DECAL-REV LOCK [ More info ] Unavailable Replaced by -F529390-1
		F529390-1 - DECAL-REV LOCK [ More info ] Unavailable
		37-819450 - Decal -Rev Lock, NLA [ More info ] Unavailable
#	37-819450	DECAL, REVERSE LOCK - CANADA (NOT SHOWN) (1 required per assembly)
#1	F474704	COUPLER, SHIFT ROD (1 required per assembly)
		F474704 - Coupler, NLA [ More info ] $3.26 $2.76 10+ In Stock.
#2	F1341	HEX NUT, 1/4 - 20 (1 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#4	F474273	COUPLING, GEAR SHIFT ROD (1 required per assembly)
		F474273 - Coupling, NLA [ More info ] $7.00 $5.93 3 In Stock.
#5	F8547	SPRING PIN (1 required per assembly)
		F8547 - Spring Pin, 1/8 X 5/8, Stainless Steel [ More info ] $0.25 5 In Stock.
		17-25905 - Pin, Roll, NLA [ More info ] $7.81 10+ In Stock.
#6	F474453	LEG EXHAUST GASKET (1 required per assembly)
		27-F474453 - Gasket, NLA [ More info ] $2.25 $1.91 2 In Stock.
#7	F1705	HEX CAP SCREW, 1/4 - 20 X 3/4 (2 required per assembly)
		F1705 - Screw - Priced Individually [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#8	F474832-1	IDLE RELIEF COVER (1 required per assembly)
		F474832-1 - Cover, NLA [ More info ] Unavailable
#9	F474833	GASKET, IDLE RELIEF COVER (1 required per assembly)
		27-F474833 - Gasket, NLA [ More info ] Unavailable
#11	F474539	BUMPER (2 required per assembly)
		19-F474539 - PLUG,NLA [ More info ] Unavailable
#12	F2069	HEX CAP SCREW, 7/16 - 14 X 4 (2 required per assembly)
		10-F2069 - SCREW-SS,NLA [ More info ] $6.00 4 In Stock.
#13	F474359	WASHER (2 required per assembly)
		12-F474359 - WASHER,NLA [ More info ] Unavailable
#14	F1257	HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 1 1/4 (4 required per assembly)
		10-F1257 - Screw -ss, NLA [ More info ] Unavailable
#15	F474707	SHOCK MOUNT COVER LOWER (2 required per assembly)
		F474707 - Shock Mount Cover Lower [ More info ] Unavailable
#16	F474847	WASHER (2 required per assembly)
		12-F474847 - WASHER,NLA [ More info ] Unavailable
#17	F474346-2	SHOCK MOUNT LOWER (2 required per assembly)
		F474346-2 - MOUNT,NLA [ More info ] Unavailable
#18	F8067	SPRING LOCKWASHER (2 required per assembly)
		F8067 - LockWasher [ More info ] Unavailable
		13-47659 - LockWasher [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#19	F2065	HEX NUT, 7/16 - 14 (2 required per assembly)
		11-F2065 - Nut -ss, NLA [ More info ] Unavailable
#20	F7007	STOP NUT, 5/16 - 18 (2 required per assembly)
		F7007 - 11F7052 [ More info ] Unavailable
		11-F7052 - Nut, NLA [ More info ] $3.59 5 In Stock.
#21	F522125-1	TUBE, STEERING SUPPORT (1 required per assembly)
		F522125-1 - F5221252 [ More info ] Unavailable
		F522125-2 - Steering Tube [ More info ] Unavailable
		819545 - Steering Tube [ More info ] Unavailable
		819545 1 - Steering Tube [ More info ] Unavailable
		819545A 1 - Steering Tube Kit [ More info ] $113.06 10+ In Stock.
#22	F1600	LOCK NUT (2 required per assembly)
		11-F1600 - Nut (.875-14) [ More info ] Unavailable
		11-56041 - Nut (7/8-14) [ More info ] Unavailable
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#23	F1593	HEX HD SCREW, S.S., 3/8 - 16 X 3 (2 required per assembly)
		F1593 - 10F2185 [ More info ] Unavailable
		10-F2185 - Screw, NLA [ More info ] $11.00 $9.32 9 In Stock.
#24	F1904	PLAIN WASHER (2 required per assembly)
		12-F1904 - Washer, NLA [ More info ] Unavailable
#25	F1346	HEX NUT, 3/8 - 16 (2 required per assembly)
		11-F1346 - Hex Nut, 3/8 - 16 [ More info ] $0.44 2 In Stock.
		11-86226 - Nut (3/8-16) [ More info ] $2.21 10 In Stock.
		11-8M0204671 - NUT [ More info ] Unavailable
#26	F522032	STERN BRACKET - STARBOARD (2 required per assembly)
		F522032 - FK522032, NLA [ More info ] Unavailable
#27	F522286	STERN BRACKET FRICTION WASHER (2 required per assembly)
		12-F522286 - Washer-phenolic (1.40 Od X .89 Id X .094) NLA [ More info ] $3.49 $2.96 10+ In Stock.
#28	F269929	SPACER, TILT STOP (4 required per assembly)
		23-F269929 - Spacer [ More info ] $23.08 5 In Stock.
#29	F1666	BOWED SPRING WASHER (2 required per assembly)
		F1666 - Wave Washer - Priced Individually [ More info ] Unavailable
		13-69150 - Wave Washer - Priced Individually [ More info ] $3.79 10+ In Stock.
#30	F366350	TILT STOP PIVOT (4 required per assembly)
		F366350 - F3663501 [ More info ] Unavailable
		F366350-1 - Pivot [ More info ] $8.99 3 In Stock.
#31	F366426	TILT STOP, PORT (1 required per assembly)
		F366426 - Port Tilt Stop [ More info ] Unavailable
		F366426-1 - STOP-TILT-PORT [ More info ] Unavailable
		820527 - Port Tilt Stop [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#32	F366886	PIN (2 required per assembly)
		F366886 - Pin, Retaining [ More info ] $12.50 10+ In Stock.
		826578 - Reverse Lock Pin [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#33	F84280	KING PIN NUT (1 required per assembly)
		11-F84280 - NUT,NLA [ More info ] Unavailable
#34	F474607	KING PIN YOKE (1 required per assembly)
		F474607 - YOKE,NLA [ More info ] Unavailable
#35	F474990	SPACER (1 required per assembly)
		23-F474990 - SPACER,NLA [ More info ] Unavailable
#36	F191169-1	SWIVEL BRACKET BEARING (2 required per assembly)
		23-F191169-1 - Bearing, NLA [ More info ] $11.70 8 In Stock.
#37	F1669	LOCK NUT (1 required per assembly)
		11-F1669 - Nut (#6-32) [ More info ] $2.50 10+ In Stock.
		11-8M0207777 - NUT-SS [ More info ] Unavailable
#38	F366349	REVERSE LOCK (1 required per assembly)
		F366349 - F3663491 [ More info ] Unavailable
		F366349-1 - LOCK-REVERSE [ More info ] Unavailable
		828986 - LOCK-REVERSE [ More info ] $35.13 1 In Stock.
		821805A 1 - Lock Kit - Reverse [ More info ] $233.49 $223.92 3 In Stock.
#39	F366300	REVERSE LOCK SPRING (2 required per assembly)
		24-F366300 - Spring, Reverse Lock [ More info ] $6.19 $4.96 1 In Stock.
#40	F474510	LINK (1 required per assembly)
		F474510 - Link, NLA [ More info ] $9.00 $7.62 7 In Stock.
#41	FA522827	HANDLE AND SHAFT (1 required per assembly)
		FA522827 - Lever Assembly [ More info ] Unavailable
#42	F1733	PAN HD SCREW, 10 - 24 X 9/16 (2 required per assembly)
		10-F1733 - Screw, SS [ More info ] $1.29 2 In Stock.
		10-852453 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#43	F522884	BEARING (1 required per assembly)
		F522884 - Reverse Lock Shaft Bearing, NLA [ More info ] $16.40 10+ In Stock.
#44	F9018	CAP (1 required per assembly)
		19-F9018 - Cap, NLA [ More info ] Unavailable
#45	F522741	RETAINING RING (1 required per assembly)
		53-F522741 - Ring, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#46	F366364	ARM, REVERSE LOCK (1 required per assembly)
		F366364 - Reverse Lock Arm [ More info ] Unavailable
#47	F483884	BEARING (1 required per assembly)
		23-F483884 - Bearing, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#48	F1836	SPRING PIN (1 required per assembly)
		17-F1836 - Pin, Spring [ More info ] $4.30 10+ In Stock.
#49	F213274	GREASE FITTING (3 required per assembly)
		22-F213274 - Grease Fitting [ More info ] Unavailable
#51	F366433	TILT STOP, STARBOARD (1 required per assembly)
		F366433 - F3664331 [ More info ] $6.00 10+ In Stock.
		F366433-1 - Tilt Stop - Stbd, NLA [ More info ] $10.99 $9.30 10+ In Stock.
#52	F316599	SEAL, PIVOT TUBE (1 required per assembly)
		25-F316599 - O Ring, Steering Tube [ More info ] $1.39 5 In Stock.
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#54	F24074	CLAMP SCREW FOOT (2 required per assembly)
		F24074 - Foot- Clamp Screw, NLA [ More info ] $13.01 10+ In Stock.
#55	F353480	STUD (2 required per assembly)
		F353480 - Stud, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#56	F8538	SPRING PIN (2 required per assembly)
		17-F8538 - Spring Pin, NLA [ More info ] $0.22 $0.18 10+ In Stock.
#57	F474073-1	CLAMP SCREW (2 required per assembly)
		F474073-1 - Screw - Stern [ More info ] Unavailable
		FA628073 - Screw Assembly, NLA [ More info ] Unavailable
#58	F286461	SPRING, LOCK BAR HANDLE (1 required per assembly)
		24-F286461 - Spring, Lock Bar Handle [ More info ] $9.69 10+ In Stock.
#59	F433114	HANDLE, LOCK BAR (1 required per assembly)
		F433114 - Handle - Lock Bar [ More info ] Unavailable
		816517 - Lock Bar Handle [ More info ] $17.99 6 In Stock.
#60	F1744	SPRING PIN (1 required per assembly)
		17-F1744 - Pin, Spring [ More info ] Unavailable
		17-25319 - Pin, (.125 X 0.75 Inches) [ More info ] $5.09 10+ In Stock.
#61	FA433113	STERN BRACKET LOCK BAR W/HANDLE (1 required per assembly)
		FA433113 - BAR KIT-LOCK [ More info ] Unavailable
		FA658113 - Lock Bar, NLA [ More info ] Unavailable
#62	F9052	PLUG (1 required per assembly)
		19-F9052 - Plug, NLA [ More info ] Unavailable
#63	F89011	SWIVEL BRACKET WASHER (1 required per assembly)
		12-F89011 - Washer, NLA [ More info ] Unavailable
		12-69342 - Washer, Swivel Pin - Upper, NLA [ More info ] $11.98 8 In Stock.
#64	F458498	KEY (1 required per assembly)
		F458498 - 28F4584981 [ More info ] Unavailable
		28-F458498-1 - Key, NLA [ More info ] $18.11 $15.34 6 In Stock.
#67	F1914	HEX CAP SCREW, 1/4 - 20 X 3/4 (4 required per assembly)
		10-F1914 - Screw, NLA [ More info ] $2.14 10+ In Stock.
#68	F474660	LEG EXHAUST TUBE (1 required per assembly)
		F474660 - EXHAUST Tube, NLA [ More info ] Unavailable
#69	F474867	UPPER EXHAUST TUBE GASKET (1 required per assembly)
		27-F474867 - Gasket [ More info ] $5.00 $4.24 6 In Stock.
#70	F1689	HEX CAP SCREW, 1/4 - 20 X 1/2 (2 required per assembly)
		F1689 - Screw SS [ More info ] Unavailable
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#71	F474106-3	DEFLECTOR, WATER DISCHARGE (1 required per assembly)
		F474106-3 - DEFLECTOR,NLA [ More info ] Unavailable
#72	F1902	HEX CAP SCREW, 5/16 - 18 X 3/4 (2 required per assembly)
		F1902 - 10F2000 [ More info ] Unavailable
		10-F2000 - Screw, SS [ More info ] Unavailable
		10-39349 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#73	F474680	SPACER PLATE (1 required per assembly)
		F474680 - PLATE,NLA [ More info ] Unavailable
#74	F474965-1	SHOCK MOUNT UPPER (2 required per assembly)
		F474965-1 - MOUNT [ More info ] Unavailable
		817957A 1 - Shock Mount Kit, NLA [ More info ] Unavailable
#75	F474849	WASHER (2 required per assembly)
		12-F474849 - WASHER,NLA [ More info ] Unavailable
#76	F1581	HEX CAP SCREW, 1/4 - 20 X 1 1/4 (8 required per assembly)
		10-F1581 - Screw [ More info ] Unavailable
		10-819110125 - Screw [ More info ] Unavailable
#77	F474946	SHOCK MOUNT COVER UPPER (2 required per assembly)
		F474946 - Cover, NLA [ More info ] Unavailable
#78	F474355	WASHER (2 required per assembly)
		12-F474355 - WASHER,NLA [ More info ] Unavailable
#79	F1430	HEX CAP SCREW, 3/8 - 24 X 4 (2 required per assembly)
		10-F1430 - SCREW,NLA [ More info ] Unavailable
#80	F474942	BUMPER (2 required per assembly)
		F474942 - BUMPER,NLA [ More info ] Unavailable
#81	F474279	CYLINDER EXHAUST GASKET (1 required per assembly)
		27-F474279 - Gasket [ More info ] $8.46 $7.16 10 In Stock.
#3	F474615	GEAR SHIFT ROD UPPER
		F474615 - ROD,NLA [ More info ] Unavailable
#10	F474133	MOTOR LEG
		F474133 - LEG NLA [ More info ] Unavailable
#50	FA524072	SWIVEL BRACKET
		FA524072 - Swivel Bracket,NLA [ More info ] Unavailable
#65	A474019	KING PIN ASSEMBLY
#3	F475615	GEAR SHIFT ROD UPPER
		F475615 - ROD-SHIFT NLA [ More info ] Unavailable
#10	F475133	MOTOR LEG
		1500-F475133 - LEG,NLA [ More info ] Unavailable
#50	FA465072	SWIVEL BRACKET
		1400-FA465072 - Swivel Bracket,NLA [ More info ] Unavailable
#65	FA475019	KING PIN ASSEMBLY
		FA475019 - KINGPIN NLA [ More info ] Unavailable
