Parts for Chrysler 55 HP (1974) Starter
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FA201955 | STARTER MOTOR COMPLETE (1 required per assembly) |
  |
FA201955 - FK575955, NLA [ More info ] Unavailable |
|
  |
|
FK575955 - Starter Kit [ More info ] Unavailable |
| #1 | F15113 | BENDIX DRIVE (1 required per assembly) |
  |
|
F15113 - Starter Drive, NLA [ More info ]
|
| #2 | F15087 | NUT (1 required per assembly) |
  |
|
F15087 - Nut, NLA [ More info ] Unavailable |
| #3 | F15109 | STOP (1 required per assembly) |
  |
|
F15109 - Cup, NLA [ More info ] Unavailable |
| #4 | F15088 | SPRING (1 required per assembly) |
  |
|
F15088 - Starter Part, NLA [ More info ]
|
| #5 | F15115 | CUP, PINION (1 required per assembly) |
  |
|
F15115 - Cup, NLA [ More info ] Unavailable |
| #6 | F15116 | SLEEVE (1 required per assembly) |
  |
|
F15116 - Sleeve, NLA [ More info ] Unavailable |
| #7 | F15114 | PINION (1 required per assembly) |
  |
|
F15114 - Starter Drive [ More info ]
|
| #8 | F15084 | SCREW (1 required per assembly) |
  |
F15084 - Starter Drive [ More info ] Unavailable |
|
| #9 | F15091 | WASHER (1 required per assembly) |
  |
|
F15091 - WASHER NLA [ More info ] Unavailable |
| #10 | F15105 | CUP (1 required per assembly) |
  |
|
F15105 - Cup, NLA [ More info ] Unavailable |
| #11 | F15106 | CUSHION (1 required per assembly) |
  |
|
F15106 - Cushion, NLA [ More info ] Unavailable |
| #12 | F15104 | CUP, CUSHION THRUST (1 required per assembly) |
  |
|
F15104 - Cup, NLA [ More info ] Unavailable |
| #14 | F1514 | HEX NUT, 1/4 - 20 (2 required per assembly) |
  |
F1514 - Hex Nut, 1/4 - 20 [ More info ] Unavailable |
|
  |
F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable |
|
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #15 | F8060 | LOCKWASHER (2 required per assembly) |
  |
|
13-F8060 - LockWasher, NLA [ More info ]
|
| #16 | F8028 | PLAIN WASHER (2 required per assembly) |
  |
F8028 - 12F8008 [ More info ] Unavailable |
|
  |
12-F8008 - Washer [ More info ] Unavailable |
|
  |
|
12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ]
|
| #17 | F15021-1 | HEAD ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
F15021-1 - Head Assembly, NLA [ More info ]
|
| #18 | F15000 | "O" RING SEAL (1 required per assembly) |
  |
|
F15000 - O RING,NLA [ More info ] Unavailable |
| #19 | F15044 | ARMATURE (1 required per assembly) |
  |
|
F15044 - Armature, NLA [ More info ] Unavailable |
| #20 | F15073 | THRUST WASHER PACKAGE (1 required per assembly) |
  |
|
F15073 - Starter Part, NLA [ More info ]
|
| #21 | F15043 | FRAME AND FIELD ASSEMBLY (1 required per assembly) W/ITEM 24 |
  |
|
F15043 - Starter PART,NLA [ More info ] Unavailable |
| #22 | F307908 | STARTER LEAD (1 required per assembly) |
  |
|
F307908 - F307908 - WIRE ASSY [ More info ] Unavailable Replaced by 84-F85908-1 |
  |
|
84-F85908-1 - Wire Assembly, NLA [ More info ]
|
| #23 | F15072 | HEX LOCK NUT, 1/4 - 20 (1 required per assembly) |
  |
|
F15072 - F15072 - NUT [ More info ] Unavailable Replaced by -F15162 |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|

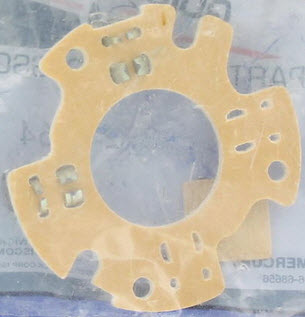

| #24 | F15042 | BRUSH SET (1 required per assembly) |
  |
F15042 - Brush Set [ More info ] Unavailable |
|
  |
|
392-4866 - Brush Assembly, NLA [ More info ] Unavailable |
| #25 | F15038-1 | BRUSH PLATE AND HOLDER (1 required per assembly) |
  |
F15038-1 - Plate [ More info ] Unavailable |
|
  |
|
392-4864 - Holder, NLA [ More info ]
|
| #26 | F15034 | SPRING SET (1 required per assembly) |
  |
F15034 - Spring Set [ More info ] Unavailable |
|
  |
|
392-2514 - Spring Set (2 Springs Per Set)NLA [ More info ]
|
| #27 | F15094 | THRU BOLT PACKAGE (SET OF 2) (1 required per assembly) |
  |
|
F15094 - THRU BOLT PKG,NLA [ More info ] Unavailable |
| #28 | 15037 | HEAD ASSEMBLY, COMMUTATOR END (1 required per assembly) |
