Parts for Chrysler 45 HP (1978) Crankshaft & Piston Group

Revise Search: All Models > 45 HP (1978) > 451B8J ( ) > Crankshaft & Piston Group

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	FSA486015	PISTON .010 OVERSIZE (NOT SHOWN) (2 required per assembly)
		FSA486015 - Piston-.010,NLA [ More info ] Unavailable
#	SA377015	PISTON .010 OVERSIZE (NOT SHOWN) (2 required per assembly)
#	FS310260	PISTON RINGS (6 PER SET) .010 OVERSIZE (NOT SHOWN) (1 required per assembly)
		39-FS310260 - 39FSA310260 [ More info ] Unavailable
		39-FSA310260 - Rings - 2-.010, NLA [ More info ] $21.00 $17.79 4 In Stock.
#	FS307260	PISTON RINGS (6 PER SET) .010 OVERSIZE (NOT SHOWN) (1 required per assembly)
		39-FS307260 - 39-FS307260 - RING-.010 [ More info ] Unavailable Replaced by -FSA307260

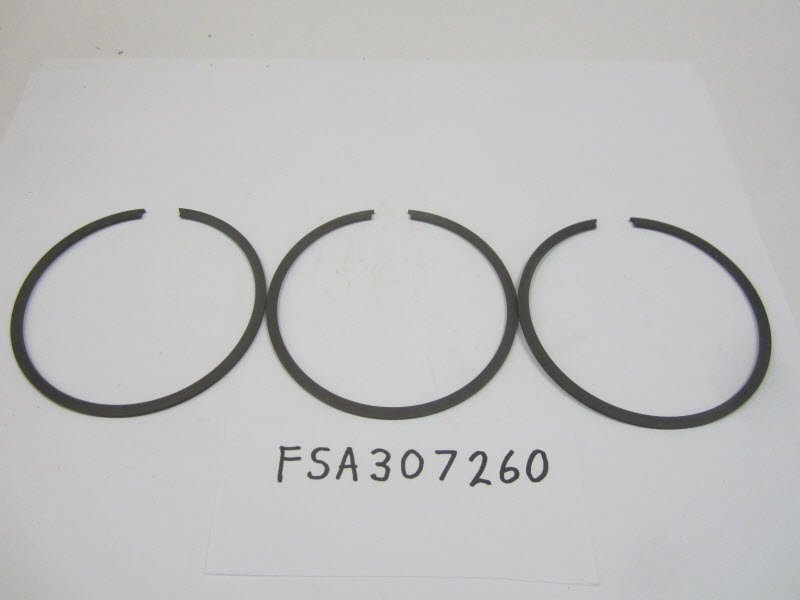

		FSA307260 - Rings - 2-.010, NLA [ More info ] Unavailable
#	700-818124A 1	PISTON .030 OVERSIZE (NOT SHOWN) (2 required per assembly)
		700-818124A 1 - Piston-.030 [ More info ] Unavailable
		700-834802A 2 - PISTON KIT-.030 NLA [ More info ] Unavailable
#	3SA77015	PISTON .030 OVERSIZE (NOT SHOWN) (2 required per assembly)
#	39-818113A 1	PISTON RINGS (6 PER SET) .030 OVERSIZE (NOT SHOWN) (1 required per assembly)
		39-818113A 1 - Rings - 2-.030, NLA [ More info ] Unavailable
#	39-818112A 1	PISTON RINGS (6 PER SET) .030 OVERSIZE (NOT SHOWN) (1 required per assembly)
		39-818112A 1 - Rings - 2-.030, NLA [ More info ] Unavailable
#1	F40146-1	CRANKSHAFT SEAL (2 required per assembly)
		26-F40146-1 - Seal [ More info ] Unavailable
		26-819394 - Seal [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#2	F1441	PAN HD SCREW, 1/4 - 20 X 7/8 (4 required per assembly)
		10-F1441 - SCREW,NLA [ More info ] $1.25 $1.06 3 In Stock.
#3	FA433144	CRANKSHAFT BEARING CAGE W/SEAL (1 required per assembly)
		FA433144 - Cage, NLA [ More info ] Unavailable
#4	F366277	BEARING CAGE GASKET (1 required per assembly)
		27-F366277 - Gasket [ More info ] $3.01 $2.56 10+ In Stock.
#6	FK85228	BEARING CAGE W/ROLLERS (16 PER SET) (3 required per assembly)
		FK85228 - FK852281, NLA [ More info ] Unavailable
		FK85228-1 - Cage/Roller Set [ More info ] Unavailable
		31-62596A 2 - Cage Roller, for One Rod Only [ More info ] $199.99 $169.38 10+ In Stock.
#7	600-818052A 4	CONNECTING ROD W/CAP & SCREWS (2 required per assembly)
		600-818052A 4 - Connecting Rod Assembly [ More info ] Unavailable
		600-818052A 6 - Connecting Rod [ More info ] Unavailable
		600-818052T 6 - Connecting Rod [ More info ] $53.88 10+ In Stock.
#8	F335217-1	BEARING (2 required per assembly)
		31-F335217-1 - Bearing - Piston Pin [ More info ] $6.99 $5.91 10+ In Stock.
#9	F40017-2	PISTON PIN (1 required per assembly)
		41-F40017-2 - Piston Pin, NLA [ More info ] $7.25 $6.14 10+ In Stock.
#10	F366215	SPACER (4 required per assembly)
		23-F366215 - Spacer - Piston Pin [ More info ] $6.66 $5.64 3 In Stock.
#11	F428096	RETAINER, PISTON PIN (4 required per assembly)
		53-F428096 - Retainer [ More info ] $0.78 $0.66 10+ In Stock.
#14	F40410	SNAP RING (1 required per assembly)
		53-F40410 - Ring -snap, NLA [ More info ] $2.25 $1.91 10+ In Stock.
#15	FA40655	CRANKSHAFT CENTER MAIN BEARING RACE W/SNAP RING (1 required per assembly)
		31-FA40655 - Bearing, NLA [ More info ] $38.65 $32.74 10+ In Stock.
#16	F90014	CRANKSHAFT LOWER MAIN BEARING (1 required per assembly)
		31-F90014 - Bearing - Crankshaft Lower Main [ More info ] $69.28 2 In Stock.
#17	F85634-1	CONNECTING ROD SCREW (4 required per assembly)
		F85634-1 - 10F856342 [ More info ] Unavailable
		10-F85634-2 - Connecting Rod Screw [ More info ] Unavailable
		10-91012 - Screw - Special - Priced Individually [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#18	F366082	MAGNETO STATOR RING (1 required per assembly)
		F366082 - Ring, NLA [ More info ] Unavailable
#19	F1080	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/4 (1 required per assembly)
		10-F1080 - Screw -w/Lw, NLA [ More info ] $1.38 $1.17 10+ In Stock.
#20	F1812	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 9/16 (2 required per assembly)
		10-F1812 - Screw -w/Lw, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#21	F1813	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 1/8 (1 required per assembly)
		10-F1813 - Screw -w/Lw, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#22	30-F366013	CRANKSHAFT THRUST BEARING UPPER (1 required per assembly)
		30-F366013 - Ball Bearing, NLA [ More info ] $53.33 $45.17 10 In Stock.
#23	F8060	EXTERNAL TOOTH LOCKWASHER (USE WITH PAN HD SCREW) (4 required per assembly)
		13-F8060 - LockWasher, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#5	400-FA485018	CRANKSHAFT W/EARING (1 required per assembly)
		400-FA485018 - Crankshaft,NLA [ More info ] Unavailable
#12	F377015-1	PISTON (2 required per assembly)
		F3770151 - Piston-35 HP, NLA [ More info ] $8.00 $6.78 1 In Stock.
#13	FA353260	PISTON RING SET (6 PER SET) (1 required per assembly)
		FA353260 - Rings - 6, NLA [ More info ] $27.78 $23.53 4 In Stock.
#5	FA545018	CRANKSHAFT W/EARING (1 required per assembly)
		FA545018 - Crankshaft,NLA [ More info ] Unavailable
#12	F486015	PISTON (2 required per assembly)

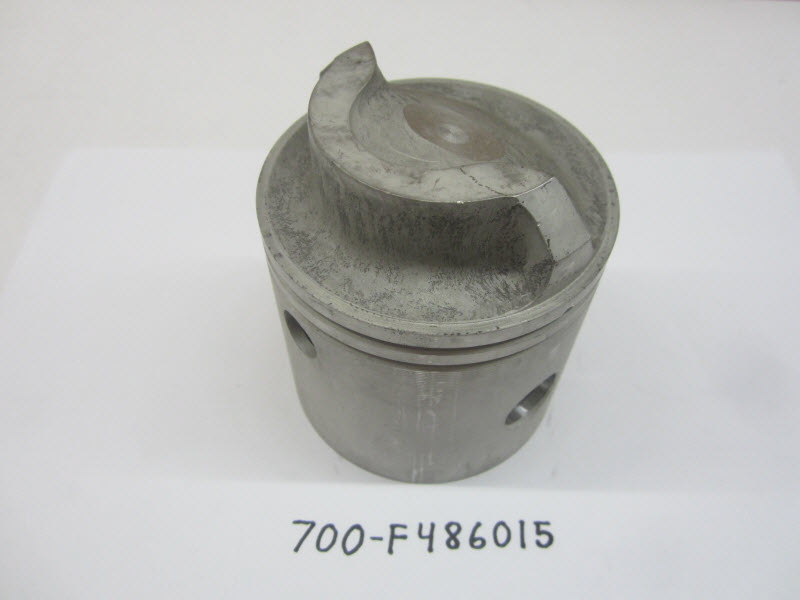

		700-F486015 - Piston - Std, NLA [ More info ] Unavailable
#13	FA354260	PISTON RING SET (6 PER SET) (1 required per assembly)

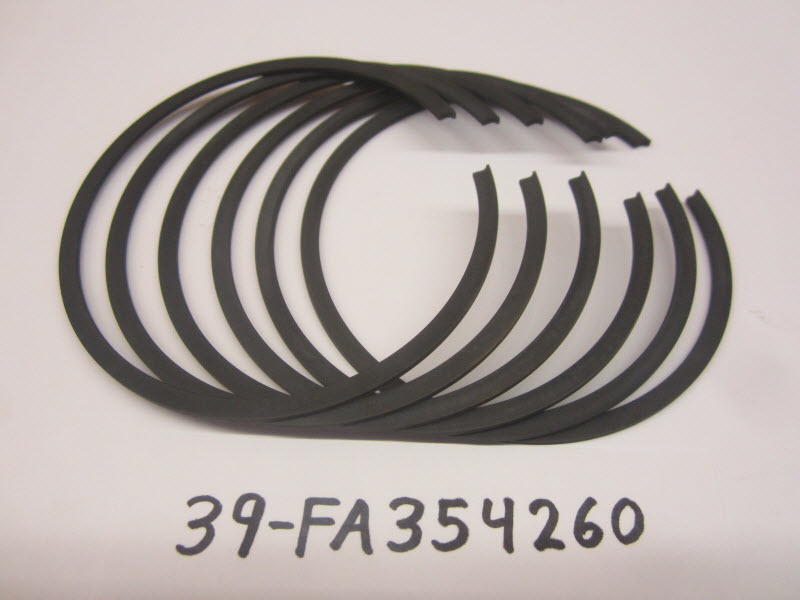

		39-FA354260 - Rings - 6, NLA [ More info ] $48.29 $40.90 10 In Stock.
