Parts for Chrysler 45 HP (1975) Hand Starter Model 360 Ha
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F1927 | PAN HD SCREW, 10 - 32 X 3/8 (2 required per assembly) |
  |
|
10-F1927 - SCREW-SS,NLA [ More info ] Unavailable |
| #2 | F1502 | HEX CAP SCREW, 1/4 - 20 X 5/8 (2 required per assembly) |
  |
|
|
  |
|
10-98254 - Screw [ More info ]
|
| #3 | 46430 | STARTER INTERLOCK TOP PLATE (1 required per assembly) |
| #4 | F46003-1 | STARTER INTERLOCK ARM (1 required per assembly) |
  |
|
F46003-1 - SPRING NLA [ More info ] Unavailable |
| #5 | 46429 | STARTER INTERLOCK BACK PLATE (1 required per assembly) |
| #6 | FA40427-3 | STARTER MOUNTING BRACKET (1 required per assembly) |
  |
|
FA404273 - Bracket [ More info ] Unavailable |
| #7 | 88359 | SPACER (3 required per assembly) |
  |
|
88359 - Seal, NLA [ More info ] Unavailable |
| #8 | 1047 | FILL HD SCREW, 5/16 - 18 X 1 1/2 (3 required per assembly) |
| #9 | F191971 | STARTER RETAINER EXTENSION (1 required per assembly) |
  |
|
F191971 - Extension, NLA [ More info ] Unavailable |
| #10 | F8540 | SPRING PIN (1 required per assembly) |
  |
17-F8540 - Roll Pin [ More info ] Unavailable |
|
  |
|
17-38489 - Pin -roll [ More info ]
|
| #11 | F191239 | STARTER SPOOL (1 required per assembly) |
  |
|
F191239 - Spool [ More info ] Unavailable |
| #12 | F191737 | RETAINER, STARTER SPRING (1 required per assembly) |
  |
|
F191737 - Retainer, NLA [ More info ] Unavailable |
| #13 | F901970 | SPRING STARTER REWIND (1 required per assembly) |
  |
|
24-F901970 - Spring [ More info ] Unavailable |
| #14 | F901710 | STARTER ROPE GUIDE POST (1 required per assembly) |
  |
|
32-F901710 - Tubing, NLA [ More info ]
|
| #15 | F901739 | STARTER REWIND SPRING DRIVE (1 required per assembly) |
  |
|
F901739 - Drive, NLA [ More info ]
|

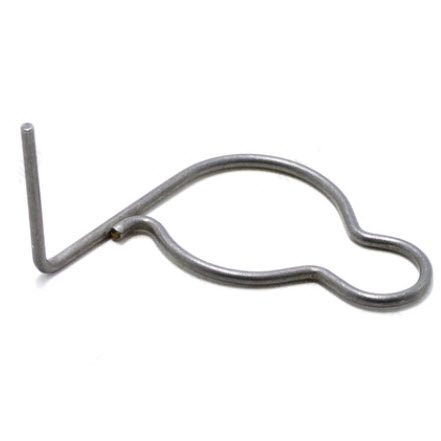

| #16 | F901424-1 | SPRING STARTER PINION (1 required per assembly) |
  |
|
24-F901424-1 - Spring, NLA [ More info ]
|
| #17 | F456674 | STARTER PINION GEAR (1 required per assembly) |
  |
F456674 - F4566741 [ More info ] Unavailable |
|
  |
F456674-1 - 43F617674 [ More info ] Unavailable |
|
  |
43-F617674 - Starter Gear [ More info ] Unavailable |
|
  |
|
43-803624T - Starter Gear [ More info ]
|
| #18 | F46001 | STARTER INTERLOCK GUIDE (1 required per assembly) |
  |
|
F46001 - Guide, NLA [ More info ]
|
| #19 | F8047 | BOWED SPRING WASHER (1 required per assembly) |
  |
F8047 - 13F8070 [ More info ] Unavailable |
|
  |
|
13-F8070 - Washer, NLA [ More info ]
|
| #20 | F1097 | FILL HD SCREW, 1/4 - 20 X 3/8 (1 required per assembly) |
  |
|
F1097 - Screw, NLA [ More info ] Unavailable |
| #21 | F40425 | STARTER PINION PIN (1 required per assembly) |
  |
|
17-F40425 - Pin,Starter Pinion Gear, NLA [ More info ]
|
| #22 | F1111 | FILL HD SCREW, 1/4 - 20 X 7/8 (4 required per assembly) |
  |
F1111 - 10F1112 [ More info ] Unavailable |
|
  |
|
10-F1112 - Screw -ss, NLA [ More info ]
|
| #23 | F191455-1 | STARTER ROPE GUIDE (1 required per assembly) |
  |
|
F1914551 - GUIDE,NLA [ More info ] Unavailable |
| #24 | F8060 | EXTERNAL TOOTH LOCKWASHER (1 required per assembly) |
  |
|
13-F8060 - LockWasher, NLA [ More info ]
|
| #25 | 818020A 2 | STARTER ROPE (1 required per assembly) |
  |
|
818020A 2 - Rope Kit, NLA [ More info ]
|
| #26 | F286132 | STARTER ROPE HANDLE (1 required per assembly) |
  |
|
F286132 - Starter Rope Handle, NLA [ More info ]
|
| #27 | 817938A 1 | STARTER ROPE HANDLE RETAINER (1 required per assembly) |
  |
|
817938A 1 - Retainer Kit, NLA [ More info ] Unavailable |
| #28 | F8083 | SPRING LOCKWASHER (2 required per assembly) |
  |
F8083 - LockWasher SS [ More info ] Unavailable |
|
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
