Parts for Chrysler 20 HP (1981) Power Head

Revise Search: All Models > 20 HP (1981) > 207B1C ( ) > Power Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	FC543010	*SHORT BLOCK FOR ALT. START MODELS (NOT SHOWN) (1 required per assembly) SHORT BLOCK INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (). ALSO REFER TO CRANKSHAFT PAGE.**
		FC543010 - SHORT BLOCK,NLA [ More info ] Unavailable
#	F433168	GASKET, CARBURETOR ADAPTER (1 required per assembly)
		27-F433168 - Carburetor Adapter Gasket [ More info ] $2.69 10+ In Stock.
#	F458154	EXHAUST PORT PLATE (2 required per assembly)
		F458154 - Exhaust Port Plate Gasket [ More info ] Unavailable
		27-819478 - Gasket [ More info ] $18.31 10+ In Stock.
#	F438760	FUEL PUMP GASKET (1 required per assembly)
		27-F438760 - Fuel Pump Gasket [ More info ] Unavailable
		27-820490 - Fuel Pump Gasket [ More info ] $4.59 10+ In Stock.

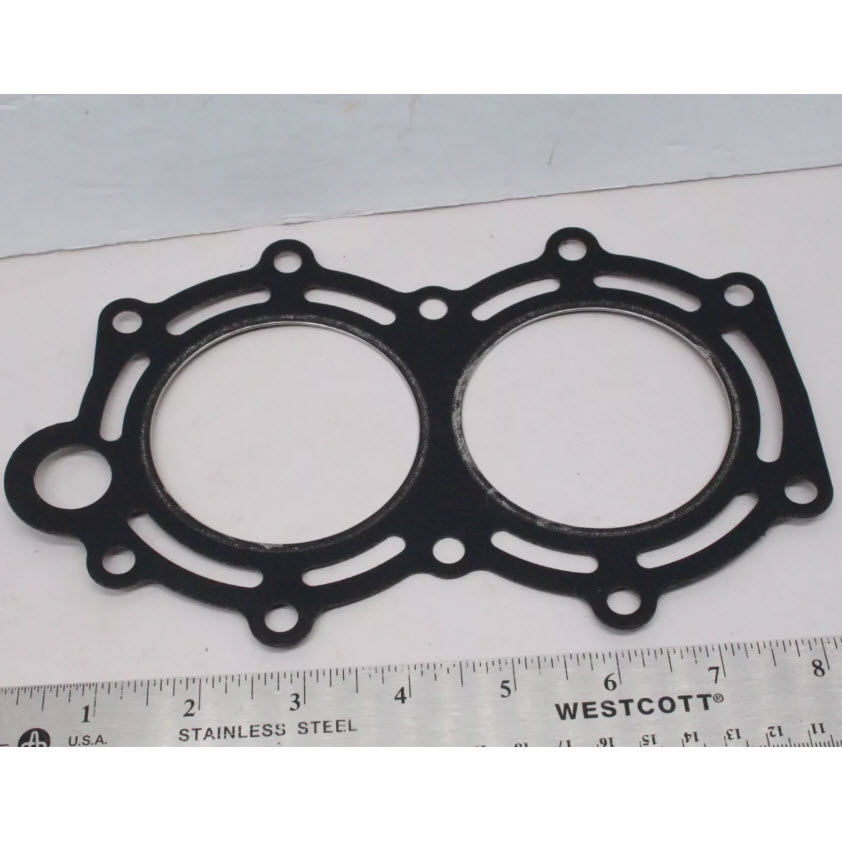

#	F458529	CYLINDER HEAD GASKET (1 required per assembly)
		27-F458529 - Head Gasket, NLA 06 [ More info ] $29.99 $25.39 7 In Stock.
#	FC235227	SPARK PLUG, CANADA (RL-4J) HAND START (2 required per assembly)
		FC235227 - RL4J NLA [ More info ] Unavailable
#	F433406	DEFLECTOR PLATE GASKET (1 required per assembly)
		27-F433406 - Deflector Plate Gasket [ More info ] $5.09 $2.86 10+ In Stock.
#	F458279	CYLINDER EXHAUST GASKET (1 required per assembly)
		27-F458279 - Gasket,NLA [ More info ] Unavailable
#	FC542010	*SHORT BLOCK FOR HAND START MODELS (NOT SHOWN) (1 required per assembly) SHORT BLOCK INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (). ALSO REFER TO CRANKSHAFT PAGE.**
		FC542010 - SHORT BLOCK,NLA [ More info ] Unavailable
#	F40906-1	GASKET, CARBURETOR (1 required per assembly)
		F40906-1 - 27F85906 [ More info ] Unavailable
		27-F85906 - Carburetor Gasket [ More info ] Unavailable
		27-828925 - Carburetor Gasket [ More info ] $2.39 10+ In Stock.
#	F458067	THERMOSTAT COVER GASKET (1 required per assembly)
		27-F458067 - Gasket [ More info ] $2.93 10+ In Stock.
#	FC503227	SPARK PLUG, CANADA (QL-77-J4) ALT. START (2 required per assembly)
		FC503227 - FC503227 - PLUG [ More info ] Unavailable Replaced by 33-828C
		33-828C - SP #QL77JC4 Note: Priced Individually [ More info ] Unavailable
		33-896329828 - Spark Plug - QL77JC4 - Priced Individually [ More info ] Unavailable
		QL77JC4 - Champion Spark Plug ( #828M) [ More info ] $7.73 10+ In Stock.
#	F438617	FUEL PUMP BOWL GASKET (1 required per assembly)
		27-F438617 - Fuel Pump Bowl Gasket [ More info ] Unavailable
		27-823606 - Fuel Bowl Gasket [ More info ] $14.89 4 In Stock.
#	F458453	LEG EXHAUST GASKET (1 required per assembly)
		27-F458453 - Gasket [ More info ] $12.99 $11.00 1 In Stock.
#1	F1107	FILL HD SCREW, 1/4 - 20 X 3/4 (4 required per assembly)
		10-F1107 - Screw [ More info ] $0.70 $0.60 10+ In Stock.
#2	F458146	SEAL, CRANKSHAFT UPPER MAIN (1 required per assembly)
		26-F458146 - Seal, NLA [ More info ] $24.20 $20.50 10 In Stock.
#3	FA458144	CRANKSHAFT BEARING CAGE (1 required per assembly) W/ILLUS. 2
		FA458144 - Cage Assembly, NLA [ More info ] $52.50 $44.48 5 In Stock.
#4	F458277	GASKET, CRANKSHAFT BEARING CAGE (1 required per assembly)
		27-F458277 - Gasket [ More info ] $2.49 $2.11 1 In Stock.
#5	FA504082	MAGNETO STATOR RING (1 required per assembly) W/ILLUS. 7
		FA504082 - FA504082 - RING Magneto Stat [ More info ] Unavailable Replaced by 39-817833A1
		39-817833A 1 - RING ASSY,NLA [ More info ] Unavailable
#6	F1727	PLASTI-RIVET (1 required per assembly)
		17-F1727 - Rivet, NLA [ More info ] $1.79 10 In Stock.
#7	F8000	PLAIN WASHER (1 required per assembly)
		12-F8000 - Washer, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#8	F269122-1	SEAL, CRANKCASE PARTING LINE (1 required per assembly)
		F269122-1 - F1841221 [ More info ] Unavailable
		F184122-1 - Seal - Red, 40 Inches, NLA [ More info ] $19.90 $13.54 10 In Stock.
#9	FA542010	CYLINDER W/CRANKCASE COVER (1 required per assembly) ILLUS. 8, 11, 14 AND 49
		FA542010 - Cylinder Assembly, NLA [ More info ] Unavailable
#10	F1864	HEX HD SCREW, 1/4 - 20 X 3/4 (8 required per assembly)
		10-F1864 - Screw SS [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#11	F2005	HEX SOCKET HD CAP SCREW, 5/16 - 18 X 2 3/4 (2 required per assembly)
		10-F2005 - Screw, NLA [ More info ] Unavailable
#12	F1689	HEX CAP SCREW, 1/4 - 20 X 1/2 FOR ELECTRIC START MODELS (2 required per assembly)
		F1689 - Screw SS [ More info ] Unavailable
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#13	F460317	CLAMP, SOLENOID FOR ELECTRIC START MODELS (1 required per assembly)
		F460317 - F4603172 [ More info ] Unavailable
		F460317-2 - Clamp [ More info ] Unavailable
#14	F2013	HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1 1/4 (4 required per assembly)
		F2013 - Screw, NLA [ More info ] Unavailable
		10-47819 - Screw, NLA [ More info ] $2.15 $1.82 10+ In Stock.
#15	F85026	SWIVEL, SHIFT INTERLOCK LEVER (1 required per assembly)
		F85026 - Swivel -.88, NLA [ More info ] $22.22 $18.82 10+ In Stock.
#16	F307818	BEARING (1 required per assembly)
		23-F307818 - Bushing -nyLiner [ More info ] Unavailable
		23-26841 - Bushing - Priced Individually [ More info ] $7.59 10+ In Stock.
#17	F458977-3	LEVER, SHIFT INTERLOCK (1 required per assembly)
		F458977-3 - Lever [ More info ] $6.00 $5.08 10+ In Stock.
#18	F84035-2	BEARING, SHIFT INTERLOCK ROD (1 required per assembly)
		F84035-2 - Spark Control Bearing - RH [ More info ] Unavailable
		816514 - Bearing - Black [ More info ] Unavailable
#19	F84026	SWIVEL SHIFT INTERLOCK BEARING (1 required per assembly)
		10-F84026 - SCREW-SHOULDER [ More info ] Unavailable
		10-819625 - Screw, NLA [ More info ] $9.89 10+ In Stock.
#20	F458531	ROD, SHIFT INTERLOCK (1 required per assembly)
		F458531 - Shift Interlock Rod [ More info ] Unavailable
		817805A 1 - ROD KIT-INTERLOCK,NLA [ More info ] Unavailable
#21	F7004	LOCK NUT, 3/8 - 16 (1 required per assembly)
		11-F7004 - Nut, (.375-16) [ More info ] $0.49 7 In Stock.
		11-28010 - Nut - Priced Individually [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#22	F1075	FILL HD M. SCREW, 10 - 24 X 1/2 (HAND START ONLY) (2 required per assembly)
		F1075 - 10F1090 [ More info ] Unavailable
		10-F1090 - SCREW-W/LW,NLA [ More info ] $1.25 $1.06 10+ In Stock.
#23	F504527	CAP, INTERLOCK (HAND START ONLY) (1 required per assembly)
		F504527 - Cap, NLA [ More info ] $5.00 $4.24 3 In Stock.
#24	F504809	ROD, STARTER INTERLOCK (HAND START ONLY) (1 required per assembly)
		F504809 - ROD,NLA [ More info ] Unavailable
#25	21-817741A 1	CHECK VALVE (2 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 213740-1
		21-817741A 1 - Check Valve Kit, NLA [ More info ] $10.41 3 In Stock.
#26	FA572222	TRANSFER PORT COVER (1 required per assembly) W/ITEM 25
		FA572222 - Cover Assembly [ More info ] Unavailable
		FA659222 - Cover, NLA [ More info ] Unavailable
#27	F1922	HEX CAP SCREW, 1/4 - 20 X 5/8 (9 required per assembly)
		10-F1922 - Screw, NLA [ More info ] Unavailable
#28	F440209	STUD, GEAR SHIFT LEVER (1 required per assembly)
		16-F440209 - STUD [ More info ] Unavailable
		16-819194 - STUD [ More info ] Unavailable
		16-826387 - STUD [ More info ] Unavailable
		16-826387 1 - STUD [ More info ] $1.88 1 In Stock.
		16-826387 2 - Stud [ More info ] $1.67 $1.42 10 In Stock.
#29	F2014	PLAIN WASHER (1 required per assembly)
		F2014 - Washer [ More info ] $0.49 3 In Stock.
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#30	F269052	BEARING, SHIFT LEVER (2 required per assembly)
		23-F269052 - Bushing, NLA [ More info ] $3.90 10+ In Stock.
#31	817808A 2	LEVER, GEAR SHIFT (1 required per assembly)
		817808A 2 - Lever Assembly [ More info ] $10.50 $8.90 10+ In Stock.
#32	F98273	ROD END CONNECTOR STUD (2 required per assembly)
		16-F98273 - Stud, NLA [ More info ] $19.92 $16.88 10 In Stock.
#33	F8058	INTERNAL TOOTH LOCKWASHER (8 required per assembly)
		13-F8058 - LockWasher, NLA [ More info ] $1.09 10+ In Stock.
#34	F1513	HEX NUT, 10 - 32 (6 required per assembly)
		F1513 - Hex Nut 10 - 32 [ More info ] $0.86 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#35	F458727	BALL SHIFT LEVER DETENT (1 required per assembly)
		30-F458727 - Ball, NLA [ More info ] $2.99 10+ In Stock.
#36	F183300	SPRING, SHIFT DETENT (1 required per assembly)
		24-F183300 - Spring, NLA [ More info ] $6.75 10+ In Stock.
#38	F429811	SCREEN, CYLINDER DRAIN (1 required per assembly)
		F429811 - Cylinder Drain Screen - Priced Individually [ More info ] $0.30 1 In Stock.
#39	F458223	GASKET, TRANSFER PORT COVER (1 required per assembly)
		F458223 - Transfer Port Cover Gasket [ More info ] Unavailable
		27-819413 - Gasket [ More info ] $5.99 $5.07 10+ In Stock.

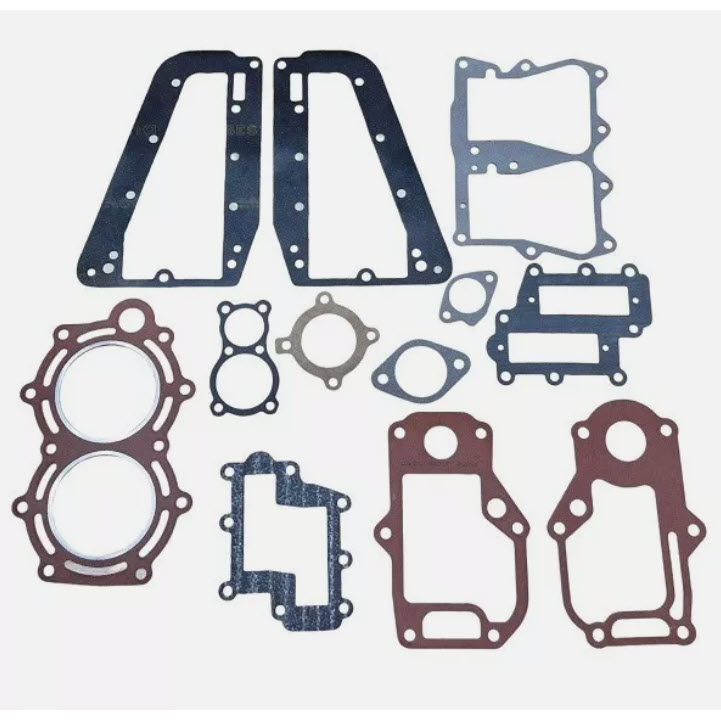

#40	FG1010	GASKET SET (1 required per assembly) (INCLUDES THE FOLLOWING ITEMS)
		FG1010 - Gasket Set [ More info ] Unavailable
#42	FA458518	CYLINDER HEAD (1 required per assembly) W/ILLUS. 43
		FA458518 - Cylinder Head Kit, NLA [ More info ] Unavailable
#43	F458109	PLUG, CYLINDER HEAD (2 required per assembly)
		22-F458109 - Plug, NLA Z [ More info ] $2.50 $2.13 10+ In Stock.
#44	F458936	SCREW, CYLINDER HEAD (10 required per assembly)
		10-F458936 - 10F1882 [ More info ] Unavailable
		10-F1882 - Screw, NLA [ More info ] Unavailable
#45	FS174227	SPARK PLUG (L-4J) (2 required per assembly)
		FS174227 - SPARK PLUG-L82C [ More info ] Unavailable
		33-817996 2 - SPARK PLUG-L82C [ More info ] Unavailable
		33-811 - SP #L82C Note: Priced Individually [ More info ] Unavailable
		33-896323 - Spark Plug - L82C - Priced Individually [ More info ] Unavailable
		B7HS - NGK Spark Plug, 5110 [ More info ] $4.99 $4.74 10+ In Stock.
		L82C - Champion Spark Plug ( #811M) [ More info ] $4.50 $4.18 10 In Stock.
#46	F1854	HEX CAP SCREW, 1/4 - 20 X 5/8 (1 required per assembly)
		F1854 - Screw SS [ More info ] Unavailable
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#47	F458066	THERMOSTAT COVER (1 required per assembly)
		F458066 - Thermostat Cover [ More info ] $18.47 $15.65 4 In Stock.
#49	F8559	DOWEL PIN (2 required per assembly)
		17-F8559 - Pin, Dowel [ More info ] $1.30 $1.11 10 In Stock.
#51	F458151	EXHAUST PORT PLATE (1 required per assembly)
		F458151 - Plate [ More info ] $40.00 $33.88 4 In Stock.
#52	F458152	EXHAUST PORT COVER (1 required per assembly)
		F458152 - F4581521 [ More info ] Unavailable
		F458152-1 - Exhaust Cover, NLA [ More info ] Unavailable
#53	F1532	HEX HD SCREW, 1/4 - 20 X 1 (10 required per assembly)
		10-F1532 - Screw [ More info ] Unavailable
		10-819110100 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#54	F1341	HEX NUT (1 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#55	F1072	FILL HD SCREW, 1/4 - 20 X 3/4 (1 required per assembly)
		10-F1072 - Screw [ More info ] $2.06 5 In Stock.

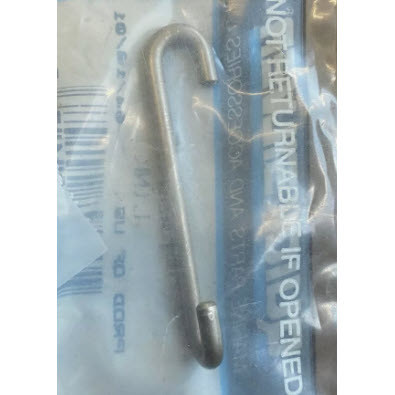

#56	F458445	LINK MAGNETO CONTROL SHAFT (1 required per assembly)
		F458445 - Link, NLA [ More info ] $6.00 $5.08 10 In Stock.
#57	F286440	STUD, MAGNETO CONTROL LEVER (1 required per assembly)
		16-F286440 - Stud, NLA [ More info ] $2.70 10+ In Stock.
#58	F183813	BEARING (1 required per assembly)
		23-F183813 - Bearing, NLA [ More info ] $2.70 10+ In Stock.
#59	F2A458081	MAGNETO CONTROL LEVER (1 required per assembly) W/ILLUS. 32, 33 AND 34
		F2A458081 - LEVER ASSY,NLA [ More info ] Unavailable
#60	F286282	WASHER (1 required per assembly)
		12-F286282 - WASHER,NLA [ More info ] Unavailable
#61	F1803	STOP NUT (1 required per assembly)
		11-F1803 - Nut (5/16-24) NLA [ More info ] $1.62 10+ In Stock.
#62	817747 1	JOINT BALL ASSEMBLY (2 required per assembly)
		817747 1 - Ball Joint Assembly [ More info ] Unavailable
		828514A 1 - Ball and Socket [ More info ] $22.61 10+ In Stock.
#63	F458502	ROD, THROTTLE CAM (1 required per assembly)
		F458502 - Thottle Cam Rod, NLA [ More info ] $2.78 $2.36 10+ In Stock.
#64	F458509	LINK, MAGNETO STATOR (1 required per assembly)
		F458509 - Link, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#65	F1910	LOCK NUT (1 required per assembly)
		F1910 - 11F7008 [ More info ] Unavailable
		11-F7008 - Nut, (.250-20) [ More info ] Unavailable
		11-72008 - Nut (1/4-20) [ More info ] Unavailable
		11-826708 8 - Nut [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#66	F269319	BEARING, THROTTLE CAM (2 required per assembly)
		23-F269319 - Bushing, NLA [ More info ] $9.69 10+ In Stock.
#67	F458192	THROTTLE CAM (1 required per assembly)
		F458192 - F4581921 [ More info ] Unavailable
		F458192-1 - Throttle Cam, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#68	F433209-1	STUD, THROTTLE CAM (1 required per assembly)
		16-F433209-1 - Stud [ More info ] $8.61 10+ In Stock.
#69	F1739	PLAIN WASHER, FOR HAND START MODELS (10 required per assembly)
		12-F1739 - Washer [ More info ] $0.25 10+ In Stock.
		12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] $1.11 10+ In Stock.
		12-8M0204690 - WASHER [ More info ] Unavailable
#70	F504052	BEARING (HAND START ONLY) (2 required per assembly)
		23-F504052 - Bushing, NLA [ More info ] Unavailable
		23-96202 - Bushing, NLA [ More info ] Unavailable
