Parts for Chrysler 20 HP (1981) Hand Starter
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | F9023 | SHIM .007 (BRASS) (- required per assembly) |
  |
|

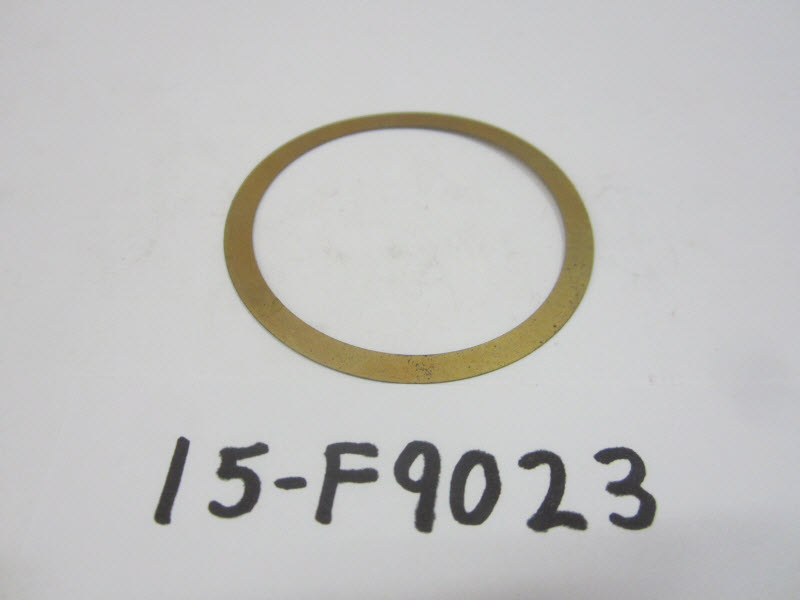

15-F9023 - Shim, NLA [ More info ] Unavailable |
| # | F9024 | SHIM .010 (BLACK) (- required per assembly) |
  |
|

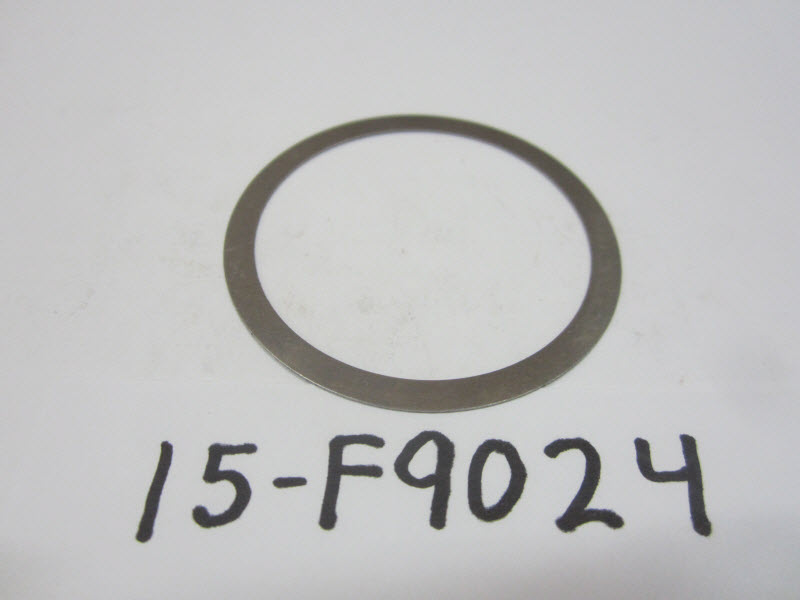

15-F9024 - Shim, NLA [ More info ] Unavailable |
| #1 | F1864 | SLOTTED HEX HD SCREW, 1/4 - 20 X 3/4 (3 required per assembly) |
  |
10-F1864 - Screw SS [ More info ] Unavailable |
|
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #2 | 817955A 1 | HOUSING, HAND STARTER (1 required per assembly) W/ILLUS. 19, 20, 24 AND LITERATURE ORIGINAL FORCE P/N K 461408-1 |
  |
|
817955A 1 - HSG KIT-Starter, NLA [ More info ] Unavailable |
| #3 | F458937 | LINER, STARTER HOUSING (1 required per assembly) |
  |
|
F458937 - LINER,NLA [ More info ] Unavailable |
| #4 | F1927 | PAN HD SCREW, 10 - 32 X 3/8 (1 required per assembly) |
  |
|
10-F1927 - SCREW-SS,NLA [ More info ] Unavailable |
| #5 | F458071 | SPRING, STARTER HANDLE GUIDE (1 required per assembly) |
  |
|
24-F458071 - Spring, NLA [ More info ]
|
| #6 | F458953-1 | GUIDE, STARTER HANDLE (1 required per assembly) |
  |
|
F458953-1 - Guide, NLA [ More info ] Unavailable |
| #7 | F458970 | SPRING, STARTER REWIND (1 required per assembly) |
  |
|

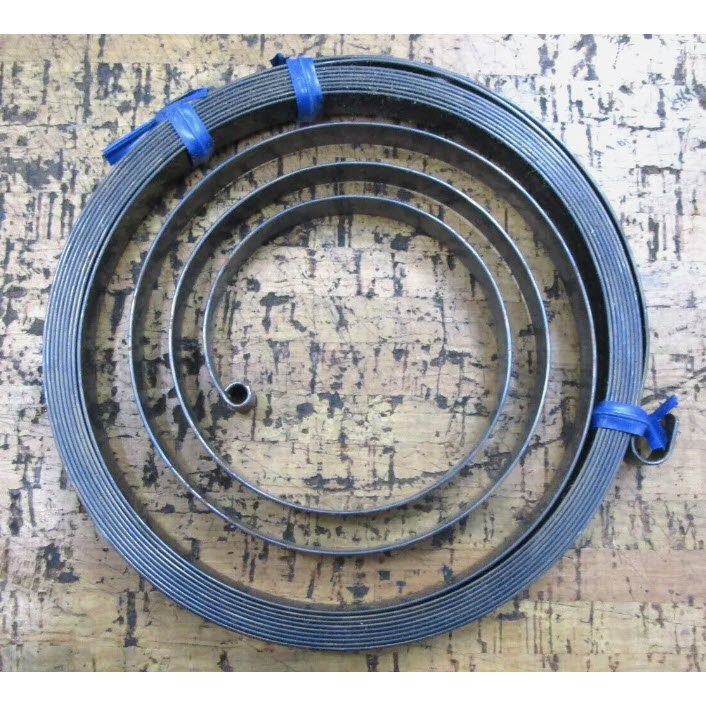

24-F458970 - Spring, NLA [ More info ]
|
| #8 | F458239 | STARTER PULLEY (1 required per assembly) |
  |
|
F458239 - Starter Pulley, NLA [ More info ] Unavailable |
| #9 | F458424 | SPRING, STARTER PAWL PLATE (1 required per assembly) |
  |
|
24-F458424 - Spring, NLA [ More info ]
|
| #10 | F458232 | STARTER ROPE (1 required per assembly) |
  |

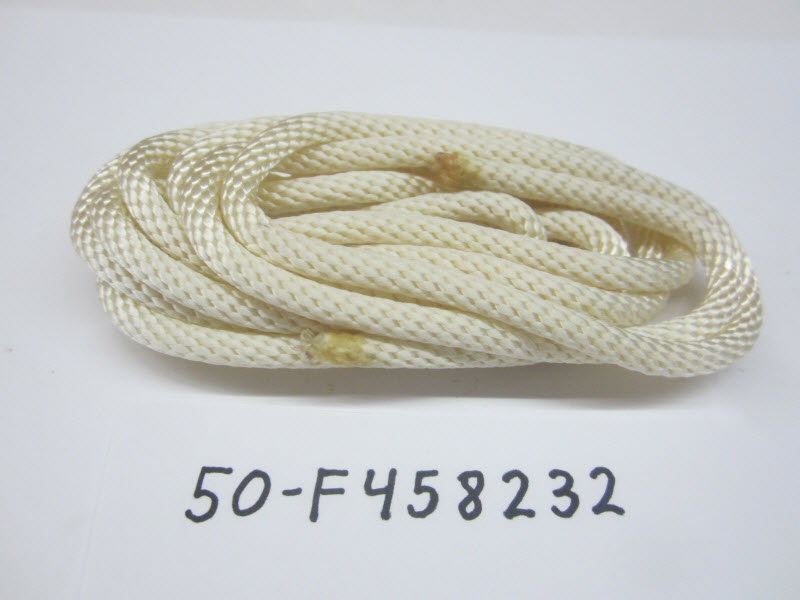

50-F458232 - Rope [ More info ] Unavailable |
|
  |
|

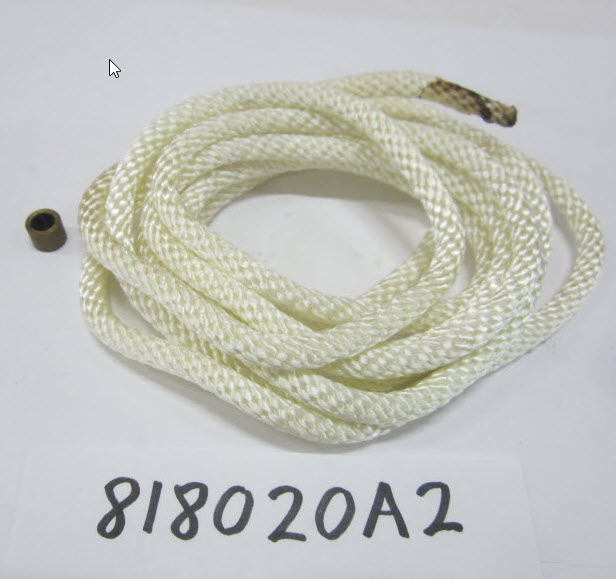

818020A 2 - Rope Kit, NLA [ More info ]
|

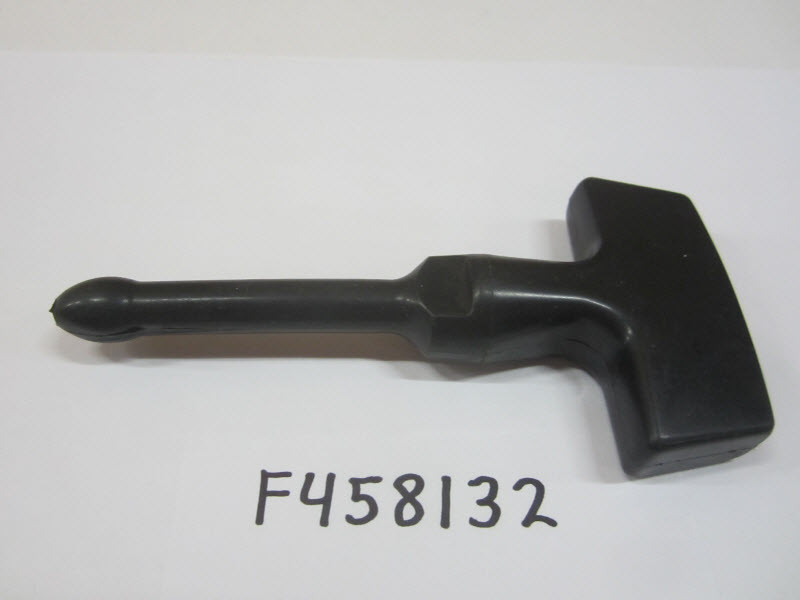

| #11 | F458132 | HANDLE, STARTER ROPE (1 required per assembly) |
  |
|
F458132 - Handle, NLA [ More info ]
|
| #12 | F2042 | WASHER (1 required per assembly) |
  |
F2042 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #13 | F458456 | HAND STARTER COLLAR (1 required per assembly) |
  |
F458456 - COLLAR [ More info ] Unavailable |
|
  |
|
FA458456 - Hand Starter Collar, NLA [ More info ]
|
| #14 | F2021 | FLYWHEEL NUT (1 required per assembly) |
  |
|
11-F2021 - NUT,NLA [ More info ]
|
| #15 | F2004 | FILL HD SCREW, 8 - 32 X 3/8 (3 required per assembly) |
  |
|
10-F2004 - Screw, NLA [ More info ]
|
| #16 | F458592 | RETAINER, STARTER PULLEY (1 required per assembly) |
  |
|
F458592 - Retainer, NLA [ More info ]
|
| #17 | F9022 | SHIM .006 (SILVER) (- required per assembly) |
  |
|
15-F9022 - Shim, NLA [ More info ]
|
| #18 | FA460423 | STARTER PAWL PLATE ASSEMBLY (1 required per assembly) |
  |
|
FA460423 - Plate Assembly [ More info ]
|
| #19 | F2040 | HEX HD MACHINE SCREW, 1/4 - 20 X 5/8 (1 required per assembly) |
  |
|
10-F2040 - Screw -ss, NLA [ More info ] Unavailable |
| #20 | F461952 | STRAP, HAND STARTER HOUSING (1 required per assembly) |
  |
|
F461952 - STRAP,NLA [ More info ] Unavailable |
| #21 | F458846 | SPRING, STARTER INTERLOCK LEVER (1 required per assembly) |
  |
|
24-F458846 - SPRING,NLA [ More info ] Unavailable |
| #22 | F1638 | SPRING PIN (1 required per assembly) |
  |
|
17-F1638 - Spring Pin, NLA [ More info ] Unavailable |
| #23 | F458003 | STARTER INTERLOCK LEVER (1 required per assembly) |
  |
|
F458003 - Starter Interlock Lever [ More info ]
|
| #24 | F8011 | PLAIN WASHER (1 required per assembly) |
  |
F8011 - Washer SS [ More info ] Unavailable |
|
| #25 | F2012 | PLAIN WASHER (3 required per assembly) |
  |
F2012 - Washer [ More info ] Unavailable |
|
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
