Parts for Chrysler 20 HP (1981) Swivel Bracket Group

Revise Search: All Models > 20 HP (1981) > 203B1M ( ) > Swivel Bracket Group

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	FC529390	DECAL, REVERSE LOCK - CANADA (1 required per assembly)
		FC529390 - FC529390 - DECAL-REV LOCK [ More info ] Unavailable Replaced by -F529390-1
		F529390-1 - DECAL-REV LOCK [ More info ] Unavailable
		37-819450 - Decal -Rev Lock, NLA [ More info ] Unavailable
#1	F7024	STOP NUT (1 required per assembly)
		F7024 - 11F7060 [ More info ] Unavailable
		11-F7060 - 118267118 [ More info ] Unavailable
		11-13855 - Nut (1/4-20) [ More info ] Unavailable
		11-826711 8 - Nut [ More info ] $3.71 7 In Stock.
#2	817882A 1	FRICTION SHOE ADJUSTING ARM ASSEMBLY (1 required per assembly) W/ILLUS. 5 ORIGINAL FORCE P/N A 901742-1
		817882A 1 - Arm Assembly, NLA [ More info ] Unavailable
#3	F901822-1	STUD, SWIVEL BRACKET (1 required per assembly)
		16-F901822-1 - STUD,NLA [ More info ] Unavailable
#4	F901775	PLATE, FRICTION SHOE (1 required per assembly)
		F901775 - PLATE,NLA [ More info ] Unavailable
#5	F901631-1	FRICTION SHOE (1 required per assembly)
		F901631-1 - Shoe, NLA [ More info ] $8.00 $6.78 10+ In Stock.
#6	F2027	HEX CAP SCREW, 5/16 - 18 X 3 (2 required per assembly)
		F2027 - Screw - Priced Individually [ More info ] Unavailable
		10-63328 - Screw - Priced Individually [ More info ] $2.99 $2.53 10 In Stock.
#7	F1689	HEX CAP SCREW, 1/4 - 20 X 1/2 (2 required per assembly)
		F1689 - Screw SS [ More info ] Unavailable
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#8	F286422-1	PIVOT, TILT LOCK (4 required per assembly)
		10-F286422-1 - Screw -Special , NLA [ More info ] $19.39 10+ In Stock.
#9	F286451	SPACER, TILT LOCK (4 required per assembly)
		F286451 - Spacer - Tilt Lock [ More info ] Unavailable
		23-819226 - Spacer - Tilt Lock [ More info ] $3.22 10 In Stock.
#10	F436541	TILT LOCK (PORT) (1 required per assembly)
		F436541 - Port Tilt Lock, NLA [ More info ] $7.61 $6.45 10 In Stock.
#11	F286544-1	SPRING, TILT LOCK (1 required per assembly)
		24-F286544-1 - Spring, Tilt Lock,NLA [ More info ] $3.10 10+ In Stock.
#12	F1666	BOWED SPRING LOCKWASHER (2 required per assembly)
		F1666 - Wave Washer - Priced Individually [ More info ] Unavailable
		13-69150 - Wave Washer - Priced Individually [ More info ] $3.79 10+ In Stock.

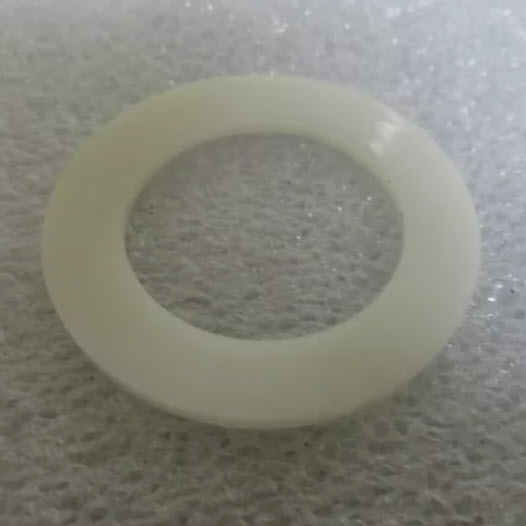

#13	F529286	WASHER, SWIVEL BRACKET FRICTION (2 required per assembly)
		12-F529286 - Washer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#14	FS529532	STERN BRACKET (2 required per assembly) W/ILLUS. 31, 32, 33 AND 36
		FS529532 - FS529532 - BRACKET-STERN [ More info ] Unavailable Replaced by -FS602532
		FS602532 - Stern Bracket Kit, NLA [ More info ] Unavailable
#15	F1600	LOCK NUT, 7/8 - 14 (2 required per assembly)
		11-F1600 - Nut (.875-14) [ More info ] Unavailable
		11-56041 - Nut (7/8-14) [ More info ] Unavailable
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#16	F8083	SPRING LOCKWASHER (2 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#17	F483827	LEVER, REVERSE LOCK (1 required per assembly)
		F483827 - Reverse Lock Lever [ More info ] $8.00 $6.78 10+ In Stock.
#18	F529726	BEARING (1 required per assembly)
		F529726 - Bearing, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#19	F8094	PLAIN WASHER (1 required per assembly)
		F8094 - Washer SS [ More info ] $1.29 5 In Stock.
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#20	F1014	COTTER PIN (1 required per assembly)
		F1014 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 8 In Stock.
#21	F1836	SPRING PIN (1 required per assembly)
		17-F1836 - Pin, Spring [ More info ] $4.30 10+ In Stock.
#22	F483884	BEARING (1 required per assembly)
		23-F483884 - Bearing, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#23	F366364	ARM, REVERSE LOCK (1 required per assembly)
		F366364 - Reverse Lock Arm [ More info ] Unavailable
#24	F483510-1	LINK, REVERSE LOCK (1 required per assembly)
		F483510-1 - Reverse Lock Link, NLA [ More info ] Unavailable
#25	F483349-1	REVERSE LOCK (1 required per assembly)
		F483349-1 - Reverse Lock, NLA [ More info ] Unavailable
#26	F1669	NUT (1 required per assembly)
		11-F1669 - Nut (#6-32) [ More info ] $2.50 10+ In Stock.
		11-8M0207777 - NUT-SS [ More info ] Unavailable

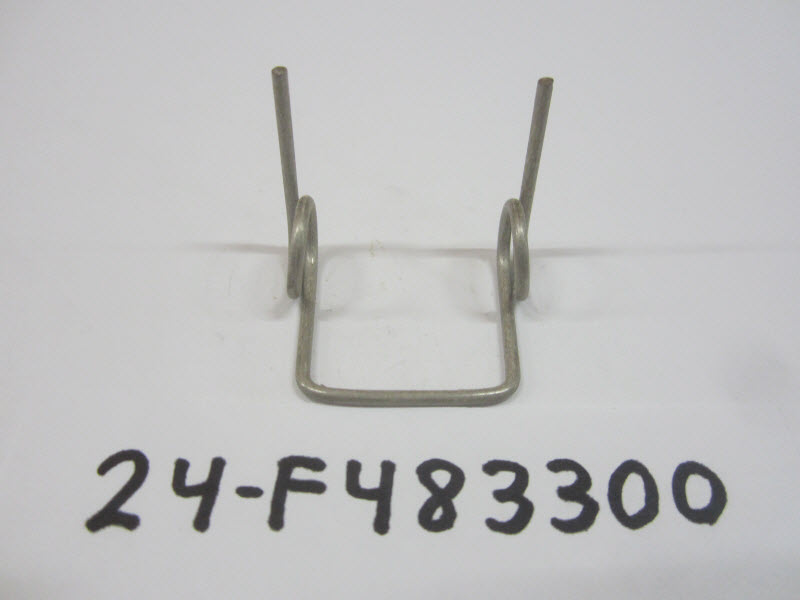

#27	F483300	SPRING (1 required per assembly)
		24-F483300 - Spring, NLA [ More info ] Unavailable

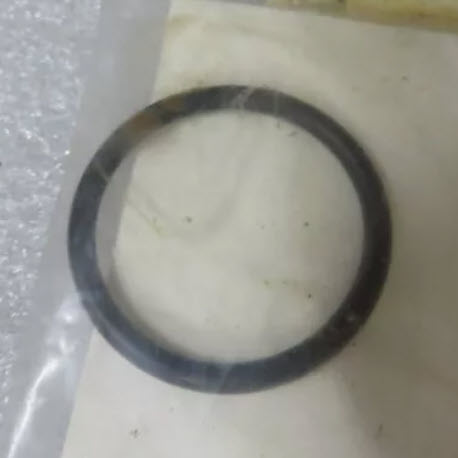

#28	F458783	SEAL, SWIVEL BRACKET (1 required per assembly)
		25-F458783 - O-Ring [ More info ] $1.25 $1.06 10+ In Stock.
#29	F901169-1	BEARING, SWIVEL BRACKET (2 required per assembly)
		23-F901169-1 - Bearing, NLA [ More info ] Unavailable

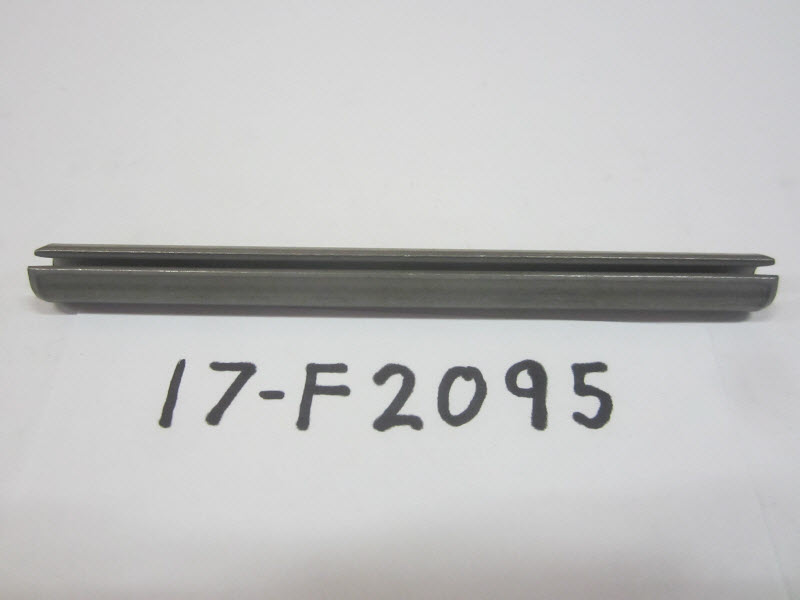

#30	F2095	SPRING PIN (1 required per assembly)
		17-F2095 - Pin, NLA [ More info ] Unavailable
#31	F24074	CLAMP SCREW FOOT (2 required per assembly)
		F24074 - Foot- Clamp Screw, NLA [ More info ] $13.01 10+ In Stock.
#32	F66480	STUD (2 required per assembly)
		17-F66480 - Clampscrew Stud [ More info ] $4.95 $4.19 10 In Stock.
#33	F8537	SPRING PIN (2 required per assembly)
		17-F8537 - Spring Pin, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#34	F288075	HANDLE, STERN BRACKET CLAMP SCREW (2 required per assembly)
		F288075 - Handle, NLA [ More info ] $9.38 $7.95 4 In Stock.
#35	F1638	SPRING PIN (2 required per assembly)
		17-F1638 - Spring Pin, NLA [ More info ] Unavailable

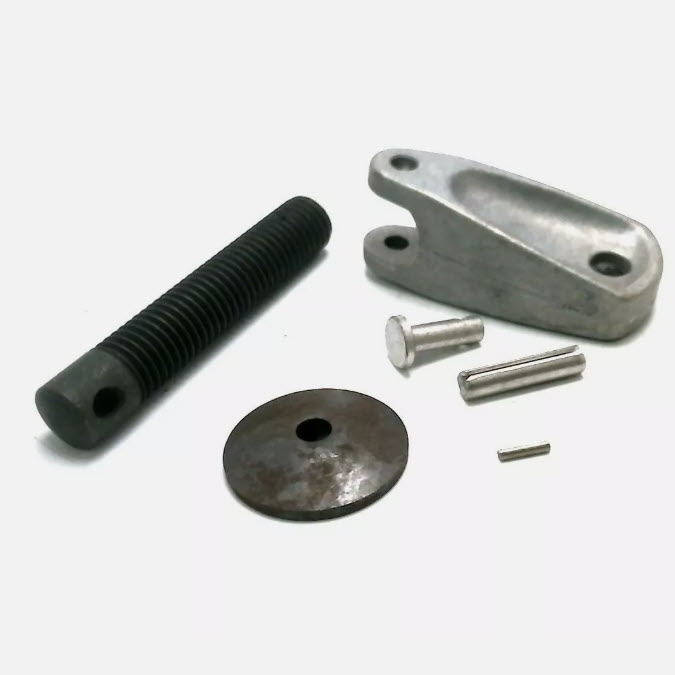

#36	817776A 3	STERN BRACKET CLAMP SCREW (2 required per assembly) W/ILLUS. 31, 32, 33, 34 AND 35 ORIGINAL FORCE P/N A 324073-3
		817776A 3 - Screw Kit, NLA [ More info ] $10.78 4 In Stock.
#37	FA324113	STERN BRACKET LOCK BAR W/END (1 required per assembly)
		FA324113 - Bar Kit - Lock, NLA [ More info ] $20.00 $16.94 10+ In Stock.
#38	F529125-1	TUBE, PIVOT STEERING (1 required per assembly)
		F529125-1 - Tube, NLA [ More info ] Unavailable
#39	F1515	HEX NUT, 5/16 - 18 (2 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#40	F385433	TILT STOP (1 required per assembly)
		F385433 - Stop, NLA [ More info ] $5.43 $4.60 3 In Stock.
#41	F213274	GREASE FITTING (3 required per assembly)
		22-F213274 - Grease Fitting [ More info ] Unavailable
#42	FA529072	SWIVEL BRACKET (1 required per assembly) W/ILLUS. 29 AND 41
		1400-FA529072 - Swivel Bracket Kit [ More info ] Unavailable
#43	F901011	WASHER, SWIVEL BRACKET (1 required per assembly)
		12-F901011 - WASHER,NLA [ More info ] Unavailable
#44	F458019	KINGPIN (1 required per assembly)
		F458019 - King Pin, NLA [ More info ] $21.74 $18.42 6 In Stock.
#45	F9018	CAP, PIVOT STEERING TUBE (2 required per assembly)
		19-F9018 - Cap, NLA [ More info ] Unavailable
#46	F529390-1	DECAL, REVERSE LOCK - USA (1 required per assembly)
