Parts for Chrysler 20 HP (1981) Engine Cover & Support Plate

Revise Search: All Models > 20 HP (1981) > 203B1M ( ) > Engine Cover & Support Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	2C 603712	*ENGINE COVER - COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (), NUMERAL MUST BE ORDERED SEPARATE (ALT.)**
#	F53504	GROMMET, SUPPORT PLATE (ALT. START) (1 required per assembly)
		25-F53504 - Grommet, NLA [ More info ] $11.10 $9.41 6 In Stock.
#	F462840	GROMMET, REMOTE THROTTLE CABLE (ALT. START) (2 required per assembly)
		F462840 - 25F4628401 [ More info ] Unavailable
		25-F462840-1 - F3248401 [ More info ] Unavailable
		F324840-1 - Grommet, NLA [ More info ] Unavailable
#	F603711	PLATE, FRONT (ALT. START) (1 required per assembly)
		F603711 - FK603711, NLA [ More info ] Unavailable
		FK603711 - Plate Kit [ More info ] $6.00 $5.08 9 In Stock.
#	2C 602712	*ENGINE COVER - COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (), NUMERAL MUST BE ORDERED SEPARATE (HAND START)**
#	FC461400	INDICATOR, GEAR SHIFT - CANADA (1 required per assembly)
		37-FC461400 - DECAL-INDICATOR,NLA [ More info ] Unavailable
#	FA603396	DECAL, ENGINE COVER - STARBOARD (1 required per assembly) W/LITERATURE
		FA603396 - DECAL NLA [ More info ] Unavailable
#1	100-818015A 1	ENGINE COVER (1 required per assembly) W/ILLUS. 9, 10, 11 AND 60 ORIGINAL FORCE P/N S 529712-1
		100-818015A 1 - Cover, NLA [ More info ] Unavailable
#2	F2066	PAN HD SCREW, 10 X 7/16 (6 required per assembly)
		F2066 - Screw SS, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#3	F458245-1	BAFFLE, TILT HANDLE (1 required per assembly)
		F458245-1 - Baffle, NLA [ More info ] Unavailable
#4	F2025	PAN HD SCREW, 10 X 5/8 (1 required per assembly)
		10-F2025 - Screw -ss, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#5	FA513269	TILT HANDLE (1 required per assembly) W/LITERATURE
		FA513269 - HANDLE KIT [ More info ] Unavailable
		817842A 1 - Handle Kit, NLA [ More info ] $10.00 $8.47 4 In Stock.
#6	F463864	RETAINER, TILT HANDLE (2 required per assembly)
		F463864 - Retainer, NLA [ More info ] $1.50 $1.28 9 In Stock.
#7	F85735-1	SEAL (7 required per assembly)
		26-F85735-1 - Seal, NLA [ More info ] $1.99 $1.68 10+ In Stock.
#8	F1753	FASTENER (7 required per assembly)
		F1753 - Fastener, NLA [ More info ] $1.99 $1.68 10+ In Stock.
#9	F7011	HEX NUT (4 required per assembly)
		11-F7011 - 11F7009 [ More info ] Unavailable
		11-F7009 - Nut, (#10-24) [ More info ] Unavailable
#10	FA458480	RETAINER, ENGINE COVER - REAR (1 required per assembly) W/ILLUS. 9 AND 11
		FA458480 - Retainer Kit,NLA [ More info ] $5.00 $4.24 1 In Stock.
#11	F1475	FILL HD SCREW, 10 - 24 X 1/2 (4 required per assembly)
		10-F1475 - Screw -ss, NLA [ More info ] Unavailable
#12	FA603397	DECAL, ENGINE COVER - PORT (1 required per assembly) W/LITERATURE
		FA603397 - DECAL NLA [ More info ] Unavailable
#13	F85756	PACKING, ENGINE COVER (1 required per assembly)
		F85756 - HOOD SEAL,NLA [ More info ] Unavailable
#14	FA602386	DECAL NUMERAL 20 (2 required per assembly) W/LITERATURE
		FA602386 - DECAL NLA [ More info ] Unavailable
#15	F1922	HEX HD SCREW, 1/4 - 20 X 5/8 (2 required per assembly)
		10-F1922 - Screw, NLA [ More info ] Unavailable
#16	F461774	BRACKET, RETAINER - REAR (1 required per assembly)
		F461774 - Bracket, NLA [ More info ] $6.00 $5.08 2 In Stock.
#17	F458038-2	SUPPORT PLATE (1 required per assembly)
		100-F458038-2 - PLATE,NLA [ More info ] Unavailable
#18	F458503	CHOKE ROD (1 required per assembly)
		F458503 - Choke Rod [ More info ] Unavailable
#19	F1632	PLASTI-PLUG (1 required per assembly)
		19-F1632 - Plug, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#20	F1760	PAN HD SCREW, 10 - 24 X 3/8 (2 required per assembly)
		10-F1760 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#21	F183818	BEARING, CHOKE ROD (1 required per assembly)
		F183818 - Bearing, NLA [ More info ] $2.78 $2.36 6 In Stock.
#22	F324993	BRACKET, CHOKE ROD BEARING (1 required per assembly)
		F324993 - Bracket, NLA [ More info ] Unavailable
#23	F1236	HEX CAP SCREW, 1/4 - 20 X 1/2 (2 required per assembly)
		F1236 - Screw [ More info ] Unavailable
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#24	F458371	BRACKET, REMOTE THROTTLE CABLE (1 required per assembly)
		F458371 - Bracket, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#25	F154317	CLAMP, REMOTE CABLE (2 required per assembly)
		54-F154317 - Clamp [ More info ] $7.18 10+ In Stock.
#26	F2107	SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8 (4 required per assembly)
		10-F2107 - 10F1090 [ More info ] Unavailable
		10-F1090 - SCREW-W/LW,NLA [ More info ] $1.25 $1.06 10+ In Stock.
#27	F324840-1	GROMMET, REMOTE THROTTLE CABLE (HAND START) (2 required per assembly)

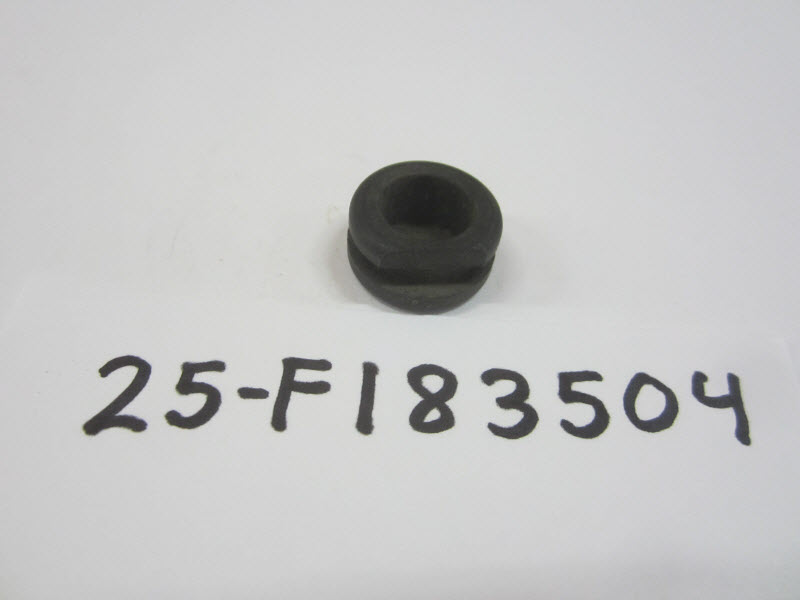

#28	F183504	GROMMET, MAGNETO CONTROL SHAFT (1 required per assembly)
		25-F183504 - Grommet, NLA [ More info ] $2.50 $2.13 4 In Stock.
#29	FA343178	RETAINER, MAGNETO CONTROL SHAFT (1 required per assembly) W/ILLUS. 30
		FA343178 - Retainerwith Set Screw, NLA [ More info ] Unavailable
#30	F1859	HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16 (1 required per assembly)
		10-F1859 - Screw -set [ More info ] $1.00 10+ In Stock.
		10-832794 - Screw -set [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#31	F183300	SPRING, MAGNETO CONTROL SHAFT (1 required per assembly)
		24-F183300 - Spring, NLA [ More info ] $6.75 10+ In Stock.
#32	F324689	BEARING, MAGNETO CONTROL SHAFT (1 required per assembly)

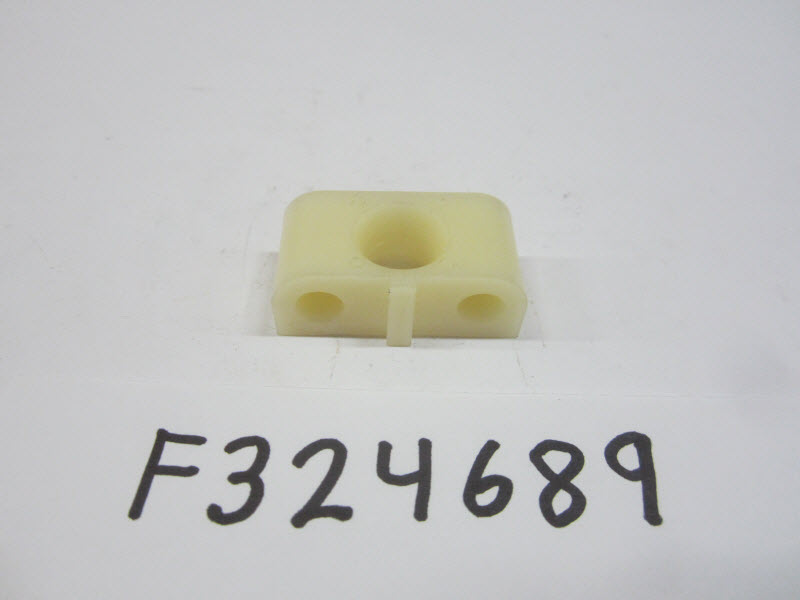

		F324689 - Magneto Control Shaft Bearing, NLA [ More info ] Unavailable
#33	F1087	FILL HD SCREW, 10 - 24 X 7/8 (2 required per assembly)
		10-F1087 - Screw, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#34	FA458838	MAGNETO CONTROL SHAFT W/EYELET (1 required per assembly)
		FA458838 - Magneto Control Shaft, NLA [ More info ] Unavailable
#35	F458677	INSERT, CHOKE KNOB (1 required per assembly)
		F458677 - Insert, NLA [ More info ] $3.17 $2.68 10+ In Stock.
#36	FA413469	COVER LATCH HANDLE W/SHAFT (1 required per assembly)
		FA413469 - Handle Kit, NLA [ More info ] $10.00 $8.47 2 In Stock.
#37	F307818	BEARING, LATCH SHAFT (2 required per assembly)
		23-F307818 - Bushing -nyLiner [ More info ] Unavailable
		23-26841 - Bushing - Priced Individually [ More info ] $7.59 10+ In Stock.

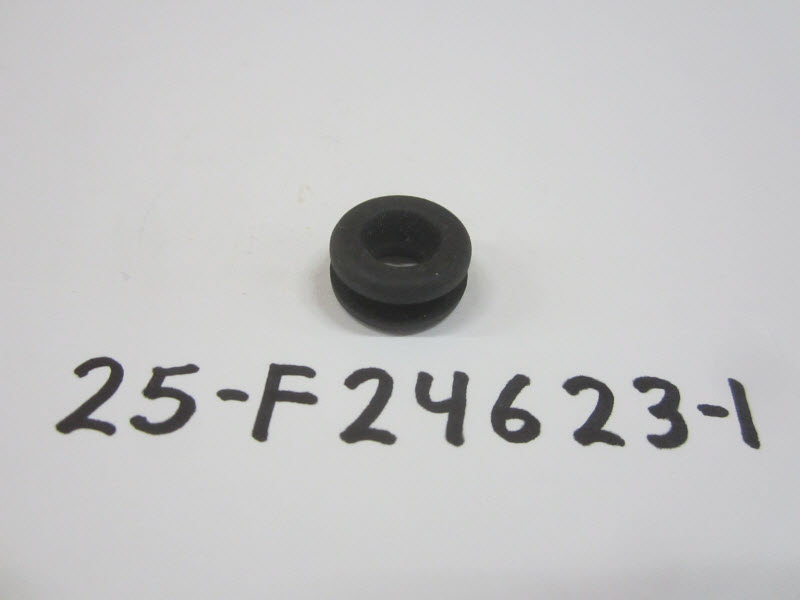

#38	F24623-1	GROMMET, GEAR SHIFT CHOKE ROD (HAND START) (2 required per assembly)
		25-F24623-1 - Grommet, NLA [ More info ] $2.78 $2.36 10+ In Stock.
#39	F286547	CHOKE KNOB (1 required per assembly)
		F286547 - Choke Knob, NLA [ More info ] $31.99 $27.09 10+ In Stock.
#40	F1836	SPRING PIN (1 required per assembly)
		17-F1836 - Pin, Spring [ More info ] $4.30 10+ In Stock.
#42	F504836	SPACER, GEAR SHIFT SHAFT (1 required per assembly)
		23-F504836 - Spacer, NLA [ More info ] $1.67 $1.42 9 In Stock.

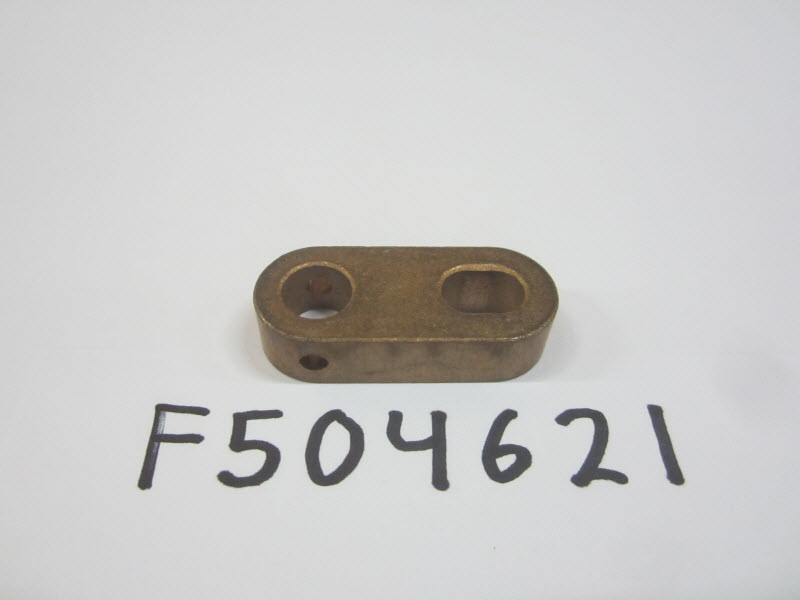

#43	F504621	LEVER, GEAR SHIFT CONTROL (1 required per assembly)
		F504621 - Gear Shift Control Lever [ More info ] $19.92 $16.88 10+ In Stock.
#46	F461400	INDICATOR, GEAR SHIFT (1 required per assembly)
		F461400 - 37FC461400 [ More info ] Unavailable
#47	F434767	BUSHING, FUEL LINE (1 required per assembly)
		F434767 - Bushing [ More info ] $27.42 Available to Order: Shipping delay up to 10 days.
#49	F185764	RETAINING RING (1 required per assembly)
		F185764 - Ring - Retaining - Priced Individually [ More info ] $0.25 4 In Stock.
		53-13194 - Ring - Retaining - Priced Individually [ More info ] $1.27 10+ In Stock.
#50	F1515	HEX JAM NUT, 5/16 - 18 (2 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#51	F8096	SPRING LOCKWASHER (2 required per assembly)
		F8096 - LockWasher - Priced Individually [ More info ] Unavailable
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#52	F89777-1	CAM, ENGINE COVER LATCH (1 required per assembly)
		F89777-1 - Cam - Latch, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#54	F458888-1	TRIM, STARTER HANDLE GUIDE (1 required per assembly)
		F458888-1 - TRIM,NLA [ More info ] $10.00 $8.47 1 In Stock.
#55	F2026	PLASTIC RIVET (2 required per assembly)
		17-F2026 - Rivet, NLA [ More info ] $1.88 $1.59 2 In Stock.
#56	F458880	CLIP, STARTER GUIDE (1 required per assembly)
		54-F458880 - Clip, NLA [ More info ] $1.50 $1.28 4 In Stock.
#57	F1473	HEX NUT, 10 - 24 (1 required per assembly)
		F1473 - Hex Nut 10 - 24 [ More info ] Unavailable
		11-79989 - Nut (10 - 24) [ More info ] $2.79 10+ In Stock.
#58	FA603892	DECAL ENGINE COVER - FRONT (1 required per assembly) W/LITERATURE
		FA603892 - DECAL NLA [ More info ] Unavailable
#59	F602711	PLATE, FRONT (HAND START) (1 required per assembly)
		F602711 - PLATE,NLA [ More info ] Unavailable
#60	FA458778	RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS (1 required per assembly)
		FA458778 - FA458778 - RETAINER ASSEMBLY [ More info ] Unavailable Replaced by -817807A1
		817807A 1 - Retainer Kit,NLA [ More info ] Unavailable
#61	817813A 1	COVER, SUPPORT PLATE (ALT. START) (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 460163-1
		817813A 1 - Cover [ More info ] $4.50 $3.82 8 In Stock.
#62	F8011	PLAIN WASHER (2 required per assembly)
		F8011 - Washer SS [ More info ] Unavailable
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#63	F2A504614	KNOB, GEAR SHIFT W/SHAFT (1 required per assembly) ILLUS. 46
		F2A504614 - Gear Shift Knob [ More info ] $31.11 $26.35 8 In Stock.
