Parts for Chrysler 20 HP (1979) Motor Leg

Revise Search: All Models > 20 HP (1979) > 207H9B ( ) > Motor Leg

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F458279	GASKET, CYLINDER EXHAUST (1 required per assembly)
		27-F458279 - Gasket,NLA [ More info ] Unavailable
#2	F183756-1	PACKING, SUPPORT PLATE (1 required per assembly)
		F183756-1 - Packing, NLA [ More info ] $7.78 $6.59 6 In Stock.
#3	F458887	FASTENER, SUPPORT PLATE MOUNT (4 required per assembly)
		10-F458887 - Screw, NLA [ More info ] $11.41 $9.67 7 In Stock.
#4	F458347	MOUNT, SUPPORT PLATE (8 required per assembly)
		F458347 - Mount, NLA [ More info ] $6.12 $5.19 10+ In Stock.
#5	F24342	SEAL, WATER LINE UPPER (1 required per assembly)
		25-F24342 - Seal [ More info ] Unavailable
		25-62704 - O-ring, (.362 X .103) [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
		18-7116 - O-Ring 303067, 25-62704 [ More info ] $1.11 Available to Order: Shipping delay up to 10 days.
#6	F8039	PLAIN WASHER (1 required per assembly)
		12-F8039 - F2014 [ More info ] Unavailable
		F2014 - Washer [ More info ] $0.49 3 In Stock.
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.

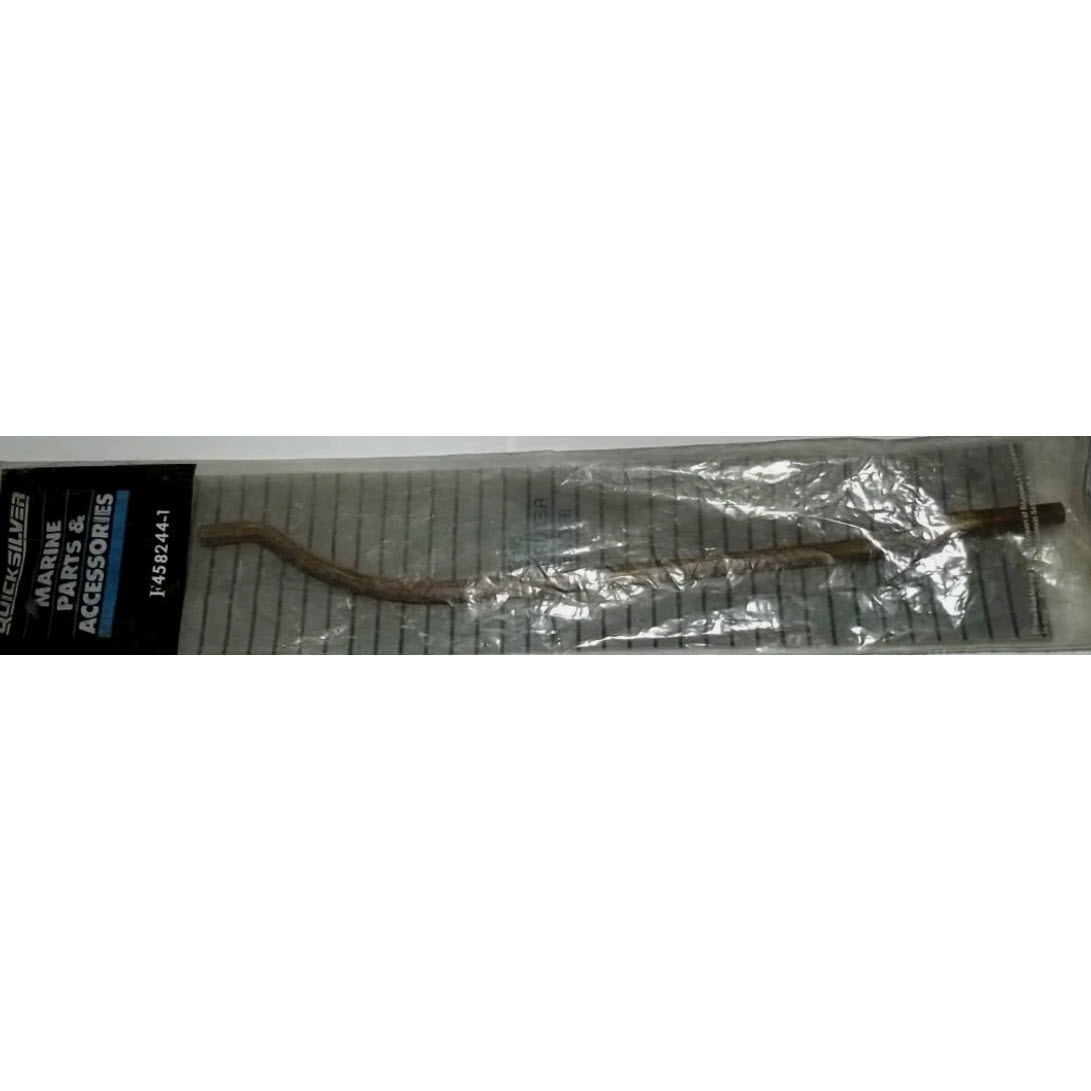

#7	F458244-1	INLET WATER LINE (1 required per assembly)
		32-F458244-1 - Water Line, NLA [ More info ] Unavailable
#8	F458963	PLATE, SHOCK MOUNT (1 required per assembly)
		F458963 - Plate [ More info ] Unavailable
#9	F1347	HEX NUT, 3/8 - 16 (4 required per assembly)
		11-F1347 - 11F1346 [ More info ] Unavailable
		11-F1346 - Hex Nut, 3/8 - 16 [ More info ] $0.44 2 In Stock.
		11-86226 - Nut (3/8-16) [ More info ] $2.21 10 In Stock.
		11-8M0204671 - NUT [ More info ] Unavailable
#10	F1778	PLAIN WASHER (2 required per assembly)
		12-F1778 - Washer, Stainless Steel [ More info ] Unavailable
		12-45175 - Washer, (.406 X .750 X .104) [ More info ] Unavailable
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#11	F458962	MOUNT, SIDE UPPER (2 required per assembly)
		F458962 - Shock Mount, NLA [ More info ] $48.99 $41.49 4 In Stock.
#12	F458076	TAB, SHOCK MOUNT SIDE (2 required per assembly)
		14-F458076 - Tab Washer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#13	817809A 1	PLATE, KINGPIN MOUNTING (1 required per assembly)
		817809A 1 - PLATE KIT,NLA [ More info ] Unavailable
#14	F458453	GASKET, LEG EXHAUST (1 required per assembly)
		27-F458453 - Gasket [ More info ] $12.99 $11.00 1 In Stock.
#15	F458322	PACKING, LEG COVER REAR (2 required per assembly)
		F458322 - PACKING,NLA [ More info ] Unavailable
#16	818057A 1	LEG COVER REAR W/PACKING (1 required per assembly)
		818057A 1 - Cover, NLA [ More info ] Unavailable
#17	F458133	MOTOR LEG (1 required per assembly)
		1500-F458133 - LEG,NLA [ More info ] Unavailable
#18	F458166-2	SCREW, MOTOR LEG TO CYLINDER (6 required per assembly)
		10-F458166-2 - Screw, NLA [ More info ] Unavailable
#19	F462962	SHOCK MOUNT LOWER SIDE (2 required per assembly)
		F462962 - Shock Mount, NLA [ More info ] $9.78 $8.29 10+ In Stock.
#20	F1263	HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16 (2 required per assembly)
		10-F1263 - Screw -ss [ More info ] $15.00 10+ In Stock.
#21	F458973-1	COVER, SHOCK MOUNT PORT (1 required per assembly)
		F458973-1 - Shock Mount Cover - P, NLA [ More info ] Unavailable
#22	F1515	HEX NUT, 5/16 - 18 (4 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#23	F2006	HEX CAP SCREW, 5/16 - 18 X 4 3/4 (1 required per assembly)
		10-F2006 - SCREW-SS,NLA [ More info ] Unavailable
#24	F2007	HEX CAP SCREW, 5/16 - 18 X 4 (1 required per assembly)
		F2007 - Screw SS, NLA [ More info ] Unavailable
#25	F1696	HEX CAP SCREW, 5/16 - 18 X 1 3/4 (2 required per assembly)
		10-F1696 - Screw SS [ More info ] $1.29 10+ In Stock.
		10-69267 - Screw [ More info ] $1.90 $0.38 10+ In Stock.
#26	F183346-1	SHOCK MOUNT LOWER THRUST (1 required per assembly)
		F183346-1 - Shock Mount, NLA [ More info ] Unavailable
#27	F1129	FILL HD SCREW, 5/16 - 18 X 1/2 (2 required per assembly)
		10-F1129 - Screw -ss, NLA [ More info ] $2.25 $1.91 10+ In Stock.
#28	F458972-1	COVER, SHOCK MOUNT STARBOARD (1 required per assembly)
		F458972-1 - COVER-SHOCK MT-S,NLA [ More info ] Unavailable
#29	F8096	SPRING LOCKWASHER (2 required per assembly)
		F8096 - LockWasher - Priced Individually [ More info ] Unavailable
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#30	F458320	PACKING, LEG COVER FRONT UPPER PORT (1 required per assembly)
		F458320 - PACKING,NLA [ More info ] Unavailable
#31	F458323-1	PACKING, LEG COVER FRONT (3 required per assembly)
		F458323-1 - F4583232 F458323-2 [ More info ] Unavailable
		F458323-2 - PACKING,NLA [ More info ] Unavailable
#32	F458312	PACKING, LEG COVER SIDE (2 required per assembly)
		F458312 - PACKING,NLA [ More info ] Unavailable
#33	F1705	HEX CAP SCREW, 1/4 - 20 X 3/4 (6 required per assembly)
		F1705 - Screw - Priced Individually [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#34	818056A 2	LEG COVER FRONT W/PACKING (1 required per assembly)
		818056A 2 - Cover, NLA [ More info ] Unavailable
#35	F458324	PACKING, LEG COVER FRONT UPPER STARBOARD (1 required per assembly)
		F458324 - PACKING,NLA [ More info ] Unavailable
#36	F458315	PACKING, LEG COVER SIDE UPPER (2 required per assembly)
		F458315 - PACKING,NLA [ More info ] $4.00 $3.39 4 In Stock.
#37	F1745	HEX HD SCREW W/SPRING LOCKWASHER, 5/16 - 18 X 1 (3 required per assembly)
		10-F1745 - Screw -w/Lw, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#38	F385647	CARRYING HANDLE (1 required per assembly)
		F385647 - Handle, NLA [ More info ] $20.00 $16.94 2 In Stock.
#39	F458079	STEERING HANDLE FOR MANUAL START MODELS (1 required per assembly)
		F458079 - HANDLE [ More info ] Unavailable
		FA603079 - Handle Kit, NLA [ More info ] Unavailable
#40	F1664	SPRING PIN FOR MANUAL START MODELS (1 required per assembly)
		17-F1664 - Spring, Pin [ More info ] $2.40 $2.03 9 In Stock.
#41	F1832	HEX LOCK NUT FOR MANUAL START MODELS (1 required per assembly)
		11-F1832 - Nut (1 /4-20)(Stainless Steel) [ More info ] Unavailable
		11-814101 - Nut (1/4-20) [ More info ] Unavailable
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#42	F8550	SPRING PIN FOR MANUAL START MODELS (1 required per assembly)
		17-F8550 - Pin, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#43	F295689	BEARING, STEERING HANDLE GEARFOR MANUAL START MODELS (1 required per assembly)
		F295689 - Bearing - Steering Handle Gear [ More info ] $3.26 $2.76 7 In Stock.
#44	F1954	HEX SOCKET HEADLESS SET SCREW, 5/16 - 24 X 1/4 (1 required per assembly) FOR MANUAL START MODELS
		10-F1954 - Screw -set, NLA [ More info ] $1.35 $1.14 10+ In Stock.
#45	F413815	GEAR, STEERING HANDLE FOR MANUAL START MODELS (1 required per assembly)
		F413815 - Steering Handle Gear [ More info ] Unavailable
		FA413815 - Steering Handle Gear with Set Screw, NLA [ More info ] $17.99 $15.23 3 In Stock.
#46	F288691	GEAR, MAGNETO CONTROL SHAFT FOR MANUAL START MODELS (1 required per assembly)
		43-F288691 - Gear, NLA [ More info ] Unavailable
#47	F288689	BEARING, MAGNETO CONTROL SHAFT FOR MANUAL START MODELS (1 required per assembly)
		23-F288689 - Bearing, NLA [ More info ] $4.00 $3.39 10+ In Stock.
#48	F1663	SPRING PIN (1 required per assembly)
		17-F1663 - Pin, NLA [ More info ] $1.36 $1.16 5 In Stock.
#49	F1642	SOCKET HD CAP SCREW, 10 - 24 X 3/4 FOR MANUAL START MODELS (1 required per assembly)
		10-F1642 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#50	F295457	RETAINING WASHER STEERING HANDLE PIVOT (1 required per assembly) FOR MANUAL START MODELS
		F295457 - Washer, NLA [ More info ] $1.63 $1.39 10+ In Stock.
#51	F295175	WASHER, STEERING HANDLE PIVOT BOLT FOR MANUAL START MODELS (2 required per assembly)
		12-F295175 - Washer, NLA [ More info ] $1.36 $1.16 10+ In Stock.
#52	F295080	STEERING HANDLE PIVOT BOLT FOR MANUAL START MODELS (1 required per assembly)
		10-F295080 - Bolt, NLA [ More info ] Unavailable
#53	F458519	SCREW, TILLER IDLE STOP FOR MANUAL START MODELS (1 required per assembly)
		10-F458519 - Screw -ss, NLA [ More info ] Unavailable
#54	F53795-1	SEAL, STEERING HANDLE GRIP FOR MANUAL START MODELS (1 required per assembly)
		25-F53795-1 - Seal [ More info ] $0.28 10+ In Stock.
		25-21836 - O-ring, (.796 X .139) [ More info ] Unavailable
		25-8M0204645 - O RING [ More info ] $2.39 5 In Stock.
		18-7153-9 - (PK5) O-Ring 25-25439 [ More info ] $10.56 Available to Order: Shipping delay up to 10 days.
#55	F215795	SEAL, STEERING HANDLE GRIP FOR MANUAL START MODELS (1 required per assembly)
		25-F215795 - O-ring (small) [ More info ] Unavailable
		25-38101 - O-ring, (.674 X .103) [ More info ] $1.80 10+ In Stock.
#56	F458695	SLEEVE FOR MANUAL START MODELS (1 required per assembly)
		F458695 - Steering Handle Grip Sleeve [ More info ] $3.33 7 In Stock.
		828406 - Steering Handle Grip, NLA [ More info ] $14.99 $12.69 9 In Stock.
#57	F8548	SPRING PIN FOR MANUAL START MODELS (1 required per assembly)
		F8548 - Spring,Pin [ More info ] $0.28 2 In Stock.
		17-25810 - Pin -roll - Priced Individually [ More info ] $5.79 $1.17 10+ In Stock.
#58	FA456137	GRIP, STEERING HANDLE W/SLEEVE FOR MANUAL START MODELS (1 required per assembly)
		FA456137 - Handle/Grip Assembly, NLA [ More info ] $30.18 10 In Stock.
#59	F286894-3	INDICATOR, SPEED CONTROL FOR MANUAL START MODELS (1 required per assembly)
		37-F286894-3 - Decal - Indicator, NLA [ More info ] Unavailable
#60	F458688	SHAFT, STEERING HANDLE FOR MANUAL START MODELS (1 required per assembly)
		F458688 - Shaft, NLA [ More info ] Unavailable
#61	F85610	BEARING, STEERING HANDLE SHAFT FOR MANUAL START MODELS (1 required per assembly)
		23-F85610 - Bushing [ More info ] $0.35 10+ In Stock.
		23-97896 - Bushing [ More info ] $4.49 10+ In Stock.
#62	F458690	SCREW, THROTTLE STOP FOR MANUAL START MODELS (1 required per assembly)
		10-F458690 - Screw -ss, NLA [ More info ] $4.31 10+ In Stock.
#63	F1978	SPRING PIN FOR MANUAL START MODELS (1 required per assembly)
		F1978 - Spring Pin, 1/8 X 1/2, Stainless Steel [ More info ] $0.25 10+ In Stock.
		17-29908 - Pin -roll - Priced Individually [ More info ] $1.99 10+ In Stock.

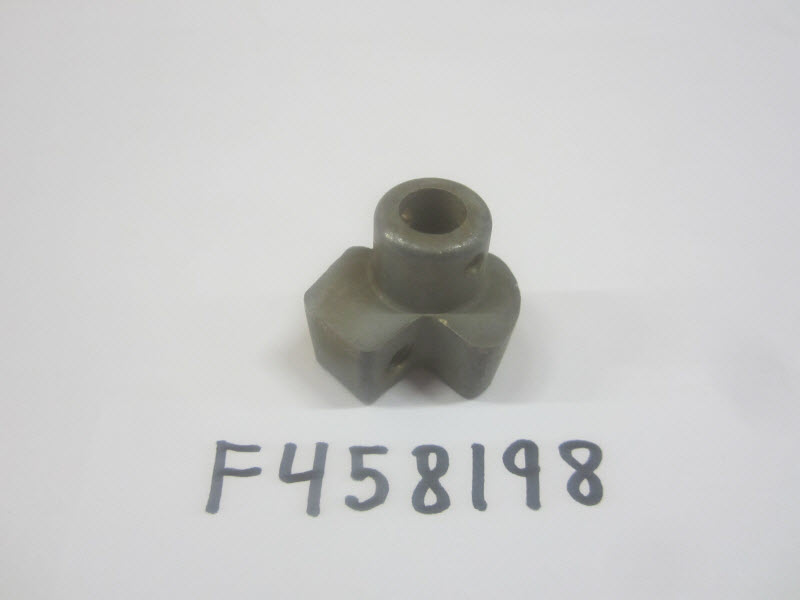

#64	F458198	THROTTLE STOP FOR MANUAL START MODELS (1 required per assembly)
		F458198 - Stop, NLA [ More info ] $5.39 7 In Stock.
#65	F203965	SHOCK MOUNT UPPER THRUST (1 required per assembly)
		F203965 - F2039651 [ More info ] Unavailable
		F203965-1 - Shock Mount [ More info ] $42.47 $35.97 10+ In Stock.
#66	F1160	FLAT HD SCREW, 1/4 - 28 X 5/8 (2 required per assembly)
		10-F1160 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#68	F40956	BRACKET, SHOCK MOUNT UPPER THRUST (1 required per assembly)
		F40956 - Bracket, NLA [ More info ] $6.52 $5.53 6 In Stock.
#69	F1211	HEX HD SCREW W/SPRING LOCKWASHER, 1/4 - 28 X 5/8 (2 required per assembly)
		10-F1211 - Screw -w/Lw, NLA [ More info ] Unavailable
#70	F1472	HEX SLOT HD SCREW W/LOCKWASHER, 1/4 - 20 X 3/4 (2 required per assembly)
		F1472 - Screw w/ Lw - Priced Individually [ More info ] Unavailable
		10-65746 - Screw w/ Lw - Priced Individually [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#71	F141704	COUPLING, GEAR SHIFT ROD (1 required per assembly)
		F141704 - Coupler [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#72	F1349	HEX NUT (1 required per assembly)
		11-F1349 - Nut - Priced Individually [ More info ] Unavailable
#73	F458615	GEAR SHIFT ROD UPPER (1 required per assembly)
		F458615 - Gear Shift Rod [ More info ] Unavailable
#75	F1020	COTTER PIN (1 required per assembly)
		18-F1020 - Cotter Pin, NLA [ More info ] $1.63 $1.39 10+ In Stock.
#76	F8049	BOWED SPRING WASHER (1 required per assembly)
		13-F8049 - Bow Washer, NLA [ More info ] $1.73 $1.46 4 In Stock.
#77	F1739	PLAIN WASHER (1 required per assembly)
		12-F1739 - Washer [ More info ] $0.25 10+ In Stock.
		12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] $1.11 10+ In Stock.
		12-8M0204690 - WASHER [ More info ] Unavailable
#78	F1502	HEX CAP SCREW, 1/4 - 20 X 5/8 (2 required per assembly)
		F1502 - Screw [ More info ] $0.30 9 In Stock.
		10-98254 - Screw [ More info ] $0.60 Available to Order: Shipping delay up to 10 days.
#79	F542686	COVER, KING PIN MOUNTING PLATE FOR ELECTRIC START MODELS (1 required per assembly)
		F542686 - F542686 - COVER [ More info ] Unavailable Replaced by -FA460686
		FA460686 - COVER KIT,NLA [ More info ] Unavailable
#80	F2011	PAN HD SCREW, 1/4 - 20 X 1 1/4 FOR ELECTRIC START MODELS (2 required per assembly)
		10-F2011 - Screw, NLA [ More info ] Unavailable
#81	F2018	SPEED NUT, 1/4 - 20 FOR ELECTRIC START MODELS (2 required per assembly)
		11-F2018 - Nut -ss, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#82	F458345	PAD, KING PIN MOUNTING (1 required per assembly)
		F458345 - Pad, NLA [ More info ] $6.00 $5.08 2 In Stock.
