Crusader V8-283, 302, 305, 307, 327 & 350 C.I.D.
All models: Center riser generic

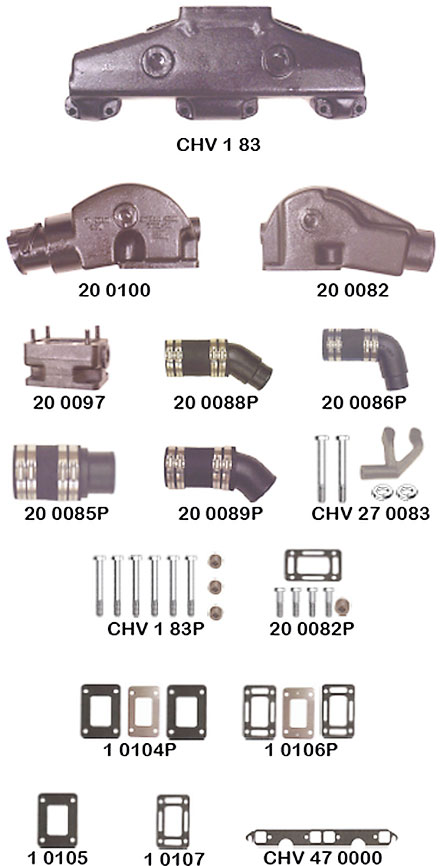

| Part Number | Description |
|---|---|
| CHV-1-83 | Water cooled center discharge manifold to fit the small block GM engine (3/4" N.P.T. cooling hose connections). All years. |
| 20-0082 | Water cooled center discharge riser (3/4" N.P.T. cooling hose connection). Standard for use with 3" I.D. exhaust hose. |
| 20-0100 | Water cooled center discharge riser (3/4" N.P.T. cooling hose connection). Standard for use with 4" I.D. exhaust hose. |
| 1-0104P | Adaptor package for fresh water cooled manifold (includes gaskets and block off plate). |
| 1-0105 | Center riser manifold-to-riser gasket for fresh water cooling. |
| 1-0106P | Adaptor package for raw water cooling. Used in pre-heating applications (includes gaskets and block off plate with vent hole). |
| 1-0107 | Center riser manifold-to-riser gasket (raw water cooling). |
| 20-0082P | Riser mounting package for both 20-0082 and 20-0100. |
| 20-0082SS-P | Stainless steel mounting package (with brass plugs) for both 20-0082 and 20-0100. Not pictured. |
| 20-0085P | Straight exhaust adaptor (includes adaptor, hose and clamps). For use with 2-1/2" I.D. exhaust hose. |
| 20-0086P | 90-degree exhaust elbow adaptor (includes adaptor, hose and clamps). For use with 2-1/2" I.D. exhaust hose. |
| 20-0088P | 30-degree exhaust elbow adaptor (includes adaptor, hose and clamps). For use with 2-1/2" I.D. exhaust hose. |
| 20-0089P | 30-degree exhaust elbow adaptor (includes adaptor, hose and clamps). For use with 3" I.D. exhaust hose. |
| 20-0097 | 3" spacer block (complete with mounting hardware, gasket and 3/4" pipe plug). Capable of stacking. |
| CHV-1-83P | Manifold mounting package (includes bolts and pipe plugs). |
| CHV-1-83SS-P | Stainless steel manifold mounting package (includes stainless bolts and brass plugs). Not pictured. |
| CHV-27-0083 | Alternator bracket. Use where engine water pump is mounted on port side of engine below alternator. |
| CHV-47-0000 | Manifold to cylinder head gasket. |
The center riser is a two-piece aluminum manifold/riser ideally suited for replacement use where riser protection is required. The Barr center riser aluminum manifold/riser uses flexible exhaust hose which facilitates connection to existing exhaust lines.
All elbows (cast iron) can swivel inboard or outboard for perfect fit. The Barr center riser aluminum manifold/riser is designed to limit back presure on the engine, resulting in more efficient engine performance. The manifold and riser can be reversed and will fit either side of the engine.
The Barr center riser aluminum manifold/riser is cast of 356 T6 aluminum, well suited for fresh water marine applications. Barr Marine's center riser aluminum manifold/riser come with a one year warranty. However, Barr Marine By EDM does not recommend use of this product in salt water applications and does not warrant this product in salt water due to extreme corrosion.
