Chris Craft V8-283, 302, 305, 307 & 350 C.I.D.
All models: Log style direct replacement
Manifold not to be used in 3-pass plumbing systems!

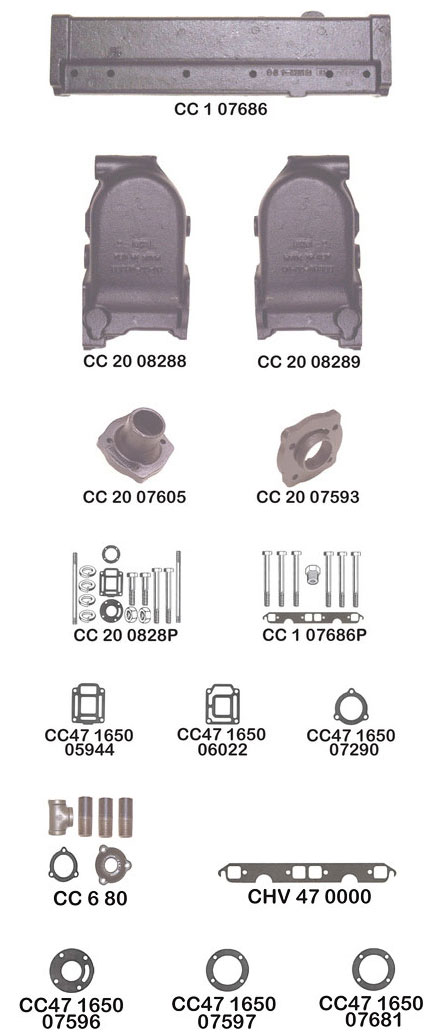

| Part Number | Description |
|---|---|
| CC-1-07686 | Direct replacement water cooled 16.20-07686. |
| CC-20-08288 | Direct replacement port side riser. |
| CC-20-08289 | Direct replacement starboard side riser. |
| CC-1-07686P | Manifold mounting package. |
| CC-6-80 | Pressure relief valve adaptor package for use with Chris Craft direct replacement as needed |
| CC-20-07593 | Riser/deflector plate. Replaces Chris Craft part number 16.20-07593 (Order two (2) of the appropriate gaskets according to your requirements). |
| CC-20-07605 | Direct replacement exhaust elbow. |
| CC-20-0828P | Exhaust riser mounting package. |
| CC47-1650-05944 | End cap gasket for all models except 283 C.I.D. with flywheel forward (Order two (2) of the appropriate gaskets according to your requirements). |
| CC47-1650-06022 | End cap gasket for 283 C.I.D. with flywheel forward (Order two (2) of the appropriate gaskets according to your requirements). |
| CC47-1650-07290 | Pressure relief valve housing gasket. |
| CC47-1650-07596 | Riser/deflector plate gasket. Also requires gasket CC47-1650-07597 (Order two (2) of the appropriate gaskets according to your requirements). |
| CC47-1650-07597 | Riser/tail pipe gasket. Also requires gasket CC47-1650-07596 (Order two (2) of the appropriate gaskets according to your requirements). |
| CC47-1650-07681 | Adaptor/tail pipe gasket for 283 C.I.D. with flywheel forward (Order 2) of the appropriate gaskets according to your requirements). |
| CHV-47-0000 | Manifold to cylinder head gasket. |
Note
Manifold includes all mounting hardware to head, gaskets and plugs. Risers include mounting gaskets and plugs only. Order CC-20-0828P to mount riser to manifold (two (2) required per engine).
