SSX17618 - Xtreme NFB Steering Kit, 18 SSX17618

XTREME™ NFB™ Mechanical Non Feedback Rotary Steering Kit

Complete steering system including new helm, high efficiency XTREME™ steering cable design and new style bezel. A brand new XTREME™ steering cable was designed specifically for this system. This cable offers lower backlash and is more efficient than a standard steering cable.

Quick connect feature on both steering cable and spent travel tube for easy, quick installation. The patent pending helm has a complete new gear train designed to provide smooth feel, minimal backlash and low effort at wheel. It also offers the smoothest NFB clutch release and has a smaller footprint than the current 4.2 helm. Installs in same mounting pattern and bracket location as current Teleflex Marine steering systems.

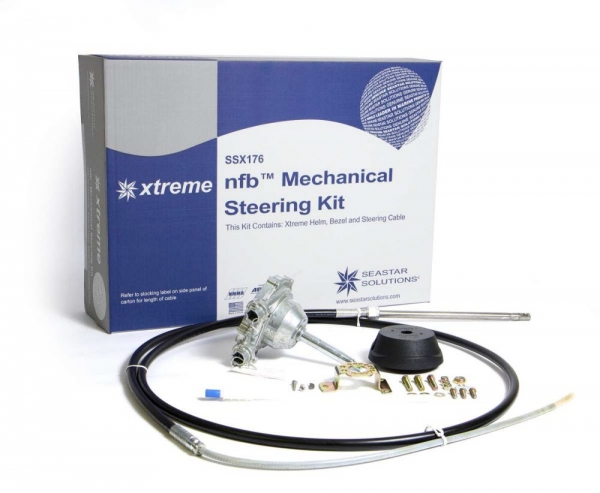

The kit contains the following:

• 1 - SHX7606 XTREME™ NFB Helm, Bezel and Hardware Kit
• 1 - SSCX64XX XTREME ™ QC Steering Cable
• Hardware & Instruction sheets

Kit sizes: 11-25 feet
SSCX64XX can be used as a replacement cable.

Applications:
XTREME NFB single-cable systems are suitable for most single-station boats with a single non-power-assisted outboard engine up to V-6 and
minimal engine flutter or steering instability. Use dual cable system for boats with engine flutter or steering instability.

Features:

• Smoothest and lowest steering effort mechanical helm offered in the market place yet still offers easy installation.
• Complete steering system including new helm, high effeciency XTREME™ steering cable design and new style bezel.
• Quick connect feature on both steering cable and spent travel tube for easy quick installation.
• Installs in same mounting pattern and bracket location as most current SeaStar Solutions rotary steering systems.
• Smallest footprint possible to accommodate small, tight dash helm stations.
• Made, designed and assembled in the USA.

Note: All SSCX XTREME Cables are designed to fit only XTREME helms.

NFB = No FeedBack, an exclusive SeaStar Solutions feature built into the helm to fight prop torque feedback.
Steering Wheel Turns Lock-to-lock = steering wheel revolutions from hard over port to hard over starboard.
NFB should not be used with autopilots or power assisted steering.
