TELHC5319 - Seastar BA 175-7TM Inboard Hyd
 |
List Price
—
Your Price
$0.00
Part Number
HC5319
Manufacturer
SeaStar Solutions

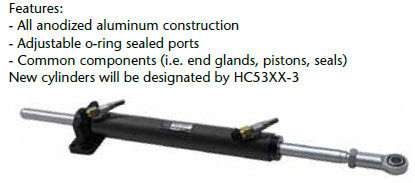

HC5319 SeaStar Cylinder, BA 175-7TM, Inboard Type
Fits most inboard powered boats with single or twin engines. Easy installation for single and dual rudder vessels. Cylinders supplied with bleeder fittings. Two axis articulation. Inboard Application Turns Stop-to-Stop Cylinder Number.
CYLINDER MODEL (PART No.): BA175-7TM (HC5319)
BORE DIA In (mm): 1.75 (44.4)
NOMINAL SHAFT DIA In (mm): .75 (19.0)
STROKE In (mm): 7 (178)
SEAL KIT: HS5183
VOLUME Cubic In (cc): 13.7 (226.4)
TORQUE In-lb (kg-m): 9569 (110.2)
TELHC5319 - Seastar BA 175-7TM
Inboard Hyd
lb
SeaStar Solutions
HC5319
HC5319 SeaStar Cylinder, BA 175-7TM, Inboard Type Fits most inboard powered boats with single or twin engines. Easy installation for single and dual rudder vessels. Cylinders supplied with bleeder fittings. Two axis articulation. Inboard Application Turns Stop-to-Stop Cylinder Number. CYLINDER MODEL (PART No.): BA175-7TM (HC5319)BORE DIA In (mm): 1.75 (44.4)NOMINAL SHAFT DIA In (mm): .75 (19.0)STROKE In (mm): 7 (178)SEAL KIT: HS5183VOLUME Cubic In (cc): 13.7 (226.4)TORQUE In-lb (kg-m): 9569 (110.2)
0.00
HC5319 SeaStar Cylinder, BA 175-7TM, Inboard Type Fits most inboard powered boats with single or twin engines. Easy installation for single and dual rudder vessels. Cylinders supplied with bleeder fittings. Two axis articulation. Inboard Application Turns Stop-to-Stop Cylinder Number. CYLINDER MODEL (PART No.): BA175-7TM (HC5319)BORE DIA In (mm): 1.75 (44.4)NOMINAL SHAFT DIA In (mm): .75 (19.0)STROKE In (mm): 7 (178)SEAL KIT: HS5183VOLUME Cubic In (cc): 13.7 (226.4)TORQUE In-lb (kg-m): 9569 (110.2)
0.00
