MP41070-2 - Ignition Switch, 87-17009A5
|
 |
List Price
$36.49
Your Price
$35.70
You save $0.79
10+ In Stock.
SECURE CHECKOUT
SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY
SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY
Part Number
MP41070-2
Manufacturer
Sierra Marine

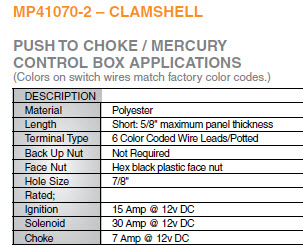

MP41070-2 Ignition Switch
Push to Choke — 3 Position — 6 Wire Sealed Polyester. Replaces: 87-17009A2
Key Features:
- Maximum corrosion protection - eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Push to Choke
Additional Details:
- Back Up Nut: Not Required
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Color Coded Wire Leads/Potted
- Switch Positions: Off - Run - Start
- Type: 3 Position Magneto
- Note: Colors on switch wires match factory color codes
Sierra Marine Mp41070-2 - Ignition Switch, 87-17009a5 is equivalent to parts:
- REC87-17009A5 Recmar Marine
- 17009A5 Mercury Marine
- 87 17009A 5 Mercury Marine
UPC: 808282201784
Sierra Marine Catalog Online
Sierra Marine is the market leader for aftermarket marine engine parts. Sierra products cover every major engine brand. Sierra offers a comprehensive product line and an unsurpassed customer satisfaction warranty covering parts and labor.
