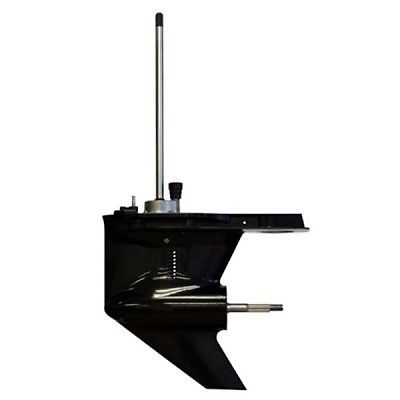

90-218-B30 - SE218, 1.62:1, 30'' Counter Rotation

90-218-B30 - Lower Unit Mercury 3.0L, 1.62 to 1, 30'' Counter Rotation

SE218 Series Gearcases replace most Mercury 3.0L Models, Counter Rotation

• Part Number : 90-218-B30
• Rotation : LH
• Gear Ratio : 1.62:1
• Gear Tooth Count : 17/28 or 13/21
• Shaft Length : 30"
• Driveshaft Spline Count : 13

IMPORTANT NOTE: See additional image above for driveshaft length measurement procedure.

SE218 Replaces most Mercury 3.0L Lower Units (SN 1B504989 and below). Does not replace the Torque Master, Torque Master 2 or the Sport Master.

This unit contains a 13 Spline one-piece drive shaft.
If you have an 8 Spline drive shaft, you will need to buy the stub shaft unit and buy an upper driveshaft 45-824115A 1 - 30 Inch Extension Kit (If available. Enter part number 45-824115A 1 in our parts search box. If not you will need to source a used one or fix your old drive.)

The SEI 218 gear cases are supplied with the correct water tube coupling for units with a serial number of OG438000 and higher. If your unit has a lower serial number, you will need to use your old water coupling or buy the correct part (SEI part number 96-116-12K).
