176-5095 - Stator, See Detail Page for Connector Info

CDI Electronics 176-5095 - Stator, See Detail Page for Connector Info
CDI Electronics 176-5095 - Stator, See Detail Page for Connector Info

Your Price
$468.01

In Stock

SECURE CHECKOUT
SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY

Part Number
176-5095

Manufacturer
CDI Electronics

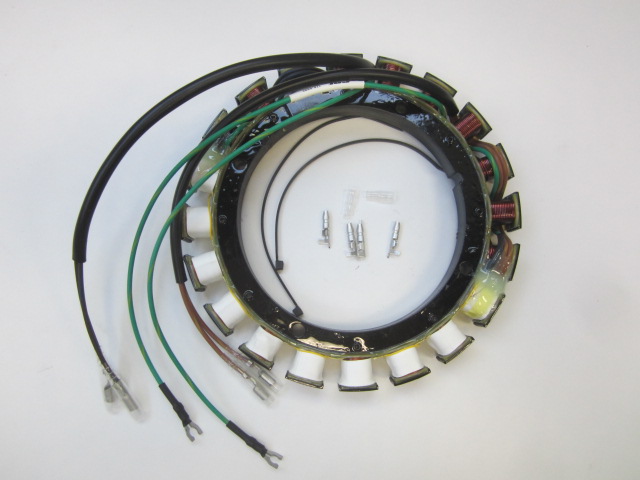

176-5095 - Stator 2/3/4 Cylinder

Fits: 1981-1985 (55 & 60HP - 2 Cyl.) 1983-1986 (80 & 85HP - 3 Cyl.) 1981-1986 (90,115 & 125HP - 4 Cyl.)

Replaces: F475095, F615095, F616095, F615095, 300-475095, 300-F616095, 300-888792

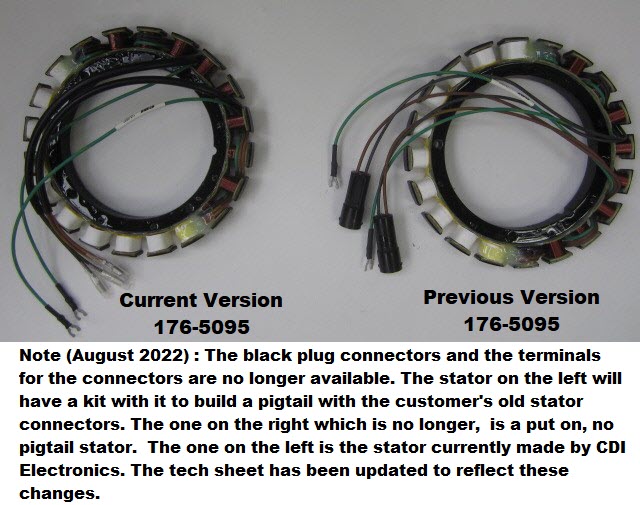

Important Note : This Stator requires the modification of the Switchbox wire connections. The black connectors are no longer available, requires adding male end fittings included to existing mating wire harness.  The round black plug connector will need to be removed and bullet connectors will need to be installed on the Switchbox wires. See new Tech Info link for instructions.

Technical information (PDF)
More technical information (PDF)
Warranty (PDF)
Enlarge photo
More photos


CDI Electronics 176-5095 - Stator, See Detail Page For Connector Info is equivalent to parts:

  • 18-99288 Sierra Marine
  • 176-5095 Sierra Marine
  • F475095 Mercury Marine
  • 888792 Mercury Marine
  • 616095 Mercury Marine
  • 615095 Mercury Marine
  • 475095 Mercury Marine
  • 300F475095 Mercury Marine
  • 300888792 Mercury Marine
CDI Catalog Online
CDI produces state of the art ignition components that have become the industry standard for quality electronic ignition systems.

Special Note: CDI Electronics has merged wtih Sierra Marine. Some legacy CDI part numbers will still be in effect and sold for some time. Some legacy CDI part numbers have been discontinued and have been replaced by new 2025 Sierra Marine part numbers.
