6260 - Tilt Trim Motor, Yamaha

Arco Marine 6260 - Tilt Trim Motor, Yamaha

List Price
$320.95

Your Price
$296.67
You save $24.28

Add to shopping cartIn Stock

SECURE CHECKOUT
SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY

Part Number
6260

Manufacturer
Arco Marine

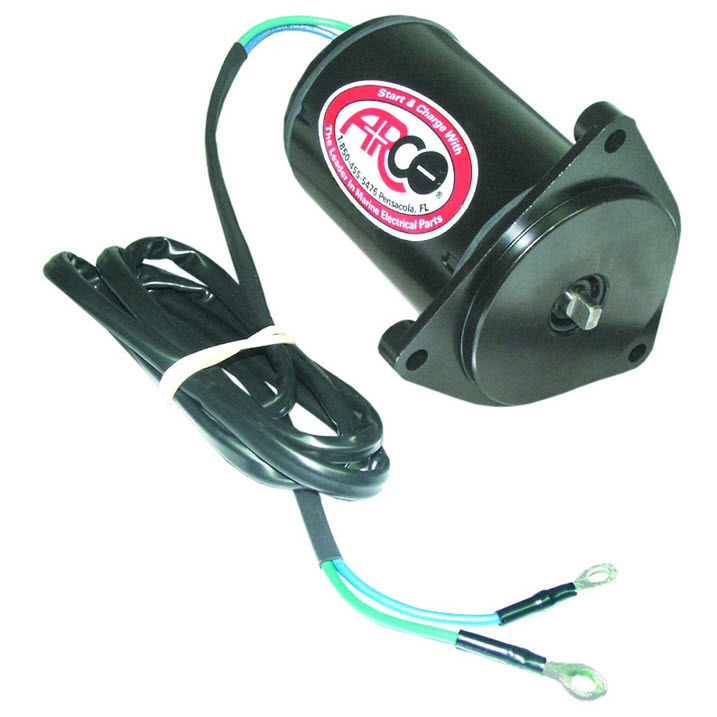

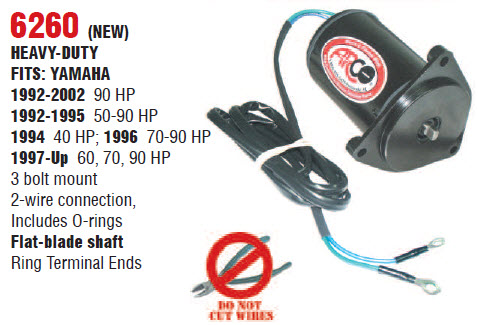

ARCO NEW Original Equipment Quality Replacement Tilt Trim Motor - 6260

Fits: Yamaha 1992-2002 90 HP, 1992-1995 50-90 HP, 1994 40 HP, 1996 70-90 HP, 1997-Up 60, 70, 90 HP, 2-wire connection, 3-bolt mount, Includes O-ring, Flat-blade shaft, Ring Terminal Ends.

Replaces Part Numbers:
YAMAHA 6H1-43880-02


QUALITY ASSURANCE
• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
PRECISION TESTING
• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed
ARCO Marine is a USA based manufacturer

Technical information (PDF)
Warranty (PDF)
Enlarge photo
More photos


Related Items


Arco Marine Tilt & Trim Motor is equivalent to parts:

  • 6H1-43880-02-00 Yamaha Marine
  • 9-18406 Mallory Marine
ARCO is a leading supplier of electrical products for marine engines including inboard/outboard starters, trim/tilt motors, alternators, solenoids, rectifiers and more. All of ARCO's parts are built to meet or exceed OEM qualifications.
