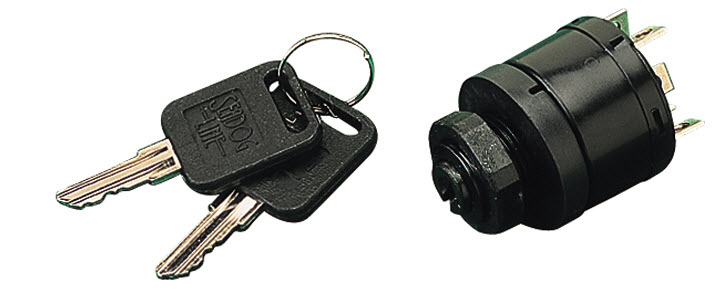

420386-1 - Ignition Switch, 4-Position, 7-Boss Term.
4-position Ignition Switch - Magneto Style
Polypropylene four position ignition switch; Accessory-Off-Ignition-Start-Choke (Push to choke). Short shaft type. 5/8" max panel.
420386-1 4 Position 7 Terminal Ignition Switch.
A- 13/16 Inch
Four position magneto style polypropylene ignition switch for accessory, off, ignition start and choke functions.
13/16" diameter short shaft for a maximum panel thickness of 5/8”.
Seven screw or six screw plus one boss terminal electrical connection.
Rated: Ignition 15 amp @ 12VDC, solenoid 30 amp @ 12VDC, choke 7 amp @ 12VDC, accessory 15 amp @ 12VDC. Includes two keys.
Note: Push to choke.
