420365-1 - Switch, Poly, Long Shaft w/ Cap

420365-1 - Switch, Poly, Long Shaft w/ Cap

List Price
$20.95

Your Price
$16.80

Add to cart

10+ in stock. Help

Item Number
3160365

Model Number
420365-1

Manufacturer
SeaDog Line

Category
Switches

Section
Heavy Duty Starter/ignition Switch

Technical information (PDF)
Enlarge photo
More photos

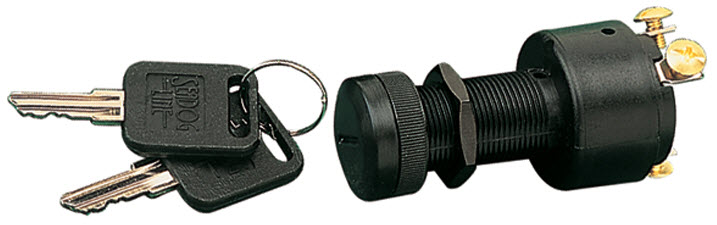

3 terminals, 3 positions, returns automatically from start to ignition position. 20 Amps @ 12-volts. Chrome brass face nut and brass back-up nut. Stainless steel spring. Stem is 1-7/16" long, 13/16"-20 threads. Fits up to 1-1/8" panel. Bubble Pack.

Additional Info

420365-1 Long Shaft Poly Switch With Cap

Measurements;

A- 13/16, B- 1 1/8 Inch

Three position polypropylene ignition switch for off, ignition and start functions.

13/16" diameter shaft is available in short shaft (maximum panel thickness 5/8”) or long shaft (maximum panel thickness 1-1/8”) versions.

Three screw terminal electrical connection.

Rated: Ignition 15 amp @ 12VDC, solenoid 30 amp @ 12VDC.

Includes two keys. Available with or without a rubber boot.

Related Items

Accessory
420360-1 - Switch, Poly, Long Shaft w/o Cap
