035791-10 - Reed Array Sending Unit Assembly
Moeller Manufacturing Co
Fuel Filters Senders and Caps

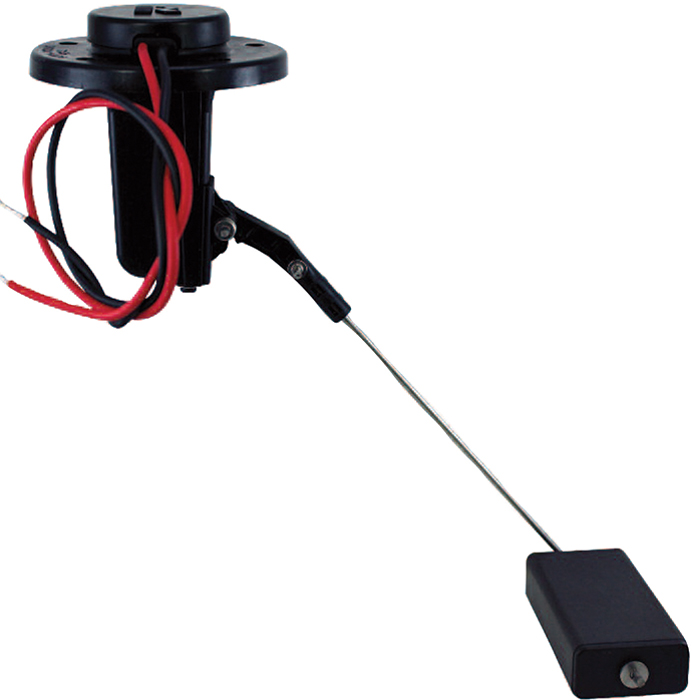

Reed Array Sending Unit
Sender fits 6" [101.6 mm] to 24" [609.6 mm] tank depths. Features protection from corrosion (internal and external to the fuel tank). Standard with a SAE 5 hole mounting bolt pattern. Molded from UV stabilized engineering grade thermoplastics. Electrical circuit is sealed to protect components from fuel, contaminants, water. Reed Array Sender offers dependable, long-lasting Reed Switch and magnet technology. Suitable for gasoline, ethanol, diesel, bio-diesel and non-potable water. Industry standard output: 240-30 ohms. Three year limited warranty. Temperature Range-40°F to 176°F, -40°C to 85°C. Meets requirements of ISO 10088, ABYC H-24, 33CFR 183.590 and ISO 8846.
