Closed Cooling System for Mercruiser (3.0l / Lx Alpha One Engine) Engine

Start Over Different Model > Different Engine Section > Closed Cooling System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

# — 810846A90 — GASKET SET, Overhaul (1 required per assembly)
		27-810846A90 - Engine Overhaul Gasket Set [ More info ] Unavailable
		27-810846A05 - Engine Overhaul Gasket Set [ More info ] $657.49 Available to Order: Shipping delay up to 10 days.
# — 61086A 9 — CLOSED COOLING KIT (1 required per assembly)
		61086A 9 - COOLING KT-CLOSED [ More info ] Unavailable

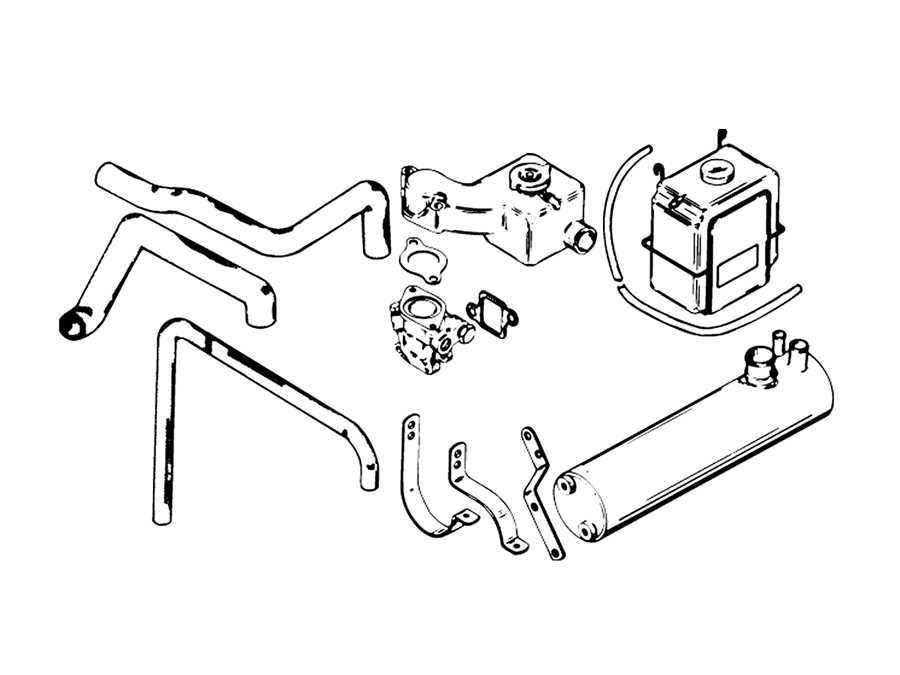

		61086A10 - COOLING KT-CLOSED [ More info ] Unavailable

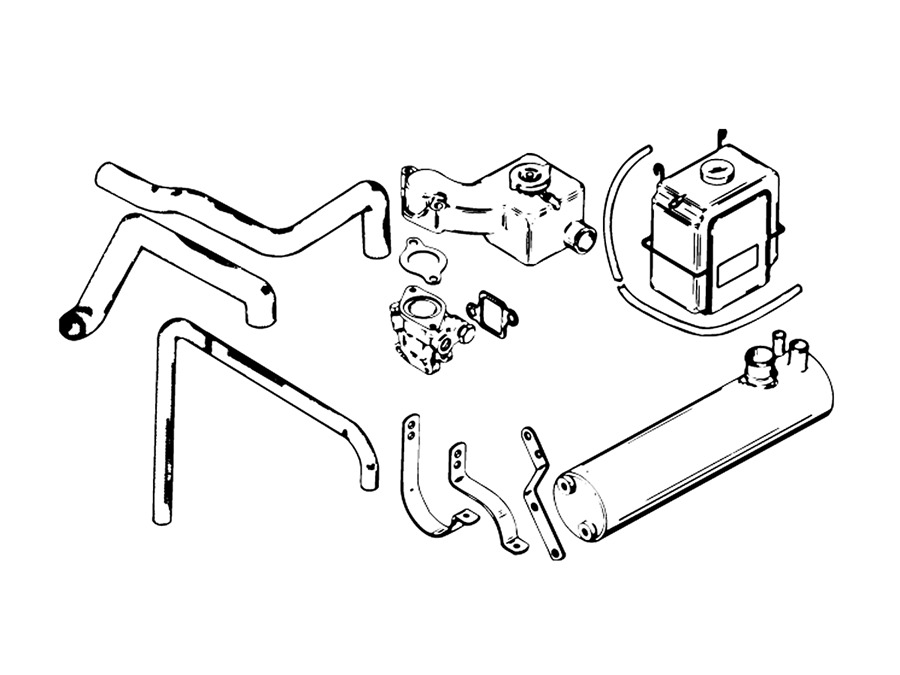

		61086A11 - Cooling Kit -Closed [ More info ] $3,585.99 Available to Order: Shipping delay up to 10 days.
#1 — 61086A 7 — HEAT EXCHANGER ASSEMBLY (1 required per assembly)
		61086A 7 - Heat Exchanger [ More info ] Unavailable
#2 — 65128 — GASKET (1 required per assembly)
		27-65128 - End Cover Gasket [ More info ] $12.19 10+ In Stock.
#3 — 66221 — COVER, End (1 required per assembly)
		66221 - End Cover [ More info ] $53.99 $51.52 2 In Stock.
#4 — 66223 — SCREW (1 required per assembly)
		10-66223 - Bolt, NLA [ More info ] Unavailable
#5 — 65129 — ANODE, Zinc (1 required per assembly)
		22-65129 - Anode - Zinc [ More info ] $4.99 10 In Stock.
#6 — 61895 — BRACKET, Front (1 required per assembly)
		61895 - BRACKET [ More info ] $60.49 Available to Order: Shipping delay up to 10 days.
#7 — 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
		10-98261 - Screw [ More info ] $1.20 5 In Stock.
#8 — 35048 — LOCKWASHER, (.375) (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9 — 36359 — SCREW, (.437-14 x 5.00) (2 required per assembly)
		10-36359 - Screw [ More info ] $3.79 $3.04 4 In Stock.
#10 — 61899 — BRACKET, Rear Lower (1 required per assembly)
		61899 - Bracket [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#11 — 61897T — BRACKET, Rear Upper (1 required per assembly)
		61897T - Bracket, NLA [ More info ] $89.49 $85.60 10+ In Stock.
#12 — 65027 — SCREW, (.250-28 x 1.00) (1 required per assembly)
		10-65027 - Screw [ More info ] $2.49 $2.00 5 In Stock.
#13 — 35045 — NUT, (.250-28) (1 required per assembly)
		11-35045 - Nut (1/4-28) [ More info ] Unavailable
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 4 In Stock.
#14 — 76926 — SCREW, (.375-16 x .875) (1 required per assembly)
		10-76926 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#15 — 34354 — SCREW, (.375-16 x 1.50) (1 required per assembly)
		10-34354 - Screw - Priced Individually [ More info ] $2.39 10+ In Stock.

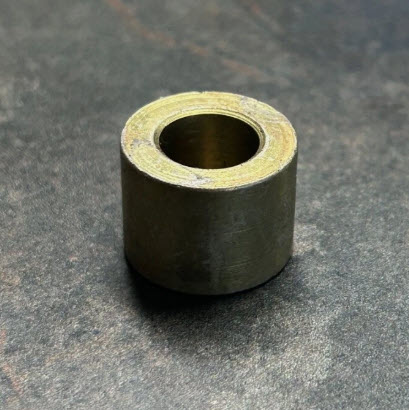

#16 — 57369 — SPACER (1 required per assembly)
		23-57369 - Spacer - Mounting [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#17 — 96763 — HOSE, Water Pump To Heat Exchanger (1 required per assembly)
		32-96763 - Hose - Water Pump To Heat Exchanger [ More info ] $146.49 Available to Order: Shipping delay up to 10 days.
#18 — 815504228 — CLAMP, Worm Gear (2 required per assembly)
		54-815504228 - Clamp [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
		54-8M0232395 - CLAMP HOSE [ More info ] Unavailable
#NS — 807992 3 — COVER, Hose Clamp End (AR required per assembly)
		19-807992 3 - Cover-.375 - Priced Individually [ More info ] $0.58 4 In Stock.
		198M0074364 [ More info ] Unavailable
		198M0074364 - Cover-Clamp - Priced Individually [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#19 — 68673A 1 — HOUSING ASSEMBLY, Thermostat (1 required per assembly)
		68673A 1 - Housing [ More info ] Unavailable
		862874A 1 - Thermostat Housing [ More info ] $173.49 Available to Order: Shipping delay up to 10 days.
#20 — 814680 — GASKET (1 required per assembly)
		27-814680 - Water Distribution Block Gasket [ More info ] Unavailable
		27-814680 1 - Thermostat Housing Gasket [ More info ] $4.19 5 In Stock.
#21 — 20359 — SCREW, (.375-16 x 1.00) (1 required per assembly)
		10-20359 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#21 — 37612 — SCREW, (.375-16 x 1.250) (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#22 — 52382 — BUSHING (1 required per assembly)
		22-52382 - Fitting [ More info ] Unavailable
#23 — 32804 — PLUG, (.500-14) (2 required per assembly)
		22-32804 - Plug [ More info ] $17.09 $3.42 10+ In Stock.
#24 — 33918 — GASKET (1 required per assembly)
		27-33918 - Thermostat Housing Gasket [ More info ] Unavailable
		27-8M2021920 - Thermostat Gasket Zz [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
		27-00479 - Thermostat Gasket, 27-8M2021920 [ More info ] $3.29 $2.31 10 In Stock.
#25 — 807252 2 — THERMOSTAT, 71Â°C (160Â°F) (1 required per assembly)
		807252 2 - Thermostat-160 [ More info ] Unavailable
		807252T 2 - Thermostat, 160 Degrees [ More info ] Unavailable
		8M0091470 - Thermostat, 160 Degrees [ More info ] Unavailable
		18-3649 - Thermostat, 160 Degree, 807252T2 [ More info ] $27.89 3 In Stock.
		8M0109441 - Thermostat, 160 Degree [ More info ] $34.49 7 In Stock.
		75-03058 - Thermostat 807252T2, 8M0109441 160 Degree [ More info ] $27.49 $21.63 In Stock
#26 — 96878A 2 — RESERVOIR ASSEMBLY (1 required per assembly)
		96878A 2 - Reservoir Assembly [ More info ] $372.99 Available to Order: Shipping delay up to 10 days.
#27 — 35787 — SCREW, (.375-16 x 2.250) (2 required per assembly)
		10-35787 - Screw - Priced Individually [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.

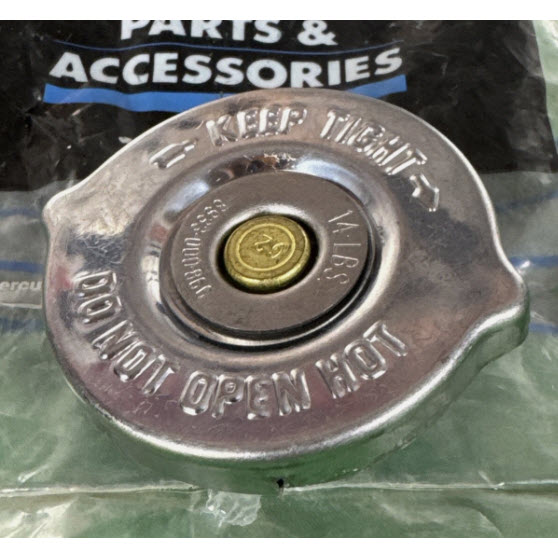

#28 — 13130 — CAP, Pressure (1 required per assembly)
		36-13130 - Cap [ More info ] $17.19 Available to Order: Shipping delay up to 10 days.
#29 — 96766 — HOSE, Exhaust Manifold To Heat Exchanger (1 required per assembly)
		32-96766 - Hose - Exhaust Manifold To Heat Exchanger [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
#30 — 96765 — HOSE, Reservoir To Exchanger (1 required per assembly)
		32-96765 - Hose - Reservoir To Exchanger [ More info ] $120.99 Available to Order: Shipping delay up to 10 days.
#NS — 815412 — HOSE, Power Steering Cooler To Thermostat Housing (1 required per assembly)
		32-815412 - Hose - Cooler To Thermostat Housing [ More info ] $73.99 $71.04 3 In Stock.
#31 — 71587A10 — RECOVERY KIT, Coolant (1 required per assembly)
		71587A10 - Coolant Recovery Kit [ More info ] $97.49 $96.06 Available to Order: Shipping delay up to 10 days.
#NS — 77457 2 — HOSE, (48.00 Inches Bulk) (2 required per assembly)
		32-77457 2 - Hose -48 Inch [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#32 — 71587A11 — BOTTLE, Plastic (1 required per assembly)
		71587A11 - Coolant Recovery Bottle [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#33 — 72058 — CAP (1 required per assembly)
		72058 - Bottle Cap [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#34 — 60252A 2 — END CAP, Exhaust Manifold (1 required per assembly)
		60252A 2 - End Cap Assembly [ More info ] $161.49 Available to Order: Shipping delay up to 10 days.
		1-60252 - Mercruiser Exhaust Manifold Front End Cap Connector [ More info ] $63.99 $48.56 7 In Stock.
#35 — 48043 1 — GASKET, End Cover (1 required per assembly)
		27-48043 1 - Gasket - Priced Individually [ More info ] $5.49 10+ In Stock.
		18-2832-1-9 - Manifold End Cap Gasket, Pkg of 2 [ More info ] $10.95 $8.55 Available to Order: Shipping delay up to 10 days.
#36 — 35386 — SCREW, (.312-18 x 1.00) (4 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
