Parts for Mercury Marine 500 Clamp & Swivel Bracket Assembly

Revise Search: All Models > 500 > 2742142 - 7051982 (Canada) > Clamp & Swivel Bracket Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	1440-3291A 1	CLAMP BRACKET ASSEMBLY (2 required per assembly) UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747
		1440-3291A 1 - Clamp Bracket Assembly [ More info ] Unavailable
		1440-5311A 1 - Clamp Bracket Assembly [ More info ] Unavailable
		1440-5520A 1 - Clamp Bracket Assembly [ More info ] Unavailable
		1440-6044A 2 - 1440-6044A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-6044A 6
		1440-6044A 6 - Clamp Bracket [ More info ] Unavailable
		1440-6625A 3 - 1440-6625A 3 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-7374A 2
		1440-7374A 2 - Clamp Bracket Assembly [ More info ] Unavailable
		1440-8394A 1 - Clamp Bracket Assembly [ More info ] Unavailable
#1	1440-5311A 1	CLAMP BRACKET ASSEMBLY (2 required per assembly) UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP
#2	28403A 3	THUMB SCREW ASSEMBLY (2 required per assembly)
		28403A 3 - Thumb Screw , NLA [ More info ] Unavailable
#3	12-28404	WASHER, THUMB SCREW (2 required per assembly)
		12-28404 - Wahser, Thumb Screw, NLA [ More info ] $7.15 10+ In Stock.
#4	30664	TUBE, TILT - CLAMP BRACKET FILT TUBE (1 required per assembly)
		30664 - TILT TUBE [ More info ] Unavailable
		30664 1 - TILT TUBE [ More info ] Unavailable
		30664 2 - Tilt Tube [ More info ] Unavailable
		883067 - Tilt Tube [ More info ] Unavailable
		8M0035074 - Tilt Tube [ More info ] Unavailable
		8M0041936 - Tilt Tube [ More info ] $27.77 3 In Stock.
#5	12-52864	WASHER, CLAMP BRACKET TILT TUBE (2 required per assembly)
		12-52864 - Washer, Tilt Tube, NLA [ More info ] $4.10 10+ In Stock.
#6	11-30499	NUT, TILT TUBE FASTENING (2 required per assembly)
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.80 10 In Stock.
#7	53078	CAP, PLASTIC - TILT TUBE (2 required per assembly)
		53078 - Plastic Cap, NLA [ More info ] $8.88 10+ In Stock.
#8	23-59624	SPACER, CLAMP BRACKET STUD (1 required per assembly)
		23-59624 - Spacer - Clamp Bracket Stud [ More info ] $10.00 9 In Stock.
#9	16-59625	STUD, CLAMP BRACKET (1 required per assembly)
		16-59625 - Stud, NLA [ More info ] $21.67 1 In Stock.
#10	13-26993	LOCKWASHER, CLAMP BRACKET STUD (2 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.99 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#11	11-28770	NUT, CLAMP BRACKET STUD (2 required per assembly)
		11-28770 - Nut (5/16-24) [ More info ] $3.50 10+ In Stock.
#12	17-49930A 1	TILT LOCK PIN ASSEMBLY (1 required per assembly)
		17-49930A 1 - Tilt Pin Assembly [ More info ] Unavailable
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $54.53 1 In Stock.
#13	32-28052	SLEEVE, RUBBER - TILT LOCK PIN BUMPER (1 required per assembly)
		32-28052 - Tubing, NLA [ More info ] Unavailable
#14	10-28009	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4") (2 required per assembly)
		10-28009 - Screw, NLA [ More info ] Unavailable
		10-68298 - Screw, NLA [ More info ] $8.76 10+ In Stock.
#15	12-28008	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-28008 - Washer - Priced Individually [ More info ] Unavailable
		12-68410 - Washer, NLA [ More info ] $3.32 10+ In Stock.
#14	10-31827	BOLTT, CLAMP BRACKET TO BOAT TRANSOM (3") (2 required per assembly)
		10-31827 - Screw - Priced Individually [ More info ] Unavailable
		10-68299 - Screw - Priced Individually [ More info ] $6.70 $1.34 10+ In Stock.
#15	12-21040	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-21040 - Washer, NLA [ More info ] Unavailable
		12-68300 - Washer, (..88 X .39 X .06) [ More info ] $4.43 10+ In Stock.
#16	11-28010	NUT, CLAMP BRACKET BOLT (4 required per assembly)
		11-28010 - Nut - Priced Individually [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.50 10+ In Stock.
#17	55-28416	PIN, UPPER SHOCK MOUNTING (1 required per assembly)
		55-28416 - Upper Shock Pin, NLA [ More info ] $44.43 10+ In Stock.
#18	1465-4175A 1	SWIVEL BRACKET ASSEMBLY(SHORT SHAFT (1 required per assembly) UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407
		1465-4175A 1 - Swivel Bracket [ More info ] Unavailable
		1472-5047A 1 - Swivel Bracket [ More info ] Unavailable
		1472-6076A 1 - Swivel Bracket [ More info ] Unavailable
		1489-7216A 4 - Swivel Bracket [ More info ] Unavailable
		1489-7663A 3 - Swivel Bracket [ More info ] Unavailable
		1489-8055A 4 - Swivel Bracket [ More info ] Unavailable
		1489-8597A 4 - Swivel Bracket,NLA [ More info ] Unavailable
#18	1466-4176A 1	SWIVEL BRACKET ASSEMBLY(LONG SHAFT (1 required per assembly) UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407
		1466-4176A 1 - Swivel Bracket [ More info ] Unavailable
		1473-5048A 1 - Swivel Bracket [ More info ] Unavailable
		1473-6078A 1 - Swivel Bracket [ More info ] Unavailable
		1490-7218A 4 - Swivel Bracket [ More info ] Unavailable
		1490-7664A 3 - Swivel Bracket [ More info ] Unavailable
		1490-8057A 6 - Swivel Bracket [ More info ] Unavailable
		1490-8599A 6 - Swivel Bracket,NLA [ More info ] Unavailable
#18	1472-5047A 1	SWIVEL BRACKET ASSEMBLY(SHORT SHAFT) (1 required per assembly) UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP
#18	1473-5048A 1	SWIVEL BRACKET ASSEMBLY(LONG SHAFT) (1 required per assembly) UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP
#19	26-32911	OIL SEAL, SWIVEL BRACKET (2 required per assembly)
		26-32911 - Seal [ More info ] $15.00 10+ In Stock.
		18-0517 - Seal, 26-32911 [ More info ] $14.99 In Stock
#20	10-47828	SCREW, DRIVE - SWIVEL BRACKET (1 required per assembly)
		10-47828 - Screw, NLA [ More info ] $1.59 3 In Stock.
#21	22-23612	FITTING, GREASE (1 required per assembly)
		22-23612 - Fitting - Priced Individually [ More info ] $0.95 10+ In Stock.
		22-69059 - Fitting, Grease - Priced Individually [ More info ] $5.99 10+ In Stock.
#22	29359	LUBRICAP, SWIVEL BRACKET GREASE FITTING (1 required per assembly)
		29359 - Lubricap - Priced Individually [ More info ] $1.04 10+ In Stock.
		19-77633 - Cap - Priced Individually [ More info ] $1.39 10+ In Stock.
		19-77633Q - Cap - Pack of 5 as shown [ More info ] $6.70 10+ In Stock.
#23	47799A 1	TILT LOCK ASSEMBLY, STARBOARD (1 required per assembly)
		47799A 1 - Tilt Lock Assembly [ More info ] Unavailable
		76386 - Tilt Lock, Starboard [ More info ] $54.43 10+ In Stock.
#24	47800A 1	TILT LOCK ASSEMBLY, PORT (1 required per assembly)
		47800A 1 - Tilt Lock Assembly [ More info ] Unavailable
		76385 - Lever [ More info ] $23.99 1 In Stock.
		76385T - Lever [ More info ] $22.22 10+ In Stock.
#25	47802	TUBE, TILT LOCK (1 required per assembly)
		47802 - Tube, NLA [ More info ] $26.66 1 In Stock.
#26	18-47959	COTTER PIN, TILT LOCK TUBE (2 required per assembly)
		18-47959 - Cotter Pin - Priced Individually [ More info ] $2.90 10+ In Stock.
#27	23-47803	BUSHING, TILT LOCK TUBE (2 required per assembly)
		23-47803 - Bushing, NLA [ More info ] $4.00 10+ In Stock.
#28	13-24850	WASHER, WAVE - TILT LOCK TUBE (2 required per assembly)
		13-24850 - Wave Washer - Priced Individually [ More info ] Unavailable
		13-69150 - Wave Washer - Priced Individually [ More info ] $3.70 10+ In Stock.
#29	52882A 1	SWIVEL PIN AND STEERING ARM ASSEMBLY(SHORT SHAFT) (1 required per assembly)
		52882A 1 - STEERING ARM ASSY [ More info ] Unavailable
		52882A13 - STEERING ARM ASSY [ More info ] Unavailable
		74316A 2 - Arm Assembly, NLA [ More info ] $90.00 3 In Stock.
#29	52882A 2	SWIVEL PIN AND STEERING ARM ASSEMBLY(LONG SHAFT) (1 required per assembly)
		52882A 2 - Steering Arm Assembly [ More info ] Unavailable
		52882A 9 - STEERING ARM ASSY [ More info ] Unavailable
		74316A 1 - Arm Assembly, NLA [ More info ] Unavailable
#30	30711	BUMPER, STEERING ARM (1 required per assembly)
		30711 - Bumper, NLA [ More info ] $14.06 10+ In Stock.
#31	10-33986	BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4") (2 required per assembly)
		10-33986 - Screw, NLA [ More info ] $8.89 5 In Stock.
#32	12-47606	WASHER, SWIVEL PIN - LOWER (1 required per assembly)
		12-47606 - Washer, Swivel Pin, NLA [ More info ] $12.21 5 In Stock.
#33	39503	BRACKET, RIDE GUIDE ATTACHING (1 required per assembly)
		39503 - Bracket [ More info ] $19.99 1 In Stock.
		76535 - Bracket [ More info ] $14.00 1 In Stock.
		76535T - Bracket [ More info ] $37.22 Available to Order: Usually ships within 10 days.
#34	16-39781	STUD, RIDE GUIDE BRACKET TO STEERING ARM (1 1/4") (2 required per assembly)
		16-39781 - Stud, NLA [ More info ] $3.00 10+ In Stock.
#35	11-20509	NUT, RIDE GUIDE BRACKET STUD (2 required per assembly)
		11-20509 - Nut, (3/8X24) [ More info ] Unavailable
		11-34863 - Nut (3/8-24) [ More info ] $1.49 2 In Stock.
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] $1.70 2 In Stock.
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.70 10+ In Stock.
#36	10-31830	SCREW, RIDE GUIDE ATTACHING (1 3/4") (1 required per assembly)
		10-31830 - Screw, NLA [ More info ] $1.83 10+ In Stock.
#38	38-56267	SERIAL PLATE (1 required per assembly)
		38-56267 - SERIAL PLATE,NLA [ More info ] Unavailable
#39	10-25612	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET (4 required per assembly)
		10-25612 - Screw, NLA [ More info ] $1.66 10+ In Stock.
#40	17-25598	PIN, REVERSE LOCK SPRING ATTACHING (1 required per assembly)
		17-25598 - Pin -roll, NLA [ More info ] $2.78 10+ In Stock.
#41	12-25176	WASHER, SWIVEL PIN TO BOTTOM YOKE (.060) (1 required per assembly)
		12-25176 - Washer (.060), NLA [ More info ] $3.88 10+ In Stock.
#41	12-26837	WASHER, SWIVEL PIN TO BOTTOM YOKE (.065) (AR required per assembly)

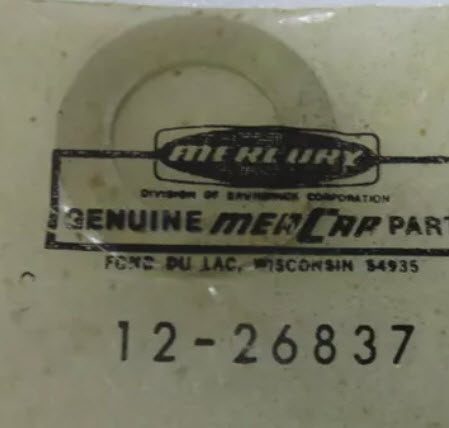

		12-26837 - Washer, NLA [ More info ] $1.25 10 In Stock.
#42	57452	YOKE, BOTTOM (1 required per assembly)
		57452 - Yoke [ More info ] $25.00 2 In Stock.
		77416 - Yoke [ More info ] Unavailable
		77416T - YOKE-BOTTOM-BLACK [ More info ] Unavailable
		77416T 1 - Bottom Yoke, Black [ More info ] Unavailable
#43	11-28202	NUT, SWIVEL PIN RETAINING (1 required per assembly)
		11-28202 - Nut, Retaining-swivel Pin [ More info ] Unavailable
		11-71956 - Nut, Bottom Yoke [ More info ] $24.99 10 In Stock.
#44	55-65447	PIN, LOWER SHOCK MOUNTING (2 required per assembly)
		55-65447 - Pin, Lower Shock Mounting [ More info ] Unavailable
		55-69653 - Pin, Lower Shock [ More info ] $20.00 1 In Stock.
		55-69653 1 - Pin, NLA [ More info ] $27.50 3 In Stock.
#45	24-29821	SPRING, REVERSE LOCK TENSION (1 required per assembly)
		24-29821 - Spring, Reverse Lock Tension,NLA [ More info ] $7.77 10+ In Stock.
#46	39015A 4	REVERSE LOCK ASSEMBLY (1 required per assembly)
		39015A 4 - REVERSE LOCK ASSY [ More info ] Unavailable
		39015A13 - REVERSE HOOK ASSY [ More info ] Unavailable
		70691 - Reverse Lock Hood, NLA [ More info ] Unavailable
		87432 - Reverse Lock Hood, NLA [ More info ] $59.99 1 In Stock.
#47	56349	SHAFT, REVERSE LOCK PIVOT (1 required per assembly)
		56349 - Shaft, NLA [ More info ] $39.11 10+ In Stock.
#48	18-45882	COTTER PIN, REVERSE LOCK TO SHAFT (1 required per assembly)
		18-45882 - Cotter Pin - Priced Individually [ More info ] $2.82 Available to Order: Usually ships within 10 days.
#49	23-28199	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET (2 required per assembly)
		23-28199 - Spacer - Upper Shock Bushing To Clamp Bracket - NLA [ More info ] $7.88 10+ In Stock.
#50	12-28196	WASHER, UPPER SHOCK BUSING TO CLAMP BRACKET (2 required per assembly)
		12-28196 - Washer, Upper Bushing Reainer(inner), NLA [ More info ] $1.25 10+ In Stock.
#51	12-59378	WASHER, LOWER BUSHING RETAINER (INNER) (2 required per assembly)
		12-59378 - Washer, NLA [ More info ] $2.60 $2.21 4 In Stock.
#52	55-58780A 2	SHOCK ABSORBER (2 required per assembly)
		55-58780A 2 - Shock Absorber [ More info ] $155.54 10+ In Stock.
		55-58780A 3 - Shock Absorber [ More info ] Unavailable
		55-58780A 7 - Shock Abs Assembly -bl, NLA [ More info ] Unavailable
#53	23-32171	BUSHING, RUBBER - SHOCK ABSORBER (UPPER) (4 required per assembly)
		23-32171 - Bushing, NLA [ More info ] $13.32 10+ In Stock.
#54	23-28198	BUSHING, RUPPER - SHOCK ABSORBER (LOWER) (4 required per assembly)
		23-28198 - Bushing, NLA [ More info ] $16.50 1 In Stock.
#55	12-28421	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER) (4 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $3.32 10+ In Stock.
		12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable
#56	10-53077	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4") (4 required per assembly)
		10-53077 - Bolt [ More info ] $1.25 10+ In Stock.
		10-69375A 1 - Screw & Washer, NLA [ More info ] $10.00 2 In Stock.
#57	53071	COVER, UPPER AND LOWER SHOCK MOUNTING PIN (4 required per assembly)
		53071 - Cover [ More info ] $3.33 10 In Stock.
		70679 - Trim Cylinder Cover, NLA [ More info ] Unavailable
#58	10-37655	SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2") (4 required per assembly)
		10-37655 - Screw - Priced Individually [ More info ] $1.70 1 In Stock.
