Parts for Mercury Marine 110 Steering Handle Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 35908A 2 | STEERING HANDLE ASSEMBLY, COMPLETE (,,,1,1 required per assembly) |
 |
|
35908A 2 - Handle Assembly, NLA [ More info ] Unavailable |
| # | 32075A 2 | STEERING HANDLE ASSEMBLY, COMPLETE (1,1,1,1, required per assembly) |
|
|
32075A 2 - Handle Assembly, NLA [ More info ]
|
| #1 | 27763 | GRIP, RUBBER - STEERING HANDLE BODY (1,1,1,1, required per assembly) |
  |
|
27763 - Rubber Steering Handle Grip, NLA [ More info ]
|
| #2 | 31000 | BODY AND SHAFT, STEERING HADLE (1,1,1,1, required per assembly) |
  |
|
31000 - Body, NLA - See Impotant Note [ More info ]
|
| #3 | 31001 | INDICATOR, SPEED AND SHIFT - STEERING HANDLE (1,1,1,1, required per assembly) |
|
|
31001 - Steering Handle Indicator, Speed and Limit, NLA [ More info ]
|
| #4 | 10-31002 | SCREW, SET- SPEEC AND SHIFT INDICATOR (1,1,1,1, required per assembly) |
|
|
10-31002 - Screw, NLA [ More info ]
|
| #5 | 10-22290 | SCREW, DRIVE - INDICATOR TO STEERING HANDLE (1,1,1,1, required per assembly) |
|
|
10-22290 - SCREW,NLA [ More info ] Unavailable |
| #6 | 23-30677 | BUSHING, NYLON - STEERING HANDLE TO BODY (1,1,1,1, required per assembly) |
|
|
23-30677 - Bushing, NLA [ More info ]
|
| #7 | 32075A 1 | STEERING HANDLE ASSEMBLY (1,1,1,1, required per assembly) |
|
|
32075A 1 - Handle Assembly, NLA [ More info ]
|
| #8 | 23-28100 | BUSHING, NYLON - STEERING HANDLE (1,1,1,1, required per assembly) |
|
|
23-28100 - Bushing , NLA [ More info ]
|
| #9 | 12-20084 | WASHER, STEERING HANDLE SHAFT (1,1,1,1, required per assembly) |
  |
|
12-20084 - Washer, (.328 X .562 X .062) [ More info ]
|
| #10 | 24-26703 | SPRING, STEERING HANDLE SHAFT (1,1,1,1, required per assembly) |
|
|
24-26703 - Spring, Steering Handle Shaft,NLA [ More info ]
|

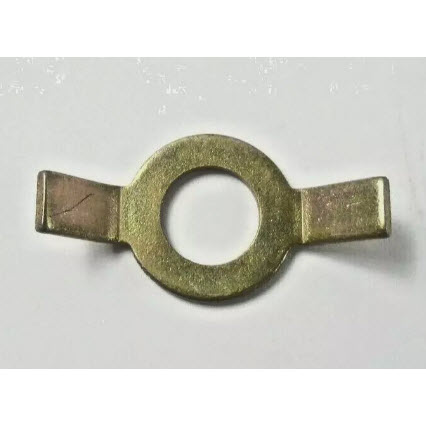

| #11 | 14-26706 | TAB WASHER, YOKE PIN HOLDING (1,1,1,1, required per assembly) |
|
|
14-26706 - Tab Washer, NLA [ More info ]
|
| #12 | 30235 | YOKE, STEERING HANDLE SHAFT (1,1,1,1, required per assembly) |
  |
|
30235 - Yoke, NLA [ More info ]
|
| #13 | 17-26862 | PIN, YOKE TO STEERING HANDLE SHAFT (1,1,1,1, required per assembly) |
|
|
17-26862 - Pin -roll, NLA [ More info ]
|
| #2 | 35909 | BODY AND SHAFT, STEERING HANDLE (,,,1,1 required per assembly) |
|
|
35909 - Body, NLA [ More info ]
|
| #7 | 35908A 1 | STEERING HANDLE ASSEMBLY (,,,1,1 required per assembly) |
|
|
35908A 1 - Handle Assembly, NLA [ More info ] Unavailable |
| #14 | 26711 | PIVOT, STEERING HANDLE TO BRACKET (2,2,2,2,2 required per assembly) |
  |
|
26711 - Pivot, NLA [ More info ]
|
| #15 | 15-26707 | SHIM, STEERING HANDLE PIVOT TO BRACKET (2,2,2,2,2 required per assembly) |
|
|
15-26707 - Shim, NLA [ More info ]
|
| #16 | 15-30905 | SHIM, STEERING HANDLE TO ARM BRACKET (2,2,2,2,2 required per assembly) |
|
|
15-30905 - Shim, NLA [ More info ]
|
| #17 | 10-28592 | SCREW, STEERING HANDLE TO ARM BRACKET (2,2,2,2,2 required per assembly) |
|
|
10-28592 - Screw, NLA [ More info ]
|
| #18 | 31202A 1 | THROTTLE CONTROL SHAFT ASSEMBLY (1,1,1,1,1 required per assembly) |
|
|
31202A 1 - Shaft Assembly, NLA [ More info ]
|
| #19 | 10-26774 | SCREW, THROTTLE CONTOLR SHAFT TO BRACKET (1,1,1,1,1 required per assembly) |
|
10-26774 - Screw , Priced Individually [ More info ] Unavailable |
|
|
|
10-46923 - Screw , Priced Individually [ More info ]
|
|
|
10-28663 - Screw [ More info ]
|
  |
|
10-96138 - Screw [ More info ]
|
| #20 | 30725 | BRACKET, STEERING ARM (1,1,1,1,1 required per assembly) |
|
|
30725 - Bracket, NLA [ More info ]
|
| #21 | 30970 | BOOT, RUBBER - THROTTLE CONTROL SHAFT (1,1,1,1,1 required per assembly) |
  |
|
30970 - Boot, NLA [ More info ]
|
| #22 | 10-30679 | SCREW, STEERING ARM BRACKET TO SADDLE (3,3,3,3,3 required per assembly) |
|
|
10-30679 - Screw, NLA [ More info ]
|
| #23 | 11-24652 | NUT, STEERING ARM BRACKET FASTENING SCREW (3,3,3,3,3 required per assembly) |
  |
|
11-24652 - Nut (1/4-28) [ More info ]
|
