Parts for Mercury Marine Remote Controls & Components Remote Control Assembly (Standard) Remote Control Assembly (Standard)

Revise Search: All Models > Remote Controls & Components > Outboard (1985 & Below) > Remote Control Assembly (Standard)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

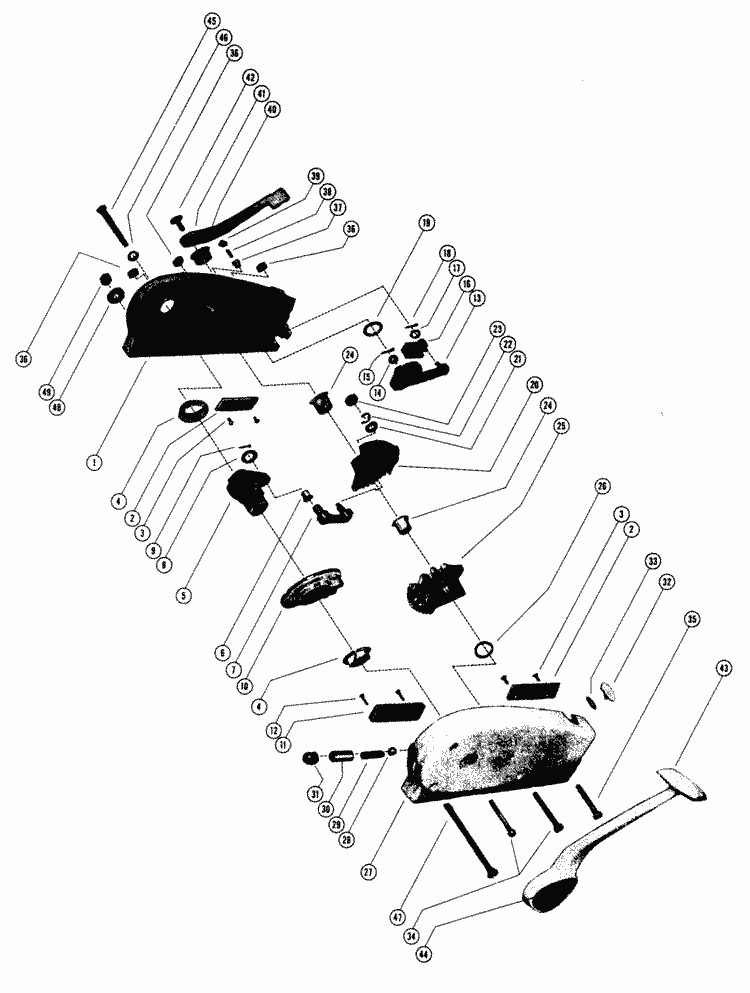

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	45955A 5	REMOTE CONTROL ASSEMBLY,COMPLETE (STANDARD) (,,1,, required per assembly) .
		45955A 5 - Remote Control [ More info ] Unavailable
		45955A 6 - Remote Control [ More info ] Unavailable
		87728A20 - Remote Control [ More info ] Unavailable
		94582A20 - Remote Control [ More info ] Unavailable
		94582A21 - Remote Control [ More info ] Unavailable
		94582A22 - Remote Control, NLA [ More info ] Unavailable

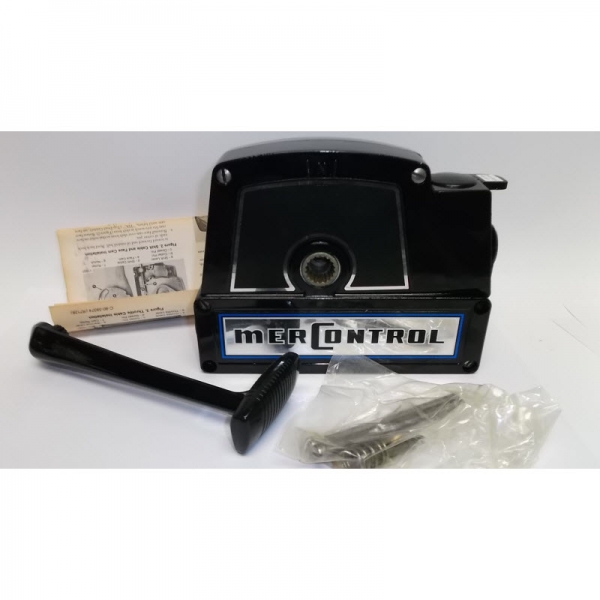

#	72745A 1	REMOTE CONTROL ASSEMBLY,COMPLETE (STANDARD) (,,,,1 required per assembly) .
		72745A 1 - Remote Control [ More info ] Unavailable
#	29646A 1	REMOTE CONTROL ASSEMBLY (SEE NOTE) (1, required per assembly)
		29646A 1 - Remote Control [ More info ] Unavailable
		30063A 1 - Remote Control [ More info ] Unavailable
		34741A 1 - Remote Control [ More info ] Unavailable
		45955A 2 - Remote Control [ More info ] Unavailable
#	45955A 2	REMOTE CONTROL ASSEMBLY,COMPLETE (STANDARD) (,1,,, required per assembly) .
#	37-64043	DECAL, CONTROL HOUSING (,1,1,1,1 required per assembly)
		37-64043 - Decal, NLA [ More info ] Unavailable
#	45955A 6	REMOTE CONTROL ASSEMBLY,COMPLETE (STANDARD) (,,,1, required per assembly) .
#	37-31021	TAPE, THROTTLE CONTROL LEVER (,1 required per assembly)
		37-31021 - DECAL,NLA [ More info ] Unavailable
#	30063A 1	REMOTE CONTROL ASSEMBLY (,1 required per assembly)
#	34741A 1	REMOTE CONTROL ASSEMBLY,COMPLETE (STANDARD) (1,,,, required per assembly) .
#1	29580	HOUSING, REMOTE CONTROL - STARBOARD (1, required per assembly) (USE WITH A-43-29571 SECTOR GEAR)
		29580 - Housing, NLA [ More info ] Unavailable
#1	30203	HOUSING, REMOTE CONTROL - STARBOARD (,1 required per assembly) (USE WITH C-43-30904 SECTOR GEAR)
		30203 - Housing [ More info ] Unavailable
		30203A 1 - Housing,NLA [ More info ] Unavailable
#2	29640	PLATE, RACK RETAINING (2,2 required per assembly)
		29640 - Plate [ More info ] Unavailable
#3	10-26668	SCREW, RACK RETAINING PLATE TO HOUSING (4,4 required per assembly)
		10-26668 - Screw, NLA [ More info ] $3.49 $2.96 10+ In Stock.
#1	34669	HOUSING, REMOTE CONTROL (STARBOARD) (1,,,, required per assembly) .
		34669 - Housing, NLA [ More info ] Unavailable
#1	45880 2	HOUSING, REMOTE CONTROL (STARBOARD) (,1,1,1,1 required per assembly) .
#4	23-28314	BUSHING, NYLON - THROTTLE SECTOR ACTUATOR (2,2 required per assembly)
		23-28314 - Bushing, NLA [ More info ] Unavailable

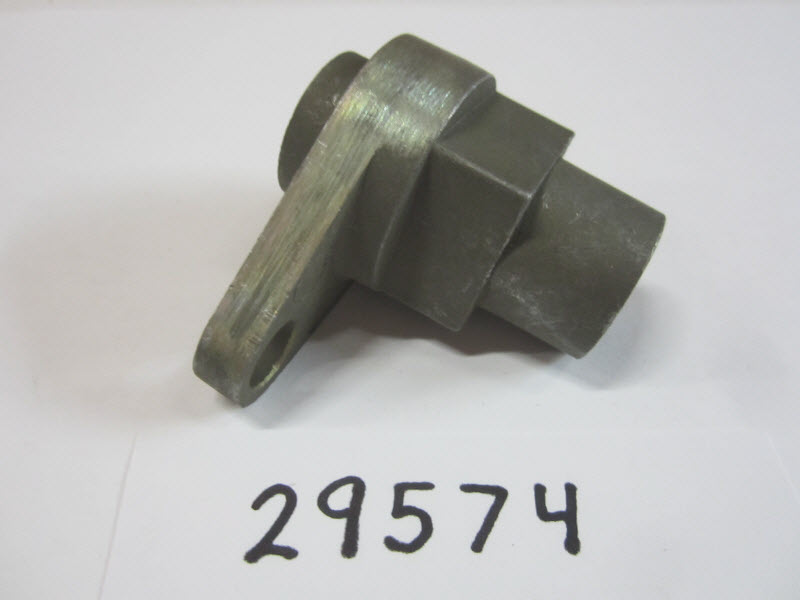

#5	29574	ACTUATOR, LINK AND THROTTLE SECTOR (1,1 required per assembly)
		29574 - Actuator, NLA [ More info ] Unavailable
#2	24-34683	SPRING, DETENT - CONTROL HOUSING (2,2,2,2,2 required per assembly)
		24-34683 - Spring, Detent - Throttle Cam.NLA [ More info ] $22.75 10+ In Stock.
#3	34992	ROLLER, DETENT SPRING (1,1,1,1,1 required per assembly)
		34992 - Detent Spring Roller - Priced Individually [ More info ] $6.45 10+ In Stock.
#6	23-29638	BUSHING, NYLON - THROTTLE LINK (1,1 required per assembly)
		23-29638 - Bushing, NLA [ More info ] $1.88 $1.59 6 In Stock.

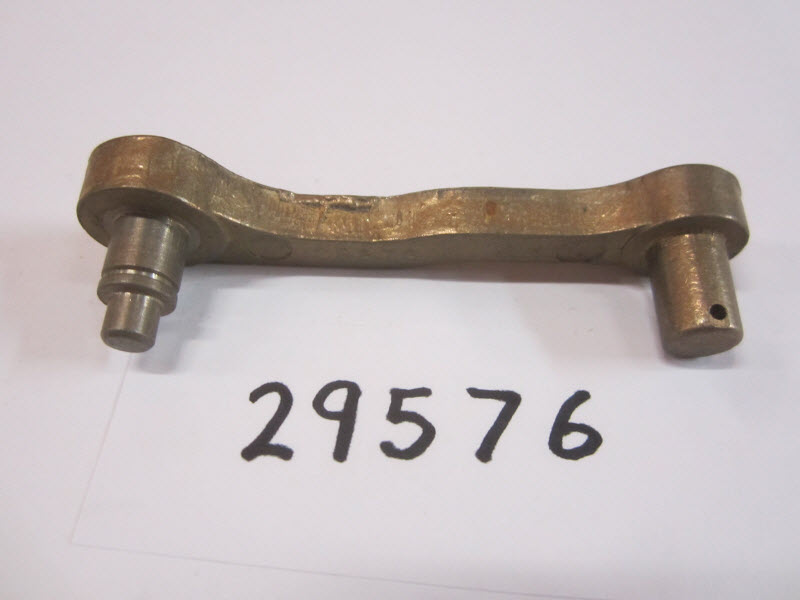

#7	29576	LINK, THROTTLE - ACTUATOR AND SECTOR GEAR (1,1 required per assembly)
		29576 - Link, NLA [ More info ] Unavailable
#4	34671	LEVER, THROTTLE - CONTROL HOUSING (1,1,1,1,1 required per assembly)
		34671 - Lever [ More info ] $67.90 9 In Stock.
#5	10-85072	SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER (1,1,1,1,1 required per assembly)
		10-85072 - Screw - Priced Individually [ More info ] $1.66 10+ In Stock.
#6	12-34675	WASHER, THROTTLE LEVER SCREW (1,1,1,1,1 required per assembly)
		12-34675 - Washer, NLA [ More info ] $5.93 10+ In Stock.
#10	43-29575	GEAR, DRIVE - ACTUATOR (DRIVE GEAR WITH DETENTS) (1,1 required per assembly) ORDER A-43-31371
		43-29575 - Drive Gear [ More info ] $9.99 $8.45 4 In Stock.
#7	34672	CAM ROLLER, THROTTLE LEVER (1,1,1,1,1 required per assembly)
		34672 - Cam Roller, NLA [ More info ] $38.79 5 In Stock.

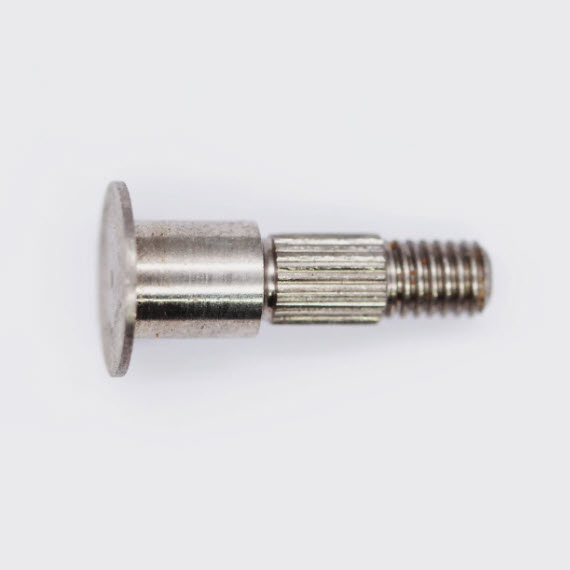

#8	17-34673	PIN, CAM ROLLER TO THROTTLE LEVER (1,1,1,1,1 required per assembly)
		17-34673 - Pin [ More info ] $17.05 10+ In Stock.
#11	29647	PLATE, SEPARATOR - CONTROL CABLE ANCHOR (1,1 required per assembly)
		29647 - Separator Plate [ More info ] Unavailable
#12	10-29642	SCREW, SEPARATOR PLATE TO CONTROL HOUSING (2,2 required per assembly)
		10-29642 - SCREW,NLA [ More info ] Unavailable
#9	12-34680	WASHER, CAM ROLLER PIN (1,1,1,1,1 required per assembly)
		12-34680 - Washer, NLA [ More info ] $1.97 10+ In Stock.

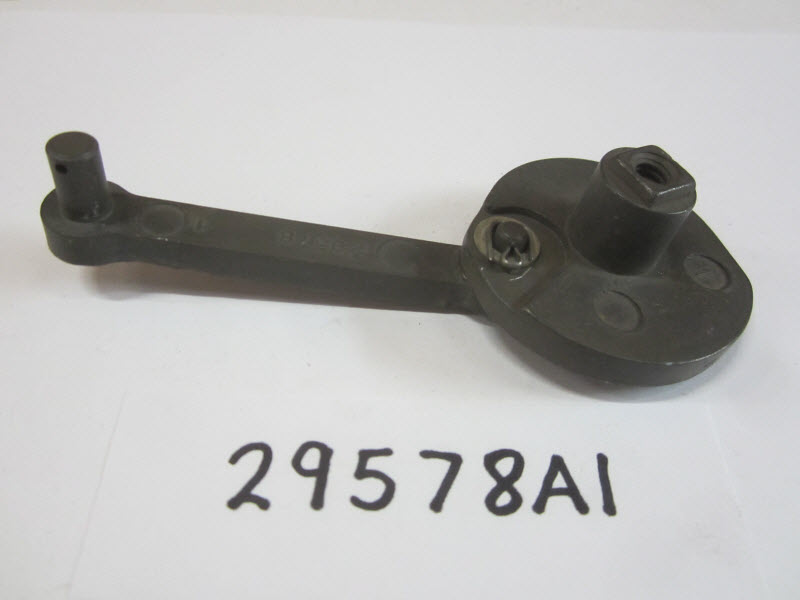

#13	29578A 1	THROTTLE SHAFT AND LINK ASSEMBLY (1,1 required per assembly)
		29578A 1 - Link Assembly, NLA [ More info ] Unavailable
#10	11-24656	NUT, CAM ROLLER TO THROTTLE LEVER PIN (1,1,1,1,1 required per assembly)
		11-24656 - Nut, NLA [ More info ] $1.66 $1.40 10 In Stock.
#14	12-20583	WASHER, THROTTLE SHAFT LINK (1,1 required per assembly)
		12-20583 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#11	34679	PLATE, THRUST - CONTROL HOUSING (1,1,1,1,1 required per assembly)
		34679 - Plate [ More info ] $6.05 $5.13 10+ In Stock.
#15	18-21071	COTTER PIN, LINK TO THROTTLE SHAFT (1,1 required per assembly)
		18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-21071 1 - Cotter Pin - Priced Individually [ More info ] $3.69 10+ In Stock.
#12	10-47220	SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER (3,3,3,3,3 required per assembly)
		10-47220 - Screw, NLA [ More info ] Unavailable
#13	17-20009	PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER (1,1,1,1,1 required per assembly)
		17-20009 - Pin, Detent, NLA [ More info ] $3.90 10+ In Stock.
#16	29573	BLOCK, CONTROL CABLE ANCHOR (1,1 required per assembly)
		29573 - Block, NLA [ More info ] Unavailable
#17	12-29626	WASHER, THROTTLE SHAFT LINK (1,1 required per assembly)
		12-29626 - WASHER,NLA [ More info ] $1.50 $1.28 3 In Stock.

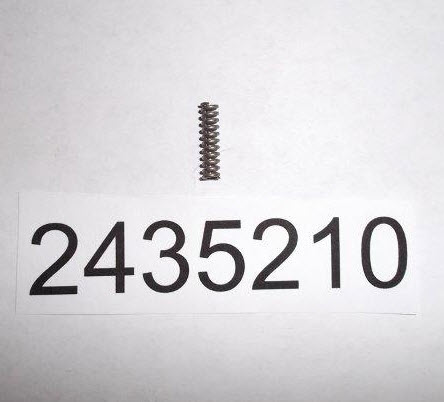

#14	24-35210	SPRING, DETENT PIN (1,1,1,1,1 required per assembly)
		24-35210 - Spring, Detent Pin,NLA [ More info ] $5.73 10+ In Stock.
#15	24-35227	SPRING, DETENT PIN TENSION (1,1,1,1,1 required per assembly)
		24-35227 - Spring, Detent Pin Tension [ More info ] $13.20 10+ In Stock.
#16	19-20011	WELCH PLUG, DETENT PIN AND SPRING RETAINING (1,1,1,1,1 required per assembly)
		19-20011 - Plug - Welch - Priced Individually [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#19	12-29683	WASHER, THROTTLE SHAFT AND LINK TO HOUSING (1,1 required per assembly)
		12-29683 - Washer, NLA [ More info ] Unavailable
#20	43-29571	GEAR, THROTTLE SECTOR FUSE (1,1 required per assembly) USE WITH A-29580 STARBOARD HOUSING
		43-29571 - Sector Gear [ More info ] Unavailable
#17	34670 2	LEVER, NEUTRAL WARM-UP CONTROL HOUSING (1,1,1,1,1 required per assembly)

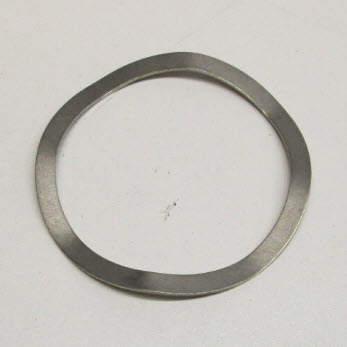

#19	13-34678	WASHER, WAVE - NEUTRAL WARM-UP LEVER (1,1,1,1,1 required per assembly)
		13-34678 - Wave Washer - Priced Individually [ More info ] $1.99 $1.68 10+ In Stock.
#20	43-30204	GEAR, THROTTLE SECTOR FUSE (,1 required per assembly) USE WITH C-30203 STARBOARD HOUSING
		43-30204 - Sector Gear [ More info ] $9.99 $8.45 4 In Stock.
#21	12-29629	WASHER, THROTTLE LINK (1,1 required per assembly)
		12-29629 - Washer, (.390 X .687 X .030) Stainless Steel [ More info ] $0.90 $0.72 10+ In Stock.
#20	23-33589	BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I. D. ) (1,1,1,1,1 required per assembly)
		23-33589 - Bushing - Priced Individually [ More info ] $16.15 5 In Stock.
		23-33589 1 - Bushing [ More info ] $13.49 8 In Stock.
#22	53-29641	"E" RING, THROTTLE LINK TO SECTOR GEAR (1,1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#21	17-34692	PIN, SHIFT AND THROTTLE LEVERS (2,2,2,2,2 required per assembly)
		17-34692 - Pin, Shift And Throttle Levers, NLA [ More info ] $3.90 10+ In Stock.
#22	18-29623	COTTER PIN, SHIFT AND THROTTLE LEVER PINS (2,2,2,2,2 required per assembly)
		18-29623 - Cotter Pin [ More info ] $5.37 10+ In Stock.
#23	29630	CAM FOLLOWER, THROTTLE LINK (1,1 required per assembly)
		29630 - Cam Follower, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#24	23-27132	BUSHING, NYLON - THROTTLE AND SHIFT GEAR (2,2 required per assembly)
		23-27132 - Bushing [ More info ] $4.85 3 In Stock.
#23	59369	FACE CAM (1,1,1,1, required per assembly)
		59369 - Face Cam [ More info ] $77.60 7 In Stock.

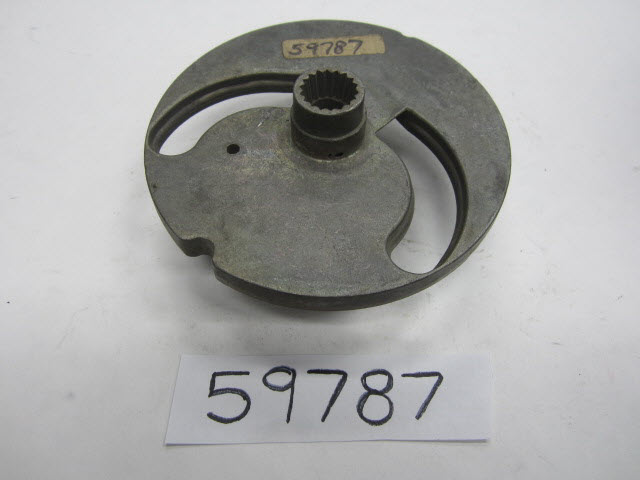

#23	59787	FACE CAM (,,,,1 required per assembly)
		59787 - Face Cam, NLA [ More info ] $25.00 $21.18 6 In Stock.
#25	43-31802	GEAR, SHIFT SECTOR (1,1 required per assembly)
		43-31802 - Sector Gear [ More info ] $19.99 $16.92 4 In Stock.
#26	12-29627	WASHER, SHIFT SECTOR GEAR TO HOUSING (1,1 required per assembly)
		12-29627 - Washer, Shift Sector Gear To Housing [ More info ] Unavailable
#24	59371	CAM FOLLOWER (,,,,1 required per assembly)
		59371 - Follower, NLA [ More info ] $9.99 $8.45 10+ In Stock.
#27	30986	HOUSING, REMOTE CONTROL PORT - (1,1 required per assembly)
		30986 - Housing, NLA [ More info ] Unavailable
#28	30-29634	BALL, TENSION - DRIVE GEAR 3/8 (1,1 required per assembly) EARLY STYLE
		30-29634 - Ball [ More info ] Unavailable
		24-30891A 1 - Spring Assembly, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#26	23-59370	SPACER, CAM FOLLOWER PIN (,,,,1 required per assembly)
		23-59370 - Spacer - Cam Follower Pin [ More info ] $3.00 $2.54 6 In Stock.
#29	24-29622	SPRING, DETENT - DRIVE GEAR BALL (11/32" OD) (1,1 required per assembly) EARLY STYLE
		24-29622 - Spring, Detent - Drive Gear Ball (11/32 Inch) [ More info ] Unavailable
#27	11-31953	NUT, CAM FOLLOWER PIN (,,,,1 required per assembly)
		11-31953 - Nut - Priced Individually [ More info ] Unavailable
		11-29488 - Nut, (#10-32) [ More info ] $3.61 10+ In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 6 In Stock.
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#30	29838	HOUSING, DETENT SPRING (1,1 required per assembly) EARLY STYLE
		29838 - Detent Spring Housing [ More info ] Unavailable
#28	23-34677	BUSHING, NYLON - FACE CAM (1" I. D. ) (2,2,2,2,2 required per assembly)
		23-34677 - Bushing - Priced Individually [ More info ] $16.15 10+ In Stock.
#28	31370	BALL, TENSION - DRIVE GEAR (7/16") (,1 required per assembly) LATEST STYLE
		31370 - BALL [ More info ] Unavailable
#29	34681	HOUSING, REMOTE CONTROL (PORT) (1,,,, required per assembly)
		34681 - Housing, NLA [ More info ] Unavailable
#29	24-30891	SPRING, DETENT - DRIVE GEAR BALL (27/64" OD) (,1 required per assembly) LATEST STYLE
		24-30891 - Spring, Detent - Drive Gear Ball (27/64 Inch o.d.) [ More info ] Unavailable
#29	45939 2	HOUSING, REMOTE CONTROL (PORT) (,1,1,1,1 required per assembly)
#30	37-34983	DECAL, CONTROL HOUSING (MERCONTROL) (1,,,, required per assembly)
		37-34983 - DECAL [ More info ] Unavailable
		37-46424 - DECAL [ More info ] Unavailable
		37-55326 - Decal,NLA [ More info ] Unavailable
		37-61412 - Decal,NLA [ More info ] Unavailable
#31	10-29837	SCREW, RETAINING - DETENT SPRING HOUSING (1,1 required per assembly)
		10-29837 - Screw, NLA [ More info ] Unavailable
#32	19-29540	PLUG, CHOKE SWITCH HOLE (1, required per assembly)
		19-29540 - Plug, NLA [ More info ] Unavailable
#30	37-61412	DECAL, CONTROL HOUSING (MERCONTROL) (,1,1,1,1 required per assembly)
#31	34689 2	LEVER, CONTROL (1,1,1,1,1 required per assembly)

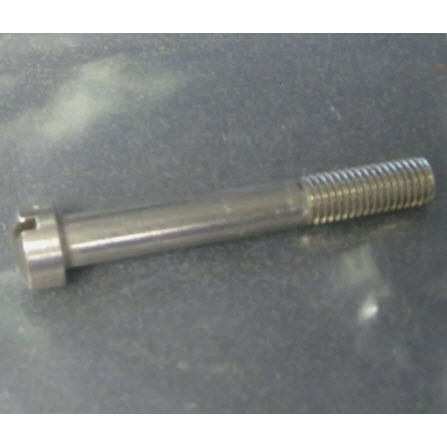

#34	10-29389	SCREW, REMOTE CONTROL HOUSING CLAMPING (1 7/8") (2,2 required per assembly)
		10-29389 - Screw, NLA [ More info ] $1.70 $1.36 10+ In Stock.
#32	55339	GRIP, CONTROL LEVER (1,1,1,1, required per assembly)
		55339 - Grip [ More info ] $1.25 10 In Stock.
		36005 - Control Lever Grip, NLA [ More info ] $16.99 $14.38 10 In Stock.
#35	10-29817	SCREW, REMOTE CONTROL HOUSING CLAMPING (1 5/8") (1,1 required per assembly)
		10-29817 - Screw [ More info ] Unavailable
		10-28773 - Screw - Priced Individually [ More info ] Unavailable
		10-20012 - Screw - Priced Individually [ More info ] $1.71 10+ In Stock.
#32	36005	GRIP, CONTROL LEVER (,,,,1 required per assembly)
#33	10-37342	SCREW, GRIP TO CONTROL LEVER (7/16") (2,2,2,2,2 required per assembly)
		10-37342 - Screw - Priced Individually [ More info ] $1.85 $1.57 10+ In Stock.
#34	10-68909	SCREW, CONTROL LEVER TO FACE CAM (1 5/8") (1,1,1,1,1 required per assembly)
		10-68909 - Screw, NLA [ More info ] $1.91 10+ In Stock.
#35	13-26992	LOCKWASHER, CONTROL LEVER SCREW (1,1,1,1,1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#38	24-20010	SPRING, DETENT PIN (1,1 required per assembly)
		24-20010 - Spring, Detent Pin,NLA [ More info ] $2.50 $2.13 5 In Stock.
#36	34682	LEVER, SHIFT - CONTROL HOUSING (1,1,1,1, required per assembly)
		34682 - Control Housing Shift Lever [ More info ] $64.66 10+ In Stock.
#36	59372	LEVER, SHIFT - CONTROL HOUSING (,,,,1 required per assembly)
		59372 - Lever [ More info ] $30.00 $25.41 10+ In Stock.
#40	23-29684	BUSHING, NYLON - THROTTLE CONTROL LEVER TO HOUSING (1,1 required per assembly)
		23-29684 - Bushing, NLA [ More info ] $2.50 $2.13 10 In Stock.
#41	29572	LEVER, THROTTLE CONTROL (1,1 required per assembly)
		29572 - Lever [ More info ] $13.50 $11.44 5 In Stock.
#42	10-29628	SCREW, THROTTLE CONTROL LEVER TO HOUSING (1,1 required per assembly)
		10-29628 - SCREW,NLA [ More info ] Unavailable
#43	29675A 2	CONTROL HANDLE ASSEMBLY, THROTTLE AND SHIFT (1,1 required per assembly) 2" SHORTER CONTROL HANDLE-ORDER A-31384A1
		29675A 2 - Lever Assembly,NLA [ More info ] Unavailable
#40	10-37941	SCREW, REMOTE CONTROL HOUSING CLAMPING (4,4,4,4,4 required per assembly)
		10-37941 - Screw - Priced Individually [ More info ] $3.50 $3.36 10+ In Stock.
#41	11-34688	NUT, REMOTE CONTROL HOUSING CLAMPING SCREW (4,4,4,4,4 required per assembly)
		11-34688 - Nut - Priced Individually [ More info ] $1.10 10+ In Stock.
		11-30506 - Nut (1/4-28) [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#44	38-29643	INSIGNIA, CONTROL HANDLE (1,1 required per assembly)
		38-29643 - NAME PLATE,NLA [ More info ] Unavailable
#42	10-34900	SCREW, REMOTE CONTROL TO BOAT (4 1/4") (2,2,2,2,2 required per assembly)
		10-34900 - Screw, NLA [ More info ] $9.69 10+ In Stock.
#45	10-29671	SCREW, CONTROL HANDLE TO HOUSING (1,1 required per assembly)
		10-29671 - Screw, NLA [ More info ] Unavailable
#43	12-20346	WASHER, REMOTE CONTROL SCREW (2,2,2,2,2 required per assembly)
		12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#47	10-29672	SCREW, REMOTE CONTROL HOUSING TO BOAT (2,2 required per assembly)
		10-29672 - Screw, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#44	11-24652	NUT, REMOTE CONTROL TO BOAT SCREW (2,2,2,2,2 required per assembly)
		11-24652 - Nut (1/4-28) [ More info ] $1.60 10+ In Stock.
#45	19-45918	PLUG,CONNECTOR - PORT REMOTE CONTROL HOUSING (,1,,, required per assembly)
		19-45918 - Plug [ More info ] $1.00 7 In Stock.
		19-55348 - Plug, NLA [ More info ] $3.99 $3.37 10+ In Stock.
#45	19-55348	PLUG,CONNECTOR - PORT REMOTE CONTROL HOUSING (,,1,1,1 required per assembly)
#46	19-30064	PLUG,CHOKE SWITCH HOLE (1,1,,, required per assembly)
		19-30064 - Plug, NLA [ More info ] Unavailable
#46	19-55350	PLUG,CHOKE SWITCH HOLE (,,1,1,1 required per assembly)
		19-55350 - Plug, NLA [ More info ] Unavailable
#47	19-31682	PLUG,STARTER SWITCH HOLE HEARL MODELS (1,,,, required per assembly) EARLY MODELS
		19-31682 - Adaptor [ More info ] Unavailable
		19-45119 - Adaptor [ More info ] Unavailable
		19-55349 - Plug, NLA [ More info ] $3.30 10 In Stock.
#48	25-20034	"O" RING, STARTER SWITCH HOLE PLUG (1,,,, required per assembly) EARLY MODELS
		25-20034 - , O-Ring [ More info ] $6.45 10+ In Stock.
#47	19-55349	PLUG, STARTER SWITCH HOLE (1,1,1,1,1 required per assembly)
#49	72677	THROTTLE STOP, FACE CAM - PORT (,,,,1 required per assembly)
		72677 - THROTTLE STOP [ More info ] Unavailable
		72677A 1 - Reverse limit Bracket Assy, NLA [ More info ] Unavailable
#49	72678	THROTTLE STOP, FACE CAM - STARBOARD (,,,,2 required per assembly)
		72678 - THROTTLE STOP [ More info ] Unavailable
#50	10-24942	SCREW, THROTTLE STOP (7/16") (,,,,2 required per assembly)
		10-24942 - Screw - Priced Individually [ More info ] $0.86 $0.72 10+ In Stock.
#52	24-33517	SPRING, COMPRESSION - SHIFT AND THROTTLE CABLES (,,,,1 required per assembly)
		24-33517 - Spring, NLA [ More info ] $2.00 $1.69 10+ In Stock.
