Parts for MerCruiser SSM II / III / IV / V 1982-1995 Gear Housing Assembly (Propshaft) (Iv Ssm)

Revise Search: All Models > SSM II / III / IV / V 1982-1995 > All - none > Gear Housing Assembly (Propshaft) (Iv Ssm)

« Previous

NEED PARTS OR KITS?

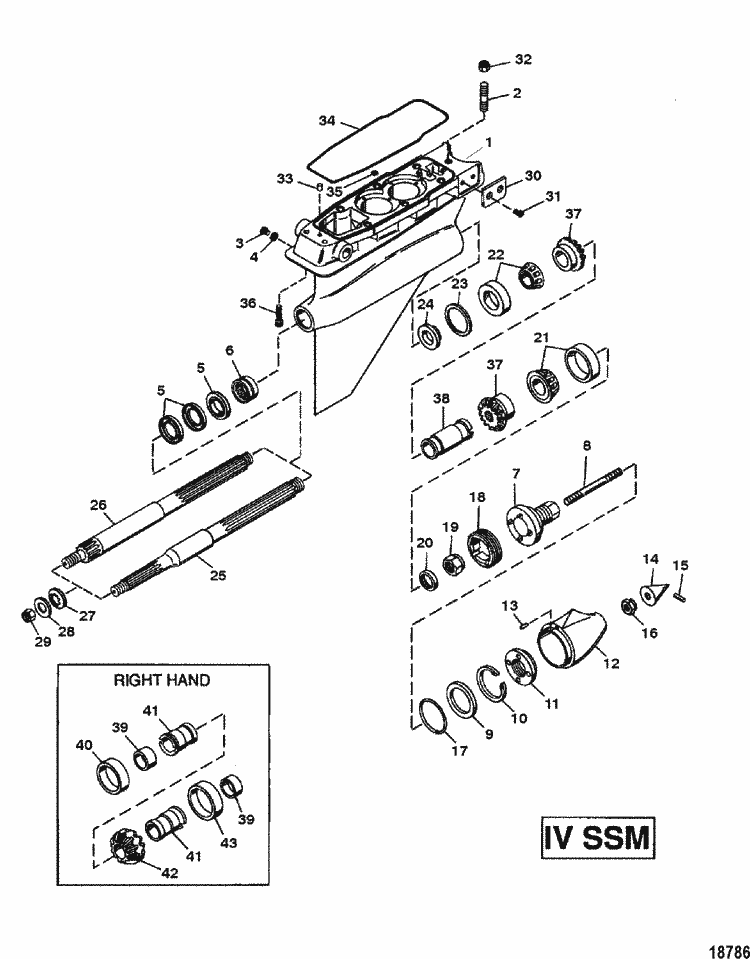

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket lower units and upper units may be available. Please call.

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1664-8509A13	REBUILD KIT (1 required per assembly)
		1664-8509A13 - REBUILD KIT-MCII,NLA [ More info ] Unavailable
#1	1664-9295A 5	GEAR HOUSING ASSEMBLY (1 required per assembly) (BASIC)
		1664-9295A 5 - Gear Housing Assembly [ More info ] Unavailable
		1673-812422A 4 - Gear Housing,NLA [ More info ] Unavailable
#2	16-57986 1	STUD (2.810) (1 required per assembly)
		16-57986 1 - STUD [ More info ] Unavailable
		16-57985 - Stud [ More info ] $33.12 1 In Stock.
#3	10-79953	SCREW, (.375-16 x .250), Vent (1 required per assembly)
		10-79953 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.20 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.59 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $7.20 10+ In Stock.
#4	12-19183	WASHER, Fiber (1 required per assembly)
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.40 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.29 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.40 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $6.40 10+ In Stock.
#5	26-19473	SEAL, Oil (3 required per assembly)
		26-19473 - Seal [ More info ] $54.42 Available to Order: Usually ships within 10 days.
#6	31-39832	BEARING, Roller (1 required per assembly)
		31-39832 - Bearing - Roller [ More info ] Unavailable
		31-39832T - Bearing [ More info ] $71.87 Available to Order: Usually ships within 10 days.
#7	53061	ANCHOR, Stud (1 required per assembly)
		53061 - ANCHOR-STUD,NLA [ More info ] Unavailable
#8	16-53064 1	STUD (7.280) (1 required per assembly)
		16-53064 1 - STUD,NLA [ More info ] Unavailable
#9	12-39821	WASHER (1 required per assembly)
		12-39821 - WASHER,NLA [ More info ] Unavailable

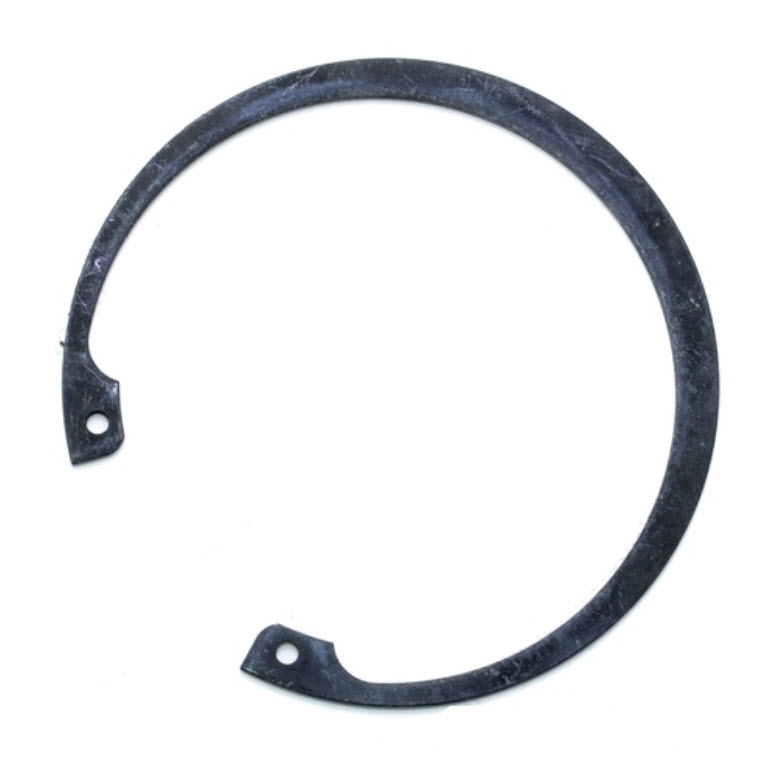

#10	53-35128	RING, Retaining (1 required per assembly)
		53-35128 - Ring - Retaining [ More info ] $20.31 6 In Stock.
#11	39803	COVER (1 required per assembly)
		39803 - Cover, NLA [ More info ] Unavailable
#12	11353	NOSE CONE (1 required per assembly)
		11353 - Nose Cone [ More info ] Unavailable
#13	17-30282	PIN (1 required per assembly)
		17-30282 - Pin [ More info ] Unavailable

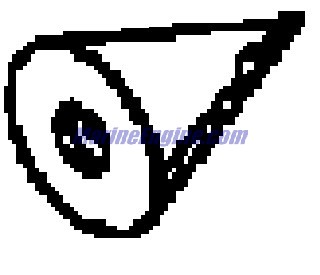

#14	98036	CAP, Nose Cone (1 required per assembly)
		98036 - Cap [ More info ] $75.00 6 In Stock.
#15	65700	PLUG (1 required per assembly)
		65700 - Plug [ More info ] $1.95 Available to Order: Usually ships within 10 days.

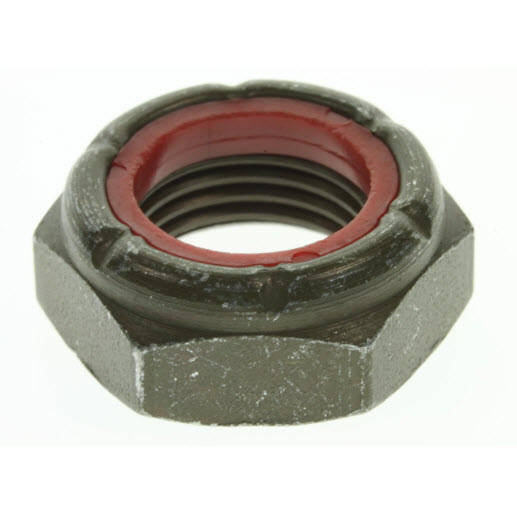

#16	11-22339	NUT, (.625-18) (1 required per assembly)
		11-22339 - Nut (5/8x18) [ More info ] Unavailable
		11-8M0214915 - NUT Note: Priced Individually [ More info ] $8.10 10+ In Stock.
		18-3713 - Nut, 11-22339 [ More info ] $5.79 $5.24 8 In Stock.
#17	25-39828	O-RING (1 required per assembly)
		25-39828 - O-Ring [ More info ] $4.12 1 In Stock.

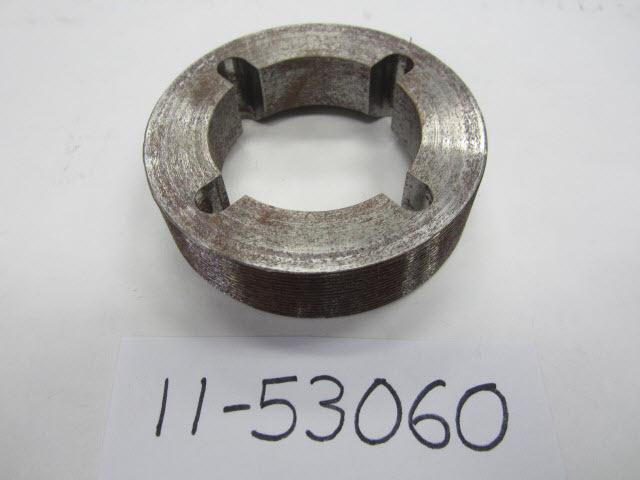

#18	11-53060	NUT (1 required per assembly)
		11-53060 - Nut,NLA [ More info ] Unavailable
#19	11-39825	NUT (1.250-12) (1 required per assembly)
		11-39825 - Nut (1.250-12) [ More info ] $23.73 1 In Stock.
#20	12-42262	WASHER (1 required per assembly)
		12-42262 - WASHER [ More info ] Unavailable
		23-846409 - Spacer - 1.25 X 2 X .28 [ More info ] $168.69 Available to Order: Usually ships within 10 days.
#21	31-39772A 1	BEARING, Roller (1 required per assembly)
		31-39772A 1 - Bearing - Roller [ More info ] Unavailable
		31-39772T 1 - Bearing Assembly [ More info ] Unavailable
#22	31-39770A 1	BEARING, Roller (1 required per assembly)
		31-39770A 1 - Bearing - Roller [ More info ] Unavailable
		31-39770T 1 - Bearing Assembly [ More info ] Unavailable
#23	15-39809A 1	SHIM SET (AR required per assembly)
		15-39809A 1 - Shim Set [ More info ] Unavailable
#24	12-39818	WASHER (1 required per assembly)
		12-39818 - Washer, NLA [ More info ] $28.00 2 In Stock.
#25	44-85187	PROPELLER SHAFT (1.370 OD) (1 required per assembly)
		44-85187 - Prop Shaft [ More info ] Unavailable
		44-85187T - Prop Shaft, NLA [ More info ] Unavailable
#26	44-12049	PROPELLER SHAFT (1.750 OD) (1 required per assembly)
		44-12049 - Prop Shaft, NLA [ More info ] Unavailable
#27	12-39820	WASHER (1 required per assembly)
		12-39820 - Washer, Splined [ More info ] $25.74 Available to Order: Usually ships within 10 days.

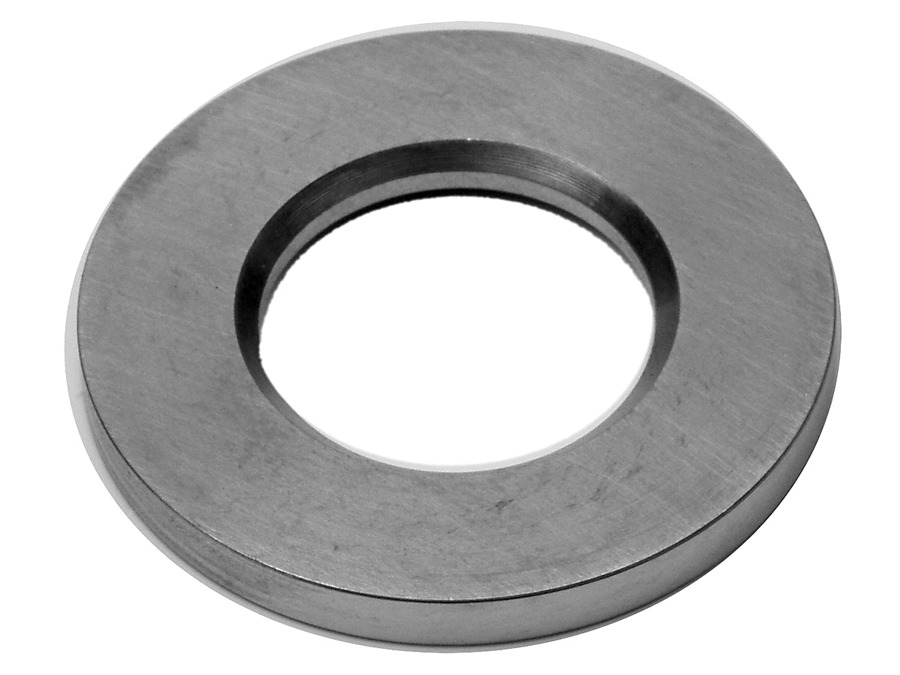

#28	12-39817	WASHER, Special - Stainless Steel (1 required per assembly)
		12-39817 - Washer, Special - Stainless Steel [ More info ] $25.96 Available to Order: Usually ships within 10 days.
#29	11-39907	NUT (1.00-14) (1 required per assembly)
		11-39907 - Prop Nut [ More info ] Unavailable
		11-54034 - Prop Nut [ More info ] $9.99 10+ In Stock.
		11-826711 27 - Prop Nut [ More info ] $21.65 3 In Stock.
		18-3785 - Nut, 11-826711 27 [ More info ] $13.39 2 In Stock.

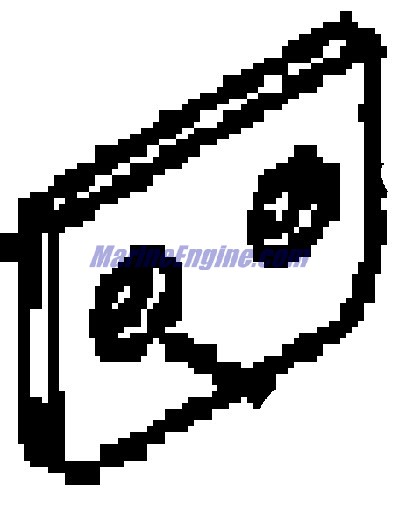

#30	11393 1	WEAR PAD (2 required per assembly)
		11393 1 - WEAR PAD [ More info ] Unavailable
#31	10-11601	SCREW, (.312-18 x .750) Stainless Steel (4 required per assembly)
		10-11601 - Screw [ More info ] $1.27 Available to Order: Usually ships within 10 days.
#32	11-47302	NUT, (.562-18) Stainless Steel (1 required per assembly)
		11-47302 - Nut, (.562-18) Stainless Steel [ More info ] $14.12 $12.00 3 In Stock.

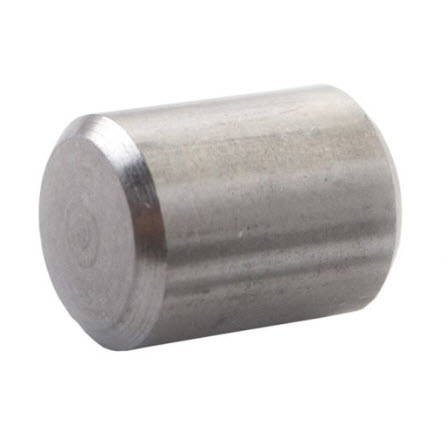

#33	17-20033	PIN, Dowel, Locating (2 required per assembly)
		17-20033 - Pin -Dowel - Priced Individually [ More info ] $1.27 10+ In Stock.
		17-43044 - Pin -Dowel-solid [ More info ] $2.40 Available to Order: Usually ships within 10 days.
#34	25-12000 1	O-RING (1 required per assembly)
		25-12000 1 - O-Ring [ More info ] $21.45 Available to Order: Usually ships within 10 days.

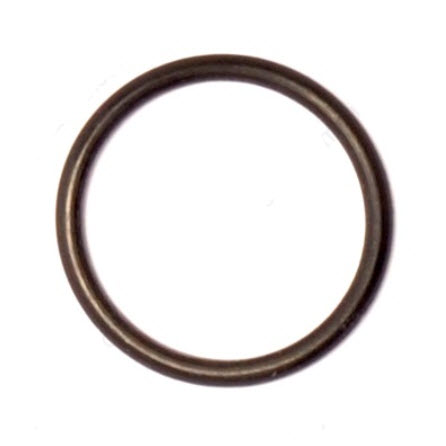

#35	25-36390	O-RING (6 required per assembly)
		25-36390 - O-ring (.676 X .070) [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#36	10-87370 2	SCREW, (.500-13 x 3.00) (2 required per assembly)
		10-87370 2 - Screw [ More info ] Unavailable
#37	43-16768A 1	GEAR SET (Pinion and Drive) (1 required per assembly) (LH - 1.00:1 RATIO)
		43-16768A 1 - Gear Set,NLA [ More info ] Unavailable
#37	43-78095A 1	GEAR SET (Pinion and Drive) (1 required per assembly) (LH - 1.125:1 RATIO)
		43-78095A 1 - Gear Set-1.125 L,NLA [ More info ] Unavailable
#38	23-53070	SPACER (1 required per assembly) (LH GEAR SET)
		23-53070 - Spacer [ More info ] $119.99 9 In Stock.
#39	23-53067	SPACER (2 required per assembly) (RH GEAR SET)
		23-53067 - SPACER,NLA [ More info ] Unavailable
#40	23-53068	SPACER (1 required per assembly) (RH GEAR SET)
		23-53068 - SPACER,NLA [ More info ] Unavailable

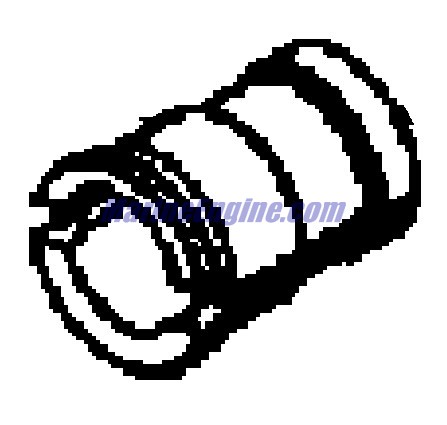

#41	91846	SPACER (2 required per assembly) (RH GEAR SET)
		91846 - Spacer [ More info ] Unavailable
#42	43-16769A 1	GEAR SET (Pinion and Drive) (1 required per assembly) (RH - 1.00:1 RATIO)
		43-16769A 1 - Gear Set-1:1 RH,NLA [ More info ] Unavailable
#42	43-78096A 1	GEAR SET (Pinion and Drive) (1 required per assembly) (RH - 1.125:1 RATIO)
		43-78096A 1 - Gear Set-1.125 R,NLA [ More info ] Unavailable
#43	23-53066	SPACER (1 required per assembly) (RH GEAR SET)
		23-53066 - Spacer, NLA [ More info ] $75.00 1 In Stock.
