Parts for MerCruiser 8.2L MIE MPI (Gen. VI) GM 502 V-8 Closed Cooling System (454 Mag Mpi Horizon)

Revise Search: All Models > 8.2L MIE MPI (Gen. VI) GM 502 V-8 > 0L002450 - 0L086012 > Closed Cooling System (454 Mag Mpi Horizon)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-811572A94	GASKET SET, Overhaul (454) (1 required per assembly)
		27-811572A94 - Engine Overhaul Gasket Set [ More info ] Unavailable
#1	807400A 1	HEAT EXCHANGER (1 required per assembly)
		807400A 1 - Heat Exchanger [ More info ] $2,221.43 In Stock
#NS	814875	COVER, Heat Exchanger End (2 required per assembly)

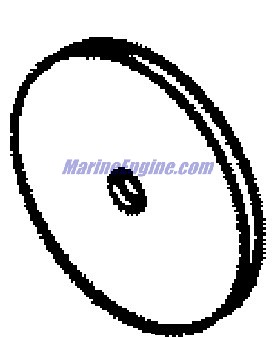

		814875 - End Cover [ More info ] Unavailable

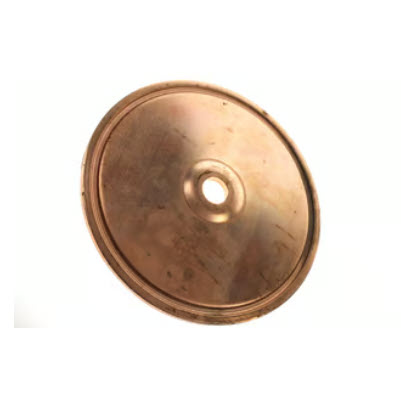

		8M0036623 - Cap -end [ More info ] $100.75 Available to Order: Usually ships within 10 days.
#NS	27-814876	GASKET, End Cover (2 required per assembly)
		27-814876 - End Cover Gasket [ More info ] Unavailable
		27-803644 - End Cover Gasket [ More info ] $13.84 1 In Stock.

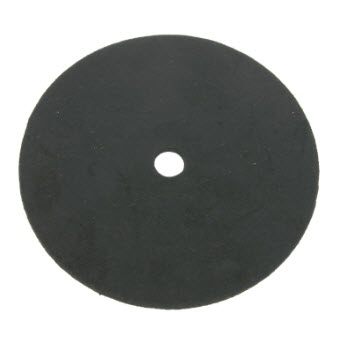

		27-8M0036987 - Heat Exchanger End Gasket [ More info ] $21.08 In Stock
#NS	10-814877	BOLT (2 required per assembly)
		10-814877 - Bolt [ More info ] Unavailable
#NS	25-814878	O-RING, Special (2 required per assembly)
		25-814878 - O-Ring [ More info ] Unavailable
		25-8M0039163 - O-ring, (3/8 X 1/8) [ More info ] $8.50 4 In Stock.
#NS	36-814879 1	CAP (1 required per assembly)

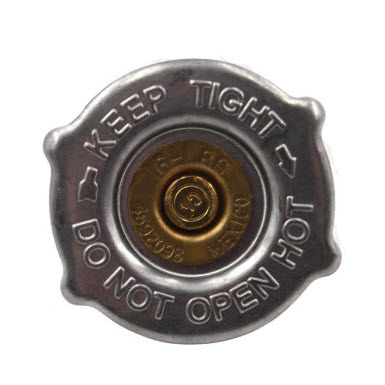

		36-814879 1 - Pressure Cap [ More info ] $57.83 Available to Order: Usually ships within 10 days.
#2	860092A 1	BRACKET ASSEMBLY, Heat Exchanger (1 required per assembly)
		860092A 1 - Bracket [ More info ] $77.25 Available to Order: Usually ships within 10 days.
#3	18431	PAD (2 required per assembly)
		18431 - Pad [ More info ] $33.67 Available to Order: Usually ships within 10 days.
#4	10-91903	SCREW, (.437-14 x 1.750) (1 required per assembly)
		10-91903 - Screw [ More info ] $4.60 Available to Order: Usually ships within 10 days.
#4	10-47461	SCREW, (.437-14 x 1.00) (1 required per assembly)
		10-47461 - Screw [ More info ] $2.20 2 In Stock.

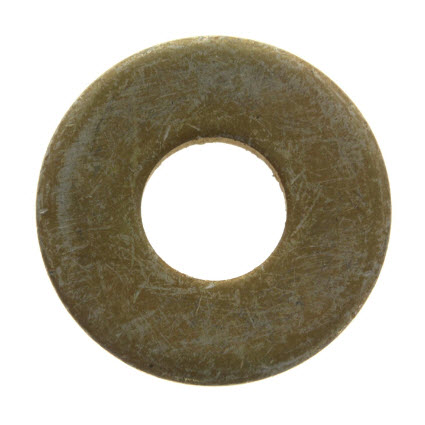

#5	12-31263	WASHER (4 required per assembly)
		12-31263 - Washer - Priced Individually [ More info ] $1.00 $0.56 10+ In Stock.
#6	23-90520 1	SPACER, (.750 x .250) (2 required per assembly)
		23-90520 1 - Spacer [ More info ] $5.05 Available to Order: Usually ships within 10 days.
#7	54-815504388	CLAMP, Worm Gear (2 required per assembly)
		54-815504388 - Clamp [ More info ] $24.83 Available to Order: Usually ships within 10 days.
#8	71587A10	RECOVERY KIT, Coolant (1 required per assembly) SEE NOTE

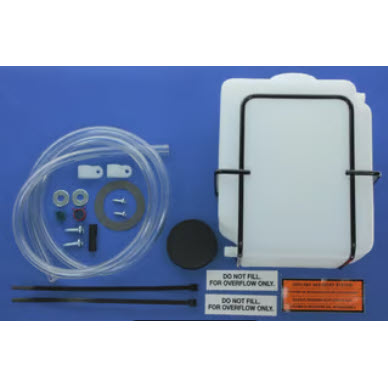

		71587A10 - Coolant Recovery Kit [ More info ] $93.50 In Stock
#NS	32-77457 2	HOSE, (48.00 Inches Bulk) (1 required per assembly)
		32-77457 2 - Hose -48 Inch [ More info ] $67.58 Available to Order: Usually ships within 10 days.
#9	71587A11	BOTTLE, Plastic (1 required per assembly)
		71587A11 - Coolant Recovery Bottle [ More info ] $73.56 1 In Stock.
#10	72058	CAP (1 required per assembly)
		72058 - Bottle Cap [ More info ] $10.90 Available to Order: Usually ships within 10 days.
#11	861188A 1	HOUSING ASSEMBLY, Thermostat (1 required per assembly)
		861188A 1 - Thermostat Housing Assembly [ More info ] $316.67 Available to Order: Usually ships within 10 days.
#12	25-807134	SEAL (1 required per assembly)
		25-807134 - Seal [ More info ] Unavailable

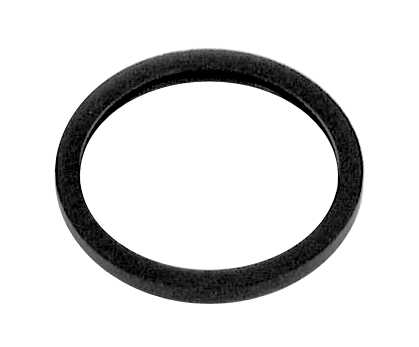

		25-807134 1 - Thermostat Seal [ More info ] $15.00 Available to Order: Usually ships within 10 days.
#13	23-52020	SLEEVE, Hose (1 required per assembly)
		23-52020 - Sleeve [ More info ] Unavailable
#14	22-32803	PLUG, Pipe (.375-18) Brass (1 required per assembly)
		22-32803 - Plug [ More info ] $4.99 1 In Stock.
		228M0180565 - PLUG [ More info ] $7.70 Available to Order: Usually ships within 10 days.
		18-4264 - Pipe Plug, 3/8-18 NPT [ More info ] $5.49 $4.15 4 In Stock.
#15	99155 1	THERMOSTAT (1 required per assembly)
		99155 1 - Thermostat, 160 Degrees [ More info ] $37.12 2 In Stock.
		99155T 1 - Thermostat Kit, 160 Degrees [ More info ] $37.75 Available to Order: Usually ships within 10 days.
#16	807075A 1	COVER (1 required per assembly)
		807075A 1 - Thermostat Cover Kit [ More info ] $221.25 Available to Order: Usually ships within 10 days.
#17	10-29198	SCREW AND LOCKWASHER, (.312-18 x .875) (2 required per assembly)
		10-29198 - Screw w/ Lw - Priced Individually [ More info ] $4.40 $2.46 10+ In Stock.
#18	10-98794	SCREW, (.375-16 x 1.00) (2 required per assembly)
		10-98794 - Screw [ More info ] Unavailable
		10-8M0113180 - MTG Screw AL/BRAV TOP Cover ZZ [ More info ] $4.90 Available to Order: Usually ships within 10 days.
#19	22-32802 1	PLUG, Pipe (.125-27) (1 required per assembly)
		22-32802 1 - Plug, Brass, Priced Individually [ More info ] Unavailable
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.30 Available to Order: Usually ships within 10 days.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.19 $4.70 10+ In Stock.
#20	27-53045 1	GASKET (1 required per assembly)
		27-53045 1 - Gasket - Priced Individually [ More info ] $5.50 10+ In Stock.
		18-2917-9 - Gasket 27-530451 2-Pack [ More info ] $7.99 10+ In Stock.
		27-53045Q01 - Gasket [ More info ] $5.50 9 In Stock.
#21	32-807271	HOSE (1 required per assembly)
		32-807271 - Molded Hose [ More info ] $70.42 Available to Order: Usually ships within 10 days.
#22	32-861306	HOSE (1 required per assembly)
		32-861306 - Molded Hose [ More info ] Unavailable

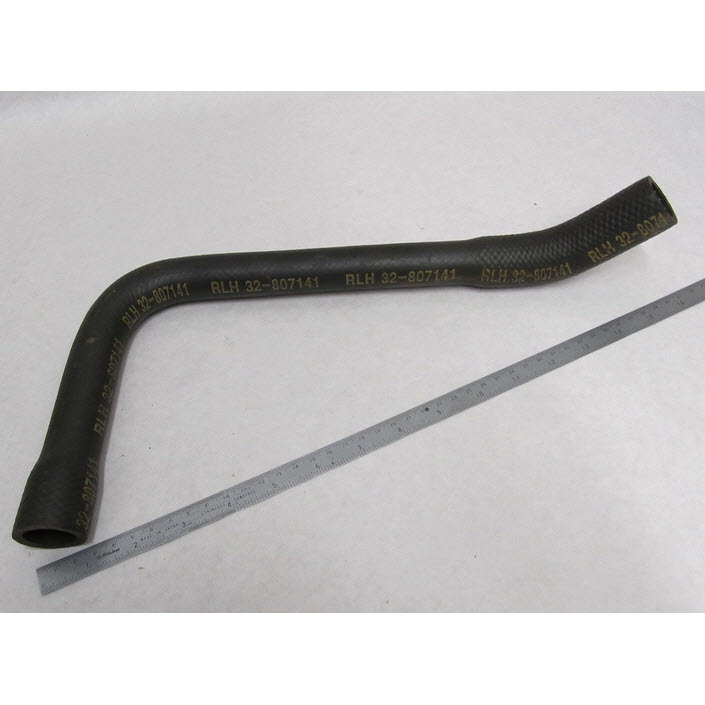

#23	32-807141	HOSE (1 required per assembly)
		32-807141 - Molded Hose [ More info ] $56.08 Available to Order: Usually ships within 10 days.
#24	54-815504520	CLAMP, Worm Gear (6 required per assembly)

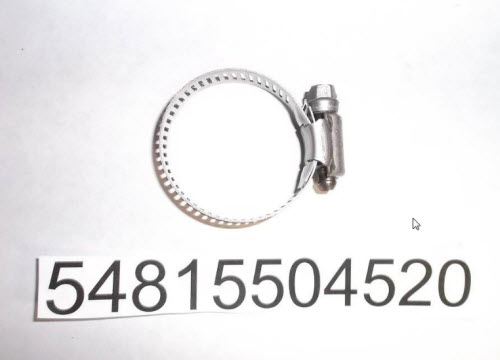

		54-815504520 - Clamp [ More info ] $2.00 1 In Stock.
#25	32-807137	HOSE, Thermostat Housing To Heat Exchanger (1 required per assembly)
		32-807137 - Molded Hose [ More info ] $47.67 Available to Order: Usually ships within 10 days.
#26	54-815504522	CLAMP, Worm Gear (2 required per assembly)
		54-815504522 - Clamp [ More info ] $2.50 10+ In Stock.
#27	32-805138	HOSE, Water Pump To Heat Exchanger (1 required per assembly)
		32-805138 - Molded Hose [ More info ] Unavailable
		32-8M0158499 - HOSE-MOLDED [ More info ] Unavailable
#28	54-815504528	CLAMP, Worm Gear (2 required per assembly)
		54-815504528 - Clamp [ More info ] $4.00 6 In Stock.
#29	32-99520	HOSE (1 required per assembly)
		32-99520 - Molded Hose [ More info ] $26.25 In Stock
#30	54-815504512	CLAMP, Worm Gear (2 required per assembly)
		54-815504512 - Clamp [ More info ] $1.88 10+ In Stock.
#31	32-807406	HOSE (1 required per assembly)
		32-807406 - Molded Hose [ More info ] $36.67 Available to Order: Usually ships within 10 days.
#32	32-807989	HOSE (1 required per assembly)
		32-807989 - Molded Hose/NLA Order 32-71613 [ More info ] Unavailable
#33	32-808045	HOSE, Fuel Cooler to Transmission Oil Cooler (1 required per assembly)
		32-808045 - Molded Hose [ More info ] $60.84 1 In Stock.
#34	32-861411	HOSE (1 required per assembly)
		861411 - 861411 - HOSE-WATER [ More info ] Unavailable Replaced by 32-879194065
#35	32-807694 40	HOSE, (4.00 Inches) (1 required per assembly)
		32-807694 40 - Hose -4 Inch [ More info ] Unavailable
		32-807694075 - Hose [ More info ] Unavailable
		32-866331 - Hose [ More info ] $14.00 Available to Order: Usually ships within 10 days.
#36	32-821415	HOSE, Seawater Pump To T-Fitting (1 required per assembly)
		32-821415 - Hose [ More info ] Unavailable
		32-897145 - Hose [ More info ] $34.05 1 In Stock.
#38	22-861339	Y-FITTING (1 required per assembly)
		22-861339 - Fitting -y [ More info ] Unavailable
		22-861339T - Ord 22-862993 [ More info ] Unavailable
#39	32-42850 69	HOSE, (44.00 Inches Bulk) (1 required per assembly)
		32-42850 69 - Hose -44 Inch [ More info ] Unavailable
		32-8M0062634 - Transom TO Thermostat Housing Hose -44I [ More info ] $39.42 In Stock

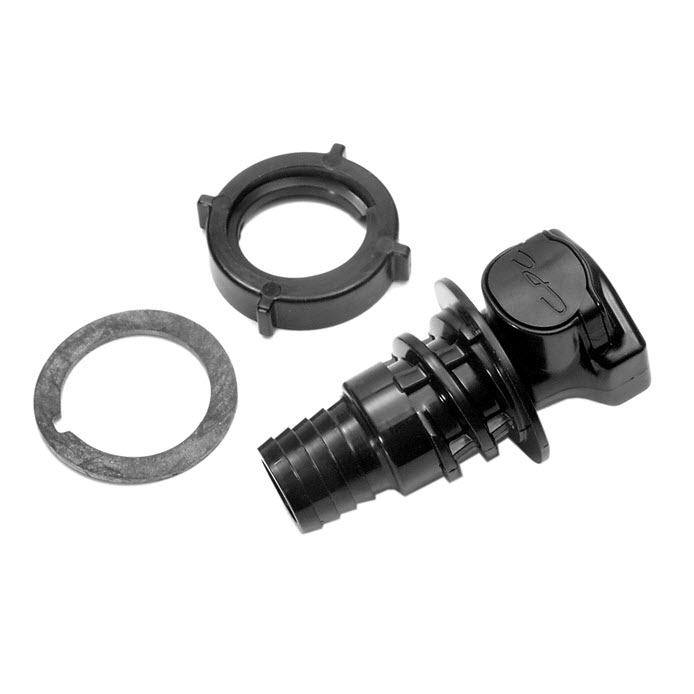

#41	22-861406	SOCKET (1 required per assembly)
		22-861406 - Socket-quick Connector, NLA [ More info ] $104.92 Available to Order: Usually ships within 10 days.

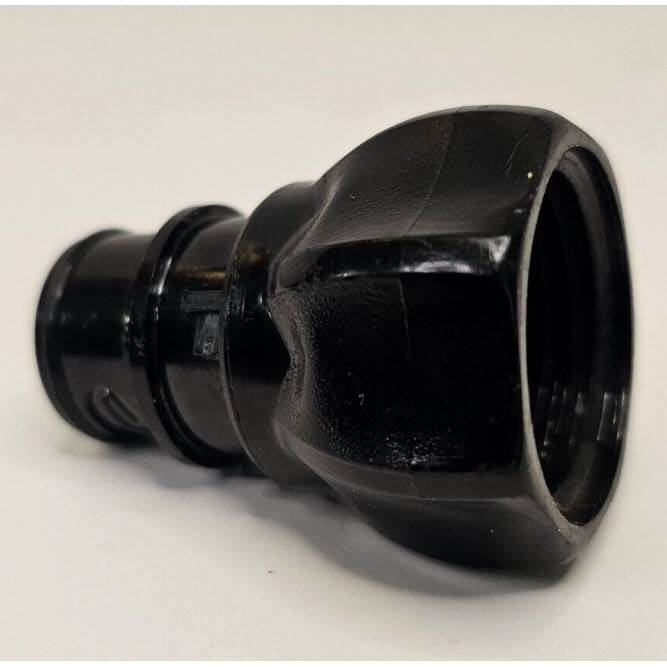

#42	22-861405	FITTING (1 required per assembly)
		22-861405 - PLUG-QUICK CONN [ More info ] $60.02 1 In Stock.
		22-857175 - Coupling [ More info ] $46.59 2 In Stock.

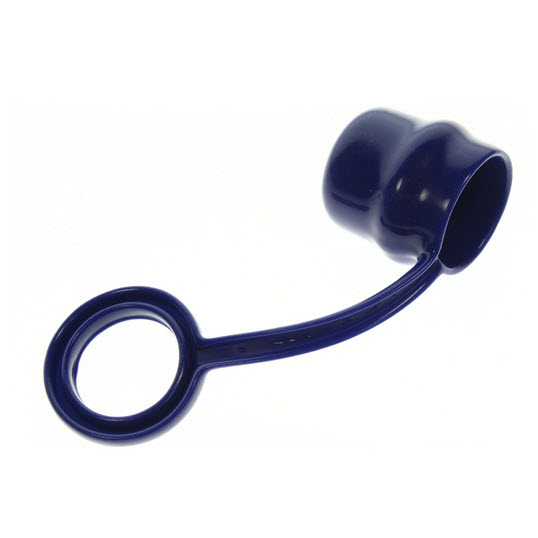

#43	22-861427	CAP (1 required per assembly)
		861427 - Cap - Dust [ More info ] Unavailable
		19-858240 - Cap [ More info ] $12.00 Available to Order: Usually ships within 10 days.
#44	22-861483	T-FITTING (1 required per assembly)
		22-861483 - FITTING-T [ More info ] Unavailable
		22-861483T - T-FITTING W/DRAIN [ More info ] Unavailable
		861505 - Drain Insert [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#45	22-806608A 1	PLUG KIT, (.500-13) Royal Blue (2 required per assembly)
		22-806608A 1 - Plug Kit, Priced Individually [ More info ] Unavailable
		22-806608A02 - Plug Assembly - Priced Individually [ More info ] Unavailable
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $9.40 10+ In Stock.
		18-4226 - Blue Drain Plug, 22-806608A1 [ More info ] $4.09 10+ In Stock.
		22-806608Q01 - Plug - Priced Individually [ More info ] $9.50 Available to Order: Usually ships within 10 days.

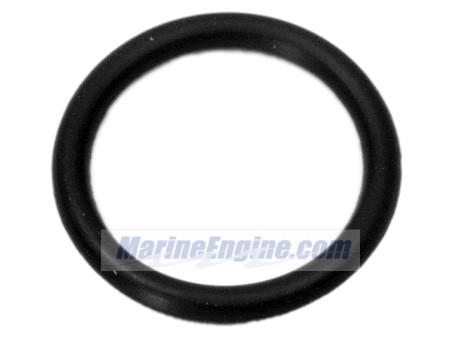

#46	25-806609	QUAD RING (2 required per assembly)
		25-806609 - Quad Ring - Priced Individually [ More info ] $1.39 10+ In Stock.
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.30 10+ In Stock.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $8.99 $8.92 Available to Order: Usually ships within 10 days.
#NS	19-807992 3	COVER, Hose Clamp End (AR required per assembly)
		19-807992 3 - Cover-.375 - Priced Individually [ More info ] $0.58 4 In Stock.
		198M0074364 [ More info ] $0.50 10+ In Stock.
		198M0074364 - Cover-Clamp - Priced Individually [ More info ] $3.20 $2.72 10+ In Stock.
