Parts for MerCruiser 5.7L (Ski) GM 350 V-8 1985-1987 Transmission & Engine Mounting (In-line)

Revise Search: All Models > 5.7L (Ski) GM 350 V-8 1985-1987 > 0A338533 - 0B514626 > Transmission & Engine Mounting (In-line)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

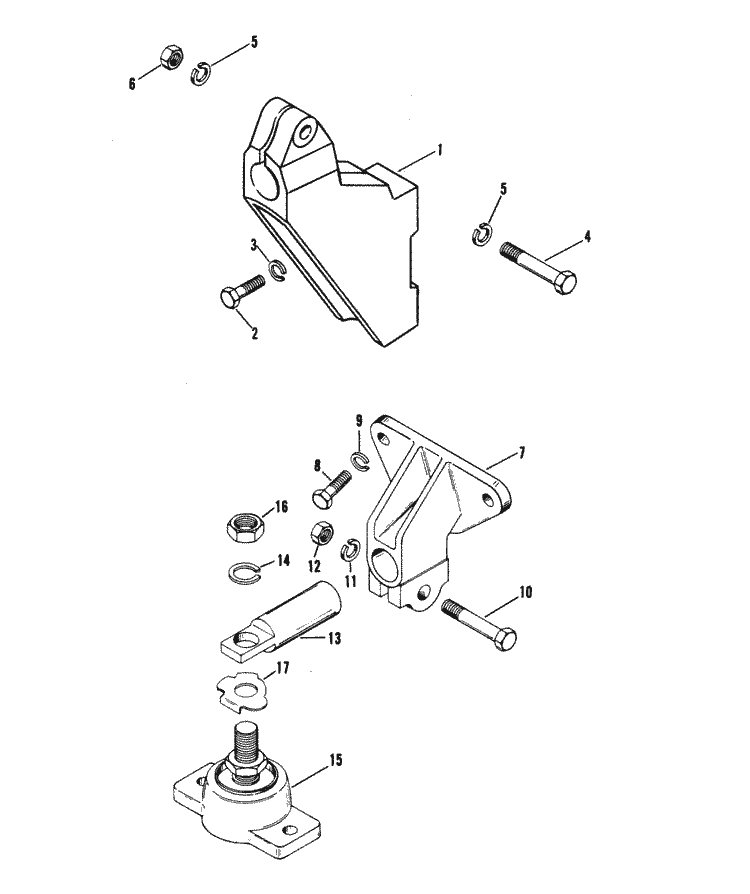

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	66417	BRACKET, TRANSMISSION (REAR) (2 required per assembly)
		66417 - Bracket [ More info ] $48.00 3 In Stock.
		66417T - Bracket, NLA [ More info ] $40.00 3 In Stock.
#2	10-37269	SCREW, BRACKET (2") (4 required per assembly)
		10-37269 - Screw - Priced Individually [ More info ] $5.10 10+ In Stock.
#3	13-32993	LOCKWASHER, BRACKET SCREW (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#4	10-57357	SCREW, CLAMPING (2-1/4") (2 required per assembly)
		10-57357 - Screw [ More info ] $3.50 $2.98 10 In Stock.
#6	11-29553	NUT, CLAMPING SCREW (2 required per assembly)
		11-29553 - Nut (7/16-14) [ More info ] $1.90 10+ In Stock.
#7	71128A 2	BRACKET, MOUNTING - ENGINE (FRONT) (2 required per assembly)
		71128A 2 - Bracket - Engine Mount [ More info ] $406.50 $273.17 2 In Stock.
#8	10-68101	SCREW, MOUNTING BRACKET (1-3/8") (5 required per assembly)
		10-68101 - Screw [ More info ] $2.50 Available to Order: Usually ships within 10 days.
#8	10-34354	SCREW, MOUNTING BRACKET (1-1/2") (1 required per assembly)
		10-34354 - Screw - Priced Individually [ More info ] $2.30 10+ In Stock.
#9	13-35048	LOCKWASHER, MOUNTING BRACKET SCREW (6 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#13	66166A 4	TRUNNION, ADJUSTING - MOUNTING BRACKET (4 required per assembly)
		66166A 4 - Trunnion [ More info ] $161.45 4 In Stock.
#14	13-68102	LOCKWASHER, MOUNTING BRACKET (4 required per assembly)
		13-68102 - LockWasher - Priced Individually [ More info ] $2.50 Available to Order: Usually ships within 10 days.
#15	66284A 2	BASE, ENGINE MOUNT (4 required per assembly)
		66284A 2 - Engine Mount Base Assembly [ More info ] $140.33 In Stock
#16	11-20739	NUT, JAM - ENGINE MOUNT BASE (8 required per assembly)
		11-20739 - Nut (.750X16) [ More info ] $5.70 6 In Stock.
#17	14-66658	TAB WASHER, BASE NUT (4 required per assembly)
		14-66658 - Tab Washer [ More info ] Unavailable
