Parts for MerCruiser 255-TRS 1973-1974 Gear Housing Assembly, Complete

Revise Search: All Models > 255-TRS 1973-1974 > 3377316 - 4203749 > Gear Housing Assembly, Complete

NEED PARTS OR KITS?

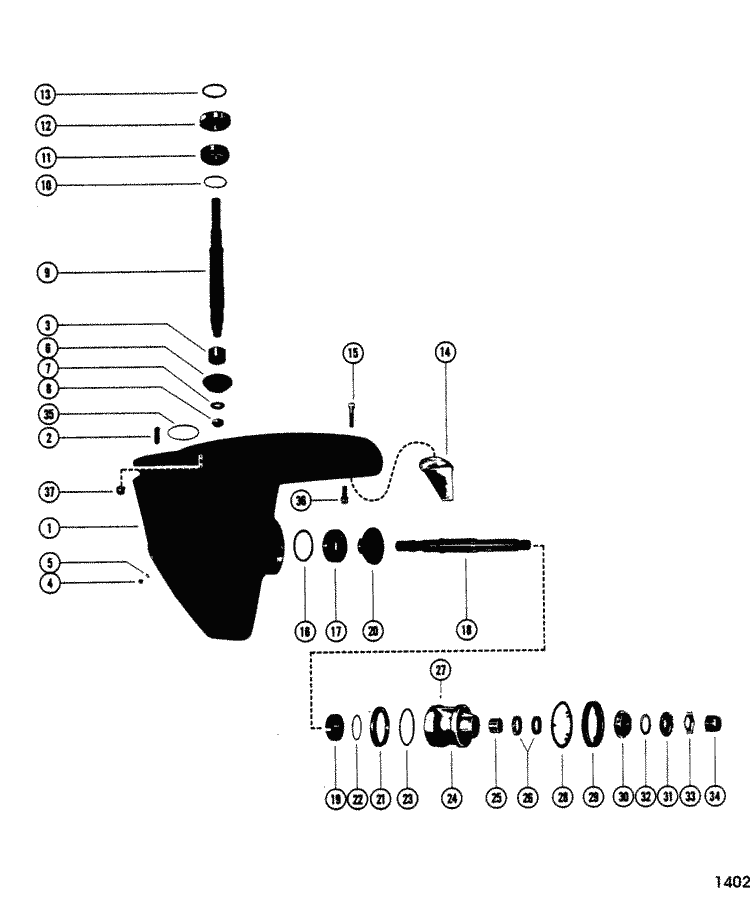

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket lower units and upper units may be available. Please call.

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

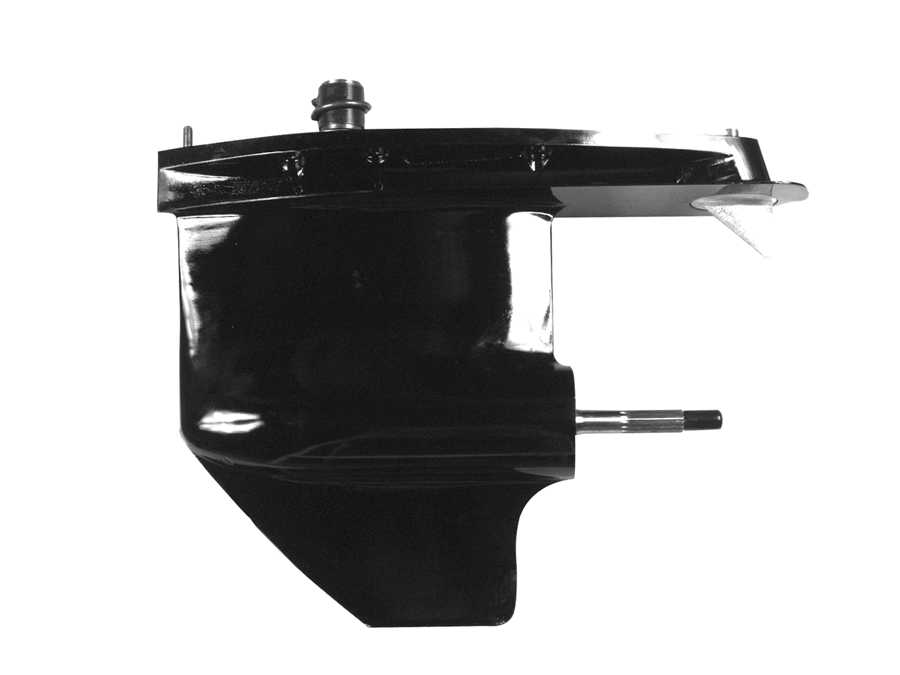

#	1646-5321A13	GEAR HOUSING ASSEMBLY, COMPLETE RIGHT HAND ROTATION) (1 required per assembly) MERCRUISER 280 TRS
		1646-5321A13 - CALL 920-872-272,NLA [ More info ] Unavailable
#	1646-5321A 4	GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION) (1 required per assembly) MERCRUISER 255 TRS
		1646-5321A 4 - GEAR Housing, NLA [ More info ] Unavailable
#	1646-5321A14	GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION) (1 required per assembly) MERCRUISER 280 TRS
		1646-5321A14 - GEAR Housing, NLA [ More info ] Unavailable
#	1646-5321A 5	GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION) (1 required per assembly) MERCRUISER 255 TRS
		1646-5321A 5 - GEAR Housing, NLA [ More info ] Unavailable

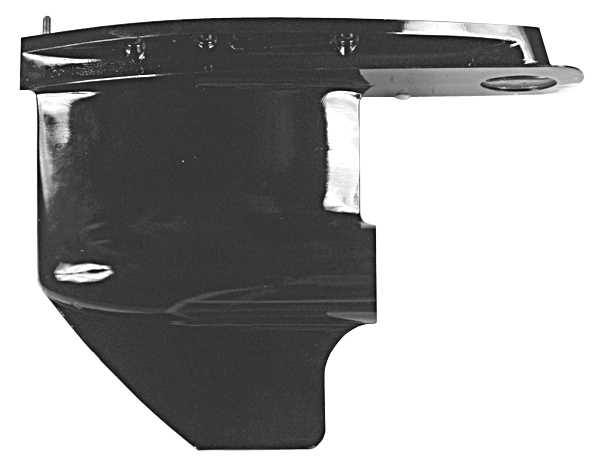

#1	1646-5321A 6	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1646-5321A 6 - Gearcase,NLA [ More info ] Unavailable
#2	16-57982	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8") (1 required per assembly)
		16-57982 - Stud [ More info ] $9.00 3 In Stock.
		16-8M0041668 - Stud [ More info ] $14.90 Available to Order: Usually ships within 10 days.
#3	31-68290	ROLLER BEARING, DRIVE SHAFT (1 required per assembly)
		31-68290 - Roller Bearing - Drive Shaft [ More info ] $27.78 1 In Stock.
		31-68290A 1 - Bearing - Roller [ More info ] $213.75 1 In Stock.
#4	10-28634	SCREW, VENT - GEAR HOUSING (1 required per assembly)
		10-28634 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.20 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.59 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $7.20 10+ In Stock.
#5	12-20260	WASHER, SEAL - VENT SCREW (1 required per assembly)
		12-20260 - Sealing Washer [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.40 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.29 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.40 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $6.40 10+ In Stock.
#6	43-66665	GEAR, PINION - MERCRUISER 255 TRS (1 required per assembly)
		43-66665 - Pinion Gear,NLA [ More info ] Unavailable

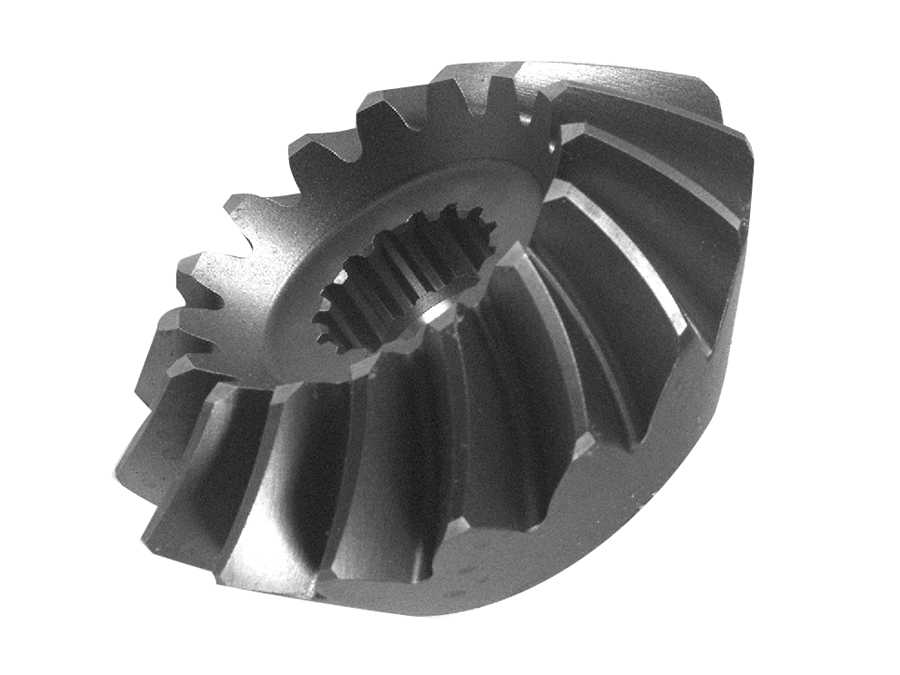

#6	43-70934	GEAR, PINION - MERCRUISER 280 TRS (1 required per assembly)
		43-70934 - Pinion Gear (16 Teeth) [ More info ] Unavailable
		43-70934T 1 - Pinion Gear [ More info ] Unavailable

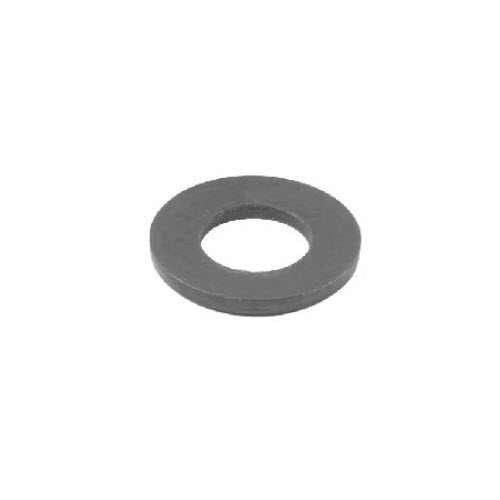

#7	12-54048	WASHER, PINION GEAR TO DRIVE SHAFT (1 required per assembly)
		12-54048 - Washer [ More info ] $3.99 10+ In Stock.
#8	11-55819	NUT, PINION GEAR TO DRIVE SHAFT (1 required per assembly)
		11-55819 - Nut, Pinion Gear To Drive Shaft,NLA [ More info ] $19.99 10 In Stock.

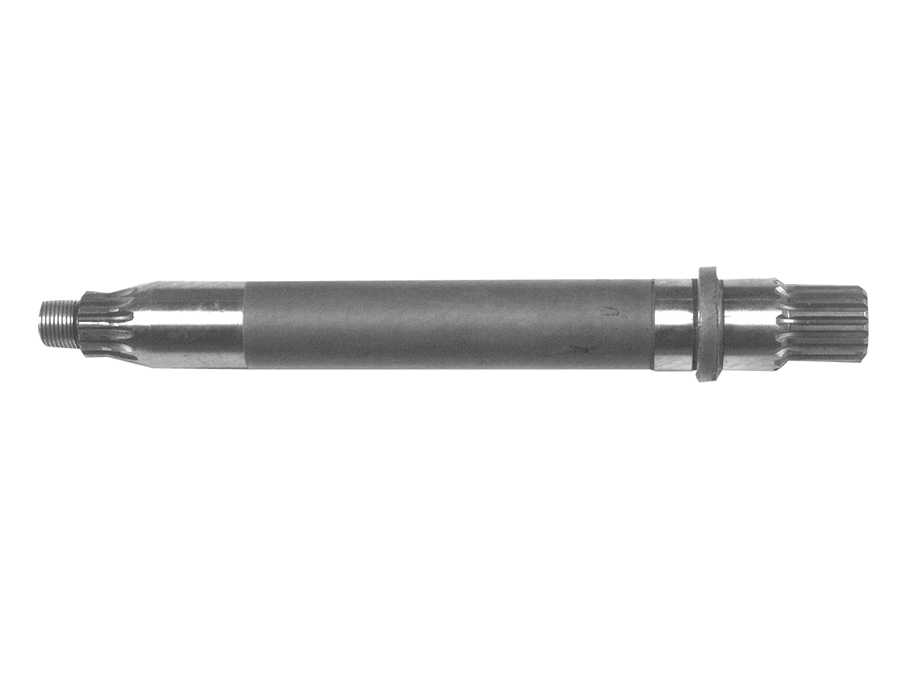

#9	45-66666	DRIVE SHAFT (1 required per assembly)
		45-66666 - Drive Shaft, NLA [ More info ] Unavailable
#10	15-66672A 1	SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10-20) (AR required per assembly)
		15-66672A 1 - Shim Set, NLA [ More info ] $9.99 2 In Stock.
#11	31-68266A 1	TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT (1 required per assembly)
		31-68266A 1 - Tapered Roller Bearing [ More info ] $102.50 $87.12 2 In Stock.
#12	31-66670A 1	TAPERED ROLLER BEARING ASSIMBLY, DRIVE SHAFT (1 required per assembly)
		31-66670A 1 - Bearing Kit [ More info ] $42.50 Available to Order: Usually ships within 10 days.
#13	25-54030	"O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 required per assembly)
		25-54030 - O-ring, (2.987 X .103) [ More info ] $5.70 7 In Stock.
#14	31640A 1	TRIM TAB ASSEMBLY, GEAR HOUSING (1 required per assembly)
		31640A 1 - Trim Tab [ More info ] Unavailable
		31640 3 - 31640 3 - TRIM TAB [ More info ] Unavailable Replaced by -31640 4
		31640 4 - Anode/Trim Tab [ More info ] Unavailable
		97-31640Q4 - Anode/Trim Tab [ More info ] $17.92 3 In Stock.
		18-6241 - Trim Tab Anode, Magnesium, 31640 [ More info ] $24.39 $22.37 4 In Stock.
		18-6011A - Trim Tab Anode, Aluminum [ More info ] $16.59 $15.04 4 In Stock.
		18-6011 - Trim Tab, Zinc, 31640A1 [ More info ] $18.35 10+ In Stock.
		97-31640T 4 - Trim Tab Anode [ More info ] $17.92 10+ In Stock.
#15	10-49354	SCREW, TRIM TAB TO GEAR HOUSING (2 1/2") (1 required per assembly)
		10-49354 - Screw [ More info ] Unavailable
		10-41350 - Screw [ More info ] $26.33 $22.38 10+ In Stock.
#16	15-47397A 1	SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10-20) (AR required per assembly) LEFT HAND ROTATION
		15-47397A 1 - Shim Set [ More info ] $19.30 $10.82 10+ In Stock.

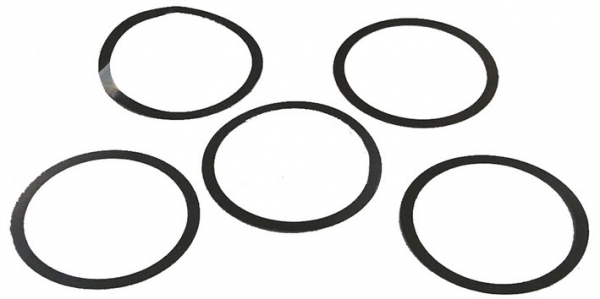

		18-2285 - Shim 15-47397A1 [ More info ] $30.99 $20.94 In Stock
#17	31-35928A 1	TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR (1 required per assembly) LEFT HAND ROTATION
		31-35928A 1 - Tapered Roller Bearing [ More info ] $36.66 10+ In Stock.
		31-35928T 1 - Tapered Roller Bearing [ More info ] $87.92 $46.42 10+ In Stock.

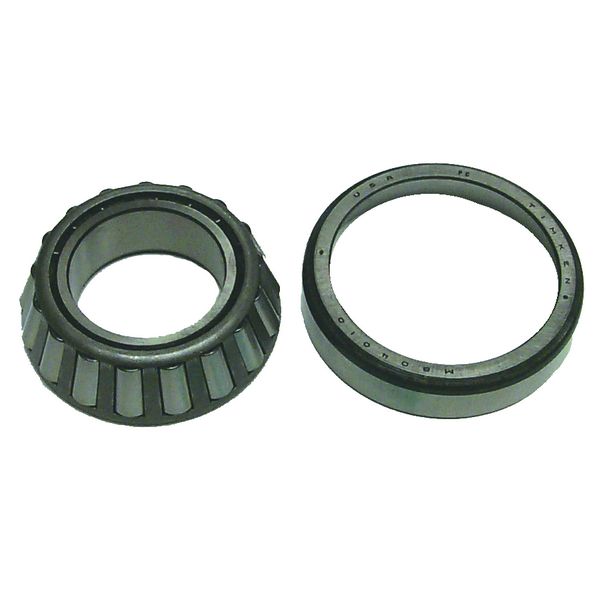

		18-1159 - Bearing 31-35928A1 [ More info ] $40.07 $35.21 1 In Stock.
#18	44-66661	PROPELLER SHAFT (1 required per assembly) LEFT HAND ROTATION
		44-66661 - Propeller Shaft [ More info ] Unavailable
		44-92327 - Prop Shaft [ More info ] Unavailable
		44-92327T 1 - Prop Shaft, NLA [ More info ] $750.00 5 In Stock.
#19	31-66668A 1	TAPERED ROLLER BEARING ASSIMBLY (1 required per assembly) LEFT HAND ROTATION
		31-66668A 1 - Tapered Roller Bearing [ More info ] Unavailable
		31-99328A 1 - Roller Bearing [ More info ] $36.11 1 In Stock.
		31-8M0103470 - Bearing Assembly, Captive [ More info ] $44.25 In Stock
#16	15-47397A 1	SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10) (AR required per assembly) RIGHT HAND ROTATION

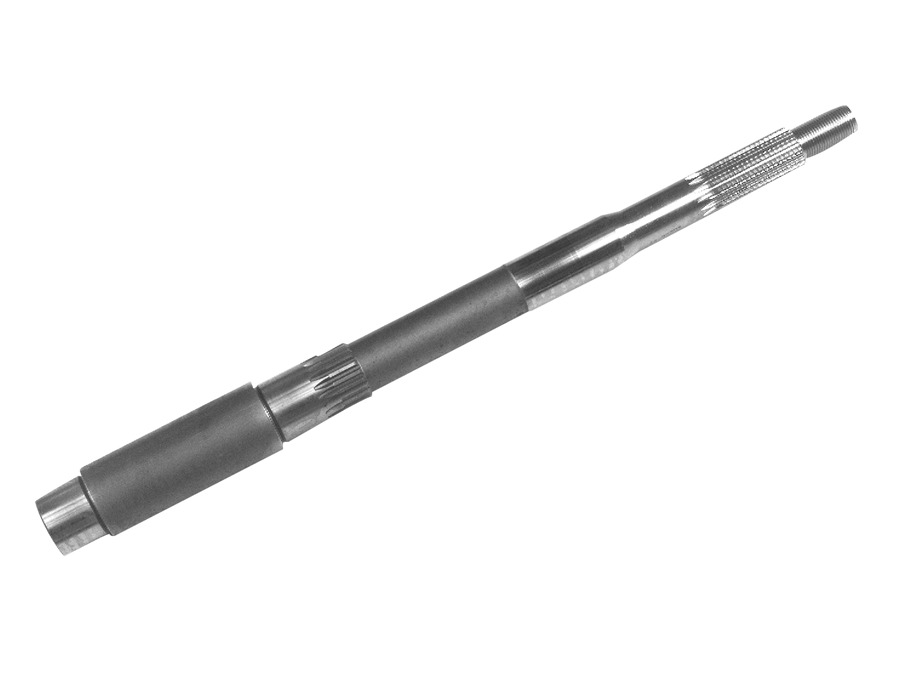

#18	44-66662	PROPELLER SHAFT (1 required per assembly) RIGHT HAND ROTATION
		44-66662 - Prop Shaft [ More info ] Unavailable
		44-92328 - Prop Shaft [ More info ] Unavailable
#20	43-66664	GEAR, DRIVE - MERCRUISER 255 TRS (1 required per assembly)
		43-66664 - Drive Gear [ More info ] $90.00 2 In Stock.
#20	43-70933	GEAR, DRIVE - MERCRUISER 280 TRS (1 required per assembly)
		43-70933 - Drive Gear -18T [ More info ] Unavailable
#21	12-66667	THRUST RING (1 required per assembly)
		12-66667 - Washer, Thrust Ring, NLA [ More info ] $10.00 10+ In Stock.
#22	67440	RING, LOAD - THRUST RING (1 required per assembly)
		67440 - Load Ring [ More info ] Unavailable
		67440T - Load Ring [ More info ] $40.17 In Stock
#23	25-31534	"O" RING, BEARING CARRIER TO THRUST RING (1 required per assembly)
		25-31534 - O-Ring, Bearing Carrier [ More info ] $5.54 10 In Stock.
		25-8M0214920 - BELL HOUSING O-RING Note: Priced Individually [ More info ] $6.10 Available to Order: Usually ships within 10 days.
#24	66663A 1	BEARING CARRIER ASSEMBLY (1 required per assembly)
		66663A 1 - Carrier Assembly [ More info ] Unavailable
#25	31-30956	BEARING, ROLLER - BEARING CARRIER (1 required per assembly)
		31-30956 - Roller Bearing - Bearing Carrier [ More info ] Unavailable
		31-30956T - Roller Bearing [ More info ] $20.43 5 In Stock.
		18-1158 - Bearing 31-30956, 387247 [ More info ] $15.99 $14.48 4 In Stock.
#26	26-76868	OIL SEAL, BEARING CARRIER (2 required per assembly)
		26-76868 - Gearcase Seal - Priced Individually [ More info ] Unavailable
		26-8M0204670 - Gearcase Seal, Priced Individually E/J O/B [ More info ] $18.50 10+ In Stock.
		18-2002 - Seal 26-76868, 320862 [ More info ] $13.99 10+ In Stock.
#27	28-30281	KEY, LOCATING - BEARING CARRIER (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#28	14-52833	TAB WASHER, GEAR HOUSING COVER (1 required per assembly)
		14-52833 - Tab Washer [ More info ] $1.50 10+ In Stock.
		14-79447 - Tab Washer - Priced Individually [ More info ] $13.20 8 In Stock.
		18-2299 - Shim 14-79447 [ More info ] $8.99 $8.14 2 In Stock.
#29	52834	COVER, GEAR HOUSING (1 required per assembly)
		52834 - Gear Housing Cover [ More info ] $9.38 1 In Stock.
		79448 - Retainer [ More info ] Unavailable
		8M2011027 - Bearing Car Retaining Nut [ More info ] Unavailable
		18-3751 - Nut, 79448 [ More info ] $28.99 $26.26 10+ In Stock.
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $40.92 In Stock
#30	56292A 1	THRUST HUB AND WASHER ASSEMBLY (1 required per assembly)
		56292A 1 - Thrust Hub [ More info ] $8.00 10 In Stock.

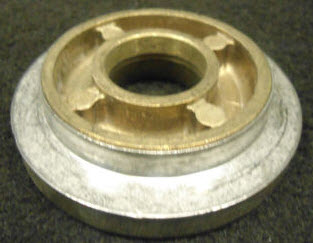

		56292A 2 - Thrust Washer [ More info ] $8.89 10+ In Stock.
		56292A 4 - Thrust Washer Assembly [ More info ] $14.00 2 In Stock.
		56292Q04 - Thrust Washer - Priced Individually [ More info ] $30.56 8 In Stock.
#31	12-35965	WASHER, THRUST - THRUST HUB (1 required per assembly)
		12-35965 - Washer, Cupped - Thrust Hub, NLA [ More info ] $4.95 10+ In Stock.
#32	12-31211	WASHER, THRUST HUB (1 required per assembly)
		12-31211 - Washer, Splined - Propeller Nut [ More info ] Unavailable
		12-31211A 2 - Thrust Washer [ More info ] Unavailable
		12-31211A 3 - Washer, Splined - Propeller Shaft [ More info ] Unavailable
		12-31211Q03 - Washer - Priced Individually [ More info ] $14.45 1 In Stock.
		18-3714 - Washer, 12-31211A2 [ More info ] $10.69 10+ In Stock.
		12-31211K03 - Washer - Priced Individually [ More info ] $14.11 Available to Order: Usually ships within 10 days.
#33	14-31210	TAB WASHER, PROPELLER NUT (1 required per assembly)
		14-31210 - Tab Washer - Priced Individually [ More info ] Unavailable
		14-816629 - Tab Washer [ More info ] $3.99 10+ In Stock.
		14-816629Q - Tab Washer - Priced Individually [ More info ] $5.75 1 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $78.09 $71.73 6 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $5.66 Available to Order: Usually ships within 10 days.
#34	11-52707	NUT, PROPELLER (1 required per assembly)
		11-52707 - Nut, Propeller [ More info ] Unavailable
		11-52707A 1 - Prop Nut Kit [ More info ] Unavailable
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.01 1 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $23.99 $21.76 8 In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $13.99 $13.89 2 In Stock.
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.01 4 In Stock.
#35	25-54029	"O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 required per assembly)
		25-54029 - O-ring (2.8 X .103 In) [ More info ] $4.00 10+ In Stock.
#36	10-47557	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2") (1 required per assembly)
		10-47557 - Screw, NLA [ More info ] $3.33 10+ In Stock.
#37	11-34933	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (1 required per assembly)
		11-34933 - Nut (7/16-20) [ More info ] Unavailable
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.10 8 In Stock.
		18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ] $19.49 $13.18 Available to Order: Usually ships within 10 days.
