Parts for MerCruiser 150 GM 230 I / L6 1964-1966 Carburetor Assembly, Complete (Duel Carb)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1397-2611 | OFF ENGINE KIT (,,1,1 required per assembly) |
 |
|
1397-2611 - Off Engine Kit [ More info ] Unavailable |
| # | 1397-2220 | ALTITUDE KIT (10,000 FT) (,1,,1 required per assembly) |
|
|
1397-2220 - 10,000 Feet Altitude Kit [ More info ] Unavailable |
| # | 1397-2612 | OVERHAUL KIT (,,1,1 required per assembly) |
|
1397-2612 - Overhaul Kit [ More info ] Unavailable |
|
|
|
1397-3463 - Part,NLA [ More info ] Unavailable |
| # | 1397-2216 | ALTITUDE KIT (5,000 FT) (1,,1, required per assembly) |
|
|
1397-2216 - 5,000 Feet Altitude Kit [ More info ] Unavailable |
| # | 1338-2608 | CARBURETOR ASSEMBLY, COMPLETE (BC) (,,1, required per assembly) SERIAL 01823490-01830151 |
|
|
1338-2608 - Carburetor Assembly [ More info ] Unavailable |
| # | 1397-2102 | GASKET KIT 1 (1,1,1,1 required per assembly) |
|
|
1397-2102 - Gasket Kit [ More info ] Unavailable |
| # | 1338-2428 | CARBURETOR ASSEMBLY, COMPLETE (BC) (1,,, required per assembly) SERIAL 00000000-01823489 |
|
1338-2428 - Carburetor [ More info ] Unavailable |
|
| # | 1397-2101 | OFF ENGINE KIT (1,1,, required per assembly) |
|
1397-2101 - OFF ENGINE KIT [ More info ] Unavailable |
|
|
|
1397-3458 - Power Carb Kit, NLA [ More info ]
|
| # | 1397-2219 | ALTITUDE KIT (5,000 FT) (,1,,1 required per assembly) |
|
|
1397-2219 - Jet Kit, NLA [ More info ]
|

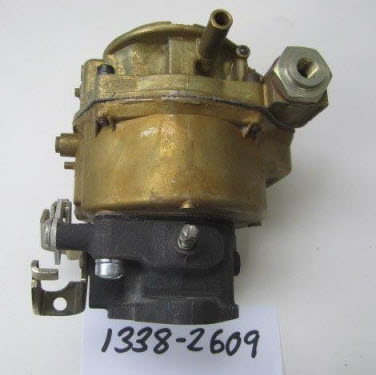

| # | 1338-2609 | CARBURETOR ASSEMBLY, COMPLETE (B) (,,,1 required per assembly) SERIAL 01823490-01830151 |
  |
|
1338-2609 - Carburetor, NLA [ More info ]
|
| # | 1397-2151 | OVERHAUL KIT (1,1,, required per assembly) |
|
1397-2151 - OVERHAUL KIT [ More info ] Unavailable |
|
| # | 1397-2215 | ALTITUDE KIT (5,000 FT) (1,,1, required per assembly) |
|
|
1397-2215 - 5,000 Feet Altitude Kit [ More info ] Unavailable |
| # | 1338-2431 | CARBURETOR ASSEMBLY, COMPLETE (B) (,1,, required per assembly) SERIAL 00000000-01823489 |
|
1338-2431 - Carburetor [ More info ] Unavailable |
|
| #1 | 1397-2429 | AIR HORN ASSEMBLY (1,,1, required per assembly) |
|
|
1397-2429 - Air Horn, NLA [ More info ]
|
| #1 | 1397-2432 | AIR HORN ASSEMBLY (,1,,1 required per assembly) |
|
|
1397-2432 - Air Horn, NLA [ More info ]
|
| #2 | 1397-2050 | PLUG AIR HORN (1,1,1,1 required per assembly) |
|
|
1397-2050 - PLUG,NLA [ More info ] Unavailable |
| #3 | 24-33624 | SPRING, FUEL INLET FILTER NUT - AIR HORN (1,1,1,1 required per assembly) |
|
|
24-33624 - Spring, Fuel Inlet Filter Nut - Air Horn [ More info ]
|
| #4 | 1397-2150 | FILTER, FUEL INLET - AIR HORN (1,1,1,1 required per assembly) |
|
|
1397-2150 - Filter, NLA [ More info ]
|
  |
|
18-7855 - Filter 983870 [ More info ]
|
| #5 | GASKET, FUEL INLET FILTER NUT - AIR HORN (1,1,1,1 required per assembly) | |
| #7 | 11-33631 | NUT, FUEL INLET FILTER - AIR HORN (1,1,1,1 required per assembly) |
|
|
11-33631 - Nut, Fuel Inlet,NLA [ More info ]
|
| #10 | 1397-2430 | MAIN WELL SUPPORT ASSEMBLY (1,,1, required per assembly) |
|
|
1397-2430 - Main Well Support Assembly [ More info ] Unavailable |
| #10 | 1397-2433 | MAIN WELL SUPPORT ASSEMBLY (,1,,1 required per assembly) |
|
|
1397-2433 - Main Well Support Assembly [ More info ] Unavailable |
| #11 | 10-33617 | SCREW, MAIN WELL SUPPORT TO AIR HORN (1,1,1,1 required per assembly) |
|
|
10-33617 - SCREW,NLA [ More info ] Unavailable |
| #12 | 1397-2447 | JET, MAIN WELL SUPPORT (STANDARD) (1,,1, required per assembly) |
|
|
1397-2447 - Jet (.61), NLA [ More info ]
|
| #12 | 1397-2446 | JET, MAIN WELL SUPPORT (STANDARD) (,1,,1 required per assembly) |
|
|
1397-2446 - Main Well Support Jet [ More info ] Unavailable |
| #14 | 10-33622 | SCREW, AIR HORN TO FLOAT BOWL (4,4,4,4 required per assembly) |
|
|
10-33622 - SCREW,NLA [ More info ] Unavailable |
| #15 | 1397-2153 | LEVER, CHOKE - CHOKE SHAFT (1,,1, required per assembly) |
|
|
1397-2153 - Choke Lever [ More info ] Unavailable |
| #16 | 1397-2157 | CHOKE SHAFT ASSEMBLY (1,,1, required per assembly) |
|
|
1397-2157 - Choke Shaft Assembly [ More info ] Unavailable |
| #17 | 1397-2149 | VALVE, CHOKE - CHOKE SHAFT (1,,1, required per assembly) |
|
|
1397-2149 - Choke Valve [ More info ] Unavailable |
| #18 | 10-33045 | SCREW, CHOKE VALVE TO CHOKE SHAFT (2,,2, required per assembly) |
|
|
10-33045 - Screw, NLA [ More info ]
|
| #19 | 1397-2141 | PLUG, IDLE PASSGE - OUTER (AIRORN) (1,1,1,1 required per assembly) |
|
|
1397-2141 - Plug [ More info ] Unavailable |
| #20 | 1397-2143 | PLUG, IDLE PASSAGE - INNER (AIR HORN) (1,1,1,1 required per assembly) |
|
|
1397-2143 - Plug [ More info ] Unavailable |
| #21 | 1397-2148 | PISTON, POWER - AIR HORN (1,1,1,1 required per assembly) |
|
|
1397-2148 - Air Horn [ More info ] Unavailable |
| #22 | 24-33618 | SPRING, POWER PISTON (1,1,, required per assembly) |
|
|
24-33618 - Power Piston Spring [ More info ] Unavailable |
| #23 | 1397-2144 | FLOAT ASSEMBLY (1,1,, required per assembly) N.L.A..- FOR REPLACEMENT,ORDER B-1397-2610 MODIFICATION KIT |
|
|
|
|
|
1397-2610 - Float, NLA [ More info ]
|
| #23 | 1397-2613 | FLOAT ASSEMBLY (,,1,1 required per assembly) |
|
|
1397-2613 - Float Assembly [ More info ] Unavailable |
| #24 | 17-33037 | PIN,HINGE - FLOAT TO AIR BORN (1,1,1,1 required per assembly) |
|
|
17-33037 - Hinge Pin [ More info ] Unavailable |
| #26 | 1397-2164 | FLOAT BOAT ASSEMBLY (1,1,1,1 required per assembly) |
|
|
1397-2164 - Float Bowl Assembly [ More info ] Unavailable |
| #33 | 1397-2165 | THROTTLE BODY ASSEMBLY (1,,1, required per assembly) |
|
|
1397-2165 - Throttle Body Assembly [ More info ] Unavailable |
| #33 | 1397-2169 | THROTTLE BODY ASSEMBLY (,1,,1 required per assembly) |
|
|
1397-2169 - Throttle Body Assembly [ More info ] Unavailable |
| #34 | 24-36445 | SPRING, IDLE ADJUSTING NEEDLE (1,1,1,1 required per assembly) |
|
|
24-36445 - Spring [ More info ] Unavailable |
| #35 | 1397-2142 | IDLE ADJUSTING NEEDLE, THROTTLE BODY (1,1,1,1 required per assembly) |
|
|
1397-2142 - Idle Adjusting Needle [ More info ]
|
| #37 | 1397-2155 | ROD, CHOKE (1,,1, required per assembly) |
|
|
1397-2155 - Choke Rod [ More info ] Unavailable |
| #39 | 1397-2160 | CAM, FAST IDLE - THROTTLE BODY (1,,1, required per assembly) |
|
|
1397-2160 - Throttle Body Cam [ More info ] Unavailable |
| #39 | 1397-2146 | CAM, FAST IDLE - THROTTLE BODY (,1,,1 required per assembly) |
|
|
1397-2146 - Throttle Body Cam [ More info ] Unavailable |
| #40 | 10-33042 | SCREW, FAST IDLE CAM TO THROTTLE BODY (1,1,, required per assembly) |
|
|
10-33042 - Screw, NLA [ More info ] Unavailable |
| #40 | 10-33632 | SCREW, FAST IDLE CAM TO THROTTLE BODY (,,1,1 required per assembly) |
|
10-33632 - SCREW [ More info ] Unavailable |
|
| #41 | 32-33633 | CHOKE TUBE ASSEMBLY, THROTTLE BODY (1,,1, required per assembly) |
|
|
32-33633 - Throttle Body Choke Tube Assembly [ More info ] Unavailable |
| #42 | 11-33627 | NUT, CHOKE TUBE TO CHOKE HOUSING (1,,1, required per assembly) |
|
|
11-33627 - Choke Tube To Choke Housing Nut [ More info ] Unavailable |
| #44 | 1397-2061 | IDLE STOP SCREW, THROTTLE BODY (1,1,1,1 required per assembly) |
|
|
1397-2061 - Idle Stop Screw [ More info ] Unavailable |
| #45 | 1397-2154 | LINK, PUMP TO THROTTLE BODY (1,1,1,1 required per assembly) |
|
|
1397-2154 - Pump To Throttle Body Link [ More info ] Unavailable |
| #47 | 10-33630 | SCREW, THROTTLE BODY TO FLOAT BOWL (2,2,2,2 required per assembly) |
|
|
10-33630 - SCREW,NLA [ More info ] Unavailable |

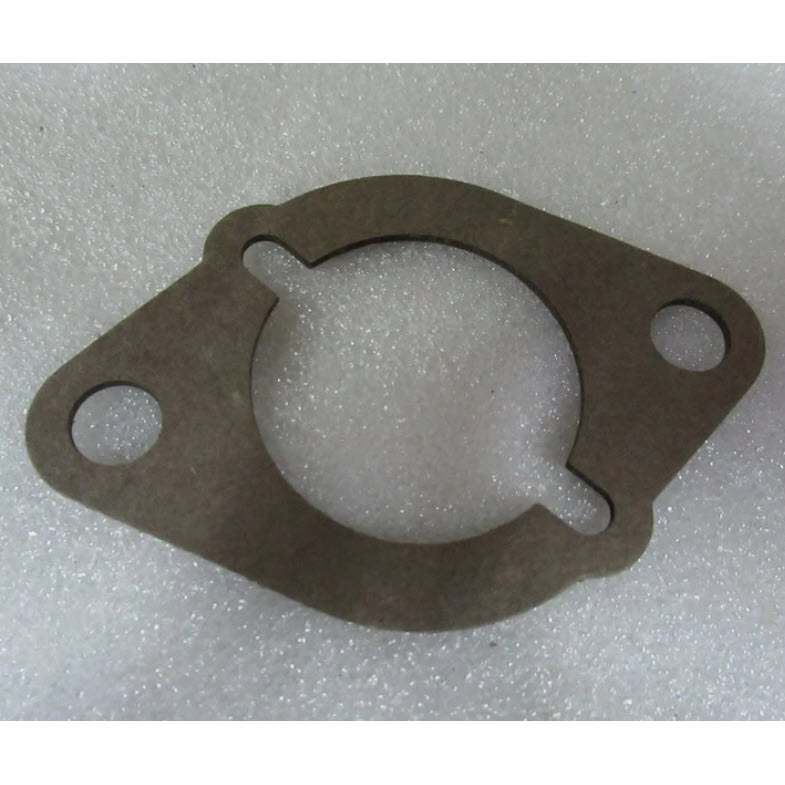

| #48 | 27-33460 | GASKET, CARBURETOR FLANGE (1,1,1,1 required per assembly) |
|
|
27-33460 - Remote Control # 379517 , NLA [ More info ]
|
| #49 | 1397-2152 | CHOKE HOUSING ASSEMBLY (1,,1, required per assembly) |
|
|
1397-2152 - Choke Housing Assembly [ More info ] Unavailable |
| #50 | 19-33041 | WELCH PLUG, CHOKE HOUSING (1,,1, required per assembly) |
|
|
19-33041 - Welch Plug, Choke Housing, NLA [ More info ]
|
| #51 | 10-33053 | SCREW, CHOKE HOUSING TO AIR HORN (2,,2, required per assembly) |
|
|
10-33053 - SCREW,NLA [ More info ] Unavailable |
| #52 | 1397-2167 | LEVER ASSEMBLY, CHOKE PISTON (1,,1, required per assembly) |
|
|
1397-2167 - Choke Piston Lever Assembly [ More info ] Unavailable |
| #53 | 1397-2059 | CHOKE PISTON, CHOKE HOUSING (1,,1, required per assembly) |
|
|
1397-2059 - Choke Housing [ More info ] Unavailable |
| #54 | 17-33049 | PIN, CHOKE PISTON TO CHOKE PISTON LEVER (1,,1, required per assembly) |
|
|
17-33049 - Pin [ More info ] Unavailable |
| #55 | 10-33056 | SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING (1,,1, required per assembly) |
|
|
10-33056 - SCREW,NLA [ More info ] Unavailable |
| #56 | 1397-2110 | PLATE, BAFFLE - CHOKE HOUSING (1,,1, required per assembly) |
|
|
1397-2110 - PLATE,NLA [ More info ] Unavailable |
| #58 | 1397-2163 | STAT COVER AND COIL ASSEMBLY (3,,3, required per assembly) |
|
|
1397-2163 - Stat Cover And Coil Assembly [ More info ] Unavailable |
| #59 | 54-33036 | RETAINER, STAT COVER AND COIL SCREW (3,,3, required per assembly) |
|
|
|
| #60 | 10-33047 | SCREW, STAT COVER AND COIL TO CHGOKE HOUSING (3,,3, required per assembly) |
|
|
10-33047 - Screw, NLA [ More info ]
|
